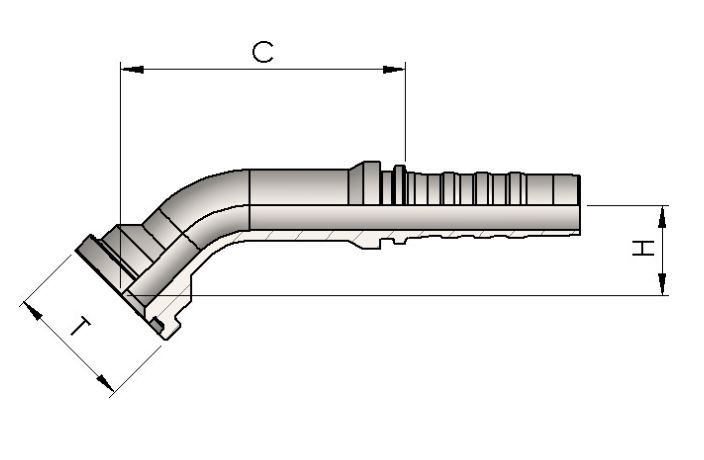

SAE flange 6000 - 45°

SAE flange 6000 - 45°

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type
NS0808PH45 1/2" Insert (No-Skive) - 1/2" SAE6000 flange-45°-1200N08-08 1/2 " 45 ° For separate ferrule
NS1212PH45 3/4" Insert (No-Skive) - 3/4" SAE6000 - 45°-1200N12-12 3/4 " 45 ° For separate ferrule
NS1216PH45 3/4" Insert (No-Skive) - 1" SAE6000 flange - 45°-1200N12-16 3/4 " 45 ° For separate ferrule
NS1616PH45 1" Insert (No-Skive) - 1" SAE6000 flange - 45° - 1200N16-16 1 " 45 ° For separate ferrule
NS1620PH45 1" Insert (No-Skive) - 1.1/4" SAE6000 - 45° - 1200N16-20 1 " 45 ° For separate ferrule
NS2016PH45 1.1/4" Indstik (No-Skive) - 1" SAE6000 - 45° -1200N20-16 1.1/4 " 45 ° For separate ferrule
NS2024PH45 1.1/4" Insert (No-Skive) - 1.1/2" SAE6000 - 45°-1200N20-24 1.1/4 " 45 ° For separate ferrule
NS2420PH45 1.1/2" Insert (No-Skive) - 1.1/4" SAE6000 - 45°-1200N24-20 1.1/2 " 45 ° For separate ferrule
NS2424PH45 1.1/2" Insert (No-Skive) - 1.1/2" SAE6000 - 45°-1200N24-24 1.1/2 " 45 ° For separate ferrule
NS2432PH45 1.1/2" Insert (No-Skive) -2" SAE6000 - 45°-1200N24-32 1.1/2 " 45 ° For separate ferrule
Angle
45
Flange SAE/DIN
6000 PSI
Hose coupling type
For separate ferrule
