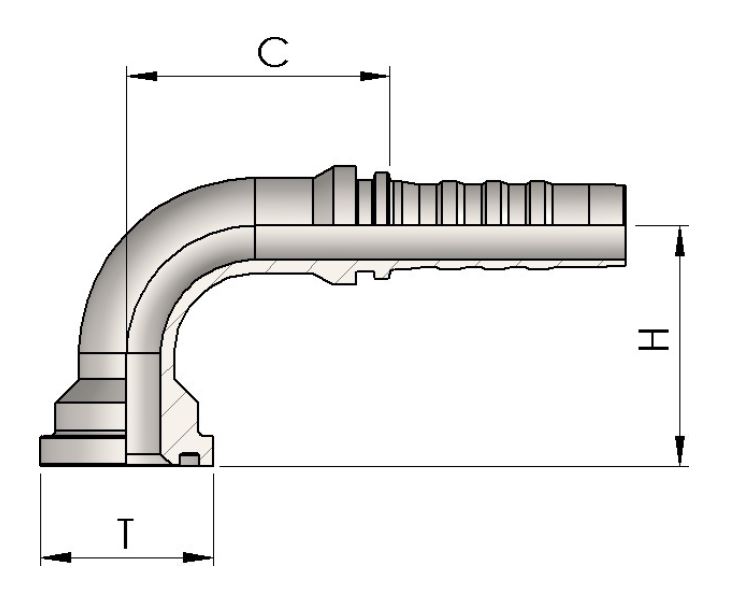

SAE flange 3000 - 90°

SAE flange 3000 - 90°

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Angle Hose coupling type
NS0808PA90 1/2" Insert (No-Skive) - 1/2" SAE3000 flange -90°-1050N08-08 1/2 " 90 ° For separate ferrule
NS1212PA90 3/4" Insert (No-Skive) - 3/4" SAE3000 flange-90°-1050N12-12 3/4 " 90 ° For separate ferrule
NS1216PA90 3/4" Insert (No-Skive) - 1" SAE3000 flange-90°-1050N12-16 3/4 " 90 ° For separate ferrule
NS1616PA90 1" Insert (No-Skive) - 1" SAE3000 flange-90°-1050N16-16 1 " 90 ° For separate ferrule
NS1620PA90 1" Insert (No-Skive) - 1.1/4" SAE3000 flange-90°-1050N16-20 1 " 90 ° For separate ferrule
NS2020PA90 1.1/4" Insert (No-Skive) - 1.1/4" SAE3000 -90°-1050N20-20 1.1/4 " 90 ° For separate ferrule
NS2024PA90 1.1/4" Insert (No-Skive) - 1.1/2" SAE3000 -90°-1050N20-24 1.1/4 " 90 ° For separate ferrule
NS2424PA90 1.1/2" Insert (No-Skive) - 1.1/2" SAE3000 -90°-1050N24-24 1.1/2 " 90 ° For separate ferrule
Angle
90
Flange SAE/DIN
3000 PSI
Hose coupling type
For separate ferrule
