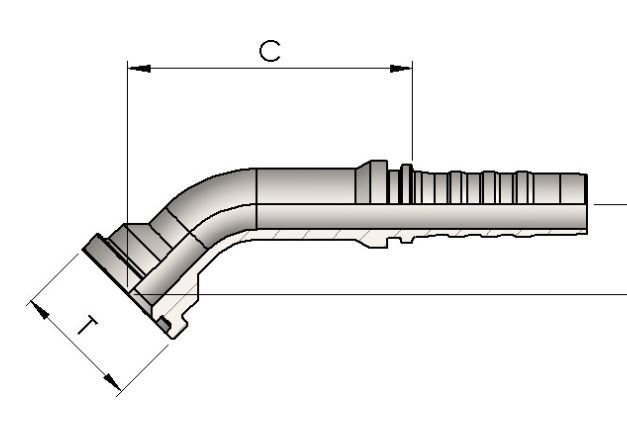

SAE flange 3000 - 45°

3/4" Insert (No-Skive) - 3/4" SAE3000 flange-45°-1150N12-12

3/4" Insert (No-Skive) - 1" SAE3000 flange - 45°-1150N12-16

1" Insert (No-Skive) - 1" SAE3000 flange - 45° - 1150N16-16

1" Insert (No-Skive) - 1.1/4" SAE3000 flange-45°-1150N16-20

1.1/4" Insert (No-Skive) - 1.1/2" SAE3000 - 45°-1150N20-24

1.1/2" Insert (No-Skive) - 1.1/2" SAE3000 - 45°-1150N24-24

SELECT VARIANT

Partnumber	Description	Hose size	Angle	Hose coupling type
NS1212PA45	3/4" Insert (No-Skive) - 3/4" SAE3000 flange-45°-1150N12-12	3/4 "	45 °	For separate ferrule
NS1216PA45	3/4" Insert (No-Skive) - 1" SAE3000 flange - 45°-1150N12-16	3/4 "	45 °	For separate ferrule
NS1616PA45	1" Insert (No-Skive) - 1" SAE3000 flange - 45° - 1150N16-16	1 "	45 °	For separate ferrule
NS1620PA45	1" Insert (No-Skive) - 1.1/4" SAE3000 flange-45°-1150N16-20	1 "	45 °	For separate ferrule
NS2024PA45	1.1/4" Insert (No-Skive) - 1.1/2" SAE3000 - 45°-1150N20-24	1.1/4 "	45 °	For separate ferrule
NS2424PA45	1.1/2" Insert (No-Skive) - 1.1/2" SAE3000 - 45°-1150N24-24	1.1/2 "	45 °	For separate ferrule

Angle

Brand Name

I.M.M Hydraulics

Flange SAE/DIN

3000 PSI

Hose coupling type

For separate ferrule
