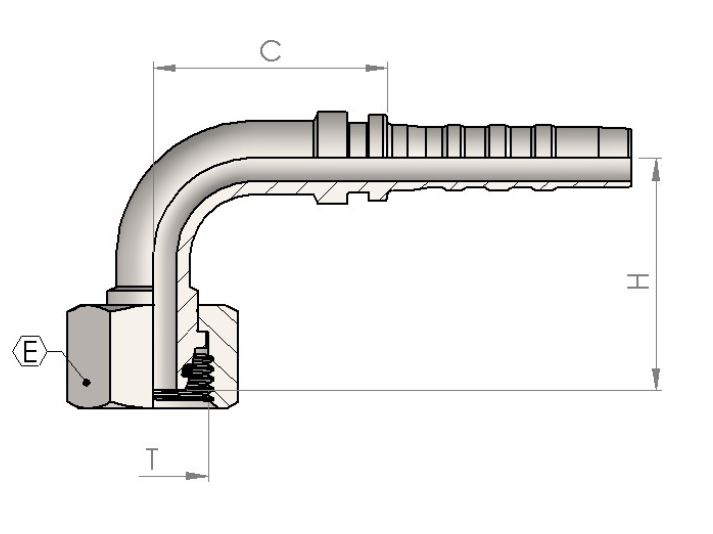

Insert MM nut 90°

VÄLJ VARIANT
Artikelnummer Beskrivning Slangestørrelse Vinkel Slangekoblingstype
NS0612RO18A90 3/8" Insert (No-Skive) - (12L) M18x1.5 nut - 90°-0185N06-18 3/8 " 90 ° For separate ferrule
NS0612RO20A90 3/8" Insert (No-Skive) - (12S) M20x1.5 nut - 90°-0184N06-20 3/8 " 90 ° For separate ferrule
NS0815RO22A90 1/2" Insert (No-Skive) - (15L) M22x1.5 nut - 90°-0185N08-22 1/2 " 90 ° For separate ferrule
NS0816RO24A90 1/2" Insert (No-Skive) - (16S) M24x1.5 nut - 90°-0184N08-24 1/2 " 90 ° For separate ferrule
NS1018RO26A90 5/8" Insert (No-Skive) - (18L) M22x1.5 nut - 90°-0185N10-26 5/8 " 90 ° For separate ferrule
NS1020RO30B90 5/8" Insert (No-Skive) - (20S) M30x2 nut - 90° - 0184N10-30 5/8 " 90 ° For separate ferrule
NS1220RO30B90 3/4" Insert (No-Skive) - (20S) M30x2 nut - 90° - 0184N12-30 3/4 " 90 ° For separate ferrule
NS1222RO30B90 3/4" Insert (No-Skive) - (22L) M30x2 nut - 90° - 0185N12-30 3/4 " 90 ° For separate ferrule
NS1225RO36B90 3/4" Insert(No-Skive) - (25S) M36x2 nut - 90° - 0184N12-36 3/4 " 90 ° For separate ferrule
NS1625RO36B90 1" Insert (No-Skive) - (25S) M36x2 nut - 90° - 0184N16-36 1 " 90 ° For separate ferrule
NS1628RO36B90 1" Insert (No-Skive) - (28L) M36x2 nut - 90° - 0185N16-36 1 " 90 ° For separate ferrule
NS1630RO42B90 1" Insert(No-Skive) - (30S) M42x2 nut - 90° - 0184N16-42 1 " 90 ° For separate ferrule
NS2035RO45B90 1.1/4" Insert (No-Skive) - (35L) M45x2 nut - 90° 0185N20-45 1.1/4 " 90 ° For separate ferrule
NS2038RO52B90 1.1/4" Insert (No-Skive) - (38S) M52x2 nut - 90° -0184N20-52 1.1/4 " 90 ° For separate ferrule
NS2438RO52B90 1.1/2" Insert (No-Skive) - (38S) M52x2 nut - 90° -0184N24-52 1.1/2 " 90 ° For separate ferrule
NS2442RO52B90 1.1/2" Insert (No-Skive) - (42L) M45x2 nut - 90° 0185N24-52 1.1/2 " 90 ° For separate ferrule
Mærke navn
I.M.M Hydraulics

Slangekoblingstype
For separate ferrule

Vinkel
90
