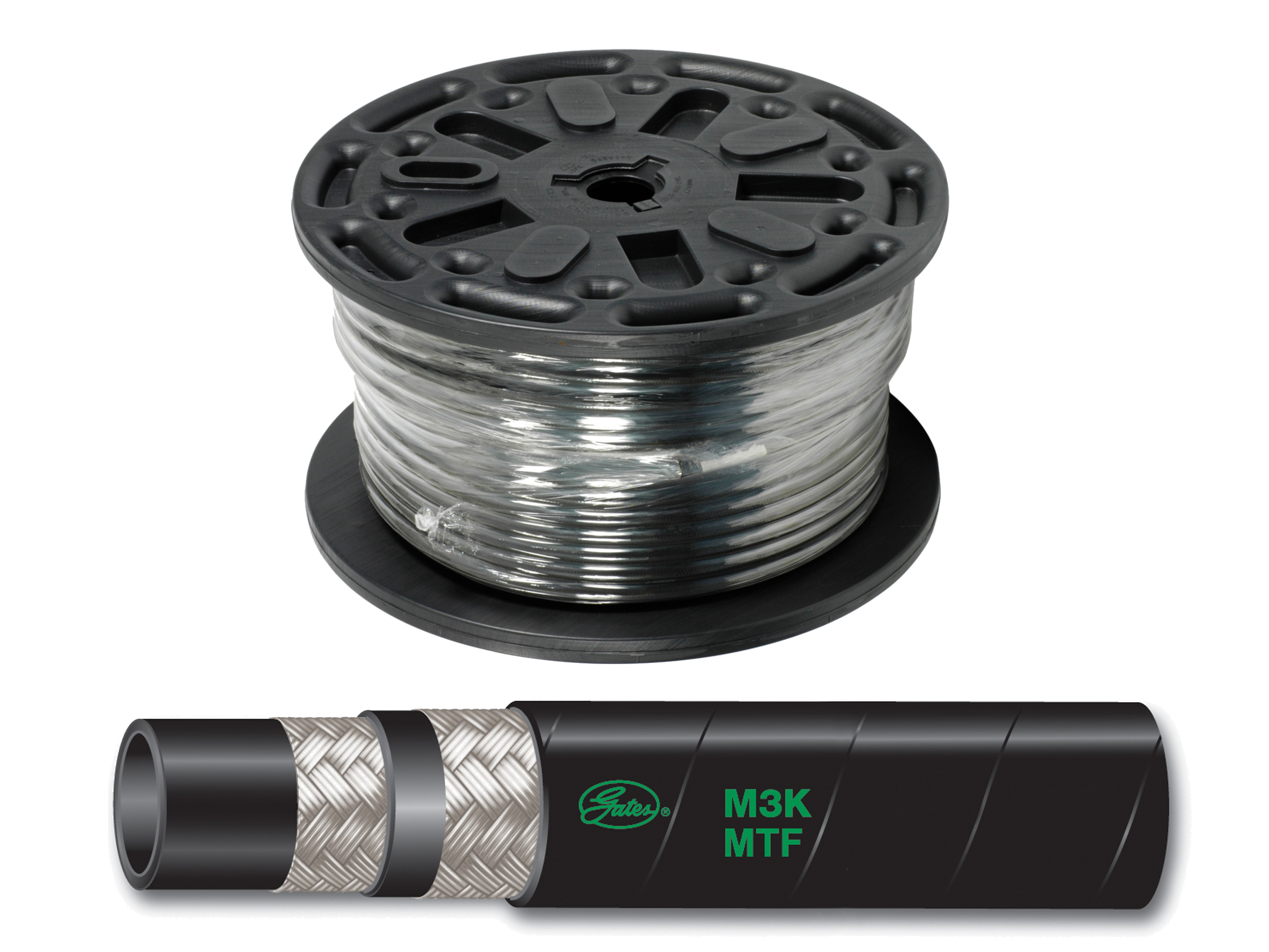

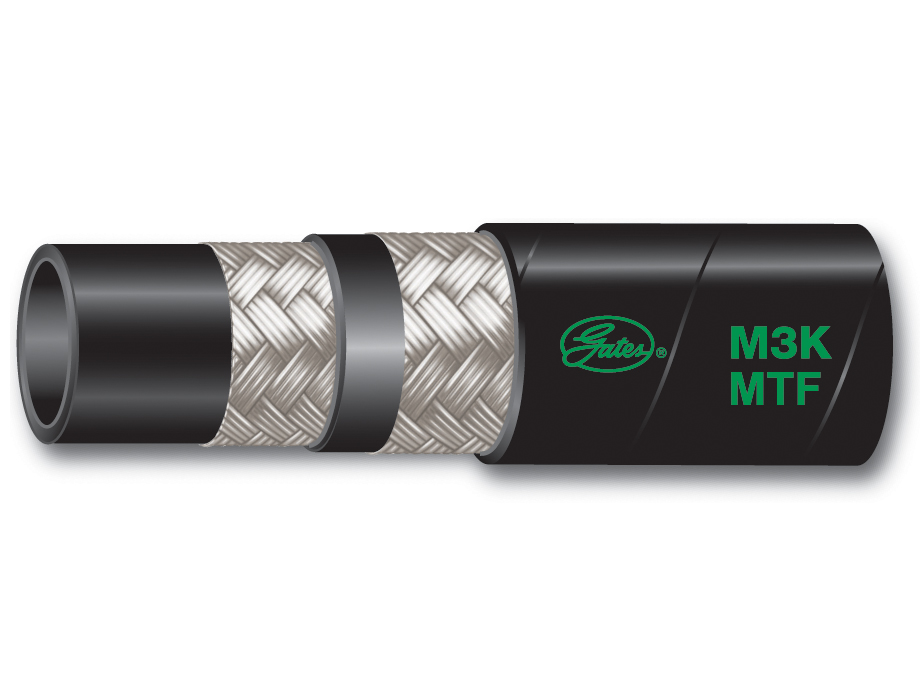

M3K - MegaTuff / XtraTuff hydraulic hoses

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
04M3K-MTF	1/4" Hydraulic hose M3K-MegaTuff - 225 bar	1/4 "	225 bar	M3K-MTF	40 mm
04M3K-XTF	1/4" Hydraulic hose M3K-XtraTuff - 225 bar	1/4 "	225 bar	M3K-XTF	40 mm
05M3K-XTF	5/16" Hydraulic hose M3K-XtraTuff - 225 bar	5/16 "	225 bar	M3K-XTF	45 mm
06M3K-MTF	3/8" Hydraulic hose M3K-MegaTuff - 225 bar	3/8 "	225 bar	M3K-MTF	50 mm
06M3K-XTF	3/8" Hydraulic hose M3K-XtraTuff - 225 bar	3/8 "	225 bar	M3K-XTF	50 mm
08M3K-MTF	1/2" Hydraulic hose M3K-MegaTuff - 225 bar	1/2 "	225 bar	M3K-MTF	70 mm
08M3K-XTF	1/2" Hydraulic hose M3K-XtraTuff - 225 bar	1/2 "	225 bar	M3K-XTF	70 mm
16M3K-MTF	1" Hydraulic hose M3K-MegaTuff - 225 bar - 2SC	1 "	225 bar	M3K-MTF	115 mm

Area of use

Diesel, Grease, Oil, Water

Brand Name

Gates

Flameresistant

Yes

Hoseapprovals

ABS, BV, DNV, LR, MSHA

Pressure burst min.

900

Pressure max.

225

REACH compliant

Yes

Reinforcement

1 layer high tensile steel wire braid

RoHs compliant

Yes

Standard EN

EN 857 1SC, EN 857 2SC

Standard ISO

ISO 11237 R17, ISO 18752 TYPE B

Standard SAE

SAE 100R17

Temperature intermittent max.

+121

Temperature max.

+100

Temperature min.

-40

Tube

NBR (Nitrile)
