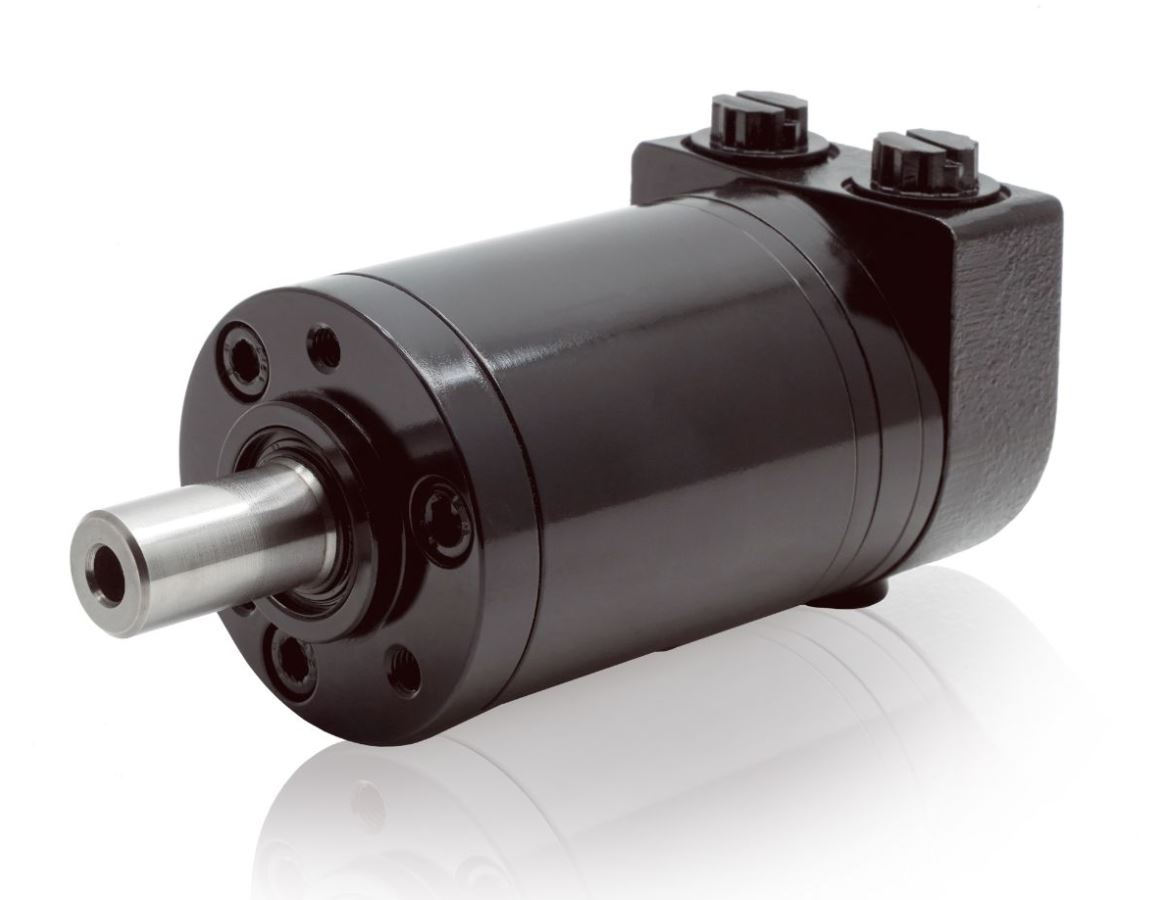

Orbitmotor WM

Orbitmotor WM

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Shaft diameter Shaft type Displacement Continuous rotation max.
125008JKBC4AAAAA WM 008 Orbital Motor 3-Hole M6 Side Ports G 3/8 16mm 16mm straight 8.4 cm3 1864 rpm
125008JMBC4ZAAAA WM 008 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 8.4 cm3 1864 rpm
125012JKBC4AAAAA WM 012 Orbital Motor 3-Hole M6 Side Ports G 3/8 16mm 16 mm 16mm straight 13.1 cm3 1521 rpm
125012JMBC4AAAAA WM 012 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16 mm 16mm straight 13.1 cm3 1521 rpm
125012JMBC4ZAAAA WM 012 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16 mm 16mm straight 13.1 cm3 1521 rpm
125017004 WM125 2-hole flange mounting kit 16mm straight
125020JKBC4AAAAA WM 020 Orbital Motor 3-Hole M6 Side Ports G 3/8 16mm 16mm straight 20.1 cm3 989 rpm
125020JMBC4AAAAA WM 020 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 20.1 cm3 989 rpm
125020JMBC4ZAAAA WM 020 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 20.1 cm3 989 rpm
125032JKBC4AAAAA WM 032 Orbital Motor 3-Hole M6 Side Ports G 3/8 16mm 16mm straight 31.8 cm3 622 rpm
125032JMBC4AAAAA WM 032 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 31.8 cm3 622 rpm
125032JMBC4ZAAAA WM 032 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 31.8 cm3 622 rpm
125040JMBC4ZAAAA WM 040 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 40.2 cm3 495 rpm
125050JKBC4AAAAA WM 050 Orbital Motor 3-Hole M6 Side Ports G 3/8 16mm 16mm straight 50.3 cm3 397 rpm
125050JMBC4AAAAA WM 050 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 50.3 cm3 397 rpm
125050JMBC4ZAAAA WM 050 Orbital Motor 3-Hole M6 End Ports G 3/8 16mm 16mm straight 50.3 cm3 397 rpm
Brand Name
Impro Fluidtek
Oil viscocity recommended
20 - 43
Shaft type
16mm straight
Temperature max.
+85
Temperature min.
-30
