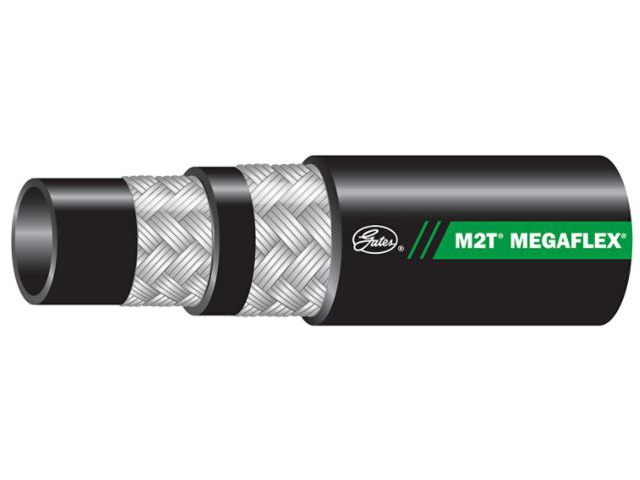

M2T - MegaTuff hydraulic hoses

M2T - MegaTuff hydraulic hoses

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Hose size Pressure max. Hose type Bend radius
04M2T-MTF 1/4" Hydraulic hose M2T-MegaTuff - 420 bar - 2SC 1/4 " 420 bar 2SC 40 mm
05M2T-MTF 5/16" Hydraulic hose M2T-MegaTuff - 380 bar - 2SC 5/16 " 380 bar 2SC 45 mm
06M2T-MTF 3/8" Hydraulic hose M2T-MegaTuff - 350 bar - 2SC 3/8 " 350 bar 2SC 50 mm
08M2T-MTF 1/2" Hydraulic hose M2T-MegaTuff - 296 bar - 2SC 1/2 " 296 bar 2SC 70 mm
10M2T-MTF 5/8" Hydraulic hose M2T-MegaTuff - 262 bar - 2SC 5/8 " 262 bar 2SC 75 mm
12M2T-MTF 3/4" Hydraulic hose M2T-MegaTuff - 241 bar - 2SC 3/4 " 241 bar 2SC 95 mm
16M2T-MTF 1" Hydraulic hose M2T-MegaTuff - 172 bar - 2SC 1 " 172 bar 2SC 115 mm
Brand Name
Gates
Flameresistant
Yes
Hose type
2SC
Hoseapprovals
ABS, BV, DNV, LR, MSHA
Order unit
Single hose
REACH compliant
Yes
RoHs compliant
Yes
Standard EN
EN 853 2SN, EN 857 2SC
Standard ISO
ISO 11237 2SC, ISO 11237 R16, ISO 1436 2SN R2
Standard SAE
SAE 100R16, SAE 100R2
Temperature max.
+100
Temperature min.
-40
