Partnumber Description Motor size Diameter mountinghole Recess towards engine Depth

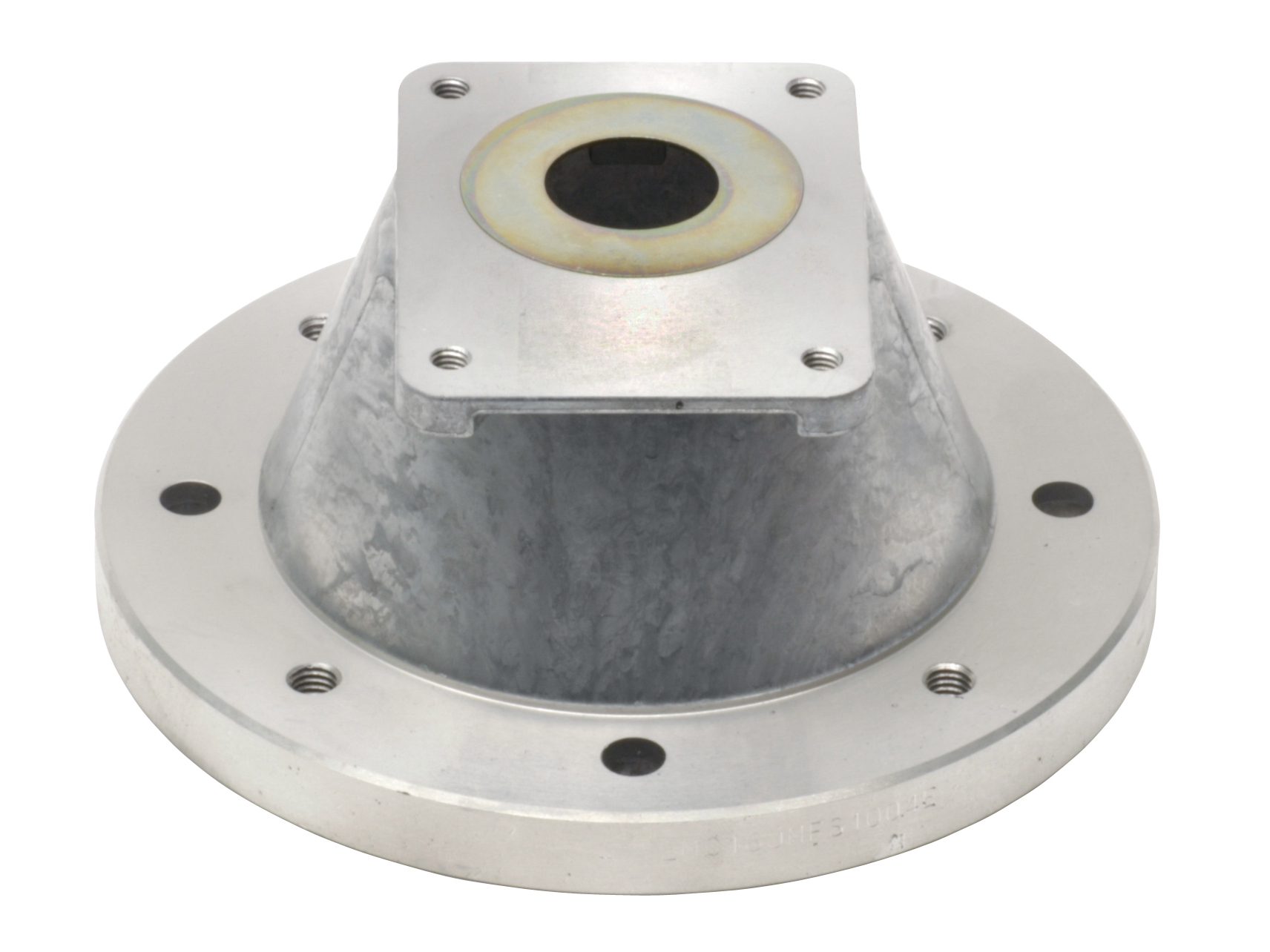

LMC160S1004E Bell housing gr. 1 x B5/71 LMG160MFS1004E 71 IEC 110 mm 110 mm 70 mm

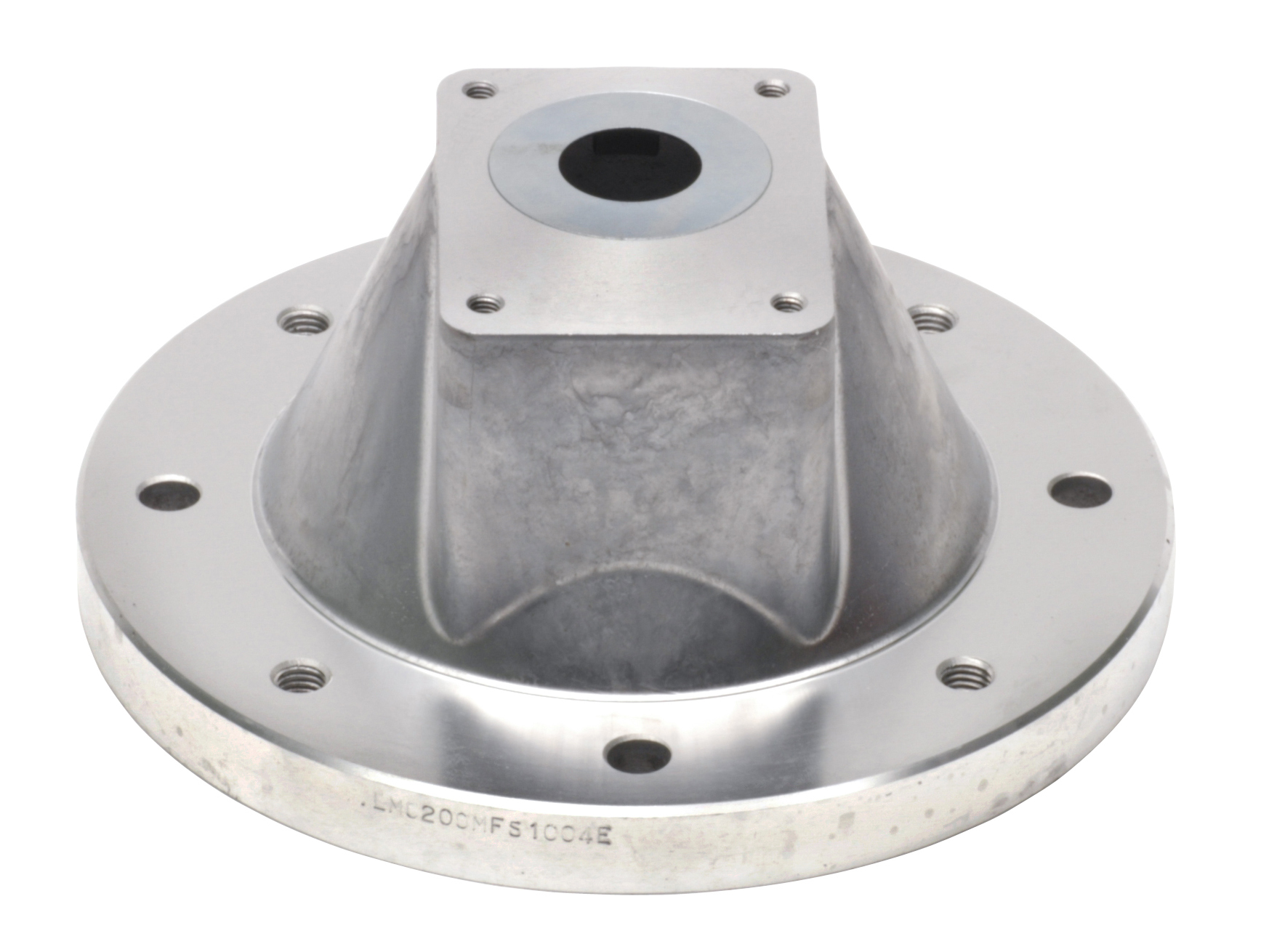

LMC200M1004E Bell housing gr. 1 x B5/80 LMG200MFS1004E 80 IEC 135 mm 130 mm 87 mm

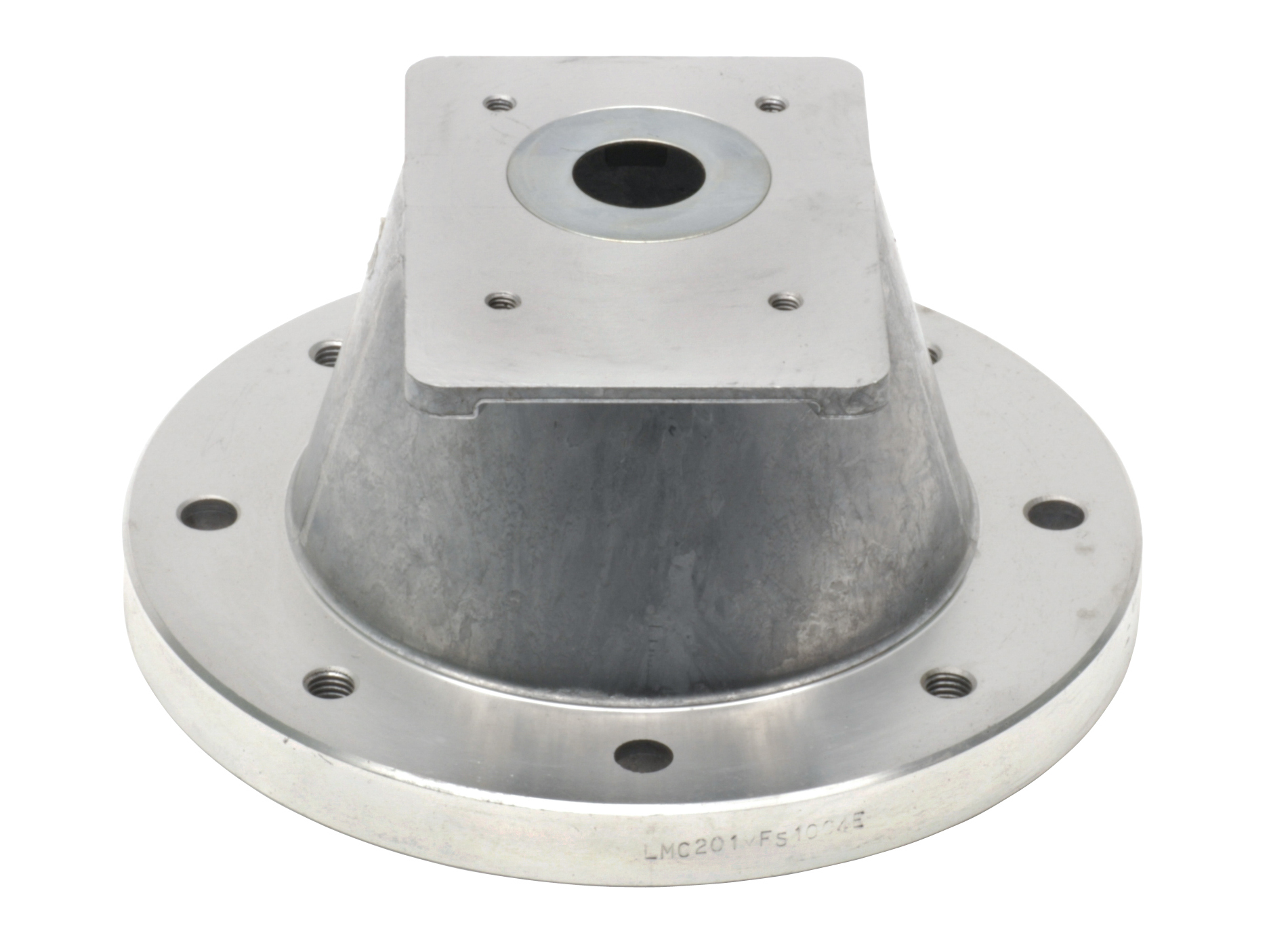

LMC201M1004E Bell housing gr. 1 x B5/90 LMG201MFS1004E 90 IEC 135 mm 130 mm 95 mm
LMC250M1004S Bell housing gr.1 x B5/100-112 LMG250MFS1004S 100, 112 IEC 185 mm 180 mm 105 mm
Brand Name
MP Filtri
Material
Aluminium
Mountingtype
B5
Pump group
1
Temperature max.
+80
Temperature min.
-30
