    • Check valves DIN2353 BSP - S-Series

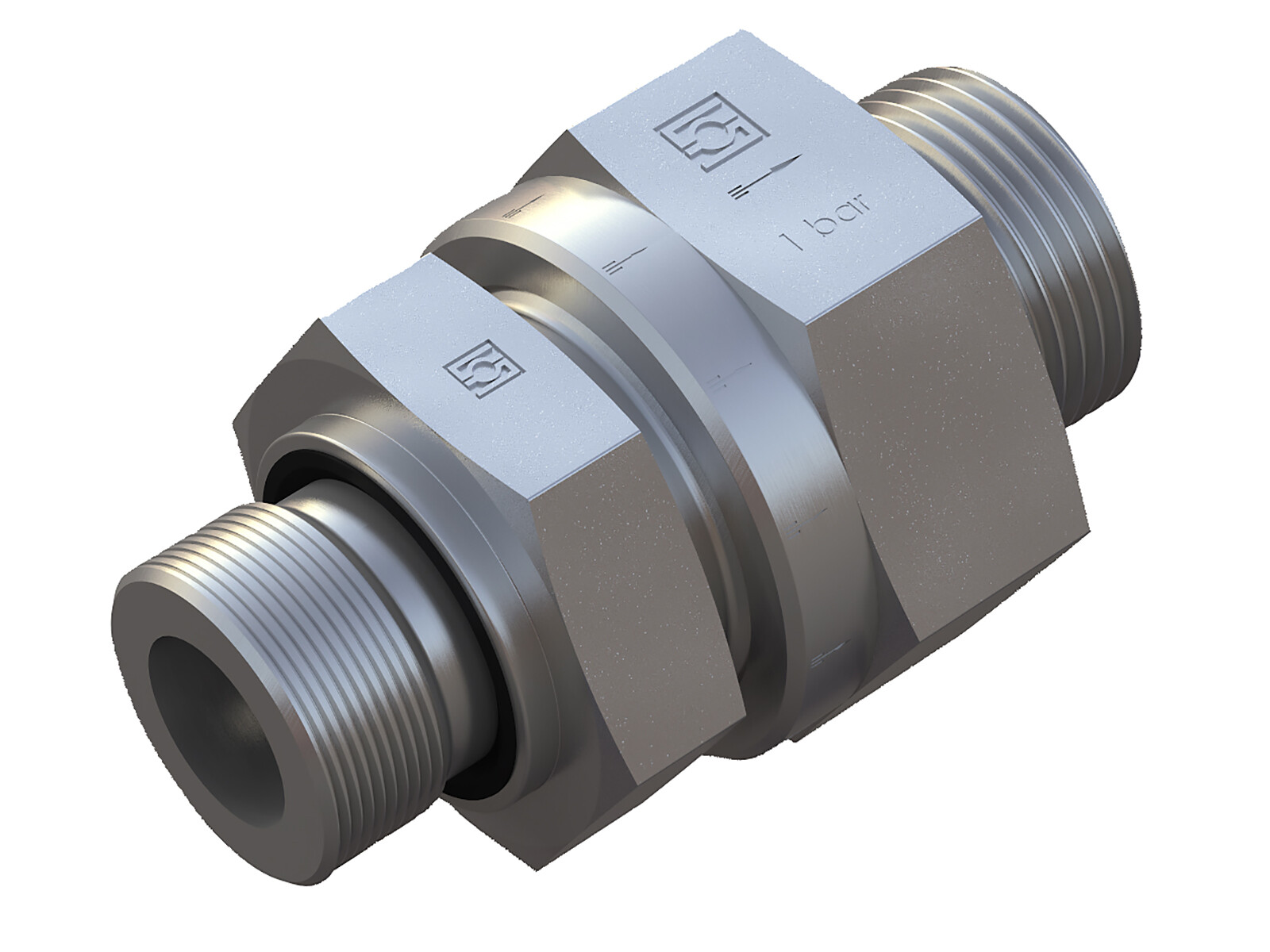

    Check valves DIN2353 BSP - S-Series

    Välj variant
    VÄLJ VARIANT
    VÄLJ VARIANT
    Artikelnummer Beskrivning Diameter pipe Thread Pressure opening Pressure max.
    FXRVV06SR14WD Check valve (<-) - ø06S x 1/4" BSP - 1 bar - WD seal 400 bar
    FXRVV08SR14WD Check valve (<-) - ø8S x 1/4" BSP - 1 bar - WD seal 400 bar
    FXRVV10SR38WD Check valve (<-) - ø10S x 3/8" BSP - 1 bar - WD seal 400 bar
    FXRVV12SR38WD Check valve (<-) - ø12S x 3/8" BSP - 1 bar - WD seal 400 bar
    FXRVV14SR12WD Check valve (<-) - ø14S 1/2" BSP - 1 bar - WD seal 400 bar
    FXRVV16SR12WD Check valve (<-) - ø16S x 1/2" BSP - 1 bar - WD seal 16 mm G 1/2 BSP 1 bar 400 bar
    FXRVV20SR34WD Check valve (<-) - ø20S x 3/4" BSP - 1 bar - WD seal 400 bar
    FXRVV25SR1WD Check valve (<-) - ø25S x 1" BSP - 1 bar - WD seal 25 mm G 3/4 BSP 1 bar 250 bar
    FXRVV30SR114WD Check valve (<-) - ø30S x 1.1/4" BSP - 1 bar - WD seal 250 bar
    FXRVV38SR112WD Check valve (<-) - ø38S x 1.1/2" BSP - 1 bar - WD seal 250 bar
    Safety factor
    4
    Temperature max.
    +100
    Temperature min.
    -40
