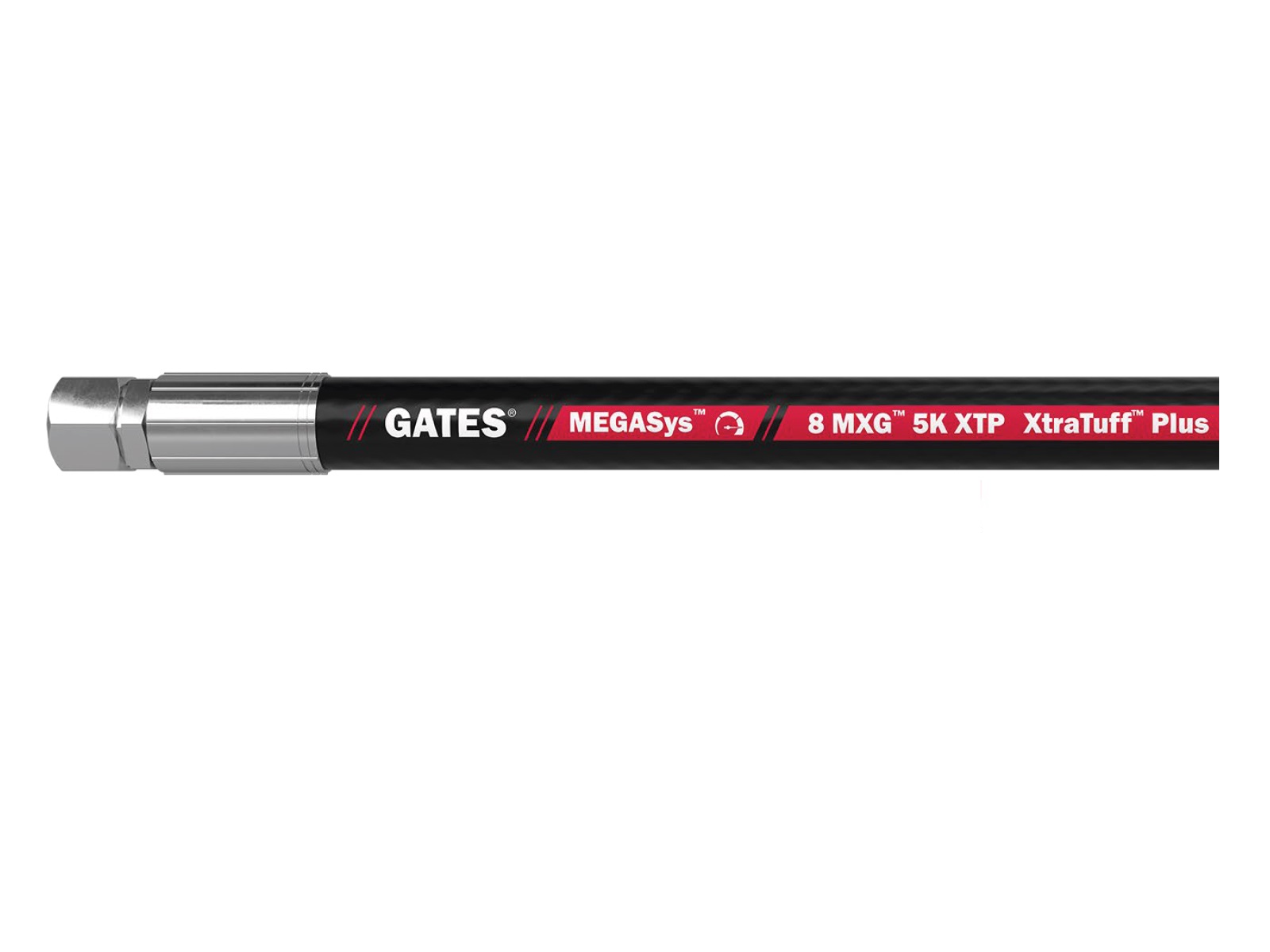

MXG5K hydraulic hoses

3/8" Hydraulic hose MXG-5K - XTP - 350 bar

1/2" Hydraulic hose MXG-5K - XTP - 350 bar

5/8" Hydraulic hose MXG-5K - XTP - 350 bar

3/4" Hydraulic hose MXG-5K - XTP - 350 bar

SELECT VARIANT

Partnumber	Description	Hose size	Pressure max.	Hose type	Bend radius
06MXG5K-XTP	3/8" Hydraulic hose MXG-5K - XTP - 350 bar	3/8 "	350 bar	MXG5K	65 mm
08MXG5K-XTP	1/2" Hydraulic hose MXG-5K - XTP - 350 bar	1/2 "	350 bar	MXG5K	90 mm
10MXG5K-XTP	5/8" Hydraulic hose MXG-5K - XTP - 350 bar	5/8 "	350 bar	MXG5K	100 mm
12MXG5K-XTP	3/4" Hydraulic hose MXG-5K - XTP - 350 bar	3/4 "	350 bar	MXG5K	120 mm

Brand Name

Gates

Cover

XtraTuff®

Flameresistant

Yes

Hose type

MXG5K

Hoseapprovals

MSHA

Pressure burst min.

1400

Pressure max.

350

REACH compliant

Yes

Reinforcement

4 spirally woven steel wires

RoHs compliant

Yes

Temperature max.

+121

Temperature min.

-40

Tube

Synthetic rubber
