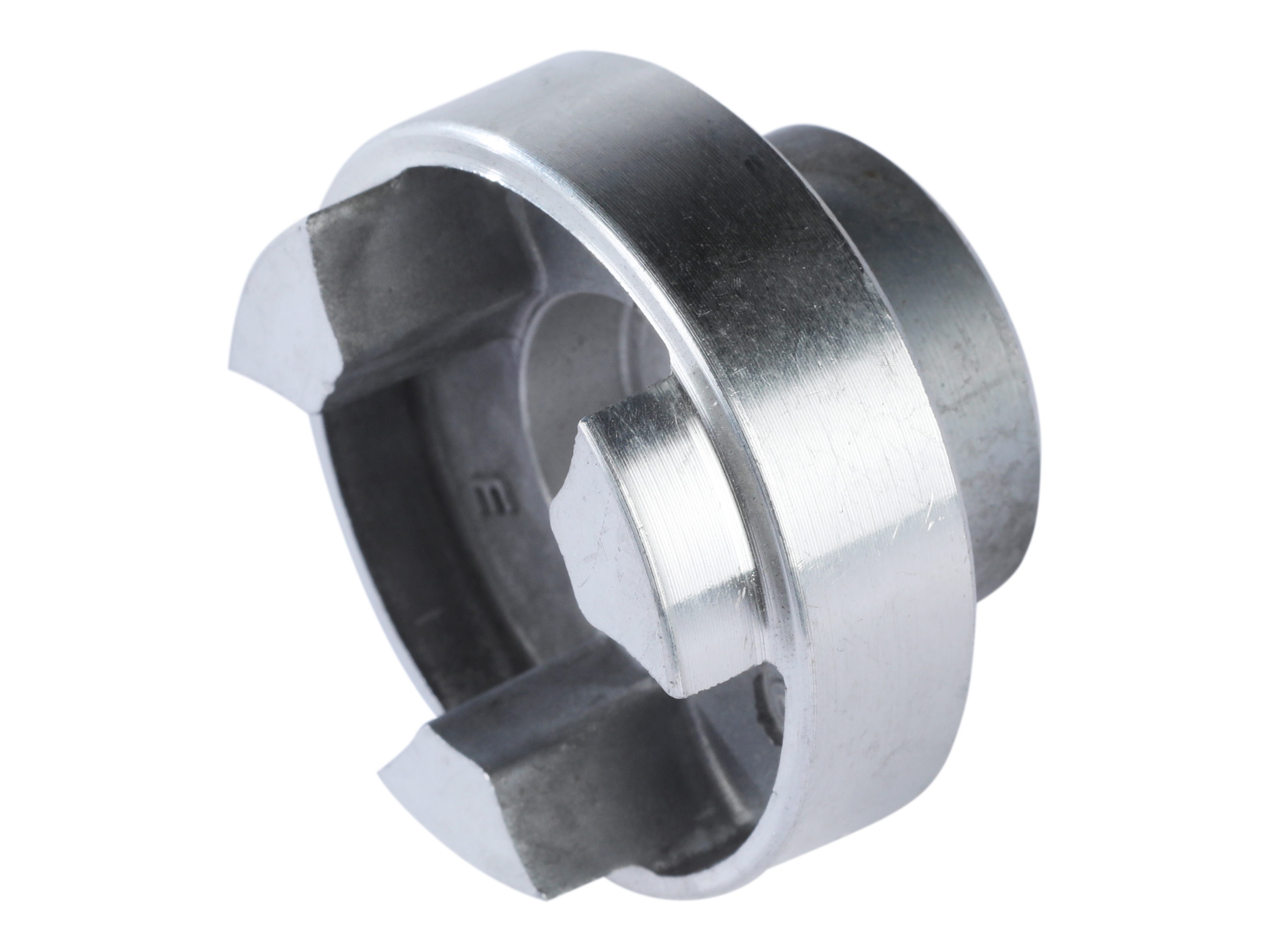

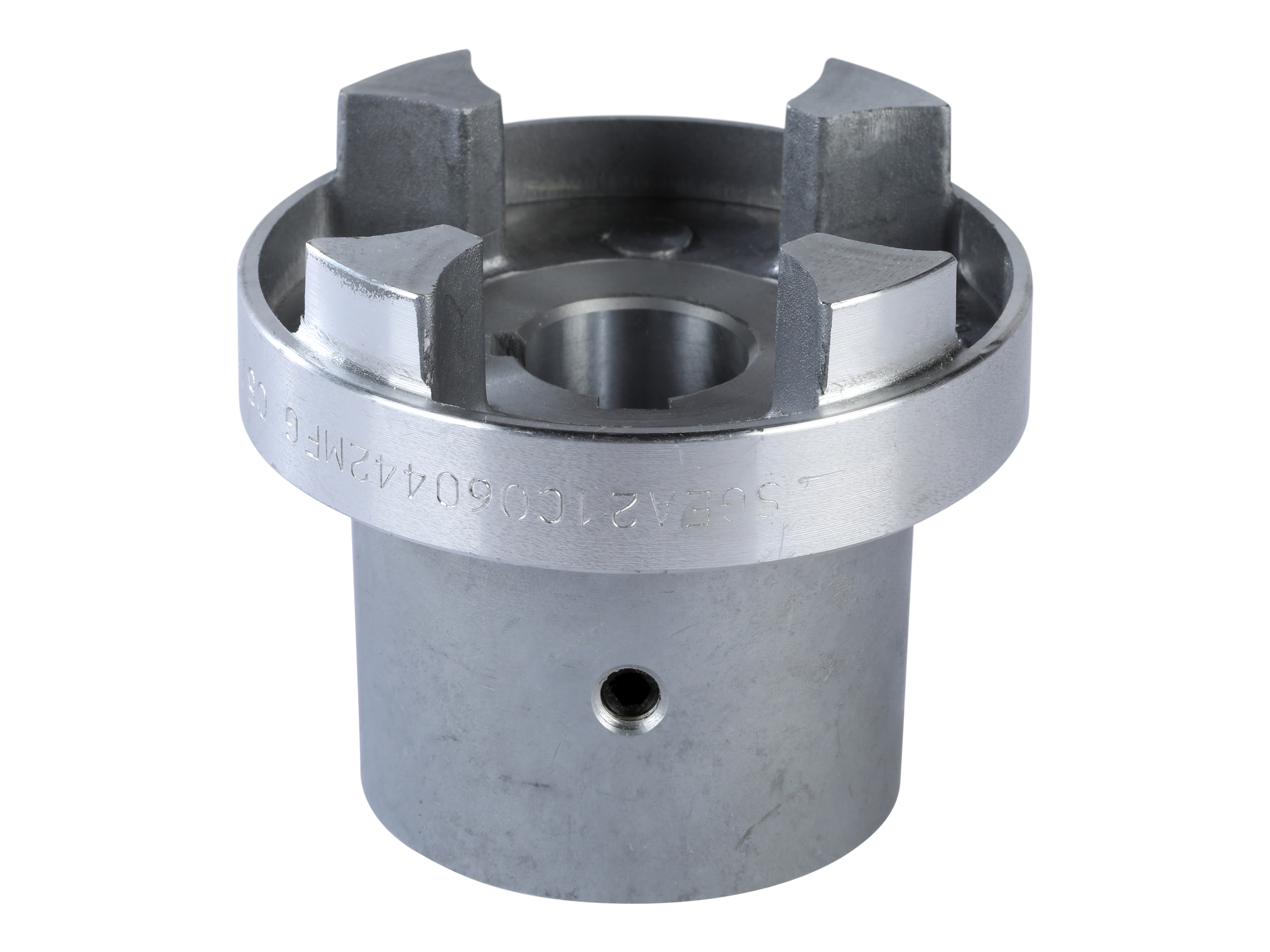

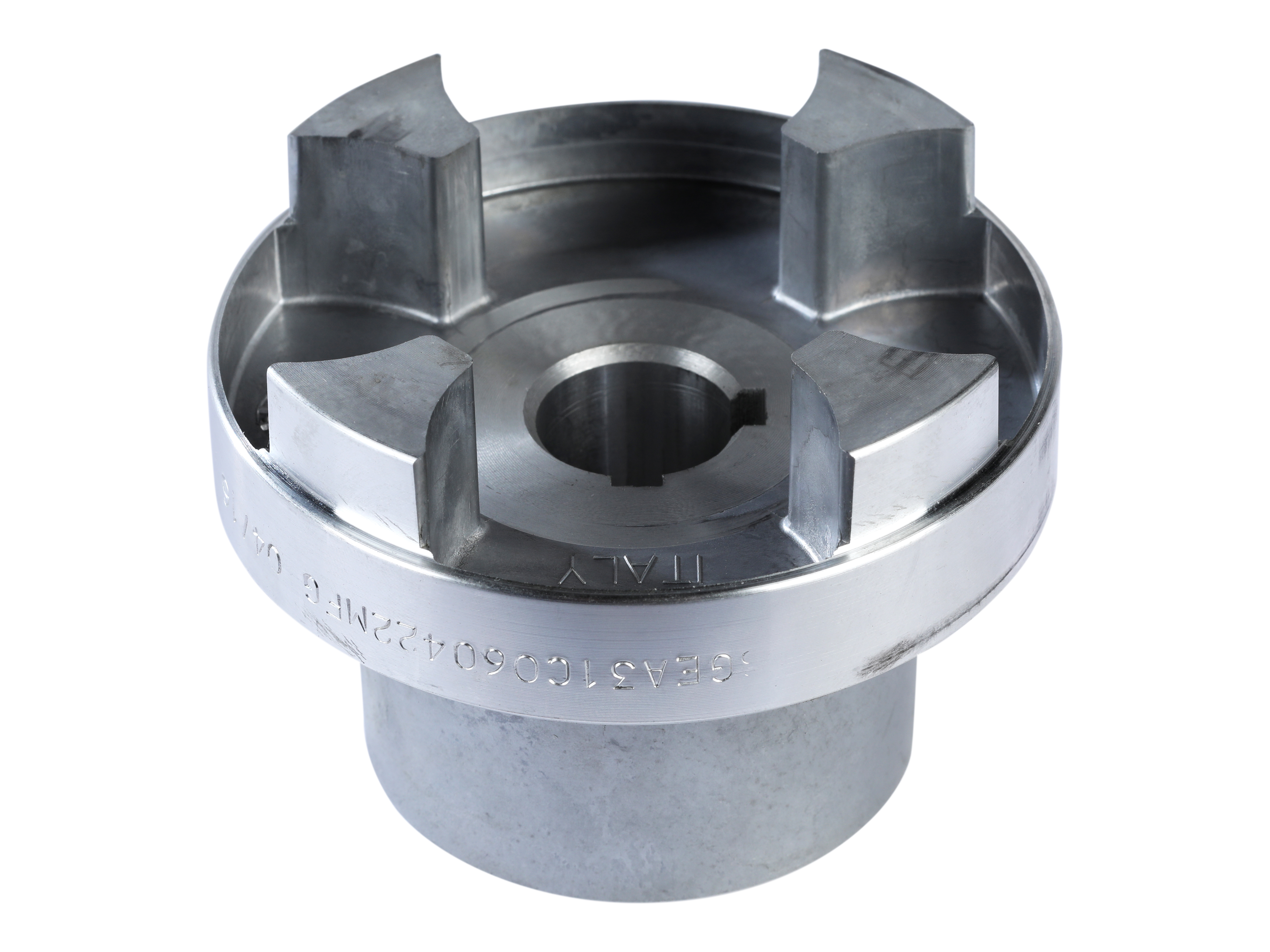

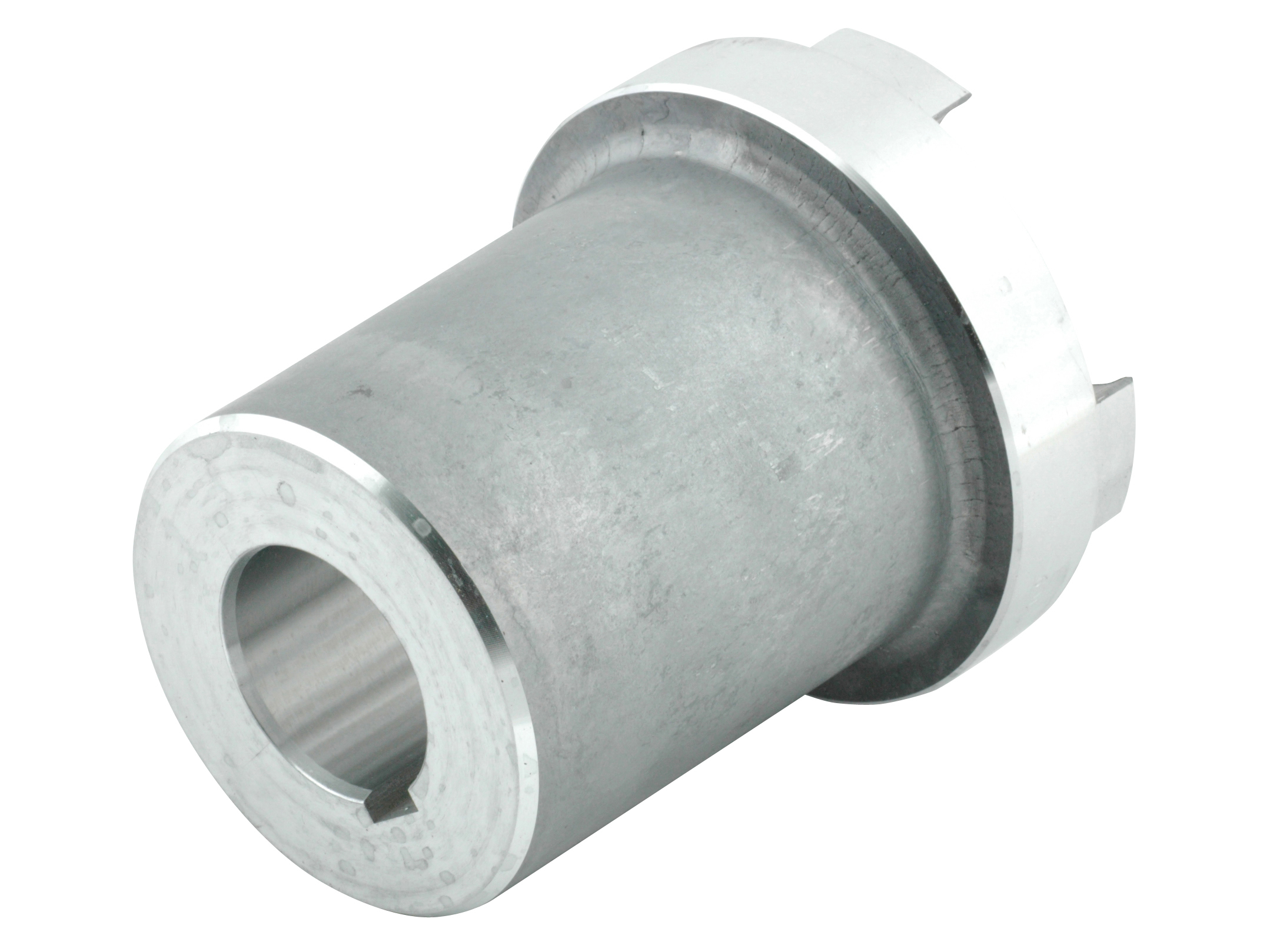

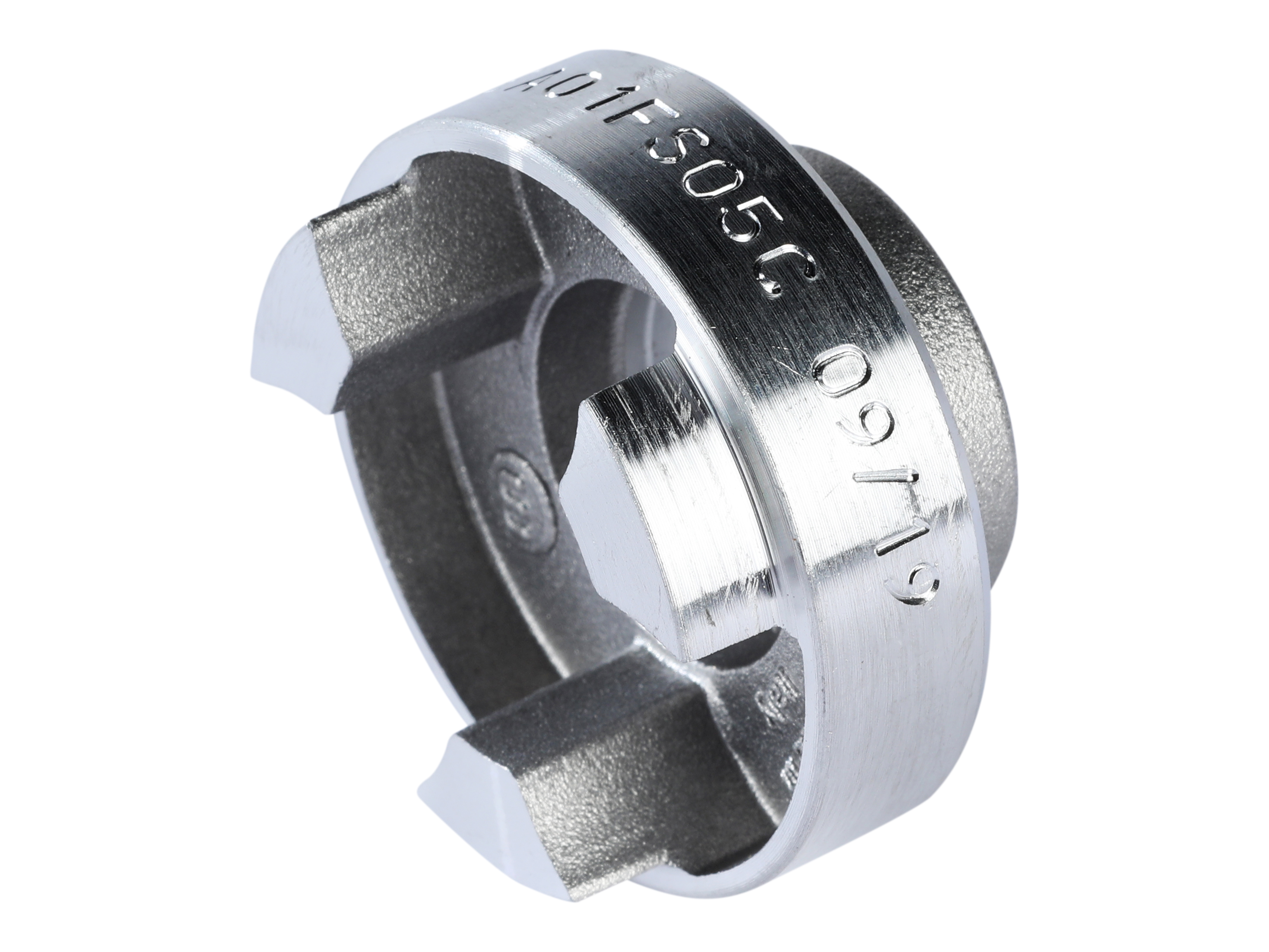

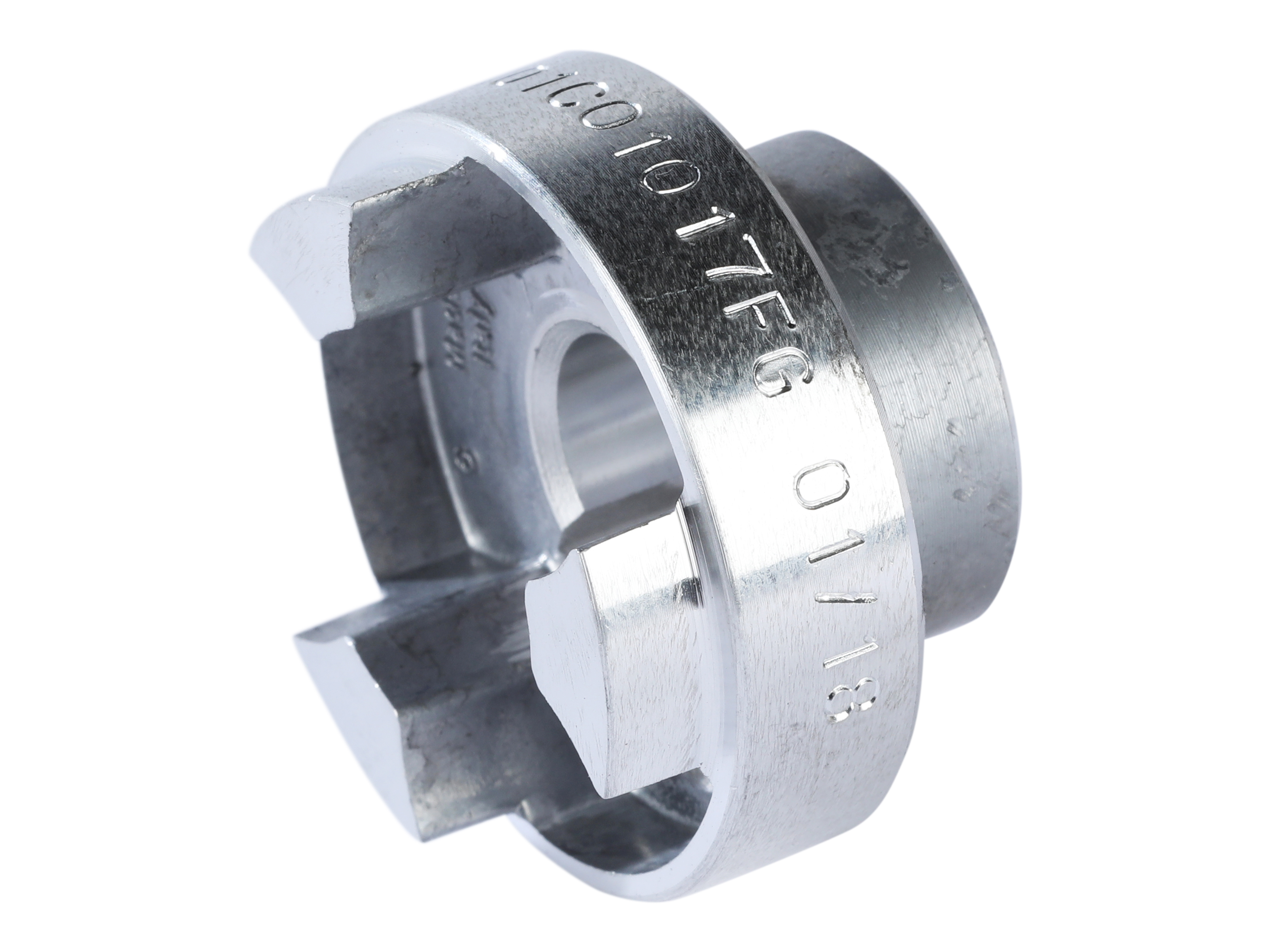

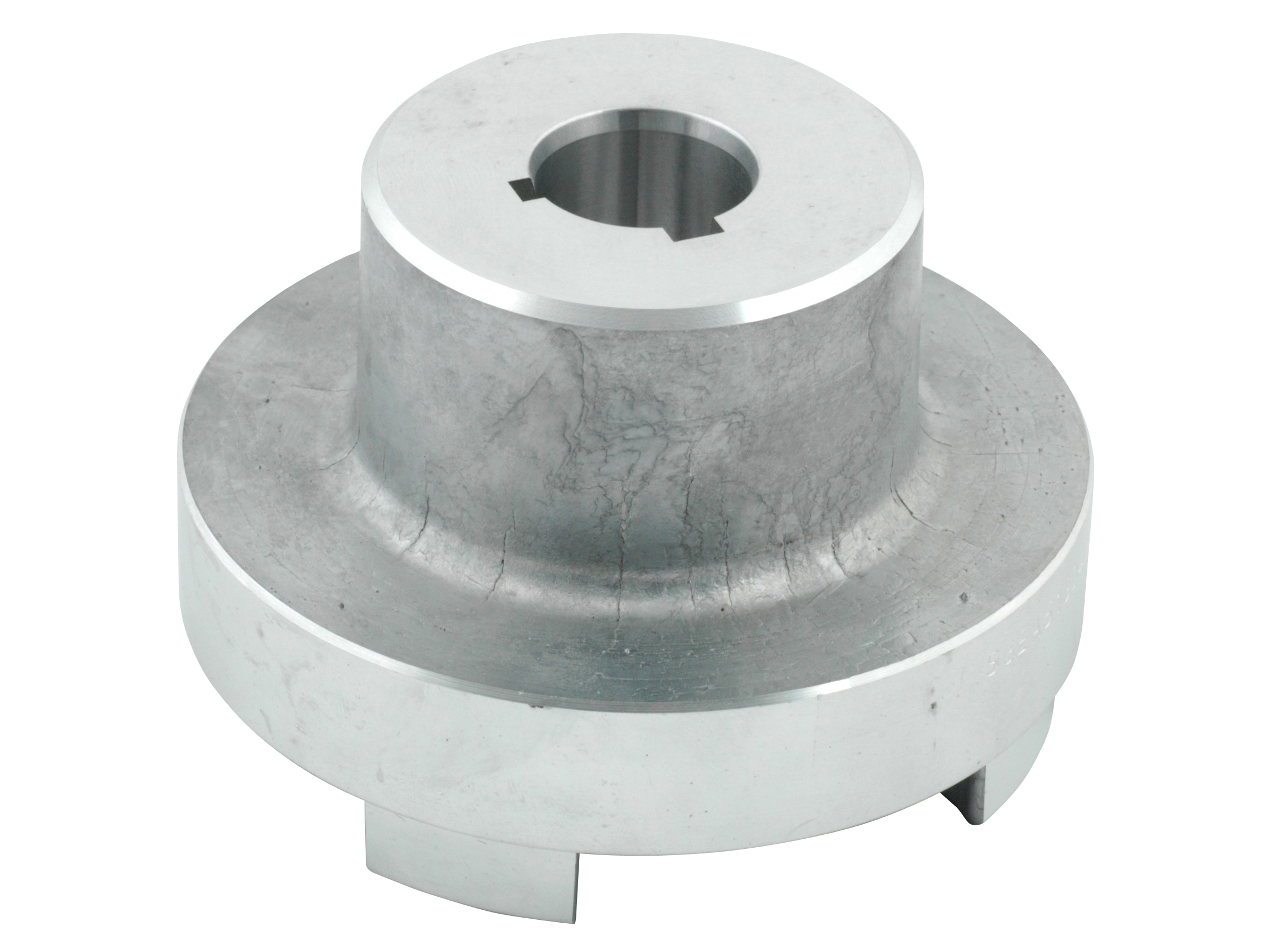

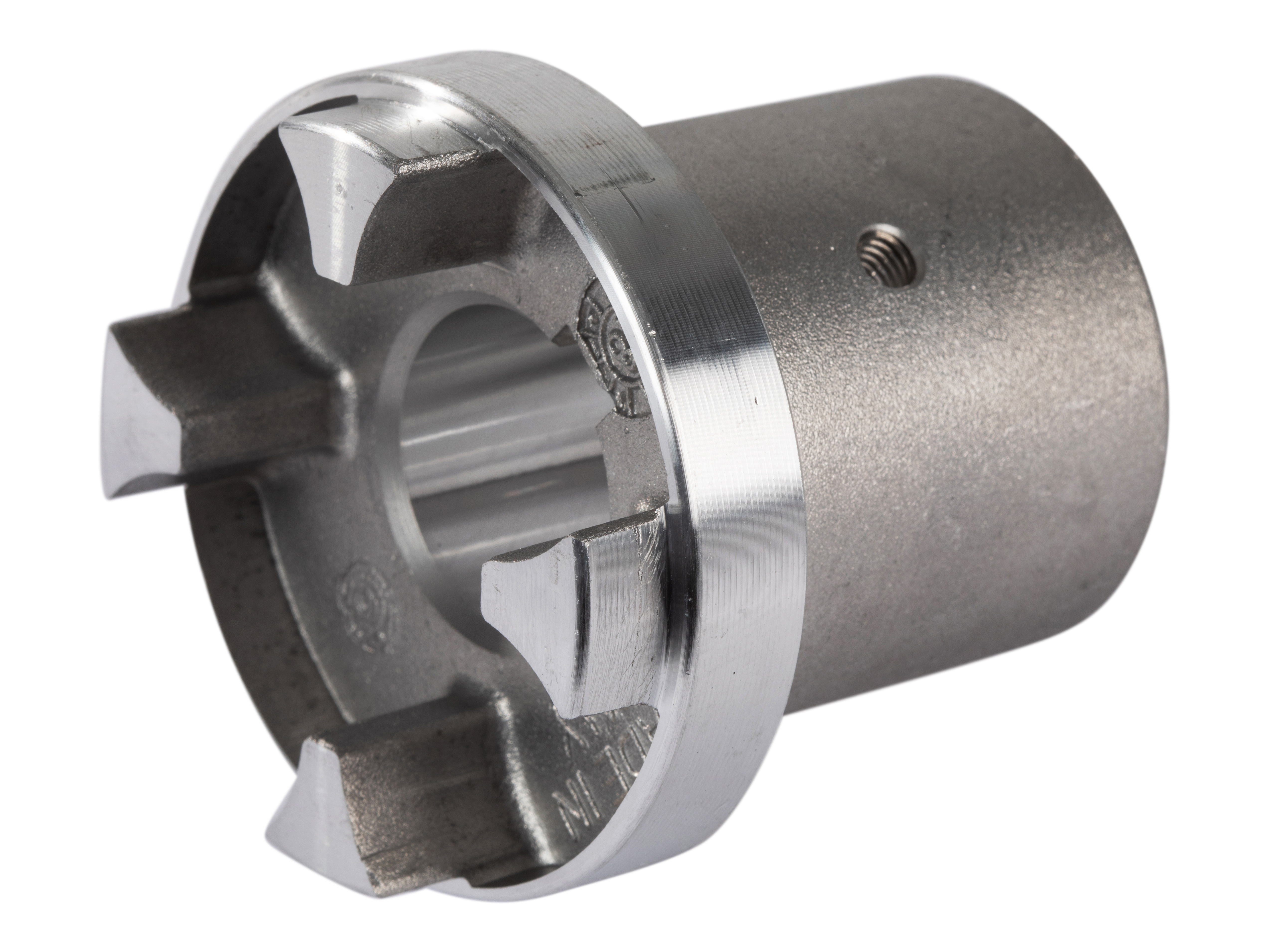

Elastic coupling shaft part cylindrical - aluminium - MP Filtri

Elastic coupling shaft part cylindrical - aluminium - MP Filtri

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Motor size Torque output max.
SGEA01C01017 Coupling part ALU, 15mm. L=17mm 20 Nm
SGEA01FS05C Coupling part ALU, grp. 0,5 7mm aksel 20 Nm
SGEA01FS05M Koblingsdel, grp. 0,5 6mm aksel 20 Nm
SGEA01M00017 Koblingsdel, 9mm. 56 IEC 20 Nm
SGEA01M01021 Koblingsdel, 11mm. 63 IEC 20 Nm
SGEA01M02028 Coupling part ALU, 14mm 71 IEC 20 Nm
SGEA01M03030 Koblingsdel, 19mm. L=30mm. SGEA01M03030FG 80 IEC 20 Nm
SGEA01M03048 Coupling part ALU, 19mm 80 IEC 20 Nm
SGEA01M04036 Koblingsdel, 24mm. L=36mm. 90 IEC 20 Nm
SGEA01M04048 Coupling part ALU, 24mm 90 IEC 20 Nm
SGEA21C09045 Coupling part ALU, 20,00mm.(R35/50) Dobbelt not 5/6 mm 190 Nm
SGEA21D02050 Koblingsdel, 25,00mm. 190 Nm
SGEA21G01042 Koblingsdel, 19,05mm 190 Nm
SGEA21G01048 Koblingsdel, 19,05mm 190 Nm
SGEA21G01050 Koblingsdel, 19,05mm 190 Nm
SGEA21G02044 Koblingsdel, 22,22mm SGEA21G020442E 190 Nm
SGEA21G02502 Coupling part ALU, 22,22mm 190 Nm
SGEA21M02024 Coupling part ALU, 14mm 71 IEC 190 Nm
SGEA21M03048 Coupling part ALU, 19mm 80 IEC 190 Nm
SGEA21M04045 Coupling part ALU, 24 mm 90 IEC 190 Nm
SGEA21M04048 Coupling part ALU, 24mm 90 IEC 190 Nm
SGEA21M05055 Couplings part ALU 28 mm 100, 112 IEC 190 Nm
SGEA21M05060 Coupling part ALU, 28mm 100, 112 IEC 190 Nm
SGEA31C09042 Coupling part ALU, 20,00mm.(R35) 380 Nm
SGEA31D02060 Koblingsdel, 25,00mm. 380 Nm
SGEA31G01042 Coupling part ALU, 19,05mm.(sae A) 380 Nm
SGEA31G02045 Koblingsdel, 22,22mm.(sae B) 380 Nm
SGEA31G02050 SGEA31G020502EFG Coupling Alu Half
SGEA31M03042 Koblingsdel, 19mm 80 IEC 380 Nm
SGEA31M04044 Coupling part ALU, 24 mm 90 IEC 380 Nm
SGEA31M04048 Koblingsdel, 24 mm 90 IEC 380 Nm
SGEA31M04050 Coupling part ALU, 24 mm 90 IEC 380 Nm
SGEA31M05055 Coupling part ALU, 28 mm 100, 112 IEC 380 Nm
SGEA31M06077 Coupling part ALU, 38mm 132 IEC 380 Nm
SGEA51D04048 Koblingsdel, 32mm 620 Nm
SGEA51D04070 SGEA51D04070FG Coupling Alu Half
SGEA51G01048 Coupling part ALU, 19,05mm (SAE A) 620 Nm
SGEA51G02045 Koblingsdel, 22,22mm (SAE B) SGEA51G020452EFG 620 Nm
SGEA51G02065 Koblingsdel, 22,22mm (SAE B) SGEA51G020652E 620 Nm
SGEA51G04048 Koblingsdel, 25,40mm (SAE BB) SGEA51G040482F 620 Nm
SGEA51G060552 KOBLINGSDEL 31,75 SAE C FG 620 Nm
SGEA51G06070 Koblingsdel, 31,75mm (SAE C) SGEA51G060702G 620 Nm
SGEA51M04048 Coupling part ALU 24 mm. 90 IEC 620 Nm
SGEA51M05045 Koblingsdel, 28mm 100, 112 IEC 620 Nm
SGEA51M06080 KOBLINGSDEL 38 SAE C FG 132 IEC 620 Nm
SGEA51M07109 Coupling part ALU, 42mm 160 IEC 620 Nm
SGEA51M08109 Coupling part ALU, 48mm 180 IEC 620 Nm
SGEA51M09109 Koblingsdel, 55mm 200 IEC 620 Nm
SGEA51M10109 Coupling part ALU, 60mm 225 IEC 620 Nm
