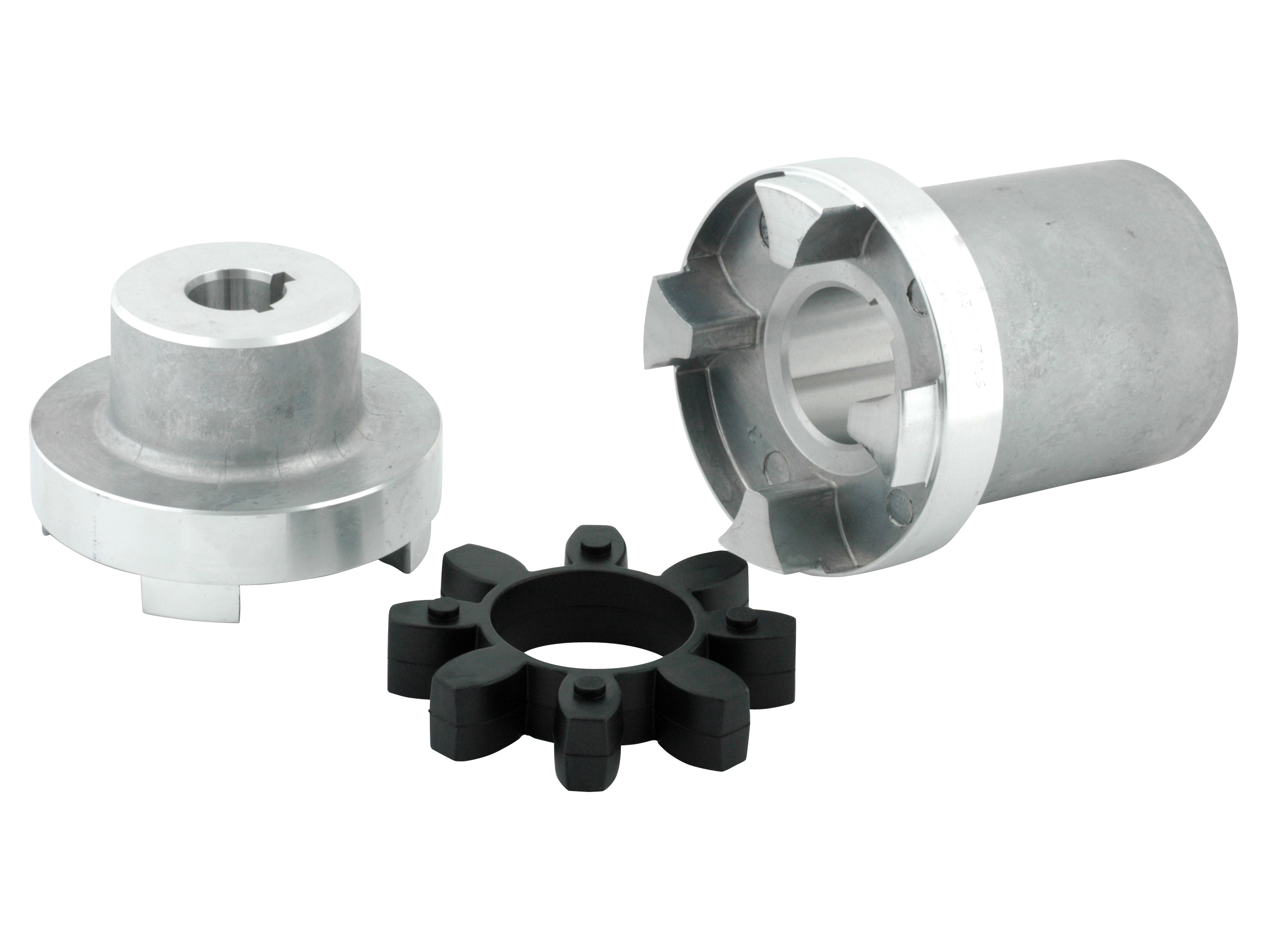

Elastic shaft coupling cylindric x cylindric - MP Filtri

Elastic shaft coupling cylindric x cylindric - MP Filtri

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Motor size Shaft diameter motor Shaft pump keyway Torque output max.
AKG03FS05MM Coupling gr. 0.5 x 14mm SGEA01FS05M+EGE0+SGEA01M02028 71 IEC 14 mm 2,0 mm 2 Nm
AKG04FS05MM Coupling gr. 0.5 x 19mm SGEA01FS05M+EGE0+SGEA01M03048 80 IEC 19 mm 2,0 mm 2 Nm
AKGMM01P0016 Coupling 22.22 x 19mm SGEA21G02502+EGE2+SGEA21M0304 80 IEC 19 mm 4,76 mm 19 Nm
AKGMM01P0066 Coupling 19.05 x 19mm SGEA21G01050+EGE2+SGEA21M0304 80 IEC 19 mm 4,76 mm 19 Nm
AKGMM02P0016 Coupling 22.22 x 24mm SGEA21G02502+EGE2+SGEA21M0404 90 IEC 24 mm 4,76 mm 19 Nm
AKGMM02P0066 Coupling 19.05 x 24mm SGEA21G01048+EGE2+SGEA21M04048 90 IEC 24 mm 4,76 mm 19 Nm
AKGMM03P0016 Coupling 22.22 x 28mm SGEA21G02502+EGE2+SGEA21M0506 100, 112 IEC 28 mm 4,76 mm 19 Nm
AKGMM03P0066 Coupling 19.05 x 28mm SGEA21G01050+EGE2+SGEA21M0506 100, 112 IEC 28 mm 4,76 mm 19 Nm
AKGMM04P0016 Coupling 22.22 x 38mm SGEA31G02050+EGE3+SGEA31M0607 132 IEC 38 mm 4,76 mm 38 Nm
AKGMM04P0066 Coupling 19.05 x 38mm SGEA31G01042+EGE3+SGEA31M0607 132 IEC 38 mm 4,76 mm 38 Nm
AKGMM05P0016 Coupling 22.22 x 42mm SGEA51G02045+EGE5+SGEA51M0710 160 IEC 42 mm 4,76 mm 62 Nm
AKGMM05P0066 Coupling 19.05 x 42mm SGEA51G01048+EGE5+SGEA51M0710 160 IEC 42 mm 4,76 mm 62 Nm
AKGMM05P0076 Coupling 31.75 x 42mm SGEA51G06070+EGE5+SGEA51M0710 160 IEC 42 mm 6,35 mm 62 Nm
AKGMM05Z0486 Coupling 25,40 x 42mm SGEA51G04048+EGE5+SGEA51M0710 160 IEC 42 mm 4,76 mm 62 Nm
AKGMM06P0016 Coupling 22.22 x 48mm SGEA51G02045+EGE5+SGEA51M0810 180 IEC 48 mm 4,76 mm 62 Nm
Brand Name
MP Filtri
Material
Aluminium, NBR
Mountingtype
B3/B5
Shaft type motor
Cylindrical
Shaft type pump
Cylindrical
Shore
85
Temperature max.
+90
Temperature min.
-20
