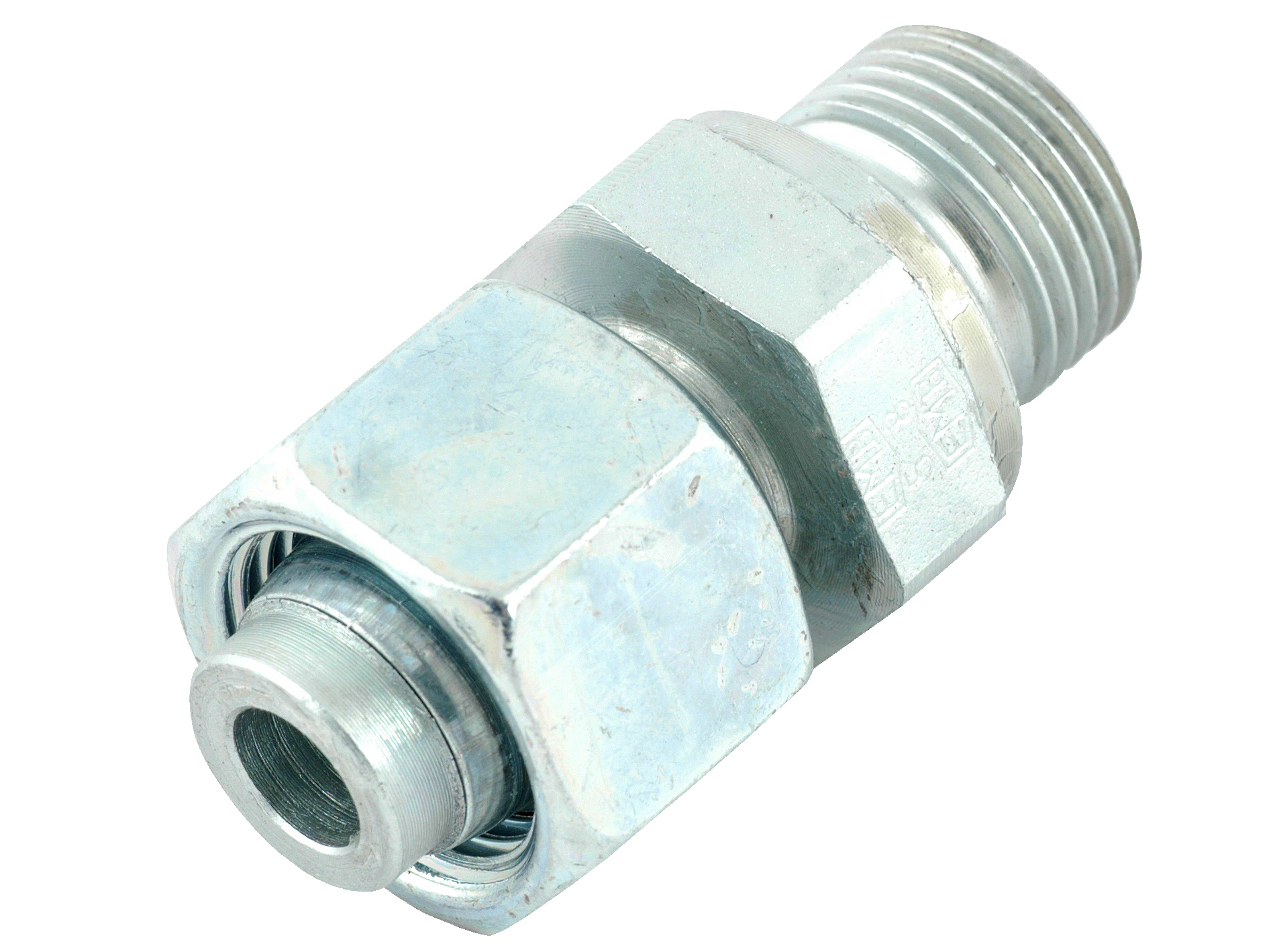

Straight fitting 0° - L-series - DIN union nut x BSP male 60° seal face

Straight fitting 0° - L-series - DIN union nut x BSP male 60° seal face - VA-RLA

Stud fitting - ø10L indv x 1/4" BSP 60°

Stud fitting - ø12L indv x 3/8" BSP 60°

Stud fitting - ø15L indv x 1/2" BSP 60°.

Stud fitting - ø18L indv x 1/2" BSP 60°

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer	Thread inner metric	Pressure max.
VA10RLA	Stud fitting - ø10L indv x 1/4" BSP 60°	10 mm	G 1/4 BSP	M16x1,5	500 bar
VA12RLA	Stud fitting - ø12L indv x 3/8" BSP 60°	12 mm	G 3/8 BSP	M18x1,5	500 bar
VA15RLA	Stud fitting - ø15L indv x 1/2" BSP 60°.	15 mm	G 1/2 BSP	M22x1,5	400 bar
VA18RLA	Stud fitting - ø18L indv x 1/2" BSP 60°	18 mm	G 1/2 BSP	M26x1,5	400 bar

Angle

Brand Name

Gates

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Material

Steel

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Series

Surface treatment

Zinc-Nickel plated

Temperature max.

+120

Temperature min.

-40

Straight fitting 0° - L-series - DIN union nut x BSP male 60° seal face - VA-RLA
