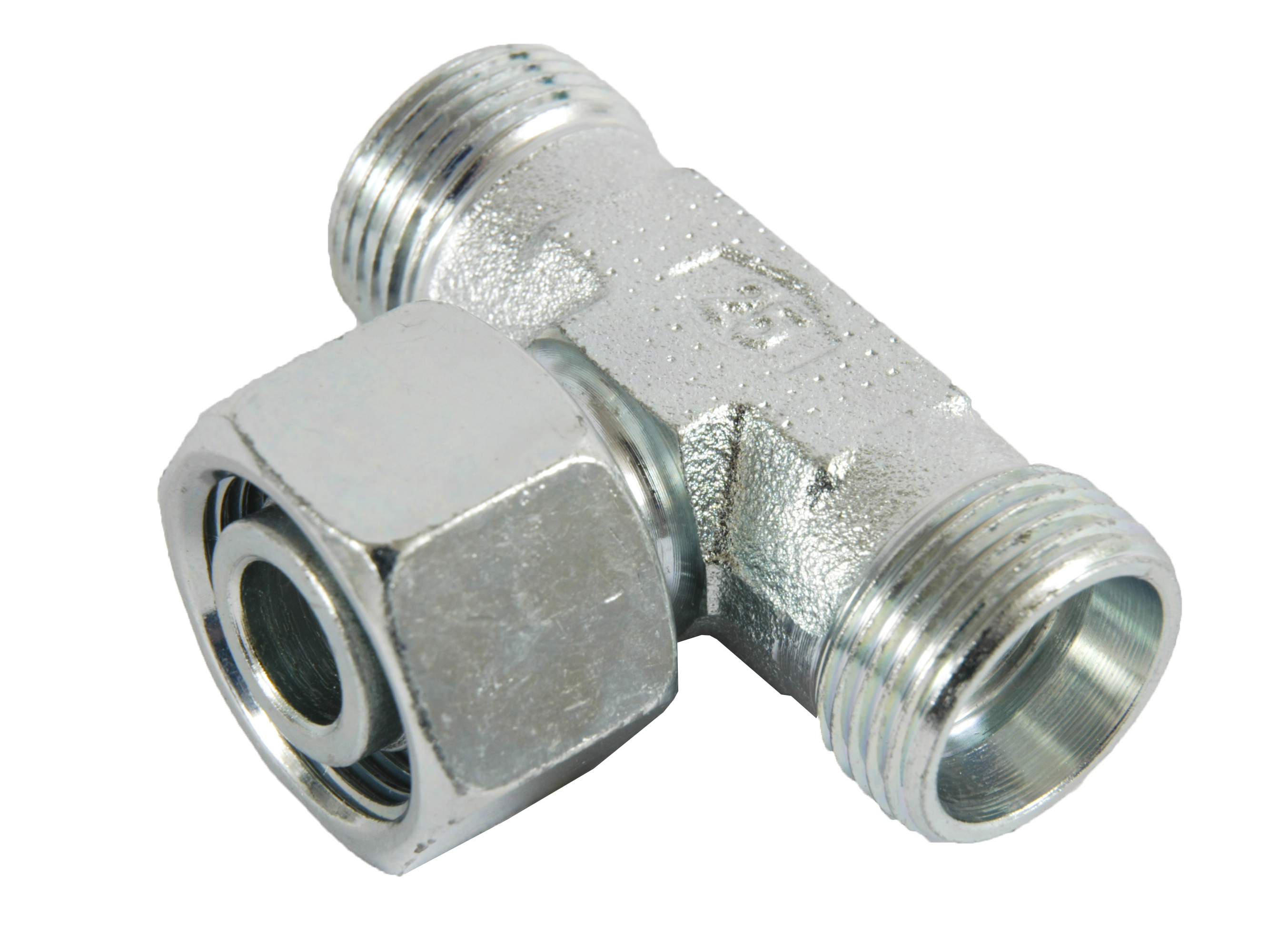

T-fitting adjustable - L-series - Male x Union nut x Male - VC-LX / XEVT-L

T-fitting adjustable - L-series - Male x Union nut x Male - VC-LX / XEVT-L

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer metric Thread inner metric Series
FXET12L Run tee fitting adjustable - ø12L 12 mm M18x1,5 M18x1,5 L
VC12LX Run tee fitting adjustable - ø12L 12 mm M18x1,5 M18x1,5 L
Brand Name
Gates
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
12
Material
Steel
Model code
XVC12LZN
Pressure max.
400
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+120
Temperature min.
-40
Thread inner metric
M18x1,5
Thread outer metric
M18x1,5
Type
Forged
