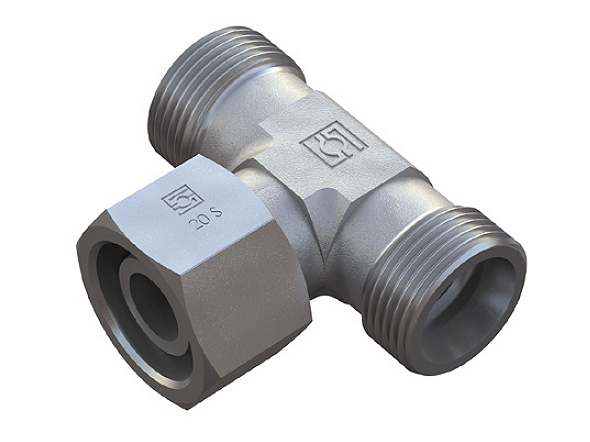

T-fitting adjustable - S-series - Male x Union nut O-ring x Male

T-fitting adjustable - S-series - Male x Union nut O-ring x Male

SELECT VARIANT
Partnumber Description Diameter pipe Thread outer metric Thread inner metric Pressure max.
FXETD06S Adjustable Tee - ø6S - with O-ring FI-ETD-06S-B-W3-DKO 6 mm M14x1,5 M14x1,5 800 bar
FXETD08S Adjustable Tee - ø8S - with O-ring FI-ETD-08S-B-W3-DKO 8 mm M16x1,5 M16x1,5 800 bar
FXETD10S Adjustable Tee - ø10S - with O-ring FI-ETD-10S-B-W3-DKO 10 mm M18x1,5 M18x1,5 800 bar
FXETD12S Adjustable Tee - ø12S - with O-ring FI-ETD-12S-B-W3-DKO 12 mm M20x1,5 M20x1,5 630 bar
FXETD14S Adjustable Tee - ø14S - with O-ring FI-ETD-14S-B-W3-DKO 14 mm M22x1,5 M22x1,5 630 bar
FXETD16S Adjustable Tee - ø16S - with O-ring FI-ETD-16S-B-W3-DKO 16 mm M24x1,5 M24x1,5 630 bar
FXETD20S Adjustable Tee - ø22S - with O-ring FI-ETD-20S-B-W3-DKO 20 mm M30x2 M30x2 400 bar
FXETD25S Adjustable Tee - ø25S - with O-ring FI-ETD-25S-B-W3-DKO 25 mm M36x2 M36x2 400 bar
FXETD30S Adjustable Tee - ø30S - with O-ring FI-ETD-30S-B-W3-DKO 30 mm M42x2 M42x2 400 bar
FXETD38S Adjustable Tee - ø38S - with O-ring FI-ETD-38S-B-W3-DKO 38 mm M52x2 M52x2 400 bar
Brand Name
Stauff

Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

Material
Steel

REACH compliant
Yes

RoHs compliant
Yes

Safety factor
4

Sealing material
FKM/FPM (Viton®)

Series
S

Surface treatment
Zinc-Nickel plated

Temperature max.
+200

Temperature min.
-25
