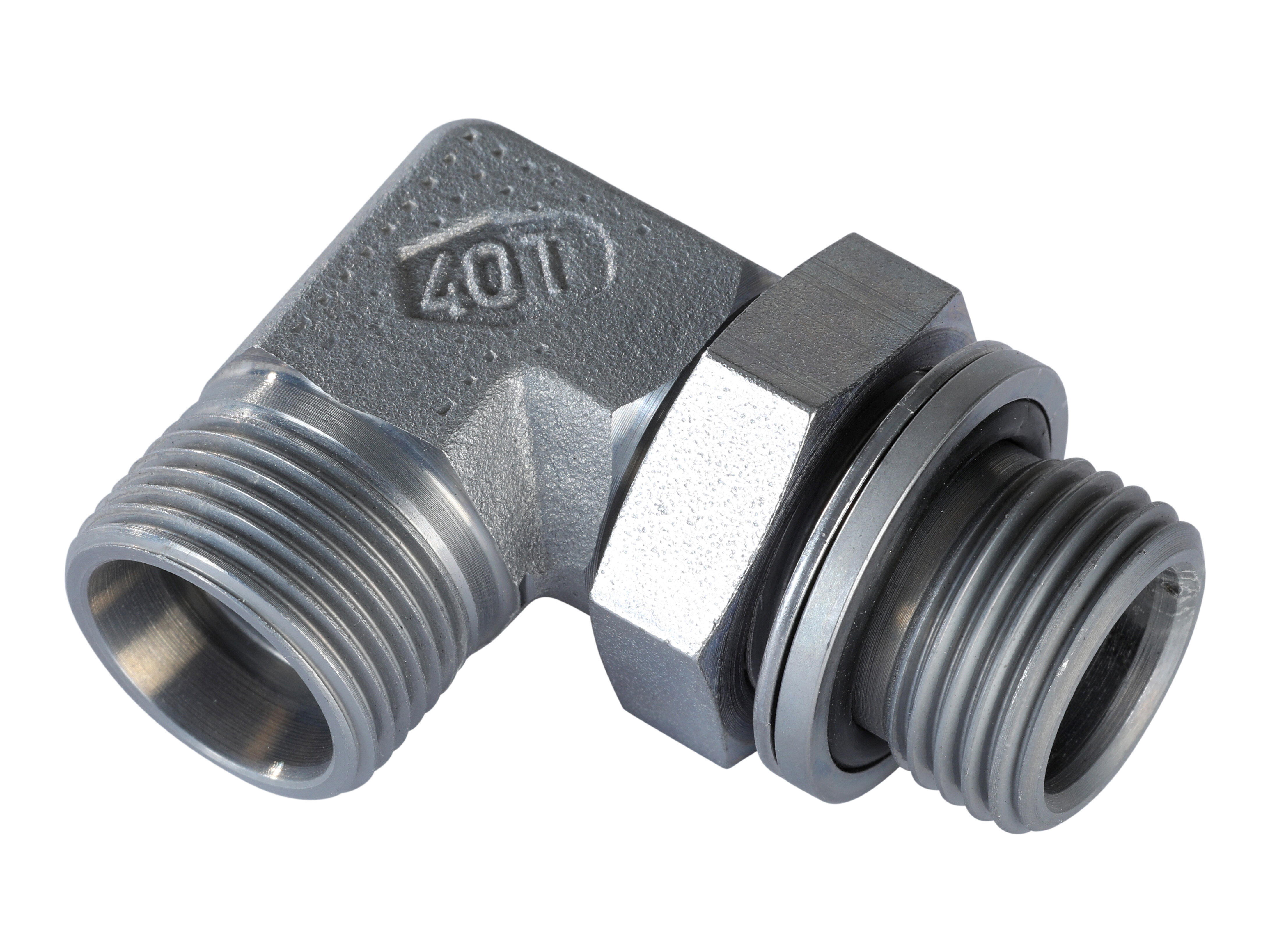

Elbow fitting 90° - L-series - MM male 24° x BSP male adjustable with counter nut

SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Thread outer metric
FXWEE06LR18OK Stud elbow adjustable 90° - ø6L x 1/8" BSP 6 mm 315 bar
FXWEE08LR14OK Stud elbow adjustable 90° - ø08L x 1/4" BSP 8 mm G 1/4 BSP 315 bar M14x1,5
FXWEE10LR14OK Stud elbow adjustable 90° - ø10L x 1/4" BSP 10 mm G 1/4 BSP 315 bar M16x1,5
FXWEE12LR12OK Stud elbow adjustable 90° stilbar - ø12L x 1/2" BSP 12 mm
FXWEE12LR38OK Stud elbow adjustable 90° - ø12L x 3/8" BSP 12 mm G 3/8 BSP 250 bar M18x1,5
FXWEE15LR12OK Stud elbow adjustable 90° - ø15L x 1/2" BSP 15 mm G 1/2 BSP 250 bar M22x1,5
FXWEE18LR12OK Stud elbow adjustable 90° - ø18L x 1/2" BSP 18 mm G 1/2 BSP 250 bar M26x1,5
FXWEE22LR34OK Stud elbow adjustable 90° - ø22L x 3/4" BSP 22 mm 160 bar
FXWEE28LR1OK Stud elbow adjustable 90° - ø28L x 1" BSP 28 mm 160 bar
FXWEE42LR112OK Stud elbow adjustable 90° - ø42L x 1.1/2" BSP 42 mm
