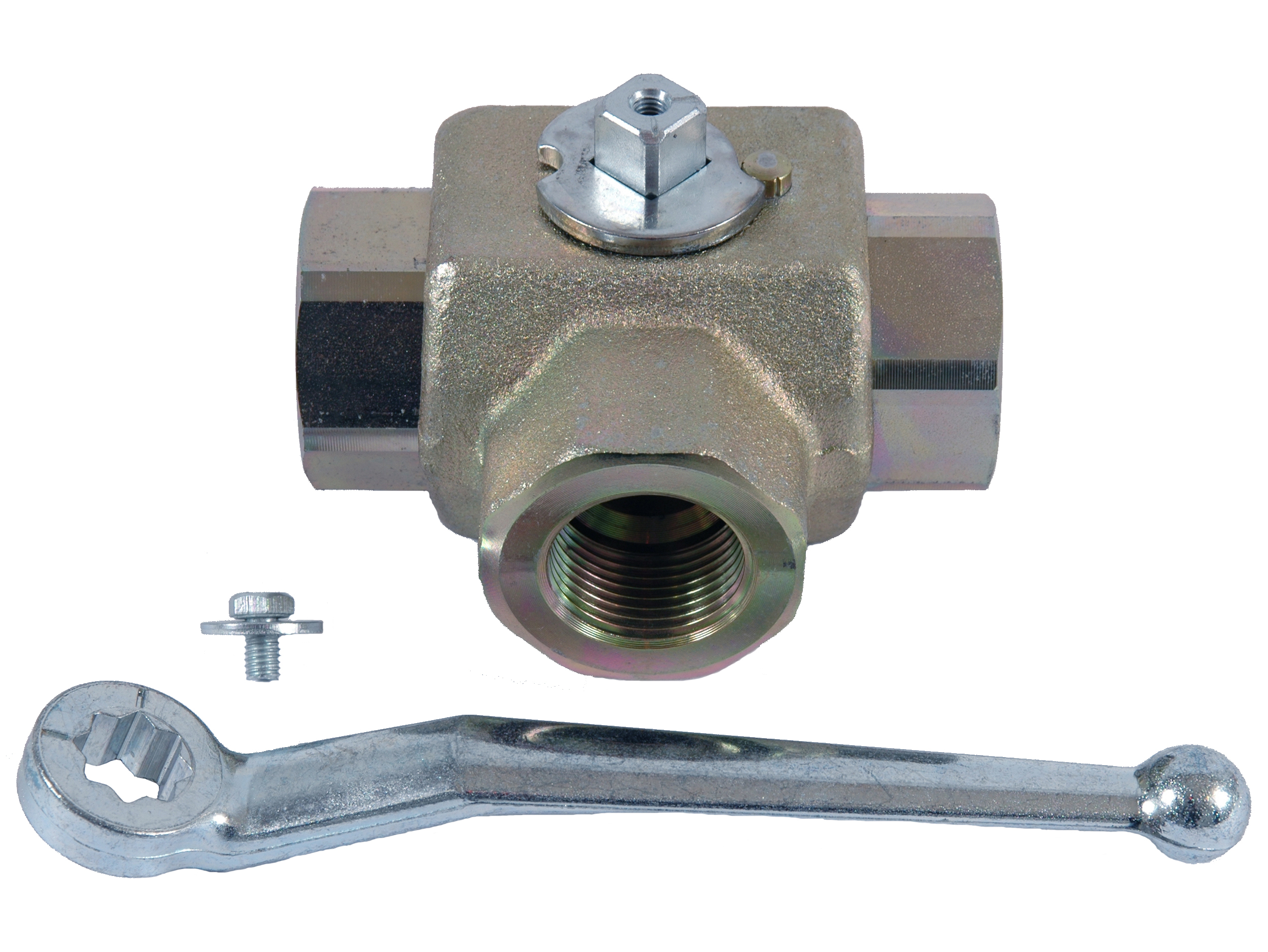

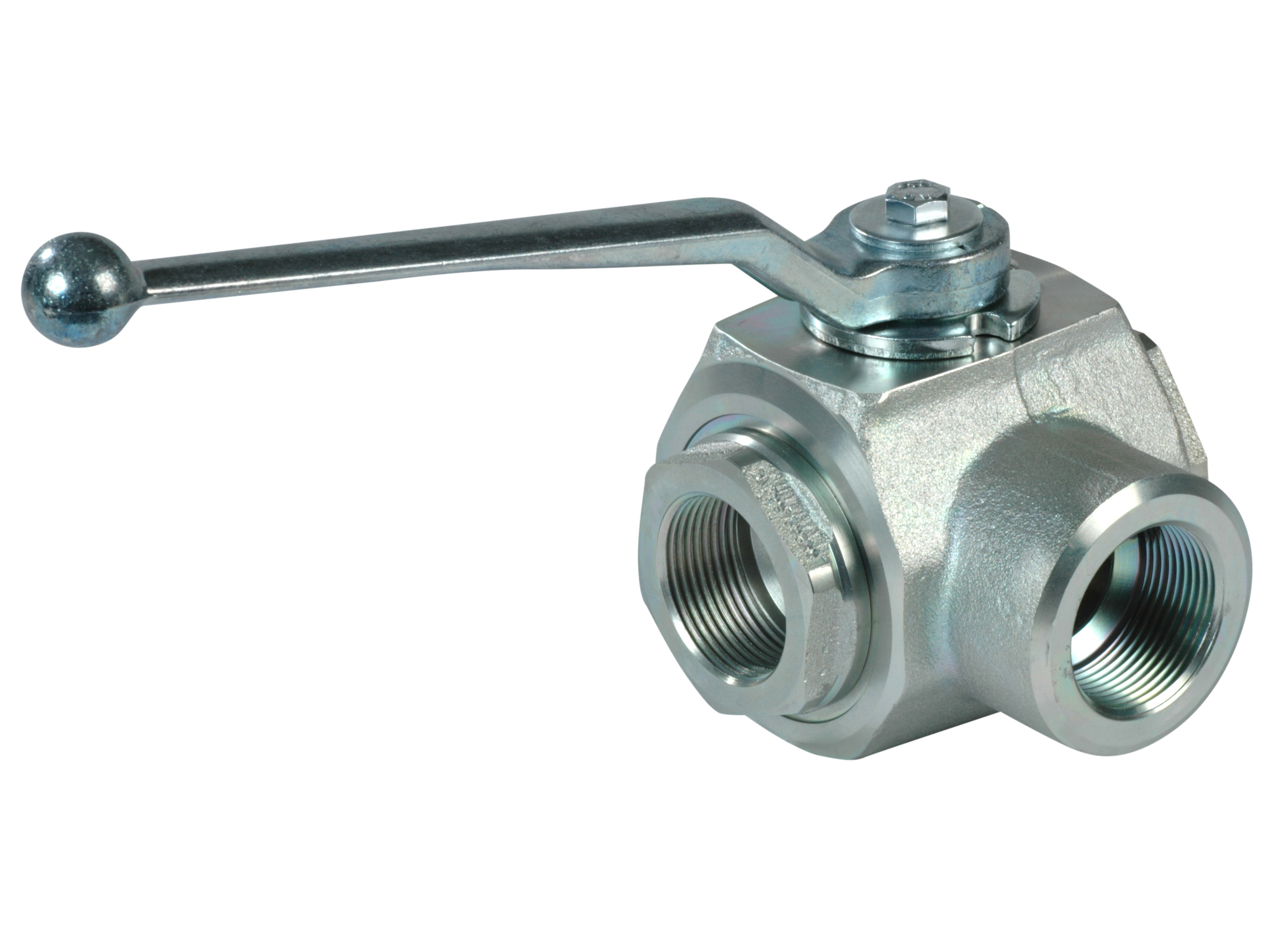

Ball valve 3 way - Standard series, BSP, L-bore, steel - SK3

3-way valve-female G1.1/4 SK3 G5/4 32 3123 1 l galvaniz

3-way valve-female 1 BSP SK3 G1 25 2123 1 l galvaniz

3-way valve-female 1 BSP SK3 G1 25 2123 1 la

3-way valve-female 3/4 B SK3 G3/4 20 2123 1 l galvaniz

3-way valve-female 3/4 B SK3 G3/4 20 2123 1 la

3-way valve-female 3/4 B SK3 G3/4 20 2123 1 PA

SELECT VARIANT

Partnumber	Description	Pressure max.	Diameter inner	Thread
SK3-1.1/4L	3-way valve-female G1.1/4 SK3 G5/4 32 3123 1 l galvaniz	350 bar	30 mm	G 1.1/4 BSP
SK3-1L	3-way valve-female 1 BSP SK3 G1 25 2123 1 l galvaniz	350 bar	22 mm	G 1 BSP
SK3-1LA	3-way valve-female 1 BSP SK3 G1 25 2123 1 la	350 bar	22 mm	G 1 BSP
SK3-3/4L	3-way valve-female 3/4 B SK3 G3/4 20 2123 1 l galvaniz	350 bar	18 mm	G 3/4 BSP
SK3-3/4LA	3-way valve-female 3/4 B SK3 G3/4 20 2123 1 la	350 bar	18 mm	G 3/4 BSP
SK3-3/4PA	3-way valve-female 3/4 B SK3 G3/4 20 2123 1 PA	350 bar	18 mm	G 3/4 BSP

Bore

Brand Name

Pister Kugelhähne

Number of ways/positions

3/3

Pressure max.

350

Temperature max.

+50

Temperature min.

-10
