Threaded flange 0° SAE 3000 PSI x BSP female with side port, O-ring and MM bolts - AFS-GM

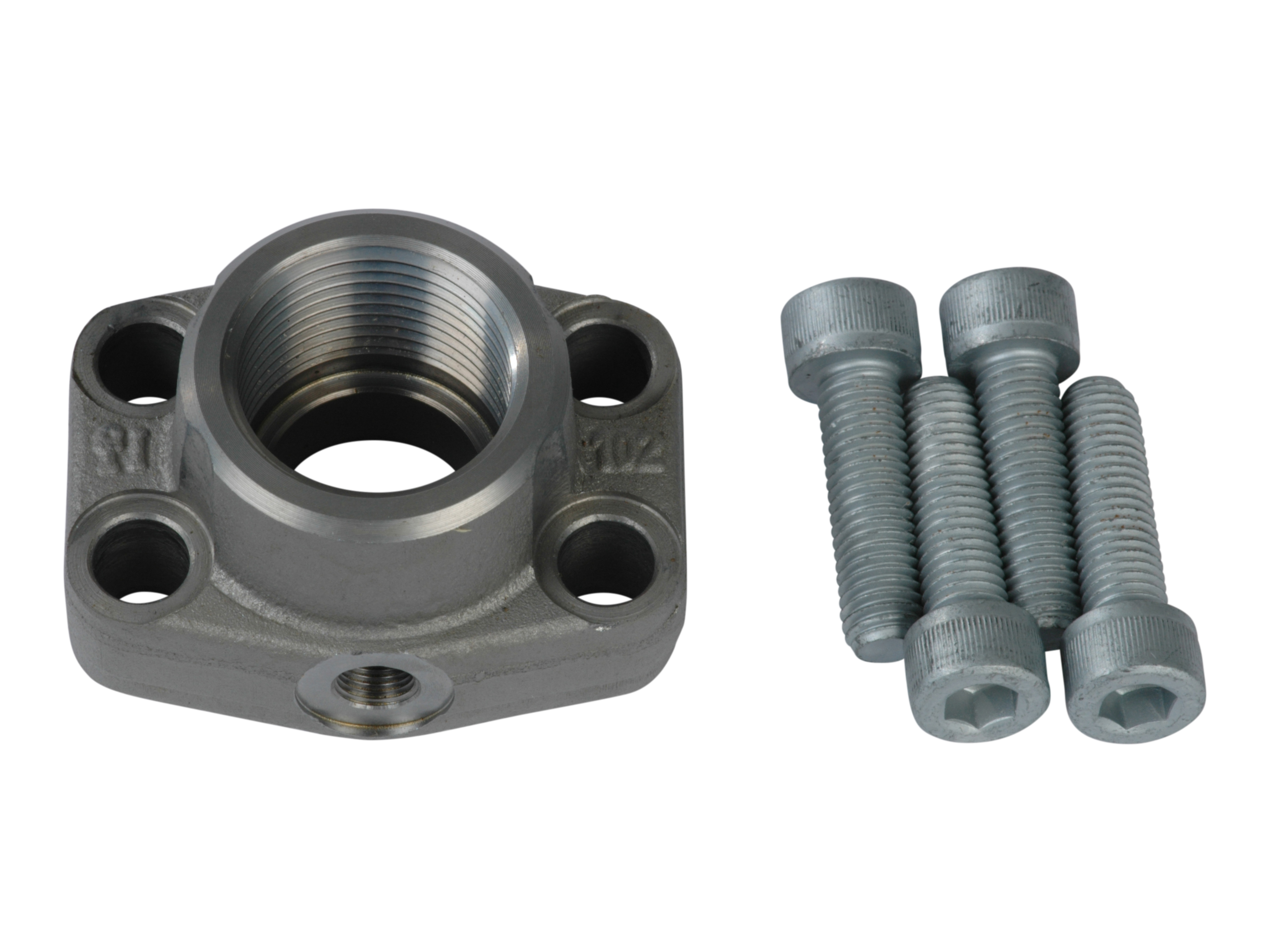

Threaded flange 1" SAE3000 x 1" BSP - 1/8" test - complete

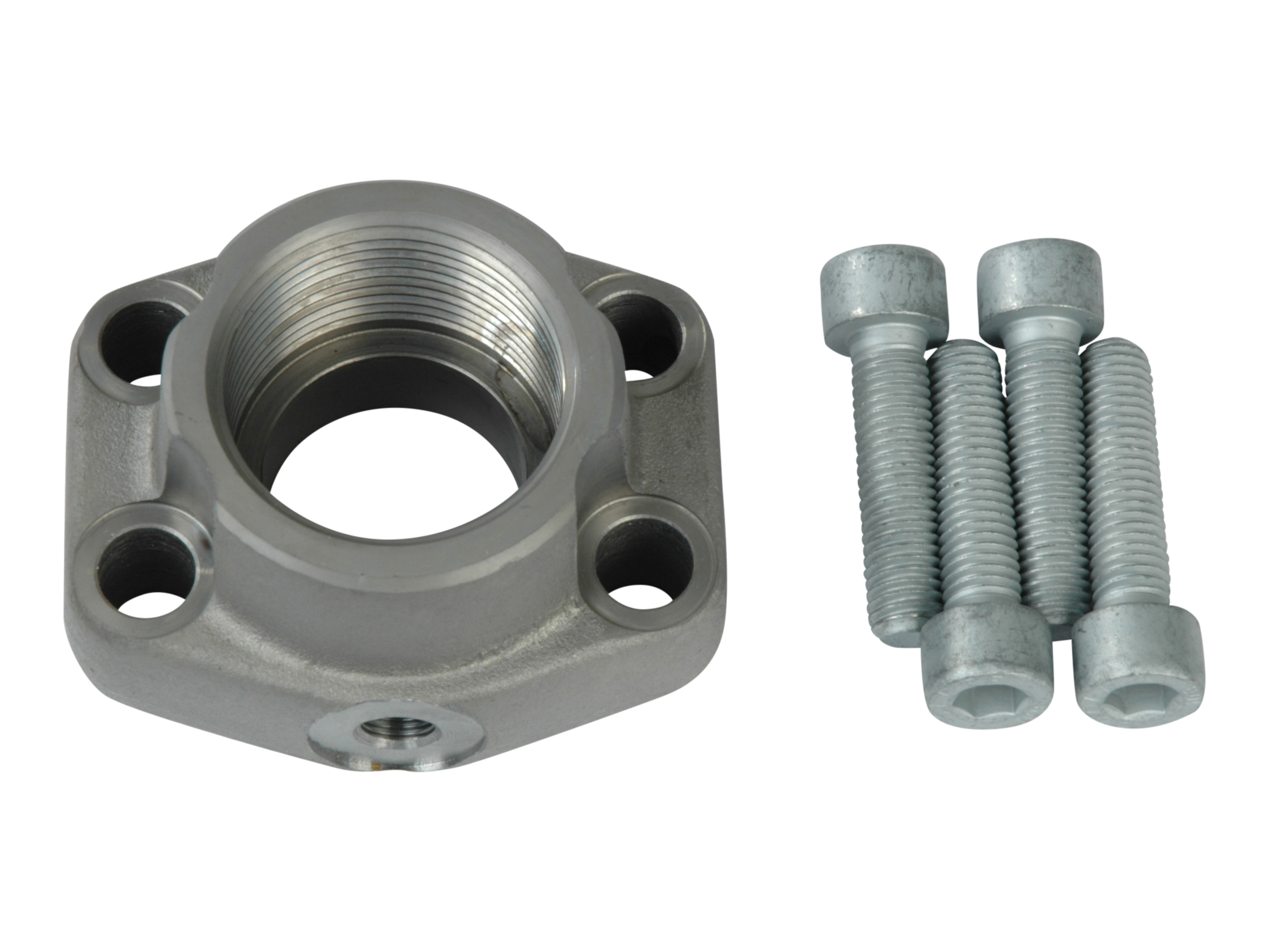

Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test

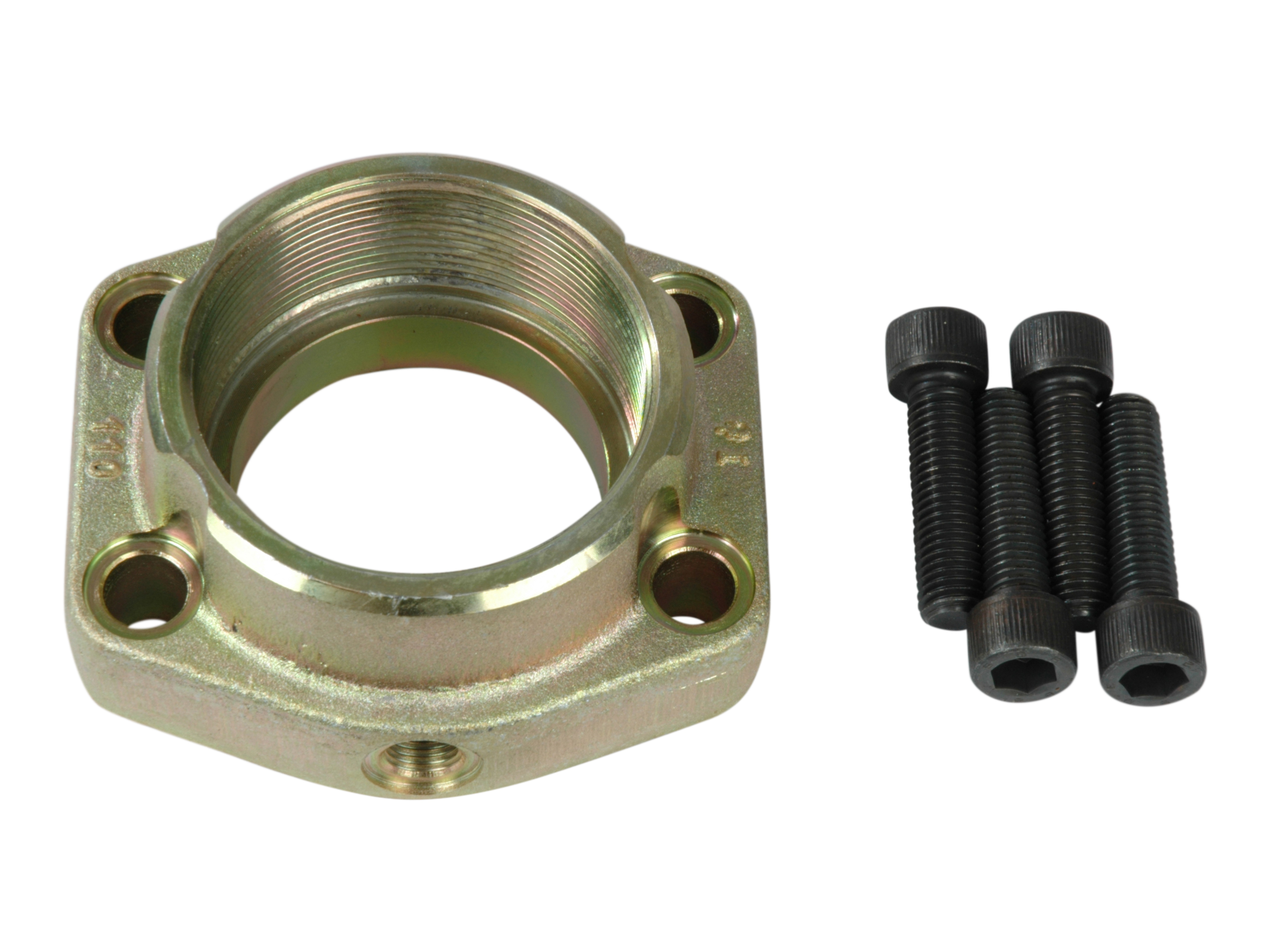

Threaded flange 1.1/2" SAE3000 x 1.1/2" BSP - 1/4" test

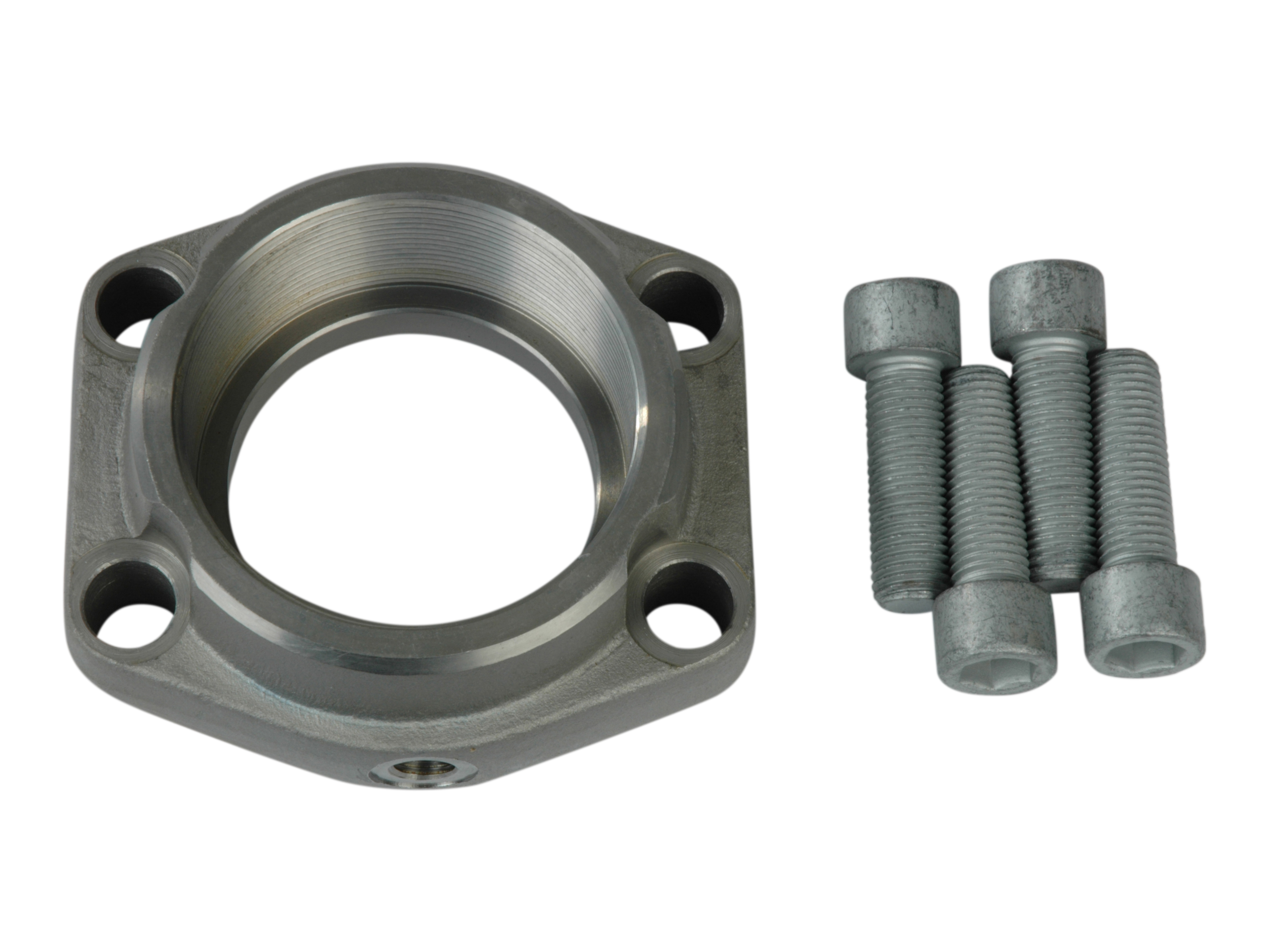

Threaded flange 2" SAE3000 x 2" BSP - 1/4" test

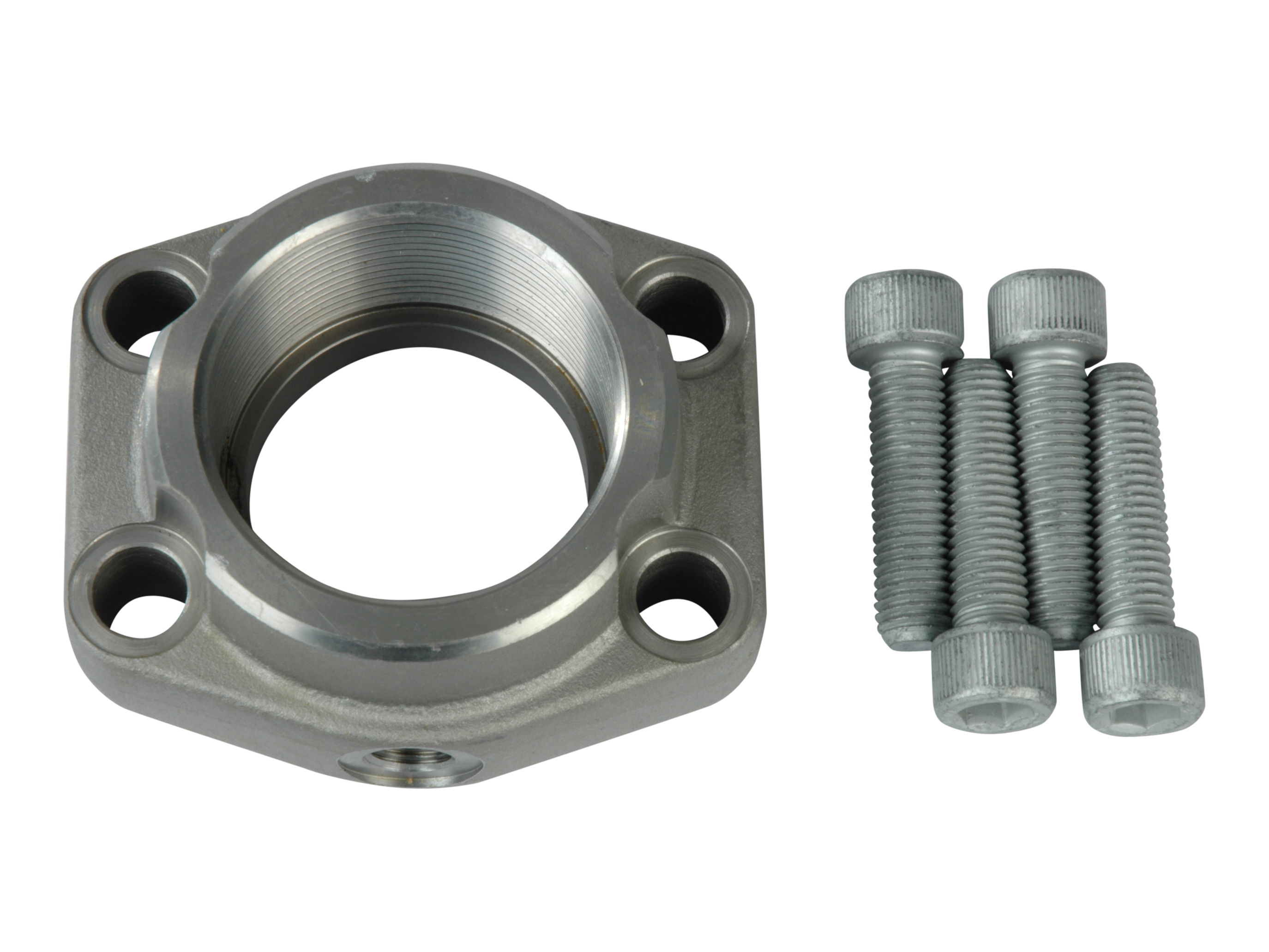

Threaded flange 2.1/2" SAE3000 x 2.1/2" BSP - 1/4" test

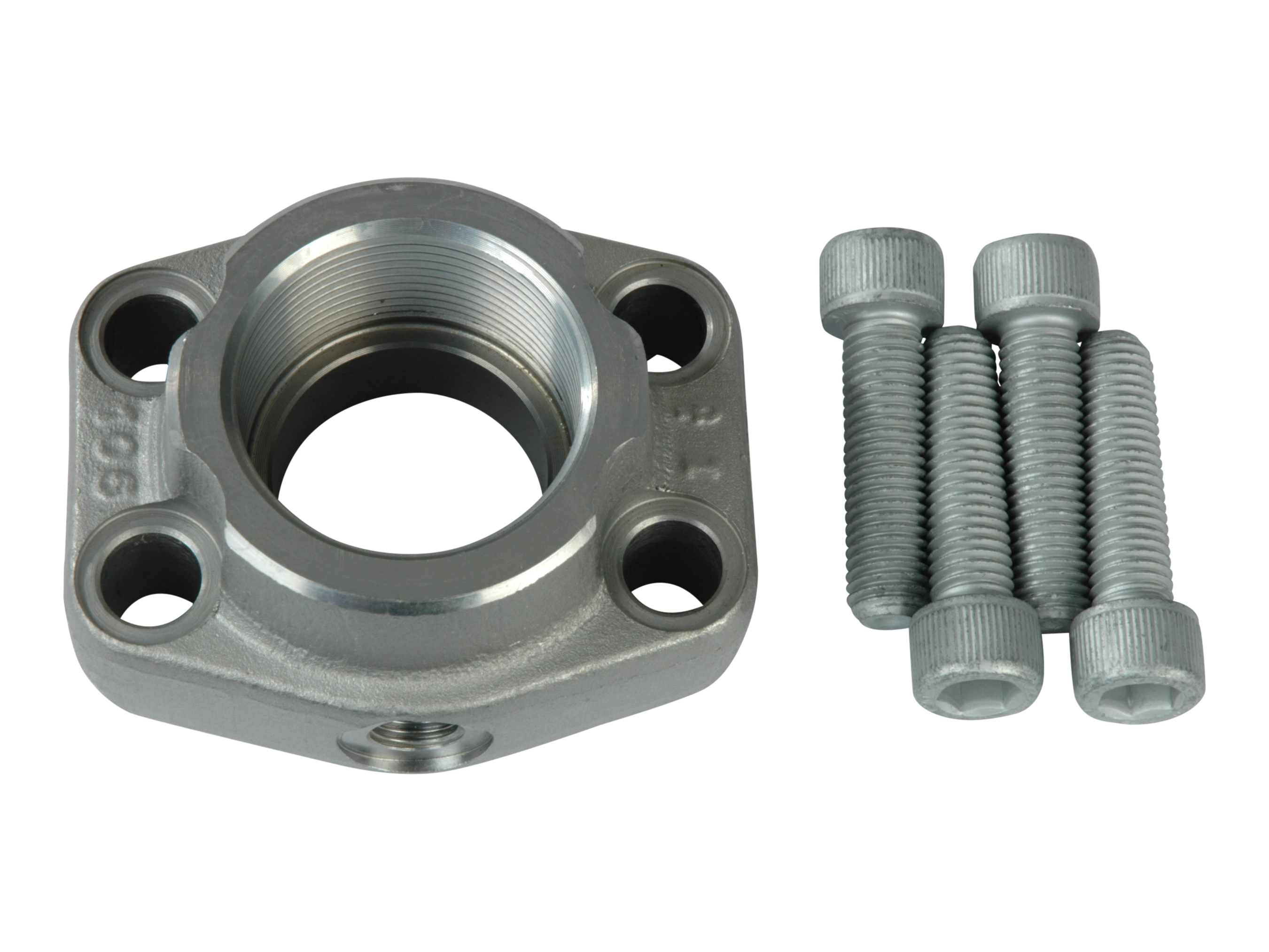

Threaded flange 3" SAE3000 x 3" BSP - 1/4" test

SELECT VARIANT

Partnumber	Description	Thread inner	Flange	Bolt dimension	Diameter flange
AFS102G-G18M	Threaded flange 1" SAE3000 x 1" BSP - 1/8" test - complete	G 1, G 1/8 BSP	1 "	M10x35 mm	44.5 mm
AFS104G-G18M	Threaded flange 1.1/4" SAE3000 x 1.1/4" BSP - 1/8" test	G 1.1/4, G 1/8 BSP	1.1/4 "	M10x40 mm	50.8 mm
AFS106G-G14M	Threaded flange 1.1/2" SAE3000 x 1.1/2" BSP - 1/4" test	G 1.1/2, G 1/8 BSP	1.1/2 "	M12x45 mm	60.3 mm
AFS108G-G14M	Threaded flange 2" SAE3000 x 2" BSP - 1/4" test	G 1/4, G 2 BSP	2 "	M12x45 mm	71.4 mm
AFS110G-G14M	Threaded flange 2.1/2" SAE3000 x 2.1/2" BSP - 1/4" test	G 1/4, G 2.1/2 BSP	2.1/2 "	M12x45 mm	84.1 mm
AFS112G-G14M	Threaded flange 3" SAE3000 x 3" BSP - 1/4" test	G 1/4, G 3 BSP	3 "	M16x50 mm	101.6 mm

Angle

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Flange SAE/DIN

3000 PSI

Material

Steel

Number of bolts

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zinc-Nickel plated

Temperature max.

+90

Temperature min.

-40
