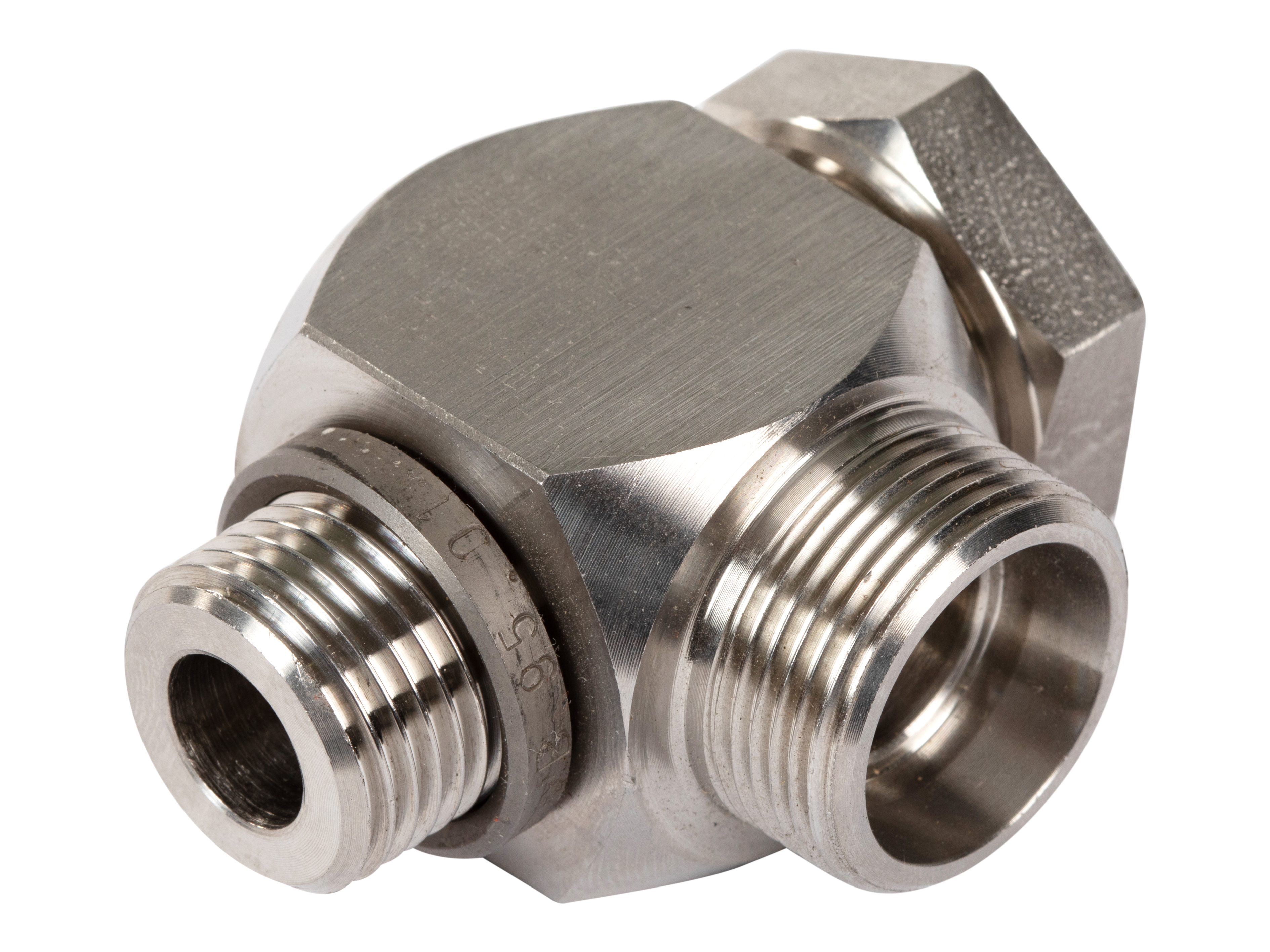

Banjo fitting BSP x DIN - S-series stainless - SBE-RSX/71

Banjo - ø6S x 1/4" BSP - AISI316

Banjo - ø8S x 1/4" BSP - AISI316

Banjo - ø10S x 3/8" BSP - AISI316

Banjo - ø12S x 3/8" BSP - AISI316

Banjo - ø16S x 1/2" BSP - AISI316

Banjo - ø20S x 3/4" BSP - AISI316

SELECT VARIANT

Partnumber	Description	Thread outer metric	Thread outer	Diameter pipe	Pressure max.
SBE06RSX/71	Banjo - ø6S x 1/4" BSP - AISI316	M12x1,5	G 1/4 BSP	6 mm	315 bar
SBE08RSX/71	Banjo - ø8S x 1/4" BSP - AISI316	M14x1,5	G 1/4 BSP	8 mm	315 bar
SBE10RSX/71	Banjo - ø10S x 3/8" BSP - AISI316	M18x1,5	G 3/8 BSP	10 mm	315 bar
SBE12RSX/71	Banjo - ø12S x 3/8" BSP - AISI316	M20x1,5	G 3/8 BSP	12 mm	315 bar
SBE16RSX/71	Banjo - ø16S x 1/2" BSP - AISI316	M24x1,5	G 1/2 BSP	16 mm	315 bar
SBE20RSX/71	Banjo - ø20S x 3/4" BSP - AISI316	M27x2	G 3/4 BSP	20 mm	160 bar

Angle

Brand Name

Volz

Material

Acid-resistant steel

Material quality

1.4571 / AISI316Ti

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

2.5

Sealing material

FKM/FPM (Viton®)

Series

Temperature max.

+200

Temperature min.

-25
