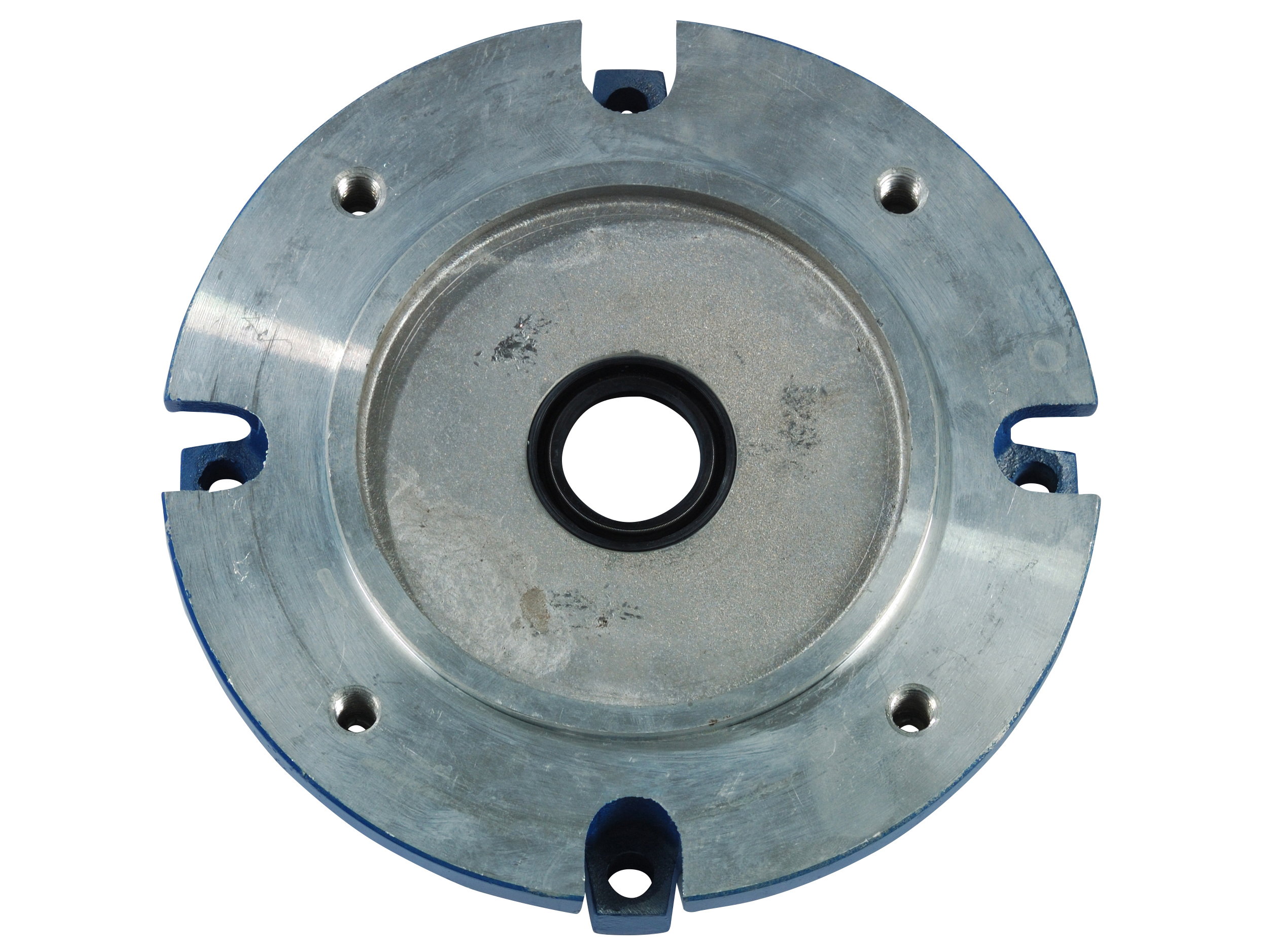

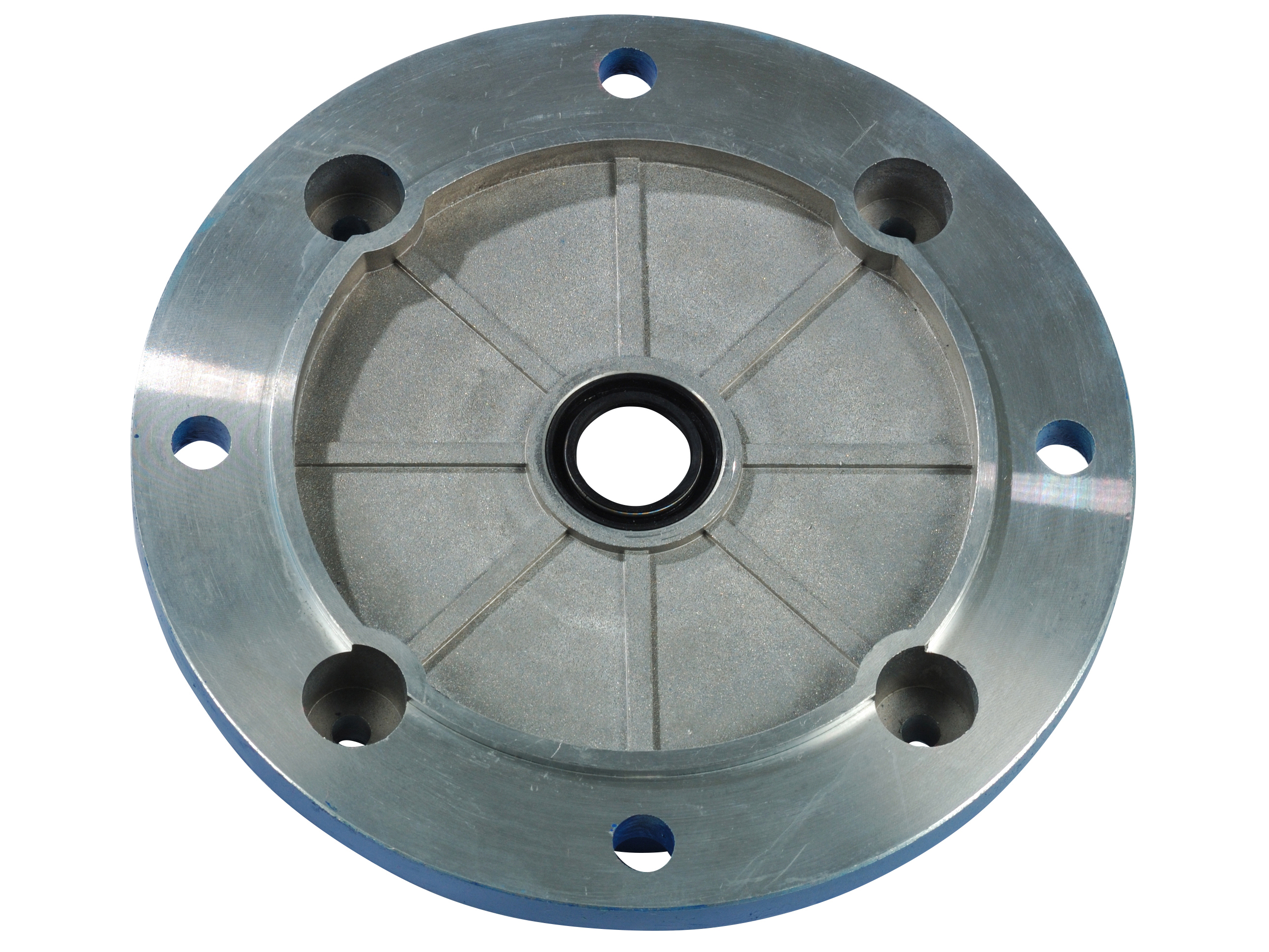

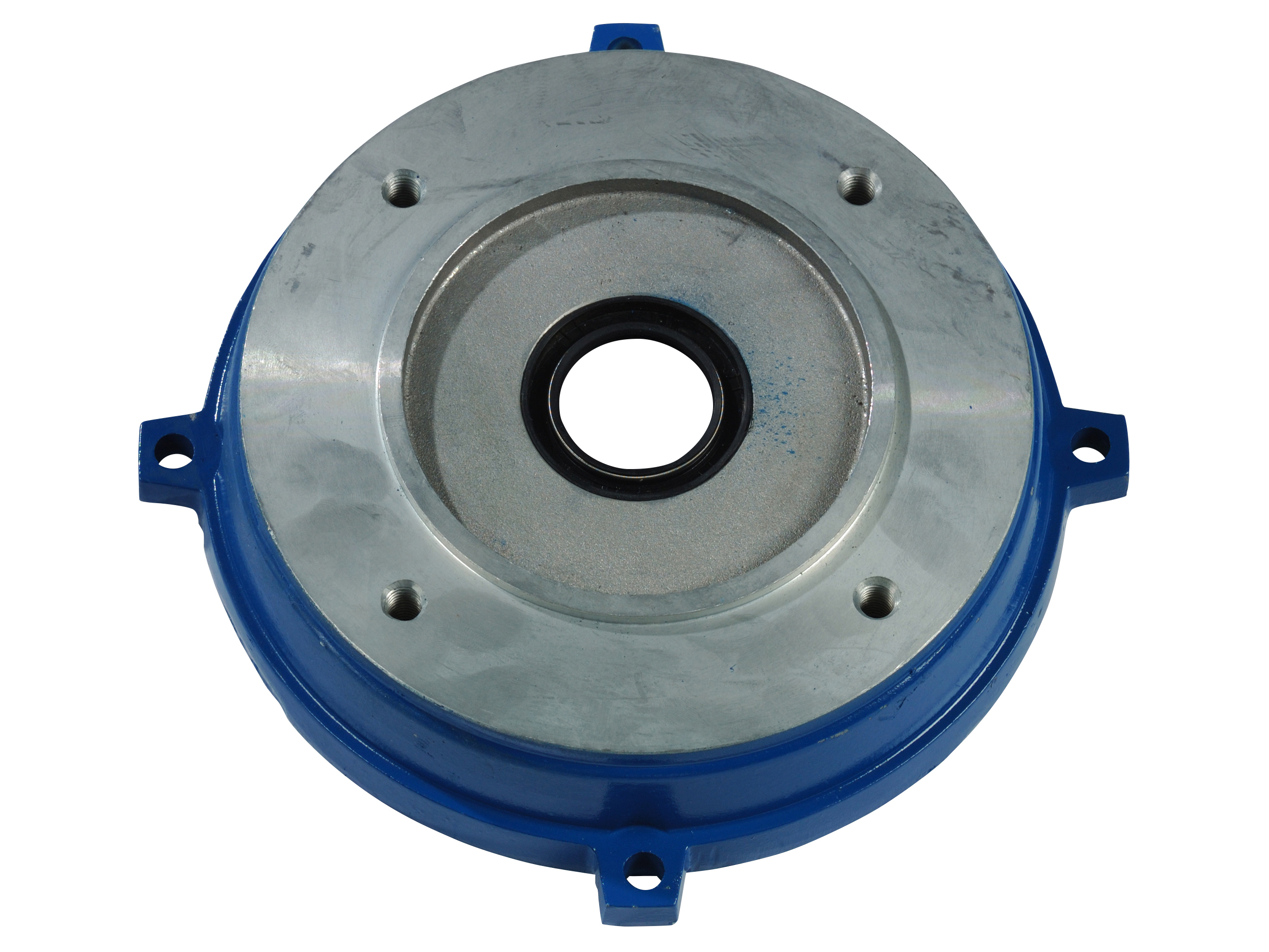

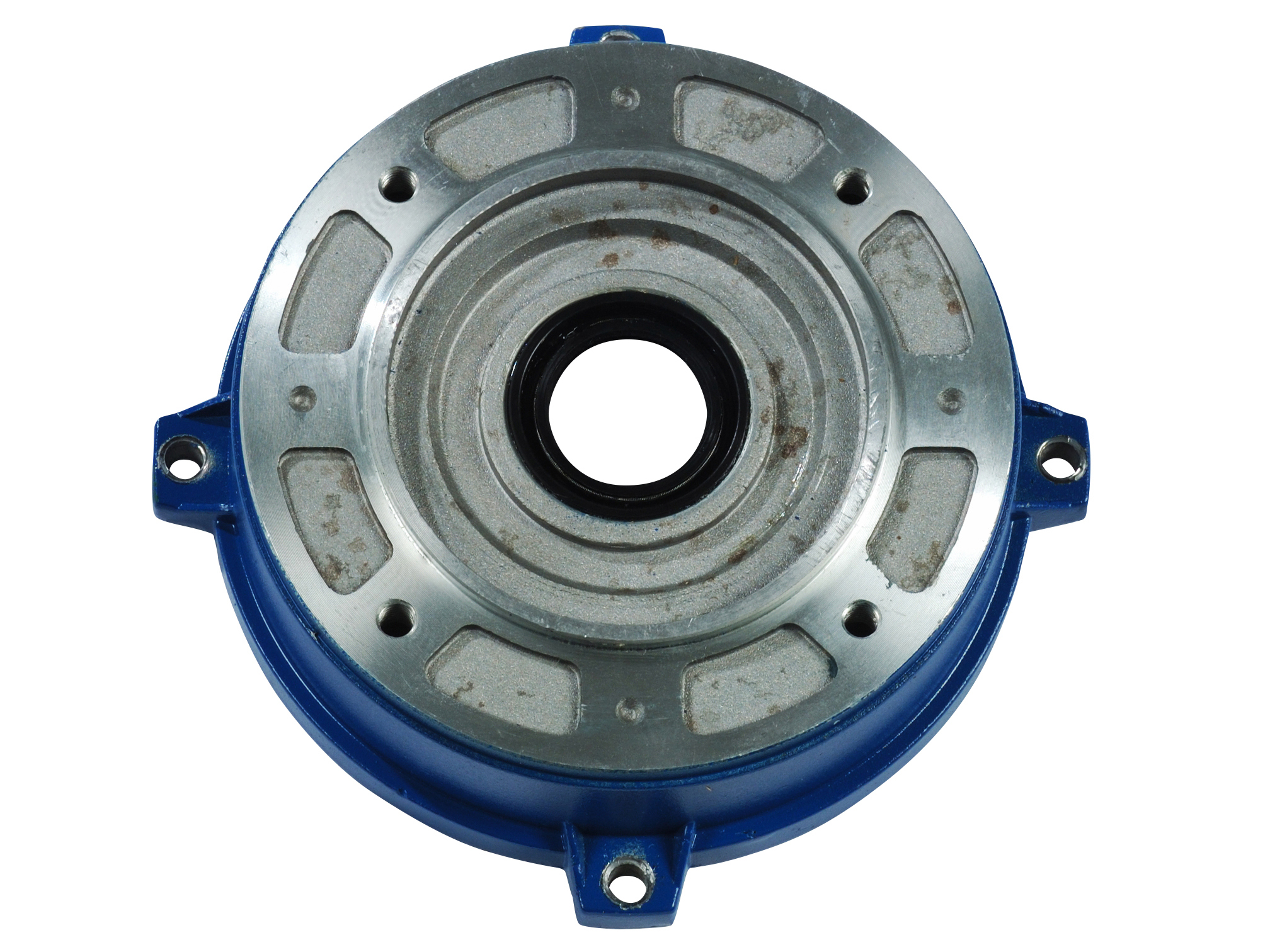

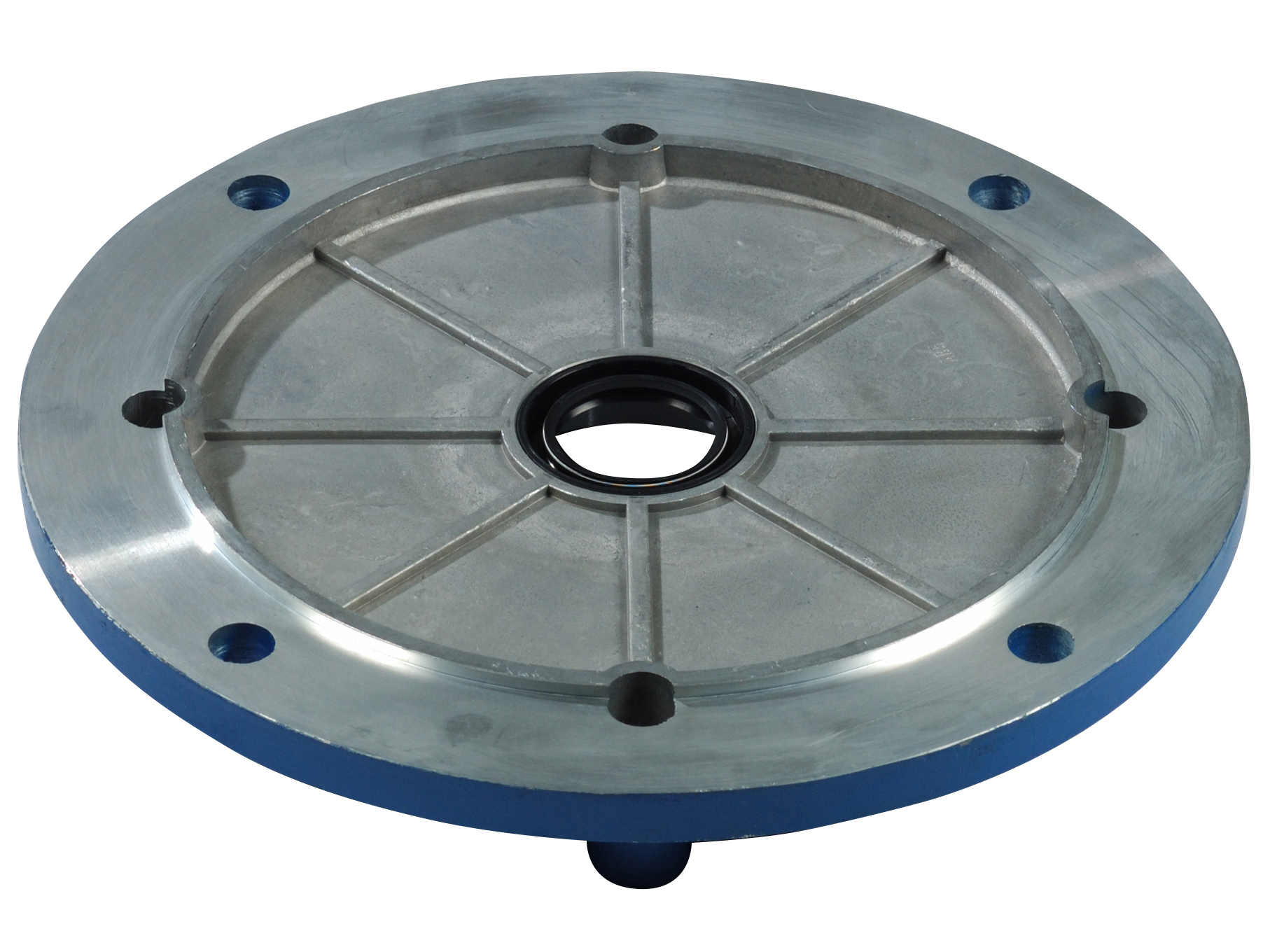

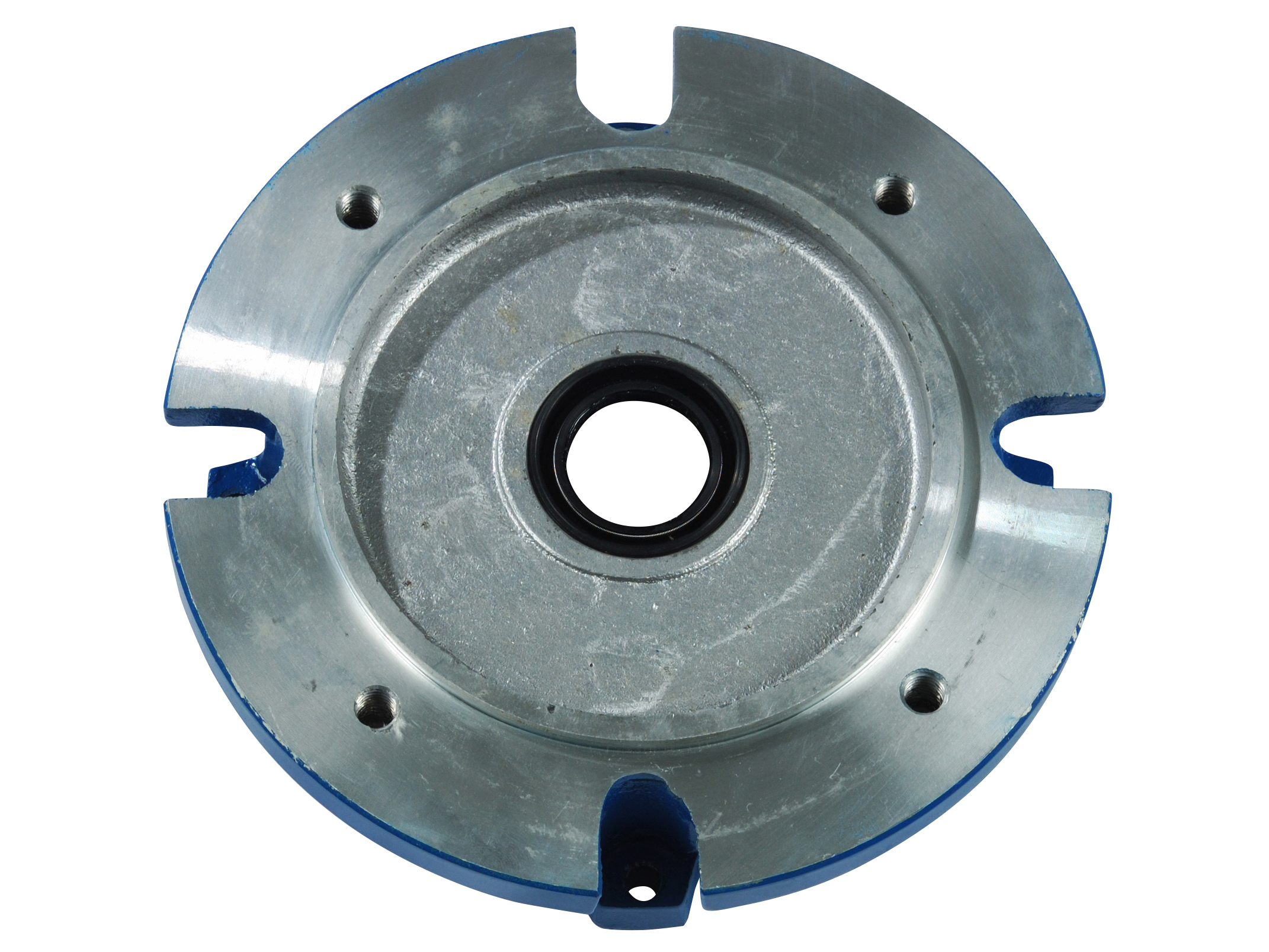

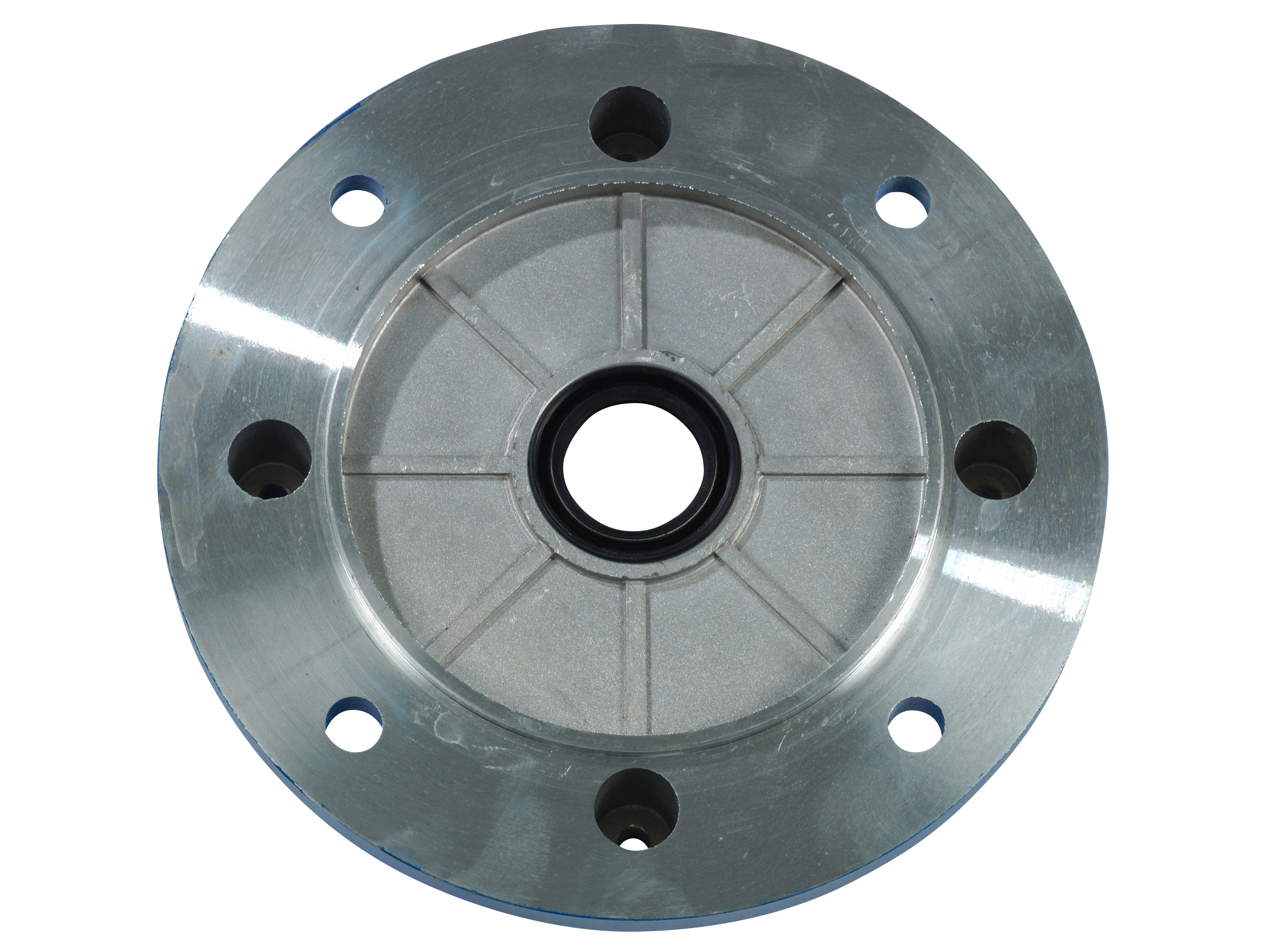

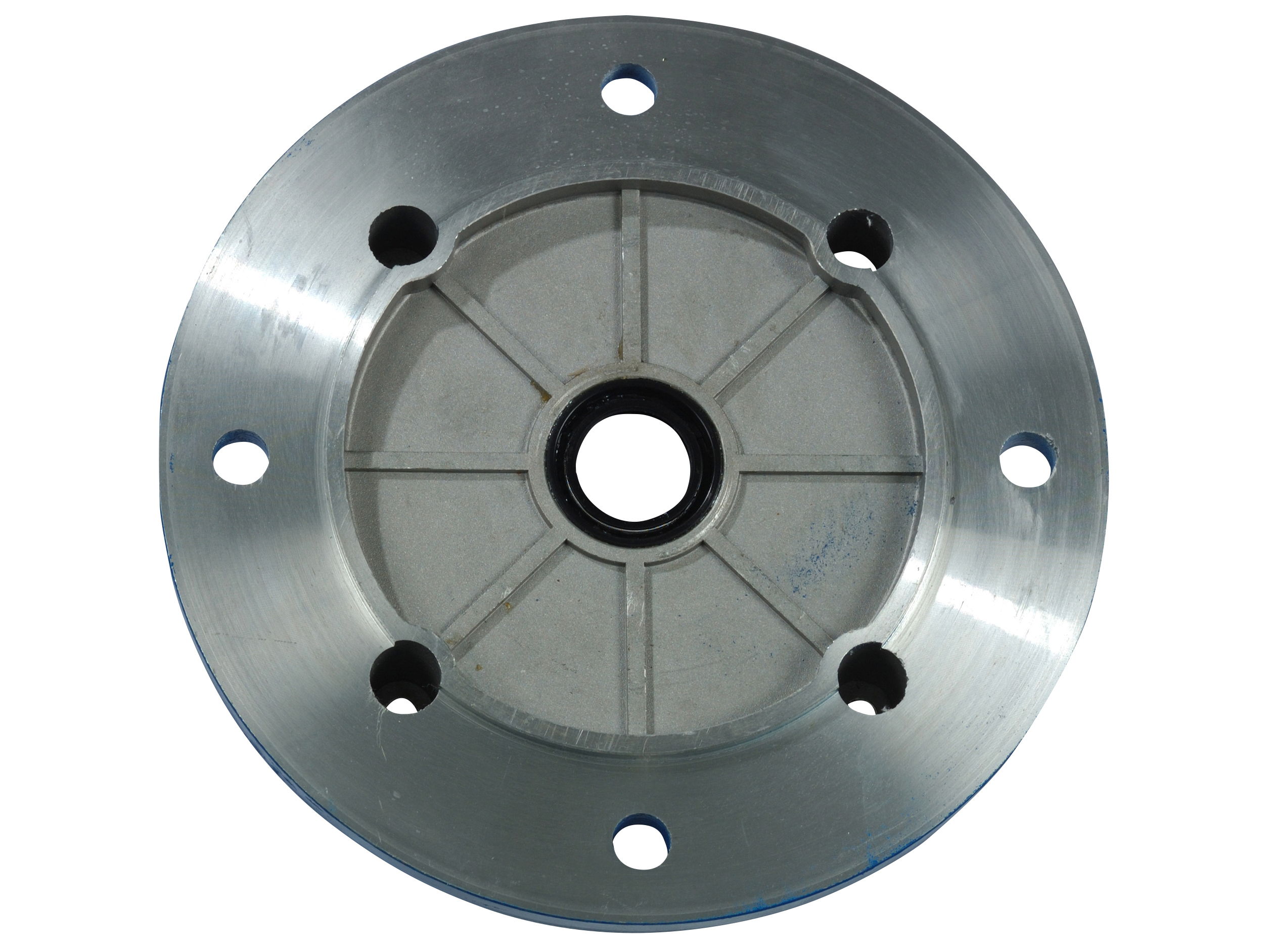

Frontflange for HOYER ac elmotor

SELECT VARIANT

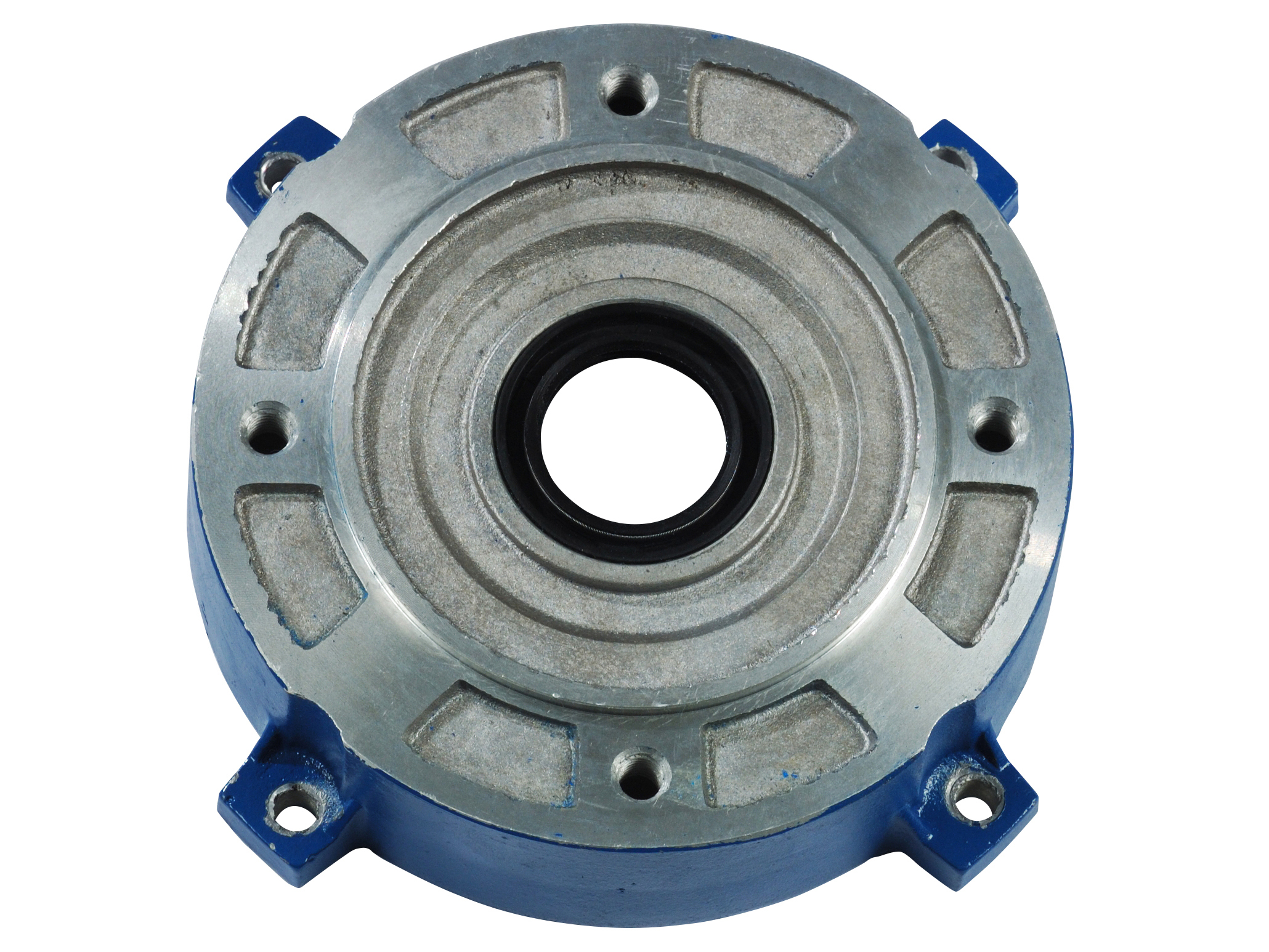

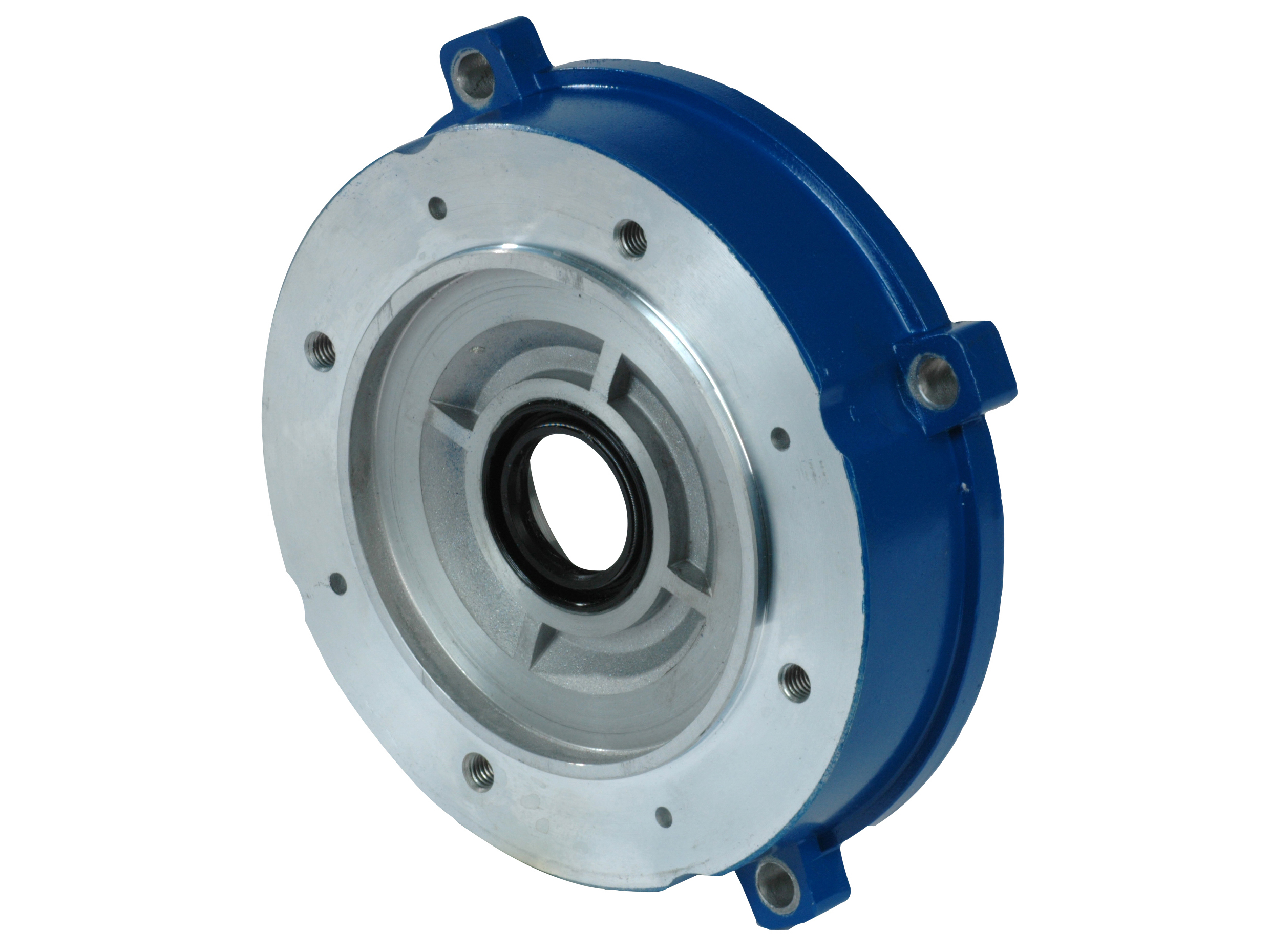

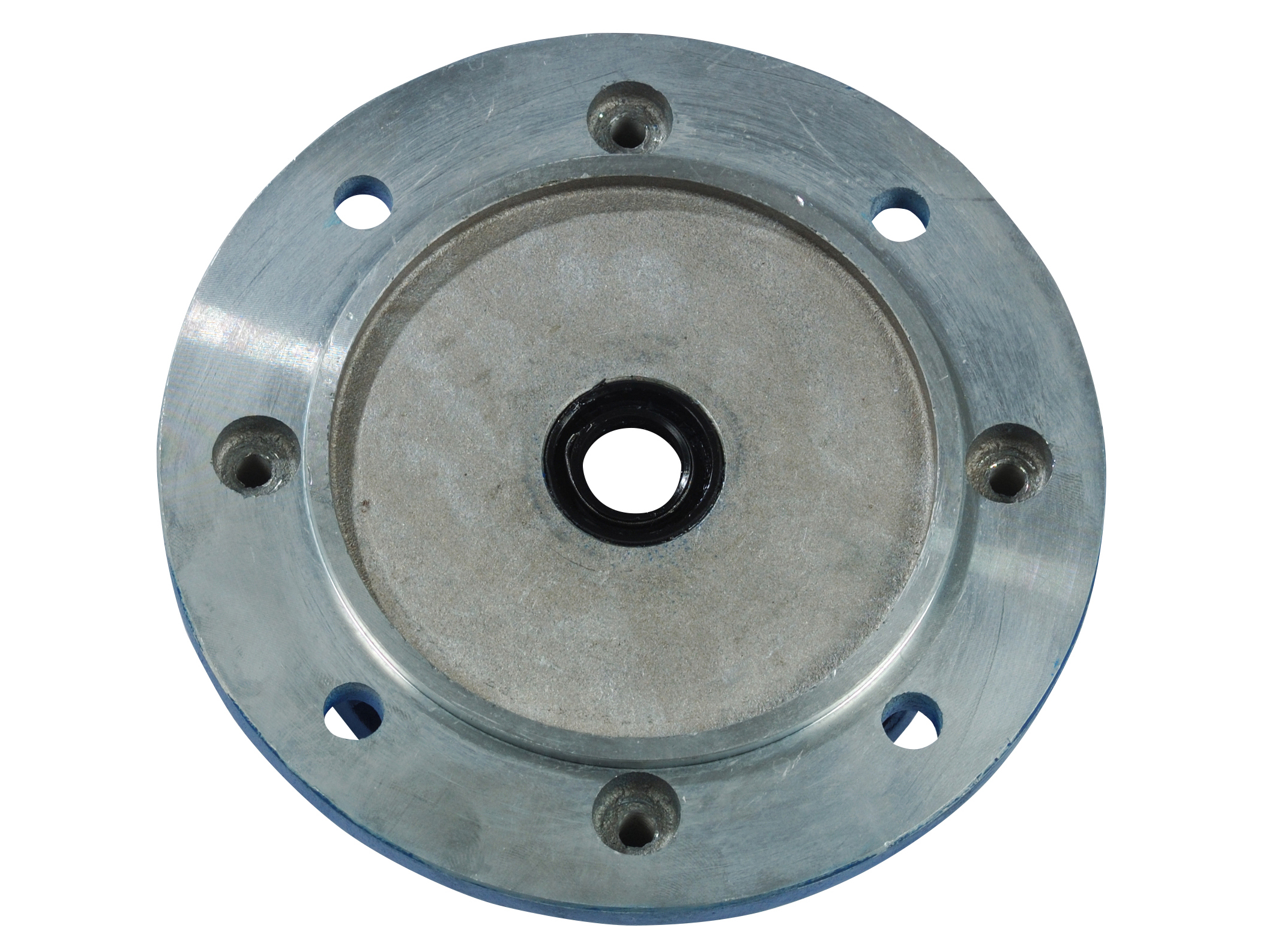

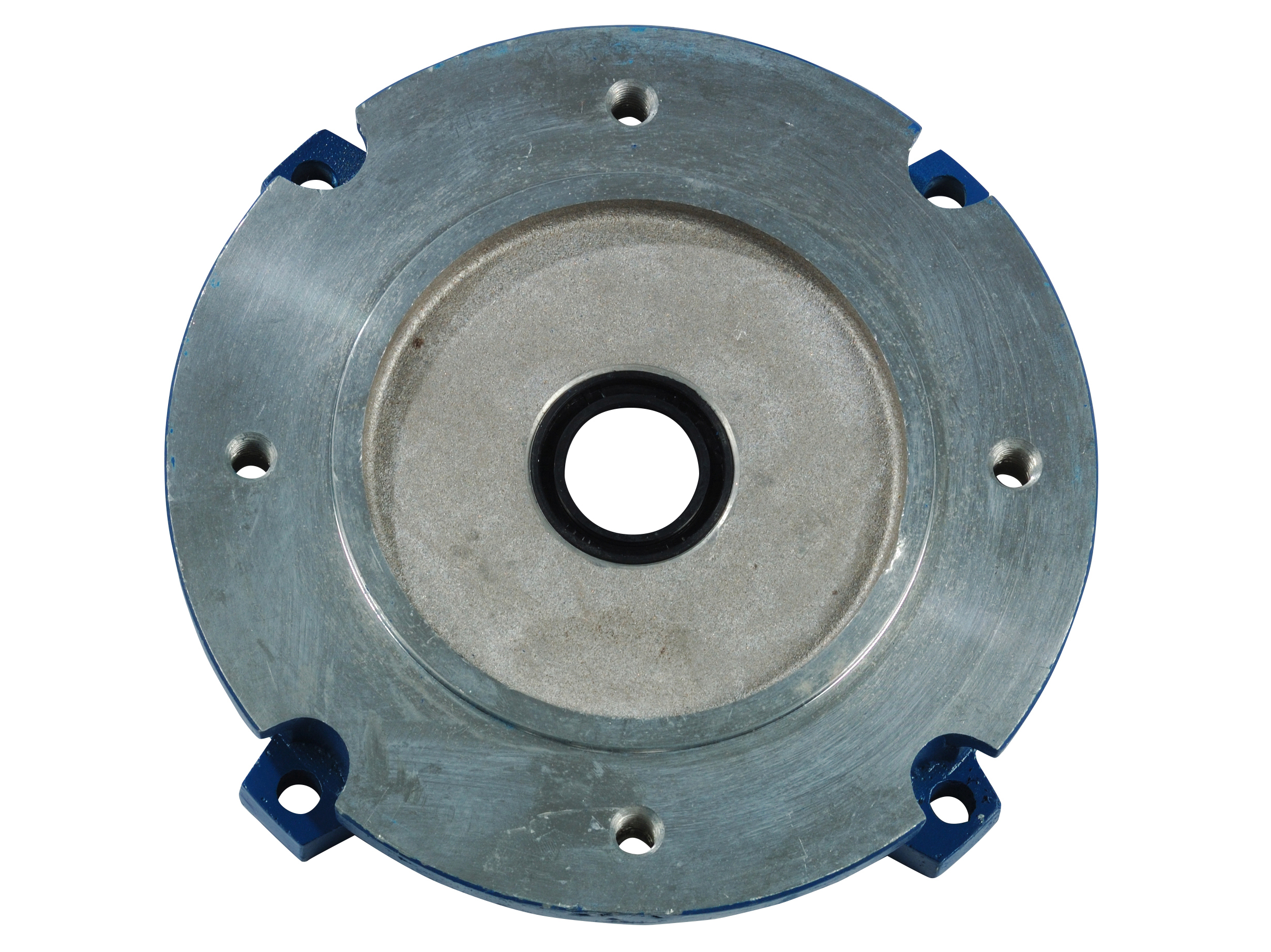

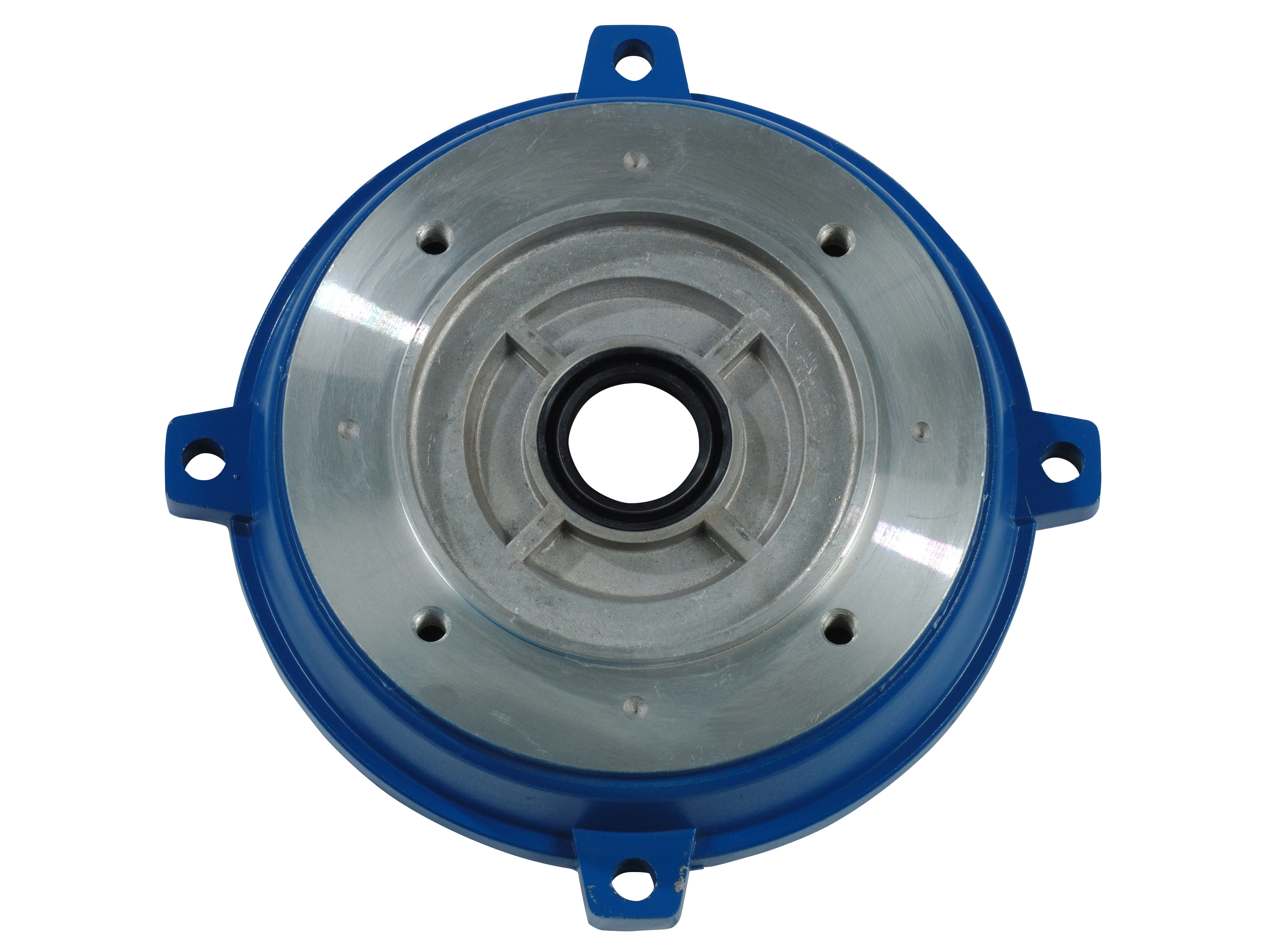

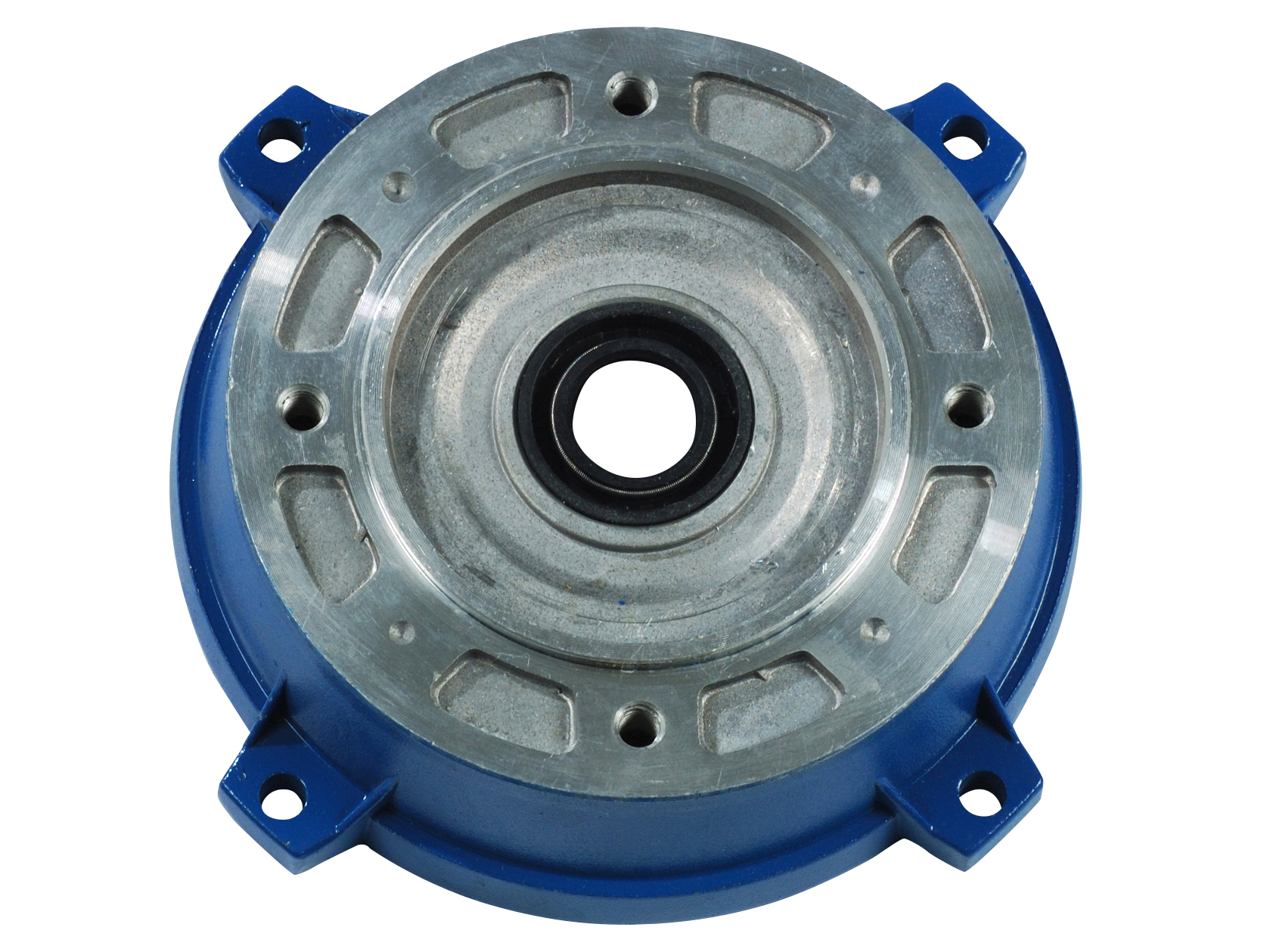

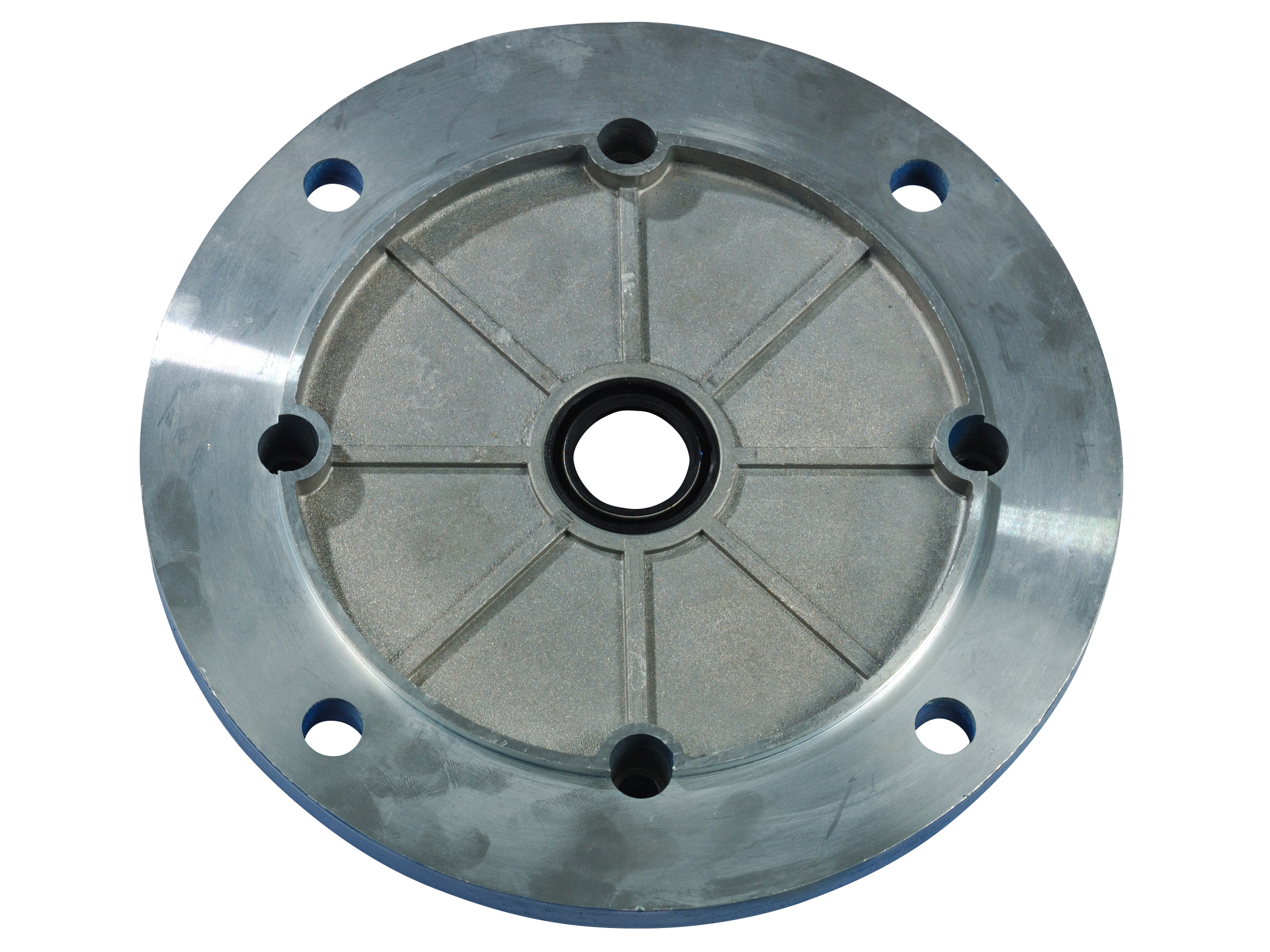

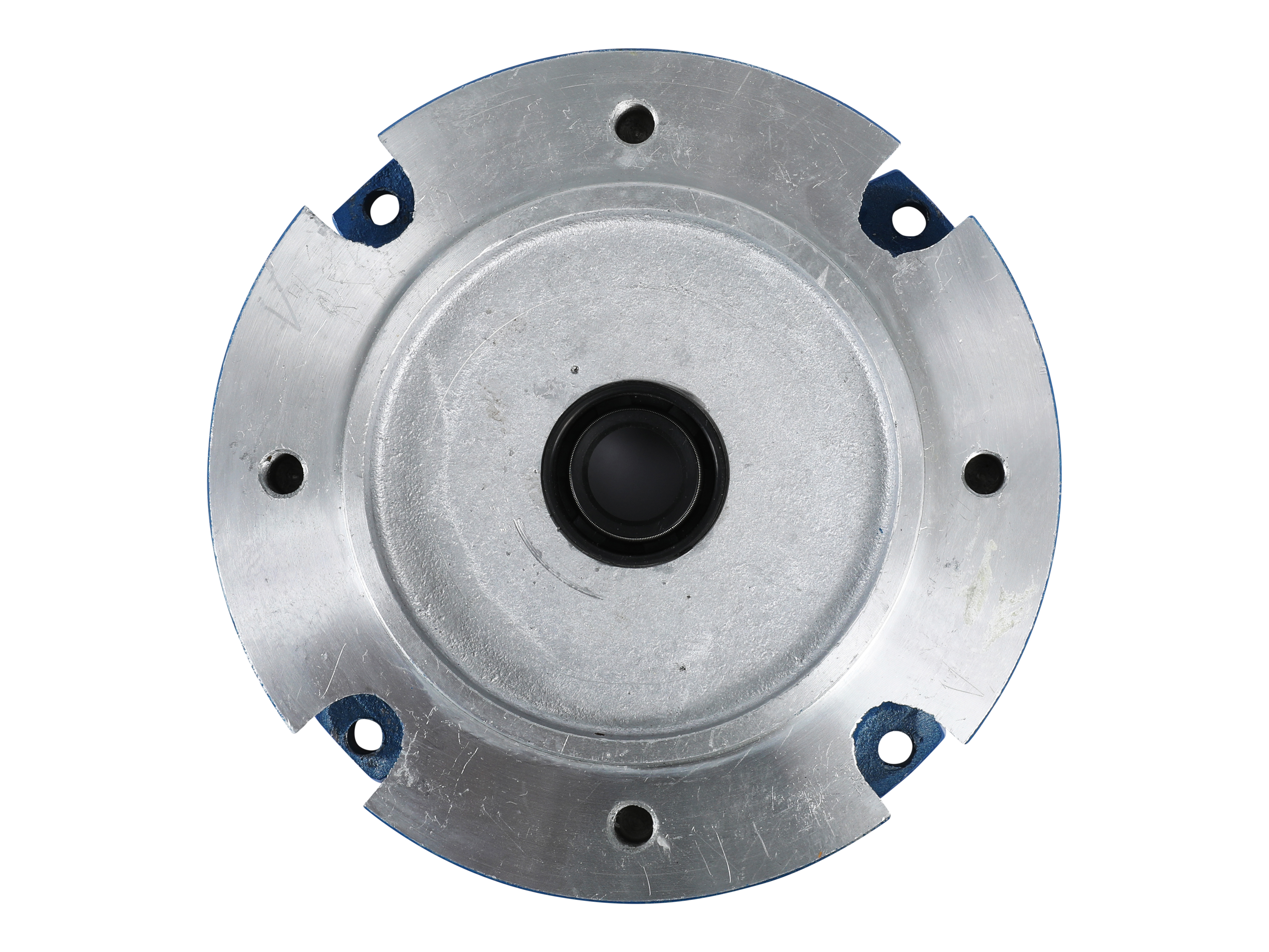

Partnumber	Description	Diameter Bolt hole	Recess	Diameter outer
FL0711035A	MS 71 flange B5/160	10,0 mm	110,0 mm	160 mm
FL0711041A	MS 71 flange B14/105		70,0 mm	105 mm
FL071104AB	MS 71 flange B14B/140		95,0 mm	140 mm
FL0801032A	MS 80 flange B5/200	12,0 mm	130,0 mm	200 mm
FL080104A1	MS 80 flange B14/120		80,0 mm	120 mm
FL080104AB	MS 80 flange B14B/160		110,0 mm	160 mm
FL0901031A	MS 90 flange B5/200	12,0 mm	130,0 mm	200 mm
FL0901041A	MS 90 flange B14/140		95,0 mm	140 mm
FL1001035A	MS100 flange B5/250	12,0 mm	180,0 mm	250 mm
FL1001040A	MS100 flange B14/160		110,0 mm	160 mm
FL100104AB	MS100 flange B14B/200		130,0 mm	200 mm
FL1121030A	MS112 flange B5/250	15,0 mm	180,0 mm	250 mm
FL1121040A	MS112 flange B14/160		110,0 mm	160 mm
FL112104AB	MS112 flange B14B/200		130,0 mm	200 mm
FL1321035A	MS132 flange B5/300	15,0 mm	230,0 mm	300 mm
FL1321040A	MS132 flange B14/200		130,0 mm	200 mm
