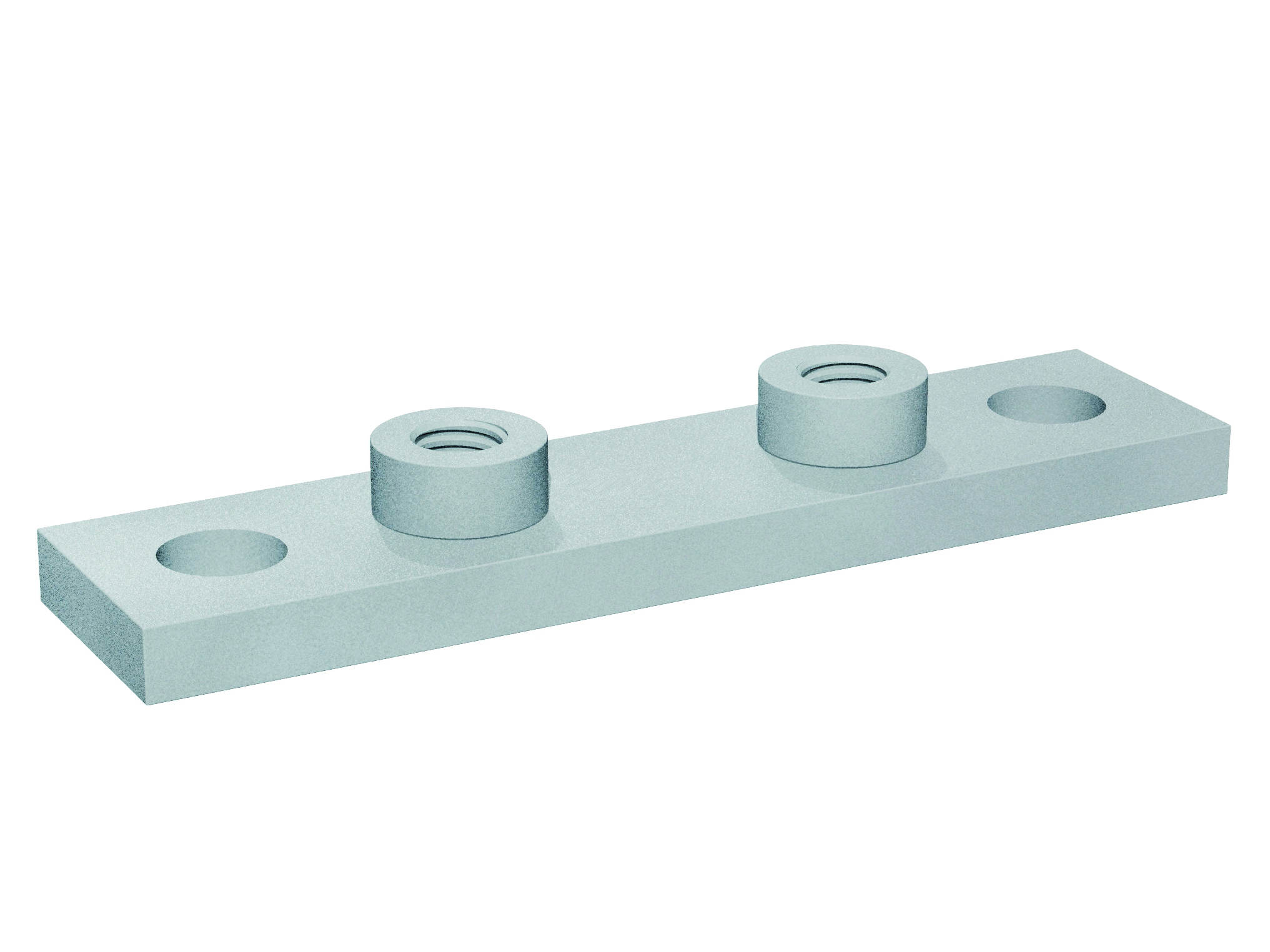

Weld plates elongated - ZiNi - DIN3015-1

Elongated Weld plate - DIN 0-1 - ZiNi

Elongated Weld plate - DIN 2 - ZiNi

Elongated Weld plate - DIN 3 - ZiNi

Elongated Weld plate - DIN 4 - ZiNi

Elongated Weld plate - DIN 5 - ZiNi

Elongated Weld plate - DIN 7 - ZiNi

SELECT VARIANT

Partnumber	Description	Length	Width	DIN size
SPV1A	Elongated Weld plate - DIN 0-1 - ZiNi	64 mm	30 mm	1
SPV2	Elongated Weld plate - DIN 2 - ZiNi	70 mm	30 mm	2
SPV3	Elongated Weld plate - DIN 3 - ZiNi	78 mm	30 mm	3
SPV4	Elongated Weld plate - DIN 4 - ZiNi	87 mm	30 mm	4
SPV5	Elongated Weld plate - DIN 5 - ZiNi	100 mm	30 mm	5
SPV7	Elongated Weld plate - DIN 7 - ZiNi	150 mm	30 mm	7

Brand Name

Stauff

Dimension B

Dimension D1

Dimension D2

6.5

Dimension H

6.5

Material

Steel

Number of clamps

Standard DIN

DIN 3015 part 1

Surface treatment

Phosphated (black)

Width

Weld plates elongated - ZiNi - DIN3015-1
