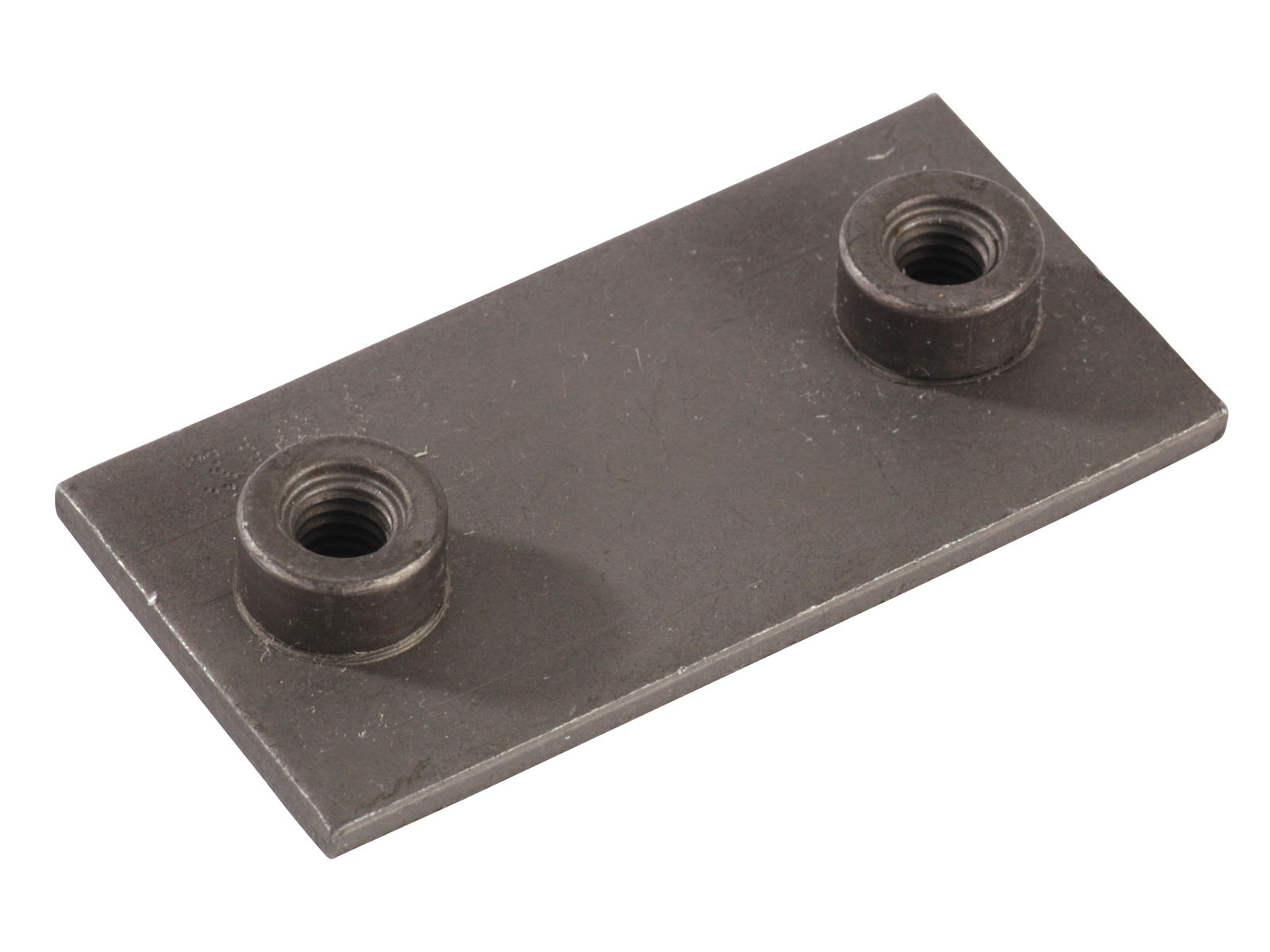

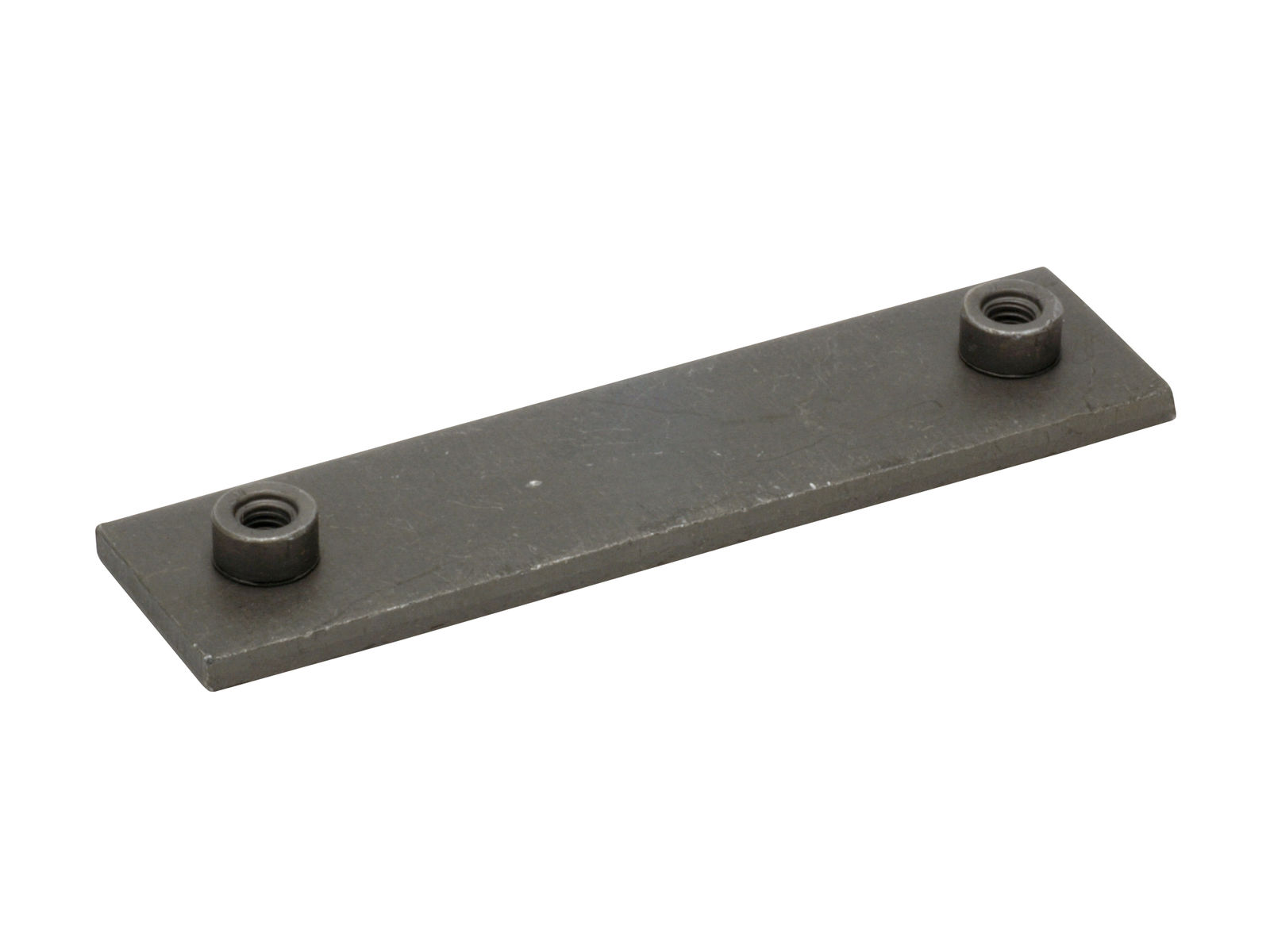

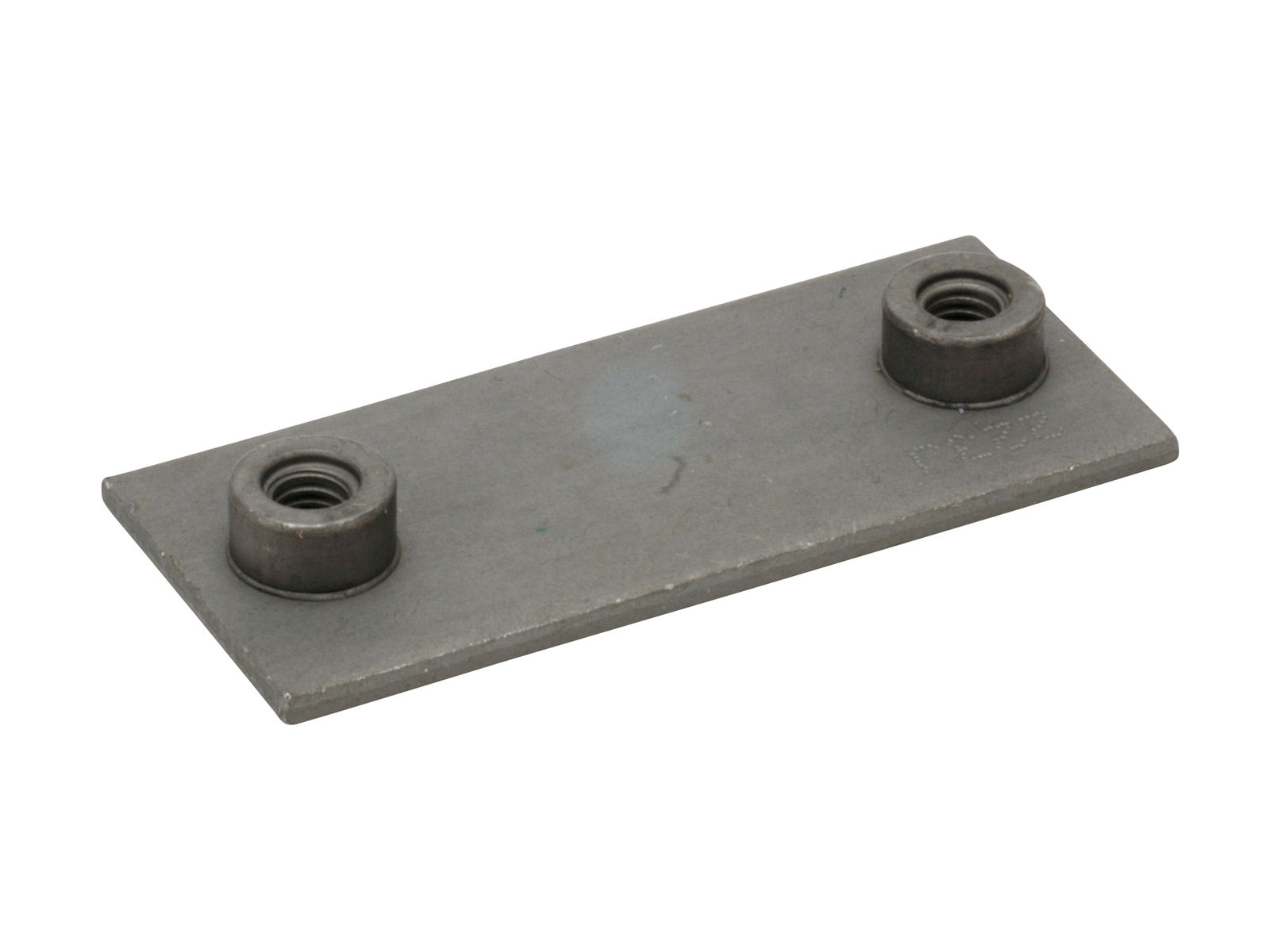

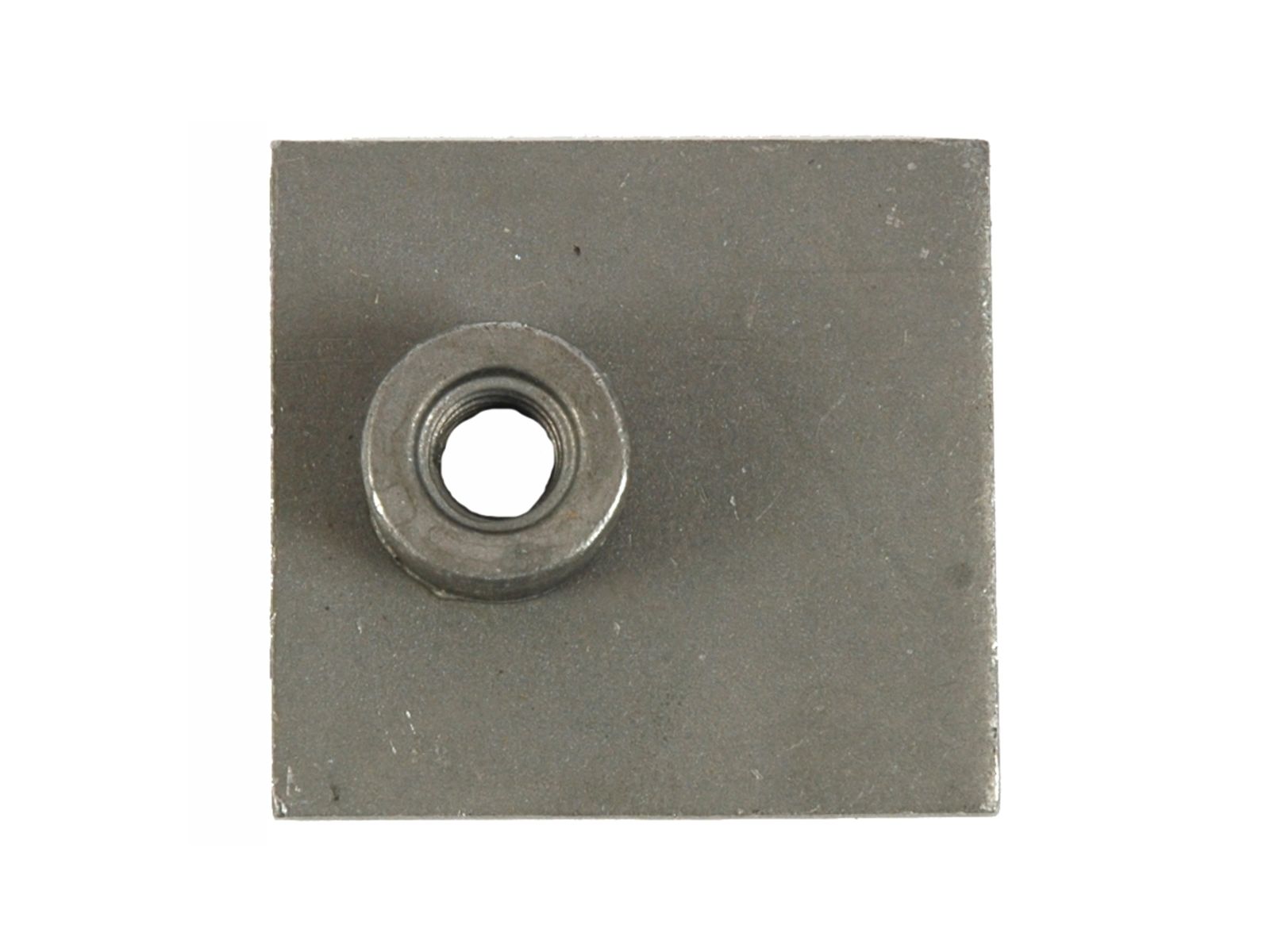

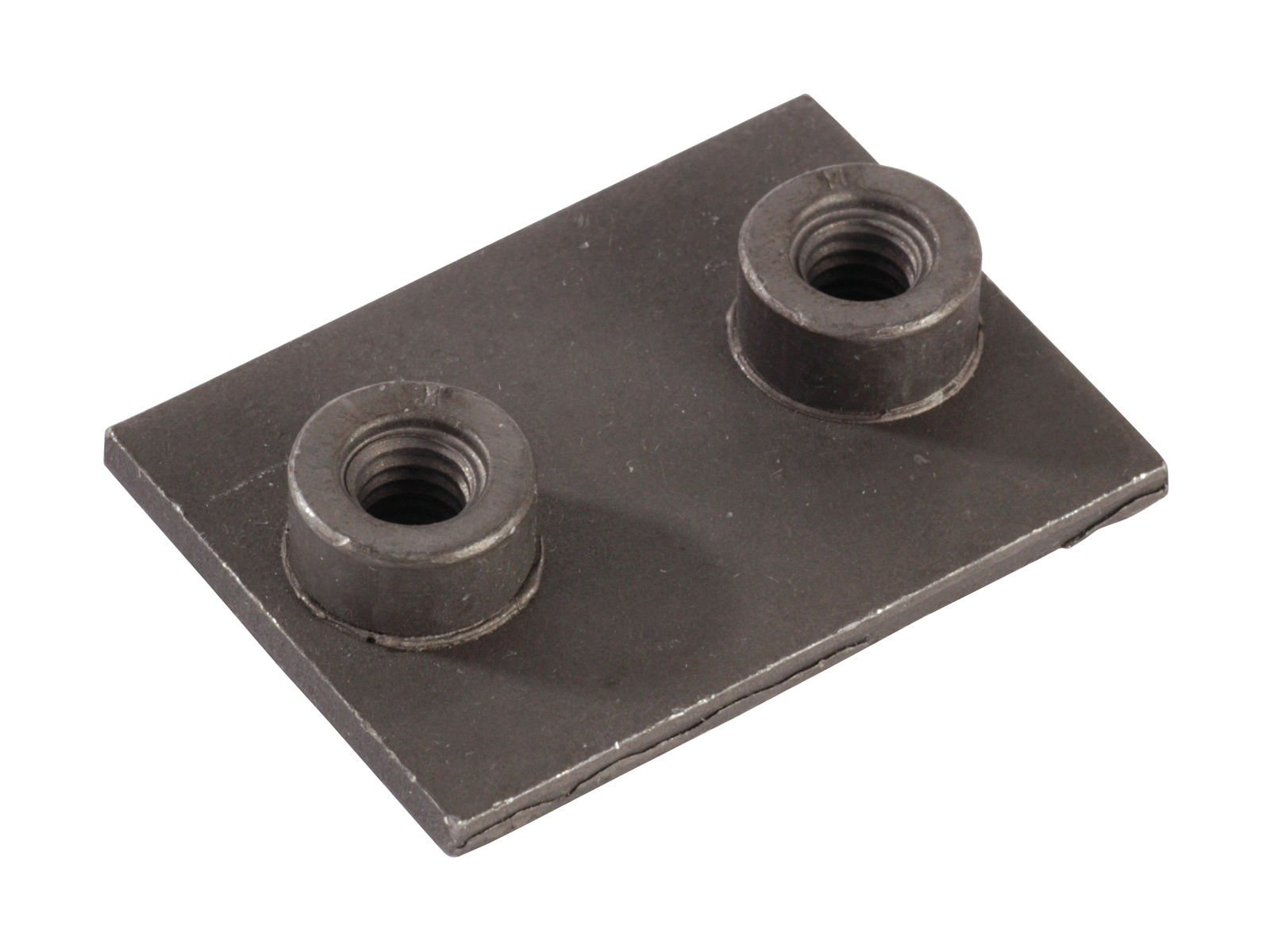

Weld plates - Phosphated - DIN3015-1

SELECT VARIANT

Partnumber	Description	Length	Width	DIN size
SP1	Weld plate - DIN 0 - Phosphated	31.5 mm	30 mm	0
SP1A	Weld plate - DIN 1 - Phosphated	36 mm	30 mm	1
SP2	Weld plate - DIN 2 - Phosphated	42 mm	30 mm	2
SP3	Weld plate - DIN 3 - Phosphated	50 mm	30 mm	3
SP4	Weld plate - DIN 4 - Phosphated	60 mm	30 mm	4
SP5	Weld plate - DIN 5 - Phosphated	71 mm	30 mm	5
SP6	Weld plate - DIN 6 - Phosphated	88 mm	30 mm
SP7	Weld plate - DIN 7 - Phosphated	122 mm	30 mm	7

Brand Name

Stauff

Dimension B

Dimension D

Dimension H

6.5

Material

Steel

Number of clamps

Standard DIN

DIN 3015 part 1

Surface treatment

Phosphated (black)

Width
