Pipe clamp cover plates - single series - ACT

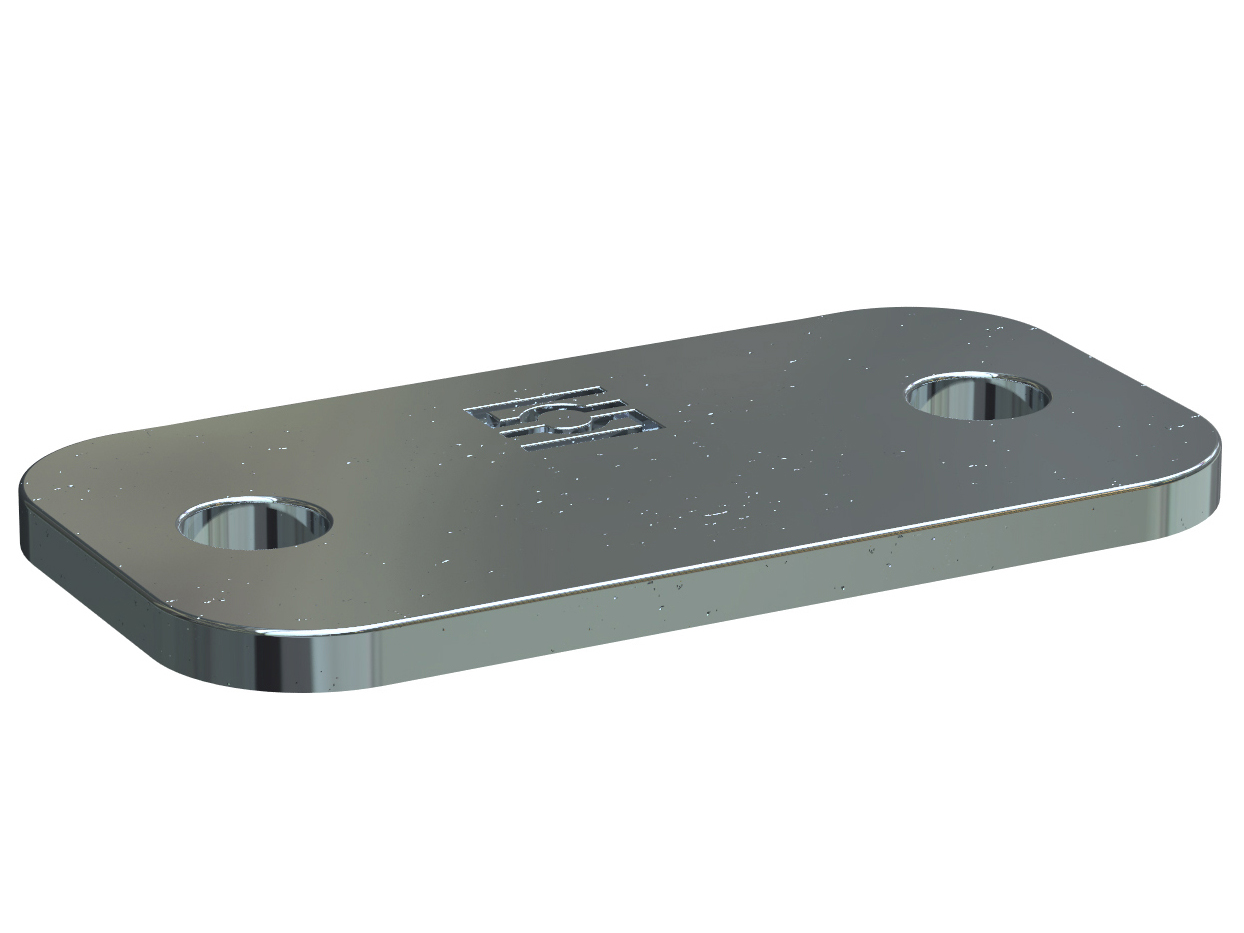

ACT single pipe clamp cover plate.

ACT Mounting Hardware is made of Stainless Steel V4A (Material Code: W55) with enhanced
corrosion resistance by practically excluding metallic and non-metallic impurities during
production, processing and handling.

Cover plate - DIN 1 - ACT Stainless

1130030398

Cover plate - DIN 2 - ACT Stainless

1130030399

Cover plate - DIN 3 - ACT Stainless

1130030400

Cover plate - DIN 4 - ACT Stainless

1130030401

Cover plate - DIN 5 - ACT Stainless

1130030402

SELECT VARIANT

Partnumber	Description	Length	Width
1130030398	Cover plate - DIN 1 - ACT Stainless	34 mm	30 mm
1130030399	Cover plate - DIN 2 - ACT Stainless	40.5 mm	30 mm
1130030400	Cover plate - DIN 3 - ACT Stainless	48 mm	30 mm
1130030401	Cover plate - DIN 4 - ACT Stainless	57 mm	30 mm
1130030402	Cover plate - DIN 5 - ACT Stainless	70 mm	30 mm

Specifications
Dimensions and shipping (select variant)

30 mm

Brand Name

Stauff

7 mm

Material

Stainless steel

Material quality

1.4571 / AISI316Ti

3 mm

Standard DIN

DIN 3015 part 1

Surface treatment

Polished

Width

Product information
Measure sketch (select variant)

ACT single pipe clamp cover plate.
