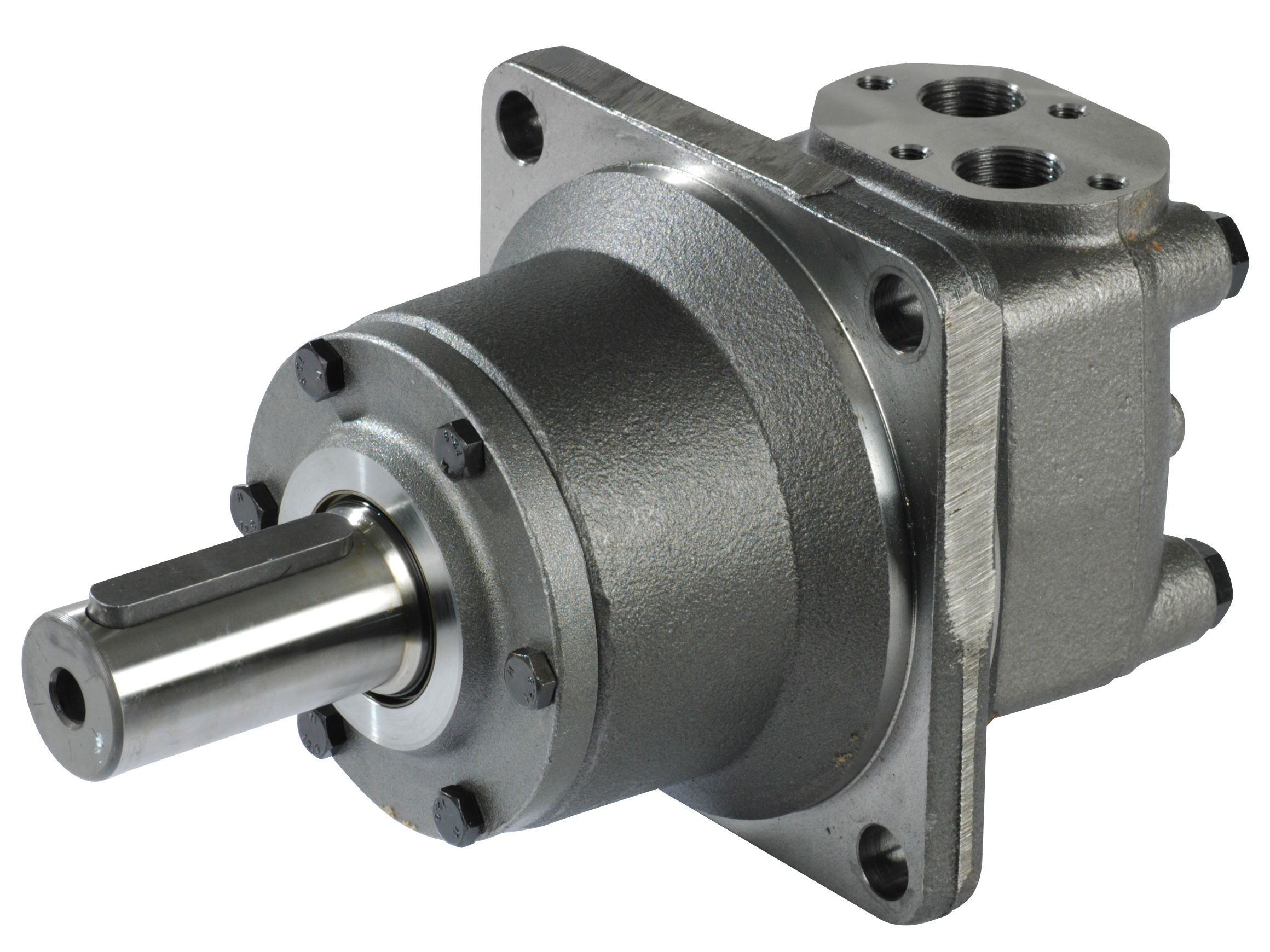

Orbital motors Danfoss OMTW cylindrical shaft

Orbital motors Danfoss OMTW cylindrical shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Shaft diameter Shaft type Displacement Continuous rotation max.
151B3025 OMTW 200 HYDRAULIC MOTOR 40 mm Cylindrical 201.4 cm3 625 rpm
151B3026 OMTW 250 HYDRAULIC MOTOR 40 mm Cylindrical 251.8 cm3 500 rpm
151B3027 OMTW 315 HYDRAULIC MOTOR 40 mm Cylindrical 326.3 cm3 380 rpm
151B3028 OMTW 400 HYDRAULIC MOTOR 40 mm Cylindrical 410.9 cm3 305 rpm
151B3029 OMTW 500 HYDRAULIC MOTOR 40 mm Cylindrical 523.6 cm3 240 rpm
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Drainport
G 1/4
Holes circle
200
Mounting flange
Wheel 160
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Recess
160,0
Shaft diameter
40
Shaft keyway
12,0
Shaft type
Cylindrical
Temperature ambient max.
+90
Temperature ambient min.
-30
Working ports
G 3/4
