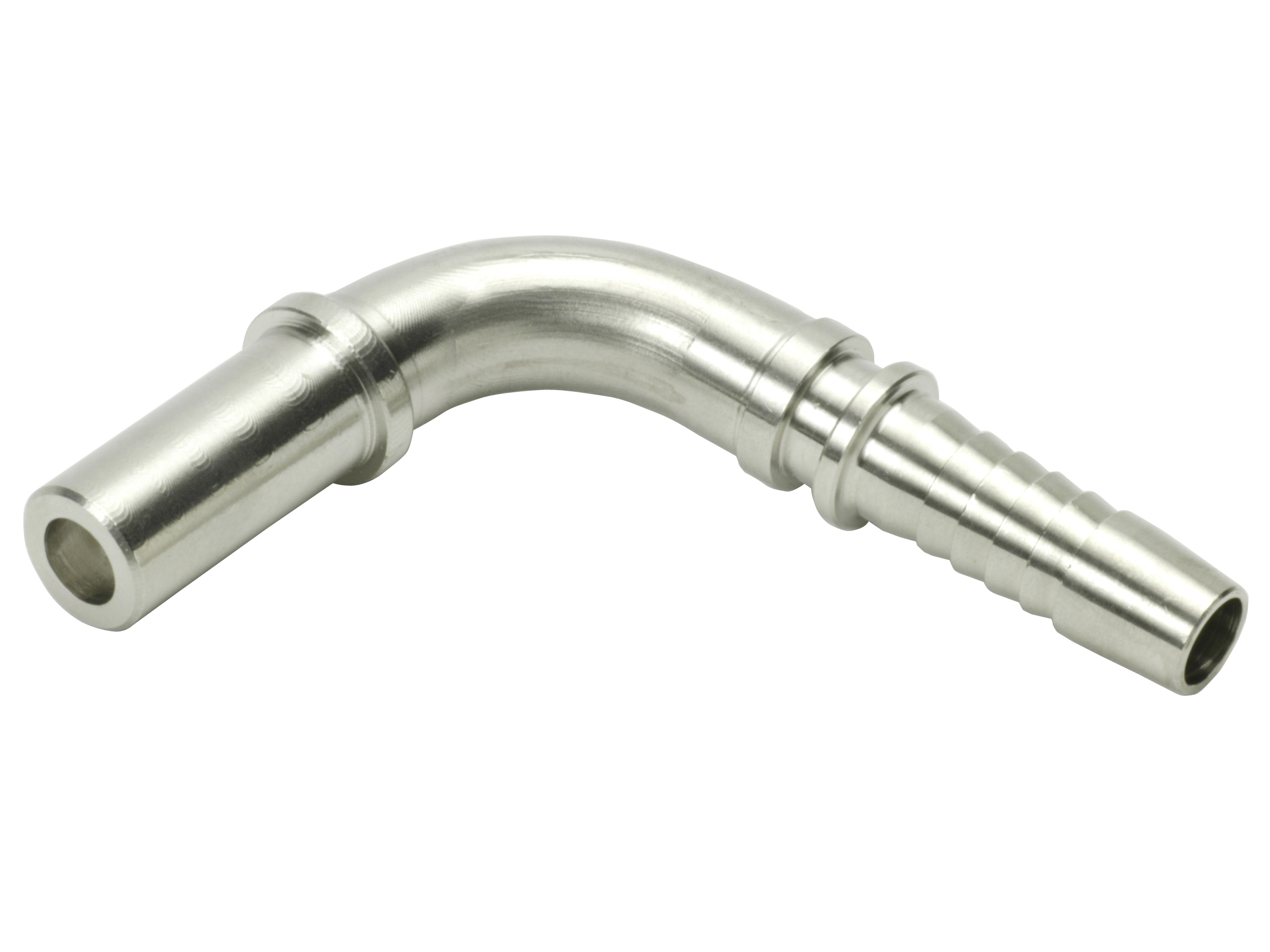

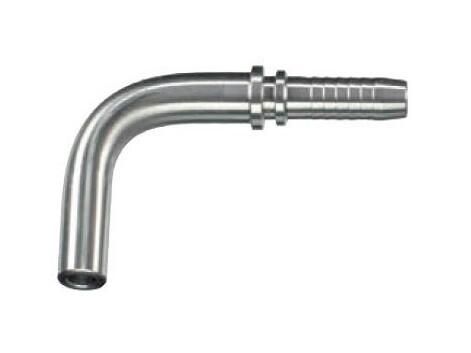

Standpipe metric 90° elbow - "RZ90" stainless

1/8" Insert - ø6 pipe - 90° - AISI316

1/4" Insert - ø6 pipe - 90° - AISI316

3/8" Insert - ø10 pipe - 90° - AISI316

3/8" Insert - ø12 pipe - 90° - AISI316

SELECT VARIANT

Partnumber	Description	Diameter pipe	Hose size	Angle	Hose coupling type
R0206RZ90	1/8" Insert - ø6 pipe - 90° - AISI316	6 mm	1/8 "	90 °	For separate ferrule
R0406RZ90	1/4" Insert - ø6 pipe - 90° - AISI316	6 mm	1/4 "	90 °	For separate ferrule
R0610RZ90	3/8" Insert - ø10 pipe - 90° - AISI316	10 mm	3/8 "	90 °	For separate ferrule
R0612RZ90	3/8" Insert - ø12 pipe - 90° - AISI316	12 mm	3/8 "	90 °	For separate ferrule

Angle

Brand Name

Hydraspecma

Hose coupling type

For separate ferrule

Material

Stainless steel

Material quality

1.4408 / AISI316L

Series

L, S
