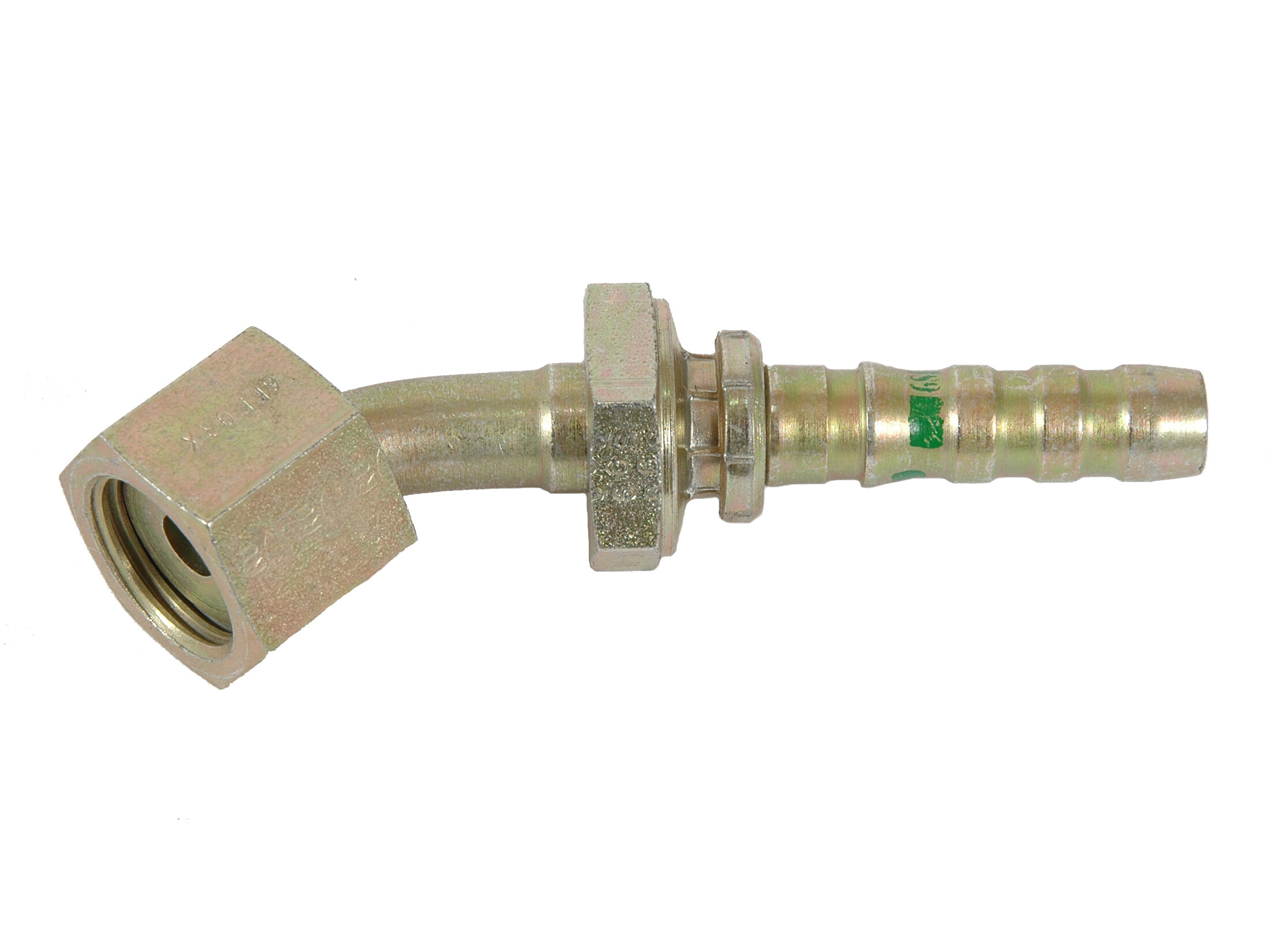

ORFS union nut, 45° elbow, flat-face - (FFORX45 - FF45)

ORFS union nut, 45° elbow, flat-face - (FFORX45 - FF45)

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
GS0606FF45 3/8" Insert - 11/16"-16 ORFS female - 45° 9/16-18 ORFS 3/8 " 45 ° For separate ferrule
GS0808FF45 1/2" Insert - 13/16"-16 ORFS female - 45° 13/16-16 ORFS 1/2 " 45 ° For separate ferrule
GS1010FF45 5/8" Insert - 1"-14 ORFS female - 45° 1-14 ORFS 5/8 " 45 ° For separate ferrule
GS1212FF45 3/4" Insert - 1.3/16"-12 ORFS female - 45° 1.3/16-12 ORFS 3/4 " 45 ° For separate ferrule
GS1216FF45 3/4" Insert - 1.7/16"-12 ORFS female - 45° 1.7/16-12 ORFS 3/4 " 45 ° For separate ferrule
GS1616FF45 1" Insert - 1.7/16"-12 ORFS female - 45° 1.7/16-12 ORFS 1 " 45 ° For separate ferrule
GS1620FF45 1" Insert - 1.11/16"-12 ORFS female - 45° 1.11/16-12 ORFS 1 " 45 ° For separate ferrule
GS2020FF45 1.1/4" Insert - 1.11/16"-12 ORFS female - 45° 1.11/16-12 ORFS 1.1/4 " 45 ° For separate ferrule
Angle
45
Brand Name
Gates
Corrosion resistance
500 hours salt spray ASTM B-117
Hose coupling type
For separate ferrule
Material
Steel
REACH compliant
Yes
RoHs compliant
Yes
Surface treatment
TuffCoat™
Temperature max.
+100
Temperature min.
-35
