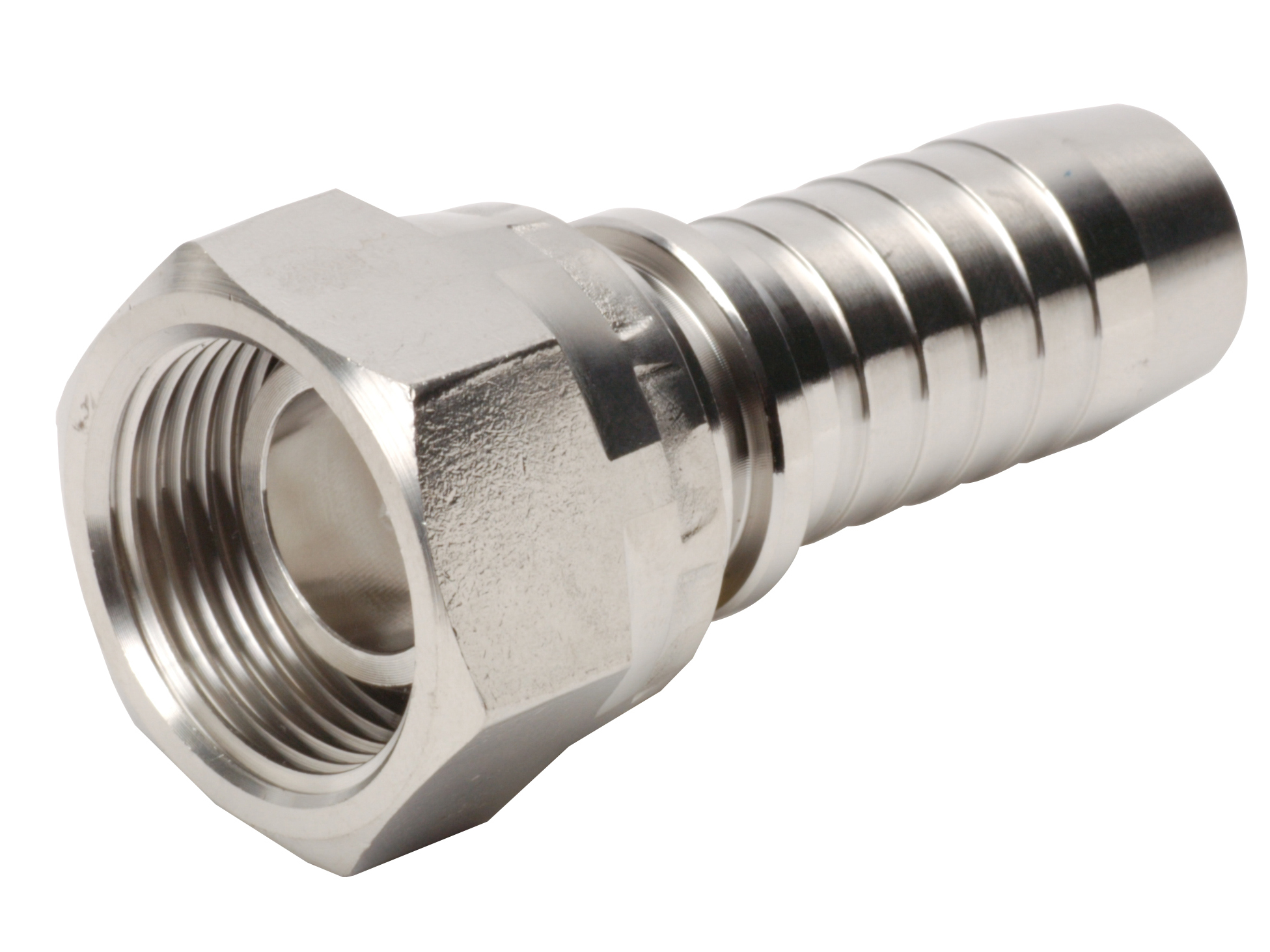

BSP union nut, 60° cone face "NU" stainless

VÄLJ VARIANT
Artikelnummer Beskrivning Thread Hose size Angle Hose coupling type
R0302NU 3/16" Insert - 1/8" BSP female - AISI316 G 1/8 BSP 3/16 " 0 ° For separate ferrule
R0304NU 3/16" Insert - 1/4" BSP female - AISI316 G 1/4 BSP 3/16 " 0 ° For separate ferrule
R0402NU 1/4" Insert - 1/8" BSP female - AISI316 G 1/8 BSP 1/4 " 0 ° For separate ferrule
R0404NU 1/4" Insert - 1/4" BSP female - AISI316 G 1/4 BSP 1/4 " 0 ° For separate ferrule
R0406NU 1/4" Insert - 3/8" BSP female - AISI316 G 3/8 BSP 1/4 " 0 ° For separate ferrule
R0504NU 5/16" Insert - 1/4" BSP female - AISI316 G 1/4 BSP 5/16 " 0 ° For separate ferrule
R0506NU 5/16" Insert - 3/8" BSP female - AISI316 G 3/8 BSP 5/16 " 0 ° For separate ferrule
R0606NU 3/8" Insert - 3/8" BSP female - AISI316 G 3/8 BSP 3/8 " 0 ° For separate ferrule
R0608NU 3/8" Insert - 1/2" BSP female - AISI316 G 1/2 BSP 3/8 " 0 ° For separate ferrule
R0806NU 1/2" Insert - 3/8" BSP female - AISI316 G 3/8 BSP 1/2 " 0 ° For separate ferrule
R0808NU 1/2" Insert - 1/2" BSP female - AISI316 G 1/2 BSP 1/2 " 0 ° For separate ferrule
R0810NU 1/2" Insert - 5/8" BSP female - AISI316 G 5/8 BSP 1/2 " 0 ° For separate ferrule
R0812NU 1/2" Insert - 3/4" BSP female - AISI316 G 3/4 BSP 1/2 " 0 ° For separate ferrule
R1010NU 5/8" Insert - 5/8" BSP female - AISI316 G 5/8 BSP 5/8 " 0 ° For separate ferrule
R1012NU 5/8" Insert - 3/4" BSP female - AISI316 G 3/4 BSP 5/8 " 0 ° For separate ferrule
R1212NU 3/4" Insert - 3/4" BSP female - AISI316 G 3/4 BSP 3/4 " 0 ° For separate ferrule
R1216NU 3/4" Insert - 1" BSP female - AISI316 G 1 BSP 3/4 " 0 ° For separate ferrule
R1616NU 1" Insert - 1" BSP female - AISI316 G 1 BSP 1 " 0 ° For separate ferrule
R2020NU 1.1/4" Insert - 1.1/4" BSP female - AISI316 G 1.1/4 BSP 1.1/4 " 0 ° For separate ferrule
R2424NU 1.1/2" Insert - 1.1/2" BSP female - AISI316 G 1.1/2 BSP 1.1/2 " 0 ° For separate ferrule
R3232NU 2" Insert - 2" BSP female - AISI316 G 2 BSP 2 " 0 ° For separate ferrule
Angle
0

Brand Name
Hydraspecma

Hose coupling type
For separate ferrule

Material
Stainless steel

Material quality
1.4571 / AISI316Ti
