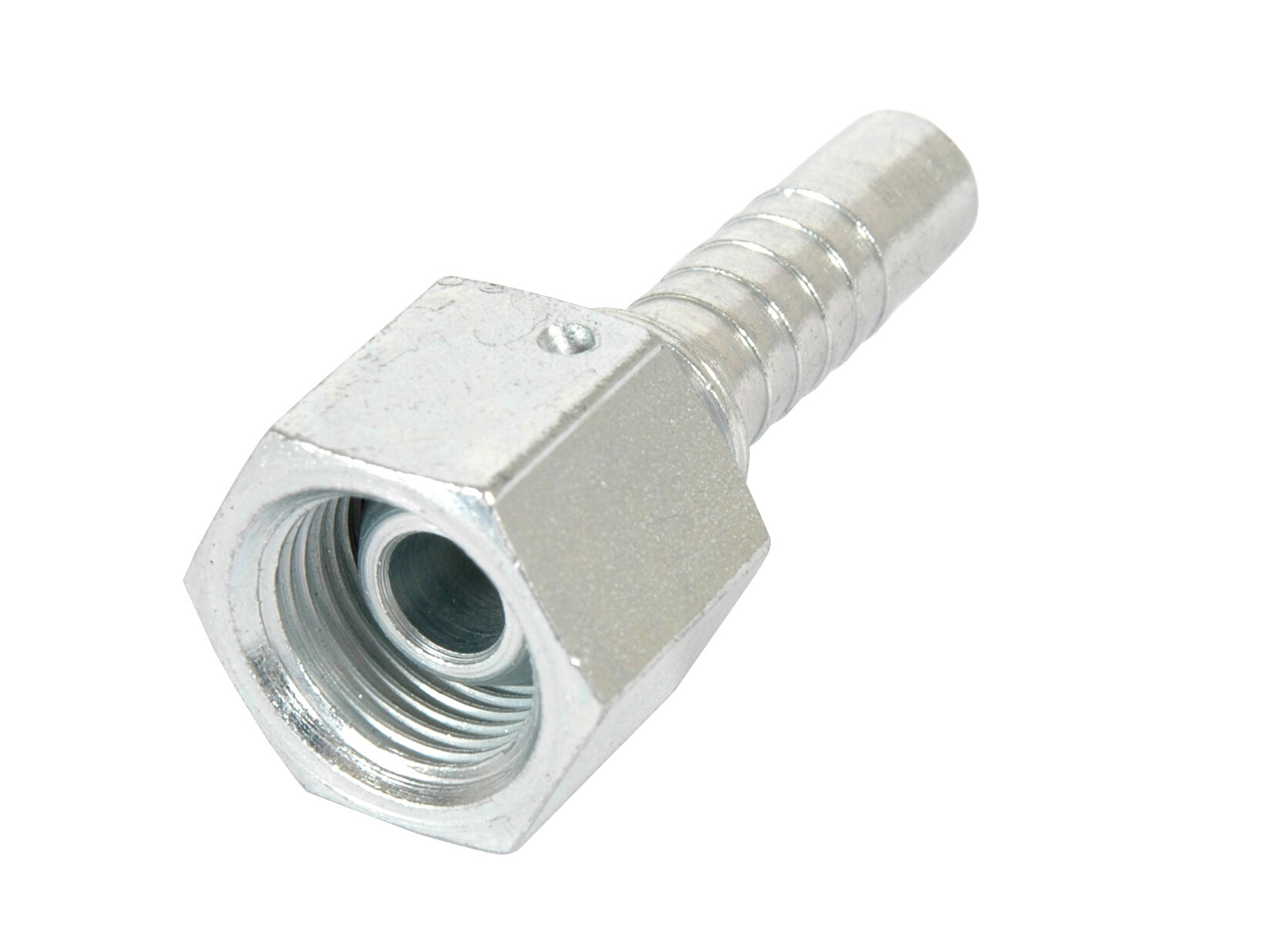

BSP union nut, 60° cone face, Lockwire, "NULW"

SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
P0404NULW Insert 1/4" - 1/4" BSP nut Lockwire G 1/4 BSP 1/4 " 0 ° For separate ferrule
P0406NULW Insert 1/4" - 3/8" BSP nut Lockwire G 3/8 BSP 1/4 " 0 ° For separate ferrule
P0604NULW Insert 3/8" - 1/4" BSP nut Lockwire G 1/4 BSP 3/8 " 0 ° For separate ferrule
P0606NULW Insert 3/8" - 3/8" BSP nut Lockwire G 3/8 BSP 3/8 " 0 ° For separate ferrule
P0608NULW Insert 3/8" - 1/2" BSP nut Lockwire G 1/2 BSP 3/8 " 0 ° For separate ferrule
P0806NULW Insert 1/2" - 3/8" BSP nut Lockwire G 3/8 BSP 1/2 " 0 ° For separate ferrule
P0808NULW Insert 1/2" - 1/2" BSP nut Lockwire G 1/2 BSP 1/2 " 0 ° For separate ferrule
P0808NUNW25 Insert 1/2" - 1/2" BSP nut NW25 G 1/2 BSP 1/2 " 0 ° For separate ferrule
P1010NULW Insert 5/8" - 5/8" BSP nut Lockwire G 5/8 BSP 5/8 " 0 ° For separate ferrule
P1012NULW Insert 5/82 - 3/4" BSP nut Lockwire G 3/4 BSP 5/8 " 0 ° For separate ferrule
P1212NULW Insert 3/4" - 3/4" BSP nut Lockwire G 3/4 BSP 3/4 " 0 ° For separate ferrule
P1616NULW Insert 1" - 1" BSP nut Lockwire G 1 BSP 1 " 0 ° For separate ferrule
P1620NU Insert 1" - 1.1/4" BSP nut G 1.1/4 BSP 1 " 0 ° For separate ferrule
P1620NULW Insert 1" - 1.1/4" BSP nut G 1.1/4 BSP 1 " 0 ° For separate ferrule
P2020NU Insert 1.1/4" - 1.1/4" BSP nut G 1.1/4 BSP 1.1/4 " 0 ° For separate ferrule
P2020NULW Insert 1.1/4" - 1.1/4" BSP nut G 1.1/4 BSP 1.1/4 " 0 ° For separate ferrule
P2024NU Insert 1.1/4" - 1.1/2" BSP nut G 1.1/2 BSP 1.1/4 " 0 ° For separate ferrule
P2424NU Insert 1.1/2" - 1.1/2" BSP nut G 1.1/2 BSP 1.1/2 " 0 ° For separate ferrule
P3232NU Insert 2" - 2" BSP nut G 2 BSP 2 " 0 ° For separate ferrule
Angle
0

Brand Name
I.M.M Hydraulics

Hose coupling type
For separate ferrule

Material
Steel

Surface treatment
Electro-galvanized / White chromatized
