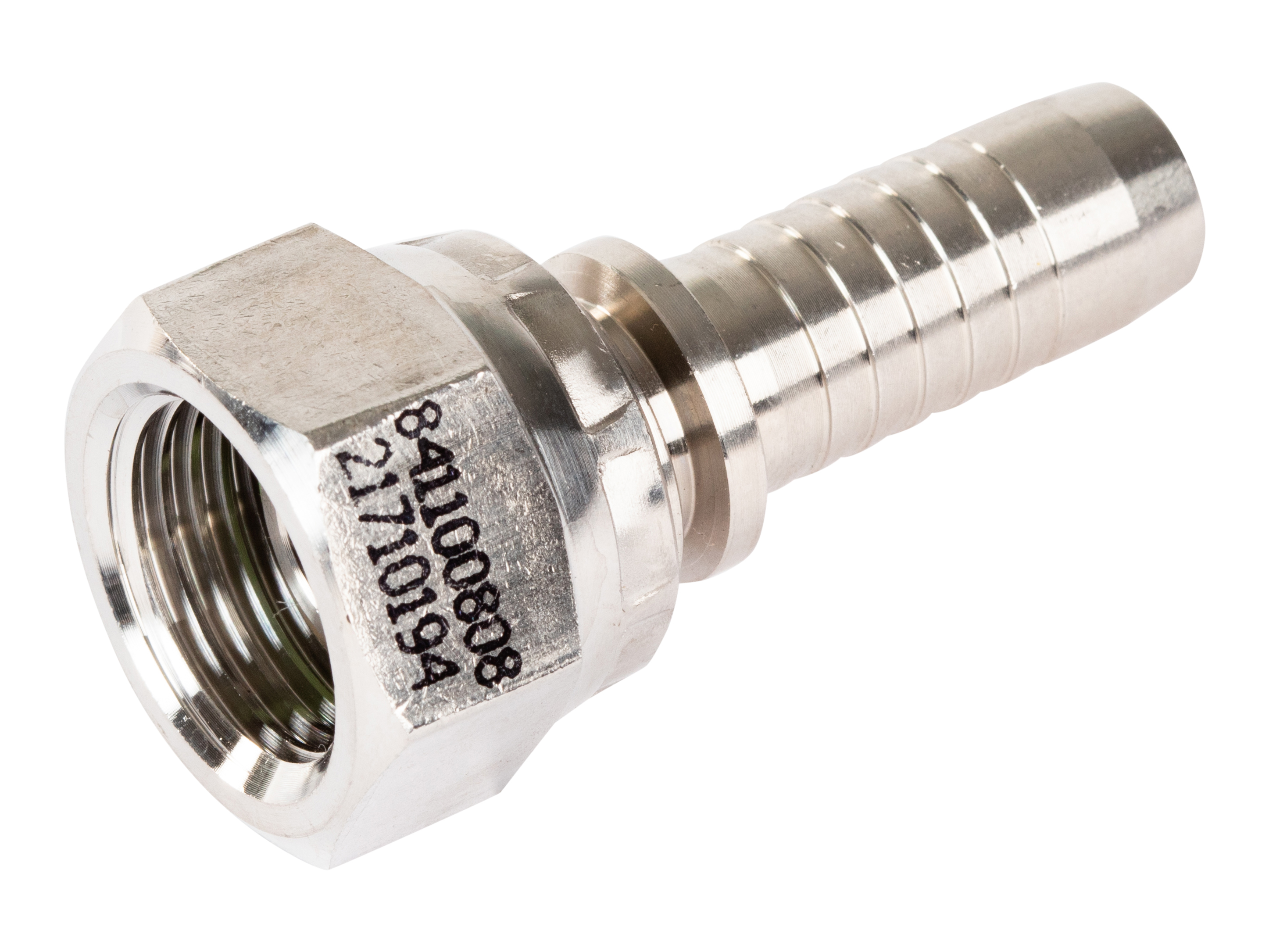

BSP union nut, 60° cone face "NO" Stainless

SELECT VARIANT
Partnumber Description Thread Hose size Angle Hose coupling type
R0404NO 1/4" Insert - 1/4" BSP swivel female with o-ring FKM-AISI316 G 1/4 BSP 1/4 " 0 ° For separate ferrule
R0606NO 3/8" BSP Swivel 3/8" female 60° cone with o-ring 0 ° For separate ferrule
R0608NO 3/8" Insert - 1/2" BSP female - AISI316 0 ° For separate ferrule
R0808NO 1/2" Insert - 1/2" BSP female - AISI316 G 1/2 BSP 1/2 " 0 ° For separate ferrule
R1012NO 5/8" Insert - 3/4" BSP female with o-ring FKM-AISI316 0 ° For separate ferrule
R1212NO BSP Swivel female 60° cone with o-ring 0 ° For separate ferrule
R1616NO 1" Insert - 1" BSP swivel female with o-ring FKM-AISI316 0 ° For separate ferrule
R2020NO 1.1/4" Indstik - 1.1/4" BSP swivel nut FKM-AISI316 G 1.1/4 BSP 1.1/4 " 0 ° For separate ferrule
R3232NO 2" Insert - 2" BSP Swivel female with o-ring FKM-AISI316 G 2 BSP 2 " 0 ° For separate ferrule
Angle
0

Brand Name
Hydraspecma

Hose coupling type
For separate ferrule

Material
Stainless steel

Material quality
1.4571 / AISI316Ti

Temperature max.
+100

Temperature min.
-30
