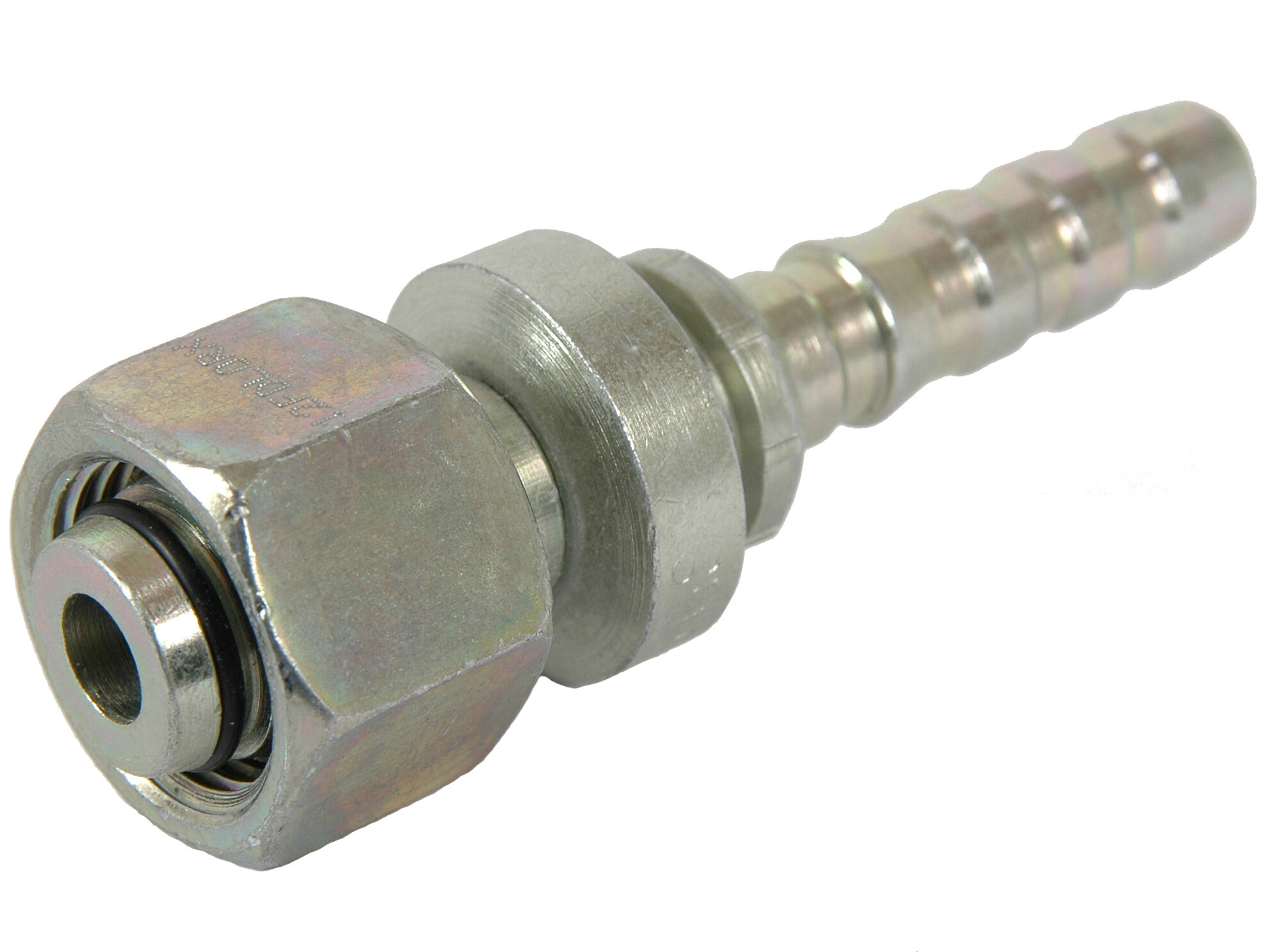

Metric union nut, 24° cone face, LIGHT (FDLORX - RO)

3/8" Insert - (12L) M18x1.5 female

1/2" Insert - (15L) M22x1.5 female

5/8" Insert - (18L) M26x1.5 female

3/4" Insert - (22L) M30x2 female

3/4" Insert - (28L) M36x2 female

1" Insert - (28L) M36x2 female

1.1/4" Insert - (35L) M45x2 female

SELECT VARIANT

Partnumber	Description	Hose size	Hose coupling type	Material
GS0612RO18A	3/8" Insert - (12L) M18x1.5 female	3/8 "	For separate ferrule	Steel
GS0815RO22A	1/2" Insert - (15L) M22x1.5 female	1/2 "	For separate ferrule	Steel
GS1018RO26A	5/8" Insert - (18L) M26x1.5 female	5/8 "	For separate ferrule	Steel
GS1222RO30B	3/4" Insert - (22L) M30x2 female	3/4 "	For separate ferrule	Steel
GS1228RO36B	3/4" Insert - (28L) M36x2 female	3/4 "	For separate ferrule	Steel
GS1628RO36B	1" Insert - (28L) M36x2 female	1 "	For separate ferrule	Steel
GS2035RO45B	1.1/4" Insert - (35L) M45x2 female	1.1/4 "	For separate ferrule	Steel

Angle

Brand Name

Gates

Corrosion resistance

500 hours salt spray ASTM B-117

Hose coupling type

For separate ferrule

Material

Steel

REACH compliant

Yes

RoHs compliant

Yes

Sealing material

NBR

Series

Surface treatment

TuffCoat™

Temperature max.

+100

Temperature min.

-35
