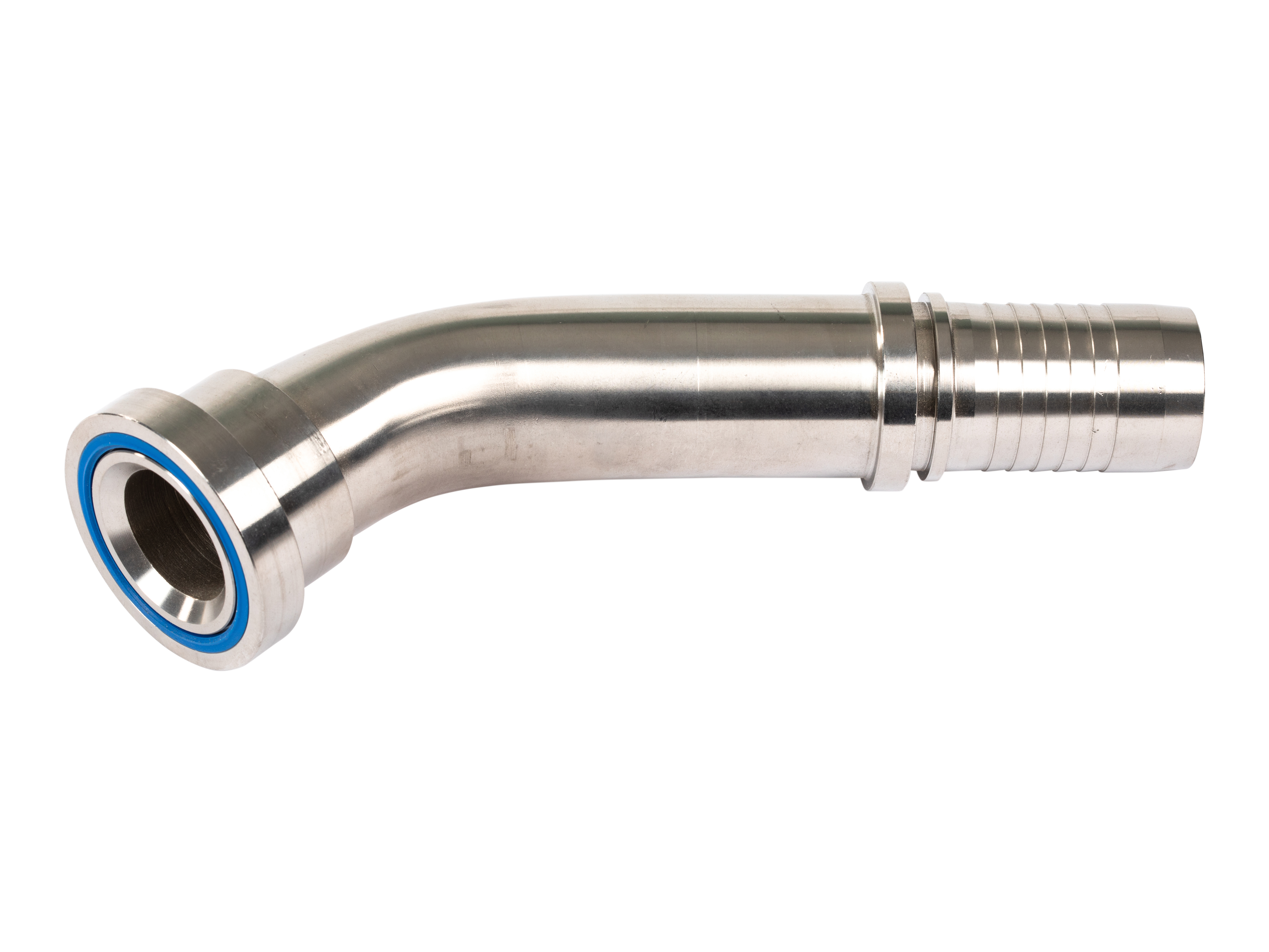

Flange insert SAE 6000 PSI - 45° - "PH45" stainless

1/2" Insert - 1/2" SAE6000 - 45° - AISI316

5/8" Insert - 3/4" SAE6000 flange - 45° - AISI316

3/4" Insert - 3/4" SAE6000 flange - 45° - AISI316

1" Insert - 1" SAE6000 flange - 45° - AISI316

1.1/4" Insert - 1.1/4" SAE6000 flange - 45° - AISI316

1.1/2" Insert - 1.1/2" SAE6000 flange - 45° - AISI316

2" Insert - 2" SAE6000 flange - 45° - AISI316

SELECT VARIANT

Partnumber	Description	Fläns	Slangdimension	Vinkel	Slangkopplingstyp
R0808PH45	1/2" Insert - 1/2" SAE6000 - 45° - AISI316	1/2 "	1/2 "	45 °	For separate ferrule
R1012PH45	5/8" Insert - 3/4" SAE6000 flange - 45° - AISI316	3/4 "	5/8 "	45 °	For separate ferrule
R1212PH45	3/4" Insert - 3/4" SAE6000 flange - 45° - AISI316	3/4 "	3/4 "	45 °	For separate ferrule
R1616PH45	1" Insert - 1" SAE6000 flange - 45° - AISI316	1 "	1 "	45 °	For separate ferrule
R2020PH45	1.1/4" Insert - 1.1/4" SAE6000 flange - 45° - AISI316	1.1/4 "	1.1/4 "	45 °	For separate ferrule
R2424PH45	1.1/2" Insert - 1.1/2" SAE6000 flange - 45° - AISI316	1.1/2 "	1.1/2 "	45 °	For separate ferrule
R3232PH45	2" Insert - 2" SAE6000 flange - 45° - AISI316	2 "	2 "	45 °	For separate ferrule

Fläns SAE/DIN

6000 PSI

Materialkvalitet

1.4571 / AISI316Ti

Märke namn

Hydraspecma

Shore

Slangkopplingstyp

For separate ferrule

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Tillverkningsmaterial

Stainless steel

Vinkel
