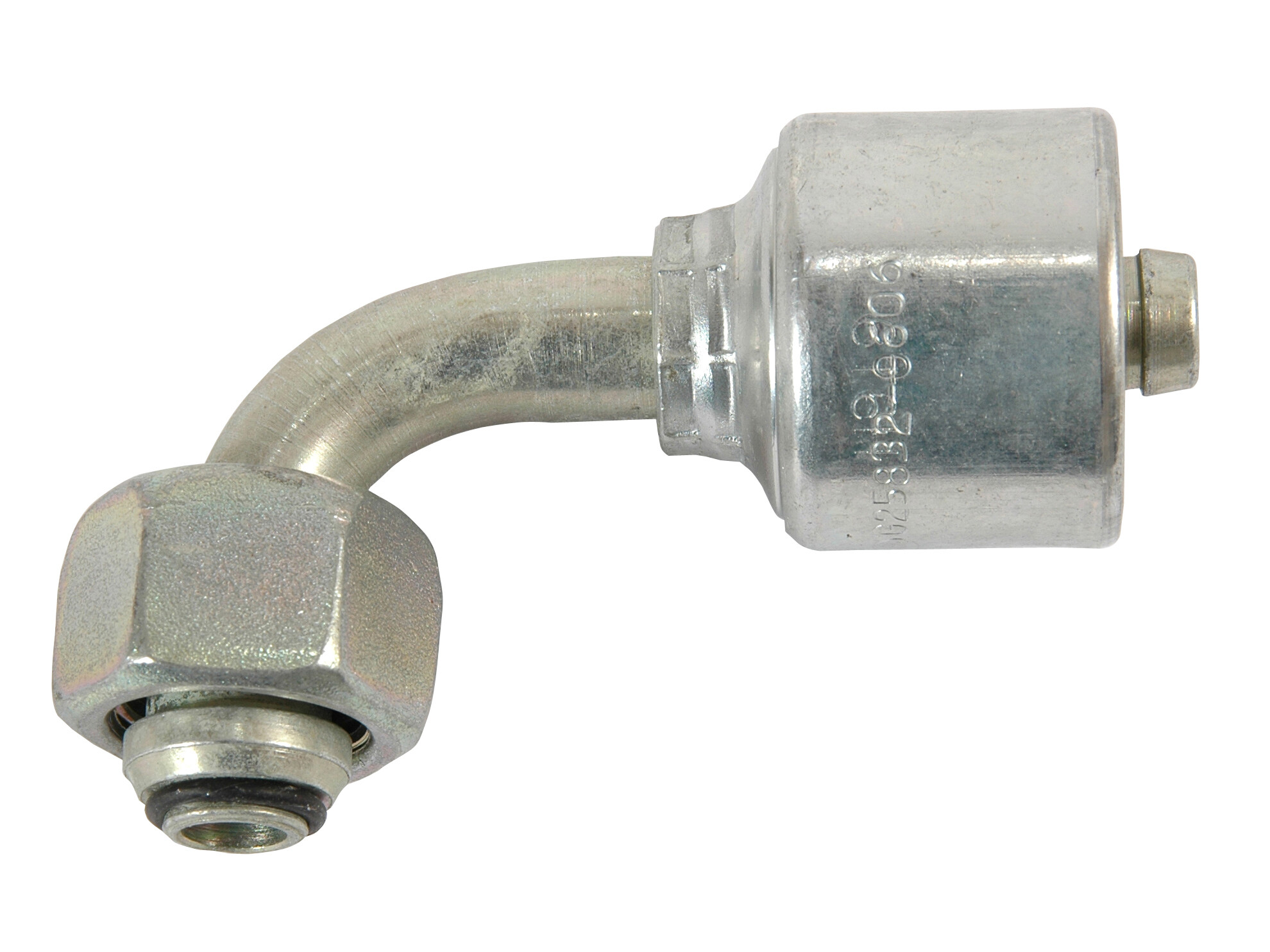

One-piece BSP union nut, 60° cone face, 90° elbow (FBSPORX90 - NU90)

SELECT VARIANT
Partnumber Description Material Hose size Angle Thread
G0404NU90 Coupling 1/4, 1/4 BSP fem. 90 4G-4FBSPORX90 Gates MegaCrimp Steel 1/4 " 90 ° G 1/4 BSP
G0406NU90 Coupling 1/4, 3/8 BSP fem. 90 4G-6FBSPORX90 Gates MegaCrimp Steel 1/4 " 90 ° G 3/8 BSP
G0506NU90 Coupling 5/16, 3/8 BSP fem. 90 5G-6FBSPORX90 Gates MegaCrimp Steel 5/16 " 90 ° G 3/8 BSP
G0606NU90 Coupling 3/8, 3/8 BSP fem. 90g 6G-6FBSPORX90 Gates MegaCrimp Steel 3/8 " 90 ° G 3/8 BSP
G0608NU90 Coupling 3/8, 1/2 BSP fem. 90 6G-8FBSPORX90 Gates MegaCrimp Steel 3/8 " 90 ° G 1/2 BSP
G0808NU90 Coupling 1/2, 1/2 BSP fem. 90g 8G-8FBSPORX90 Gates MegaCrimp Steel 1/2 " 90 ° G 1/2 BSP
G0810NU90 Coupling 1/2, 5/8 BSP female 8G-10FBSPORX90 Gates MegaCrim Steel 1/2 " 90 ° G 5/8 BSP
G1010NU90 Coupling 5/8, 5/8 BSP female 10G-10FBSPORX90 Gates MegaCri Steel 5/8 " 90 ° G 5/8 BSP
G1012NU90 Coupling 5/8, 3/4 BSP female 10G-12FBSPORX90 Gates MegaCri Steel 5/8 " 90 ° G 3/4 BSP
G1212NU90 Presskoppling 90°, Ø3/4'', Inv-G3/4'' Steel 3/4 " 90 ° G 3/4 BSP
G1216NU90 Coupling 3/4, 1 BSP female 90 12G-16FBSPORX90 Gates MegaCri Steel 3/4 " 90 ° G 1 BSP
G1612NU90 Coupling 1 , 3/4 BSP female90 16G-12FBSPORX90 Gates MegaCri Steel 1 " 90 ° G 3/4 BSP
G1616NU90 Coupling 1 , 1 BSP fem. 90gr 16G-16FBSPORX90 Gates MegaCri Steel 1 " 90 ° G 1 BSP
G2020NU90 Coupling 1.1/4,1.1/4 BSP fem.9 20G-20FBSPORX90 Gates MegaCri Steel 1.1/4 " 90 ° G 1.1/4 BSP
Angle
90

Brand Name
Gates

Corrosion resistance
500 hours salt spray ASTM B-117

Hose coupling type
With fixed ferrule

Material
Steel

REACH compliant
Yes

RoHs compliant
Yes

Surface treatment
TuffCoat™
