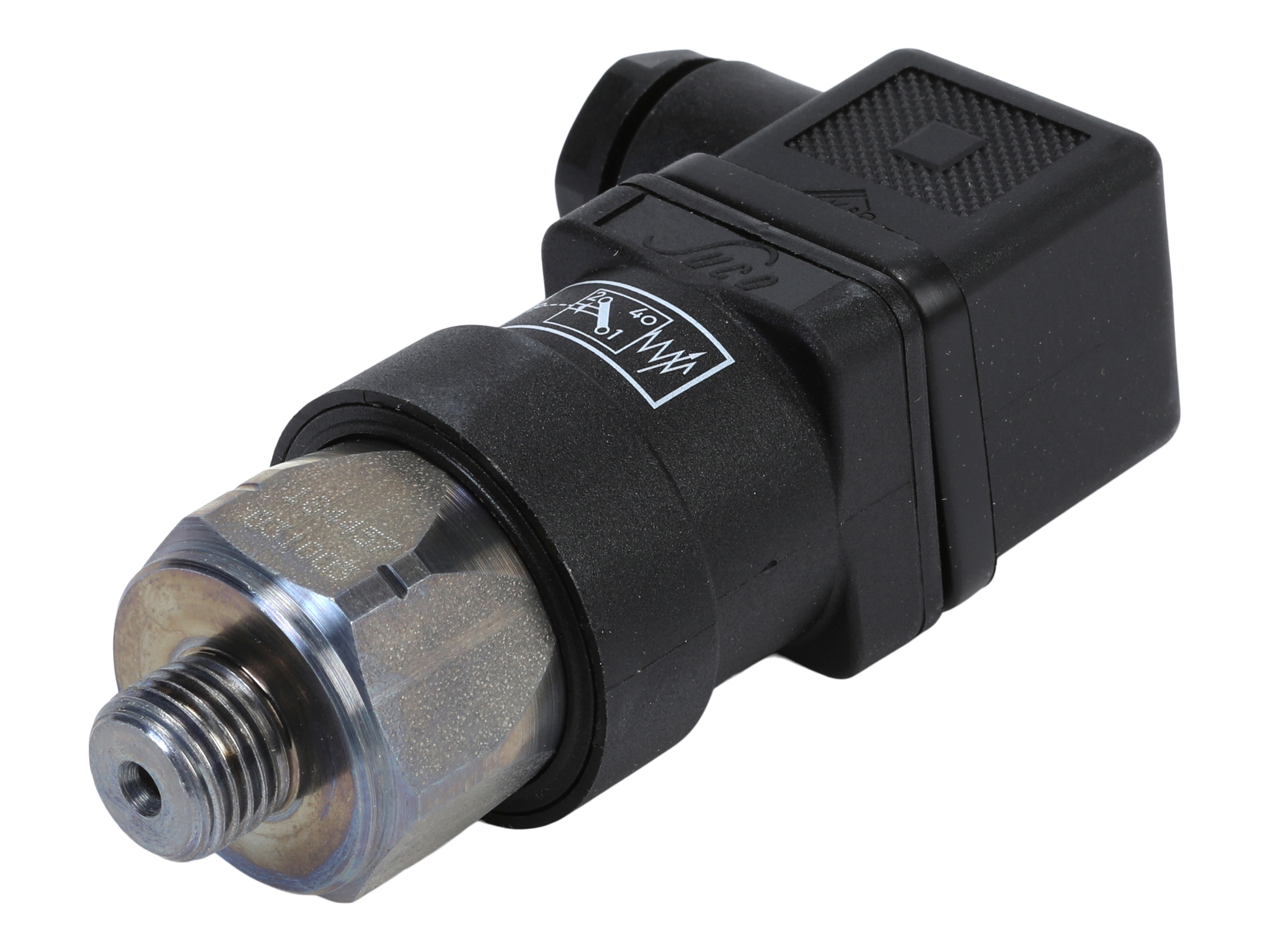

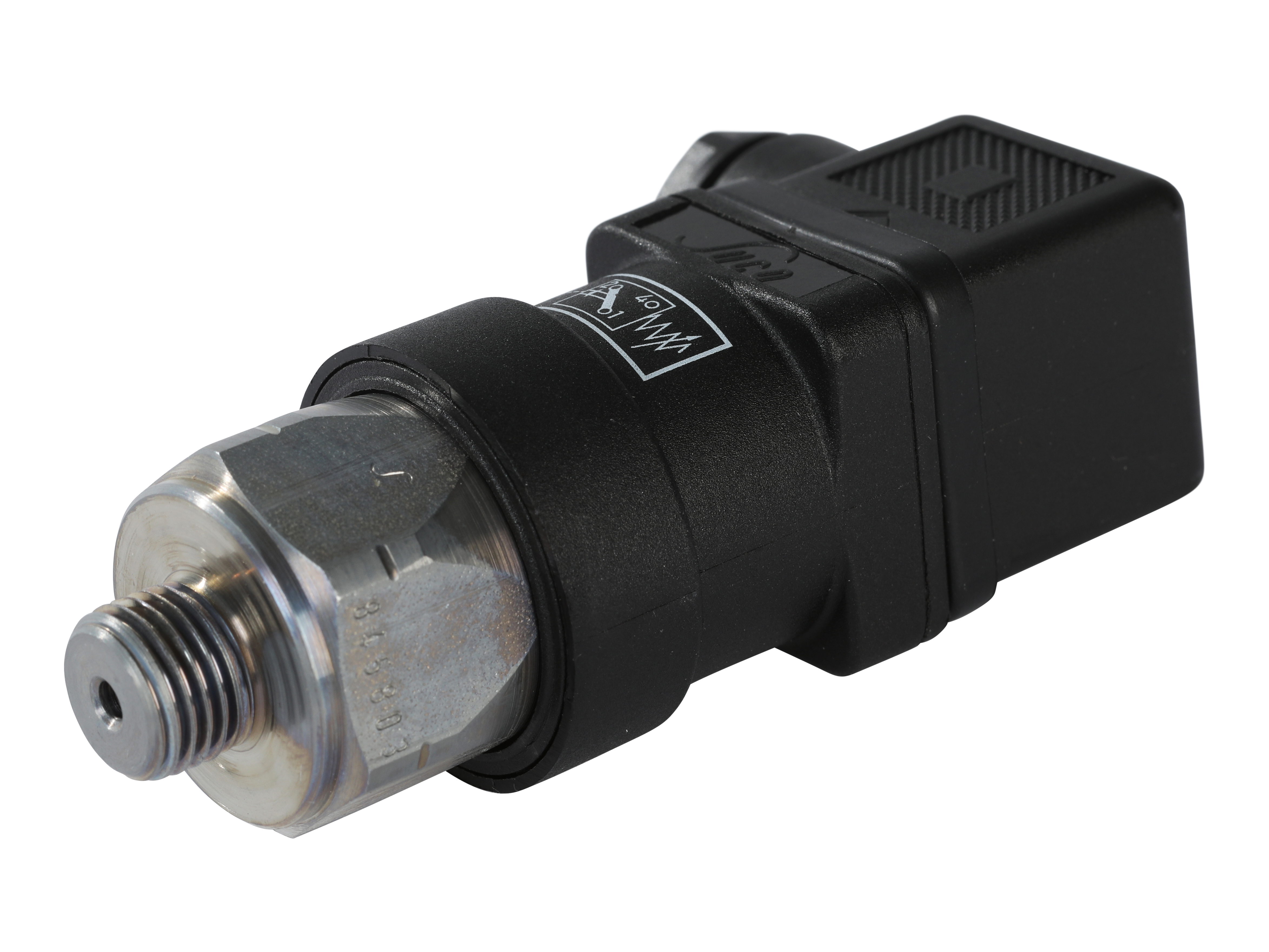

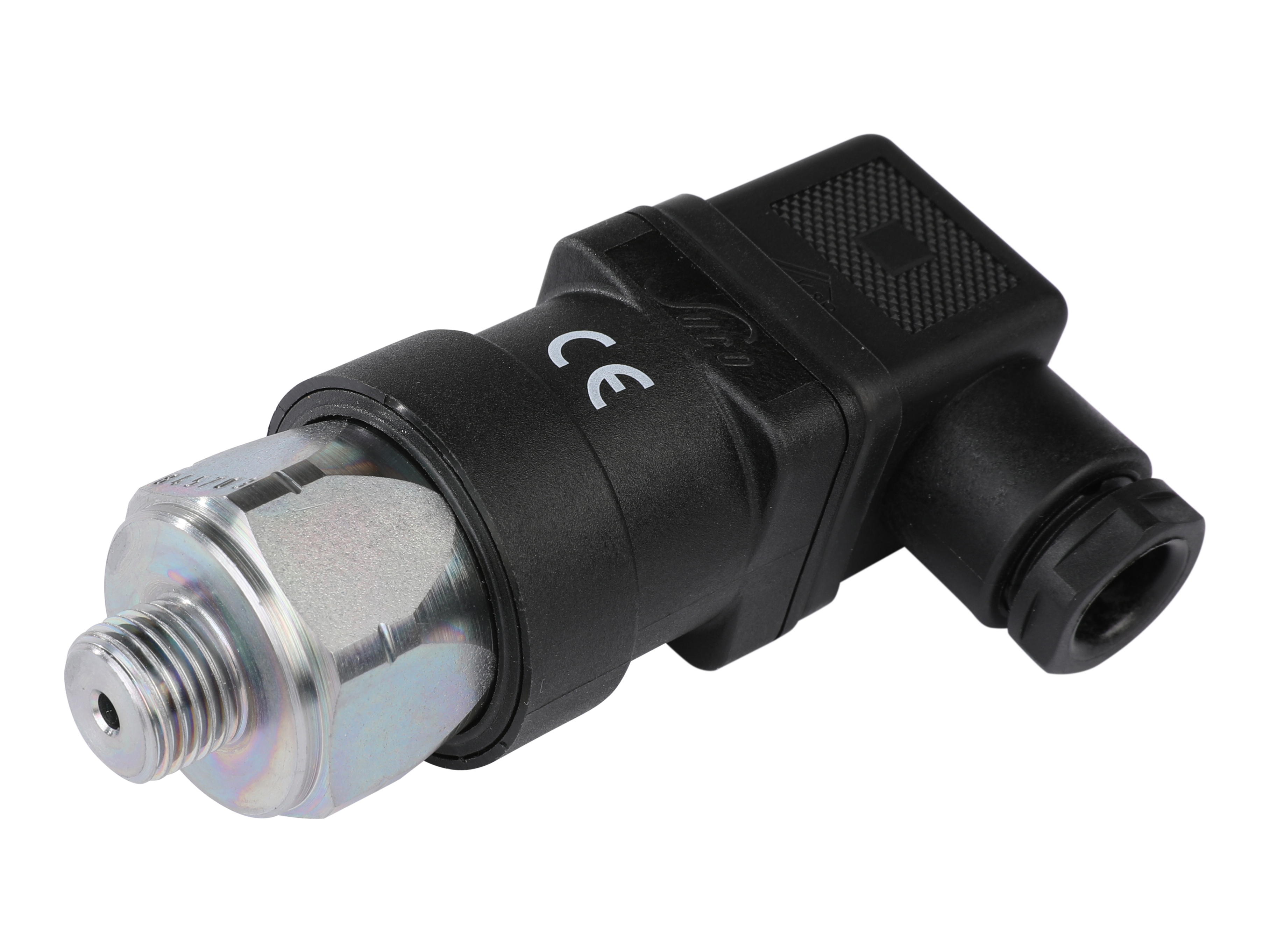

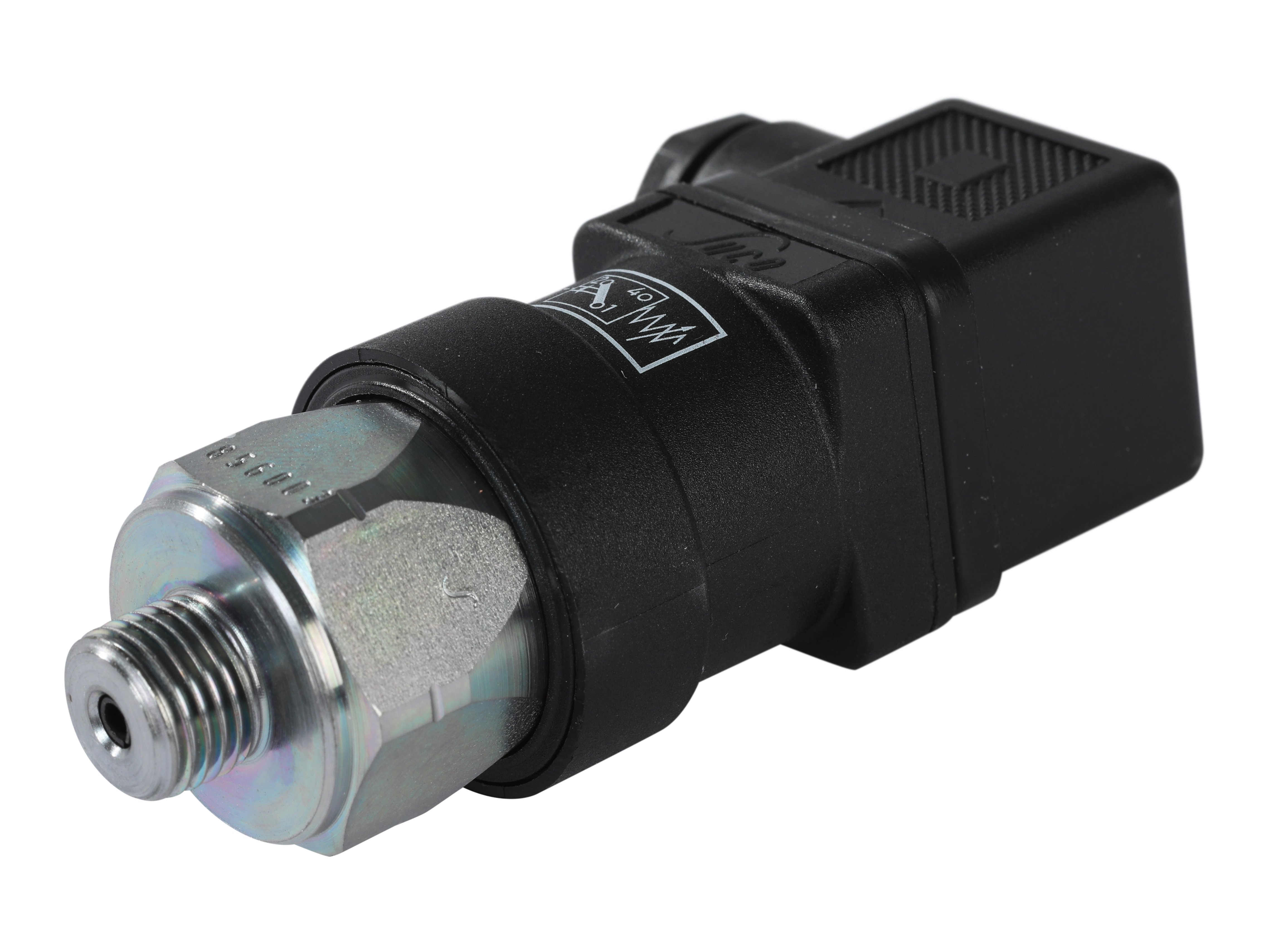

Pressure switches piston - type 0184 / 0185

Tryckvakt Suco 0.3-1.5 bar

Pressure switch 0.3-1.5 bar with DIN connector 1/4" EPDM pac

Pressure switch 1-10 bar with DIN connector 1/4" NBR packing

Tryckvakt Suco 10-100bar växl

Piston pressure switch adjusted to TWPKIT 140/115 bar

SELECT VARIANT

Partnumber	Description	Pressure setting min.	Pressure setting max.	Contact function
184457031003	Tryckvakt Suco 0.3-1.5 bar	0.3 bar	1.5 bar	Changeover
184457032003	Pressure switch 0.3-1.5 bar with DIN connector 1/4" EPDM pac	0.3 bar	1.5 bar	Changeover
184458031042	Pressure switch 1-10 bar with DIN connector 1/4" NBR packing	1 bar	10 bar	Changeover
184461031012	Tryckvakt Suco 10-100bar växl	10 bar	100 bar	Changeover
185460031003	Piston pressure switch adjusted to TWPKIT 140/115 bar	50 bar	200 bar	Changeover

Contact function

Changeover

Current max.

Current type

AC, DC

Plug type

DIN 43650 Form A

Temperature max.

+80

Temperature min.

-20

Thread

G 1/4

Voltage max.

250
