Uncut flanges SAE 6000 PSI - AFSI6 / 8601

Uncut flanges SAE 6000 PSI - AFSI6 / 8601

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Flange O-ring Bolt dimension Pressure max.

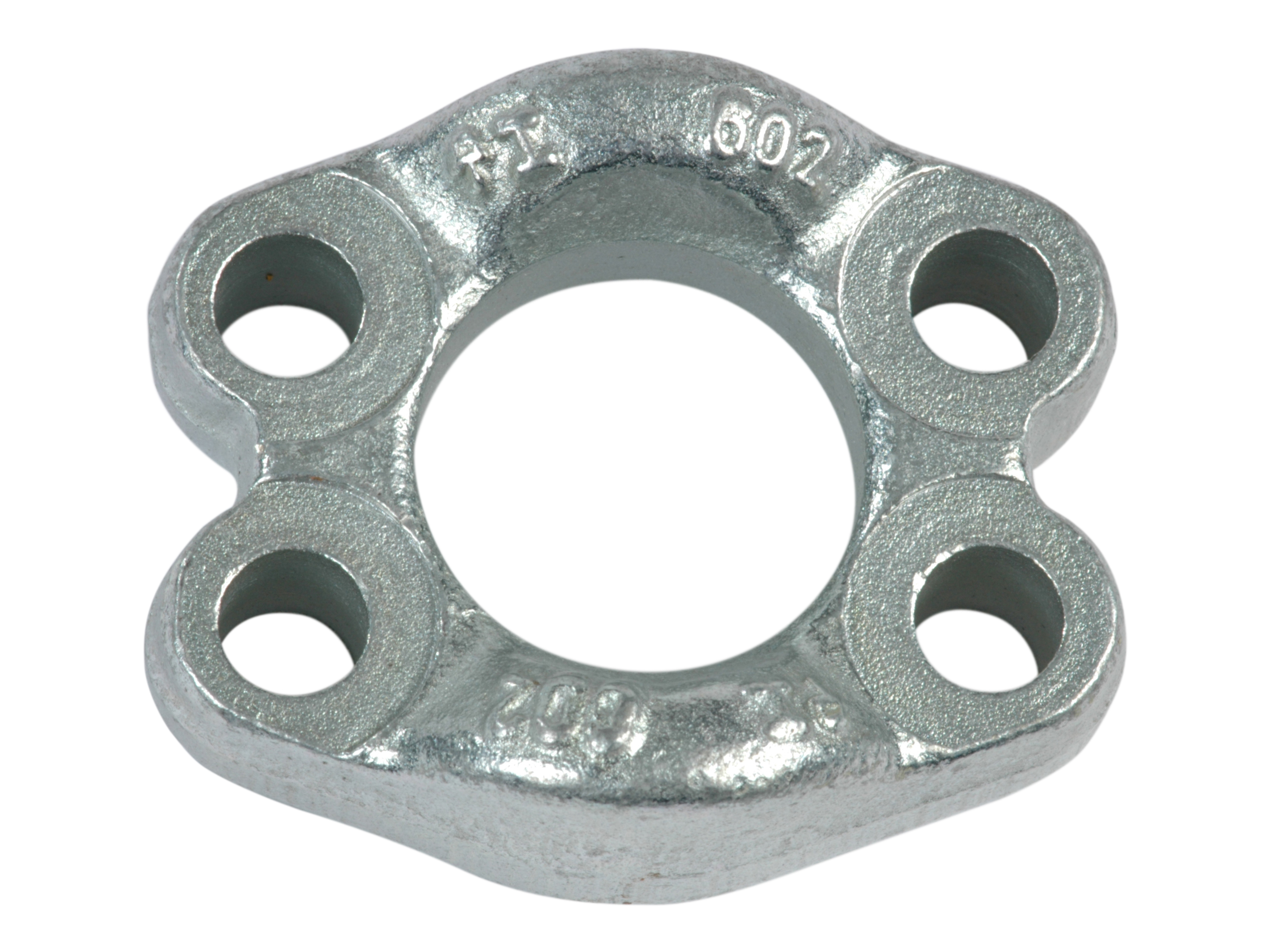

AFSI602 Flange clamp 3/4" SAE6000 3/4 " 24.99X3.53 mm M10x35 mm 420 bar

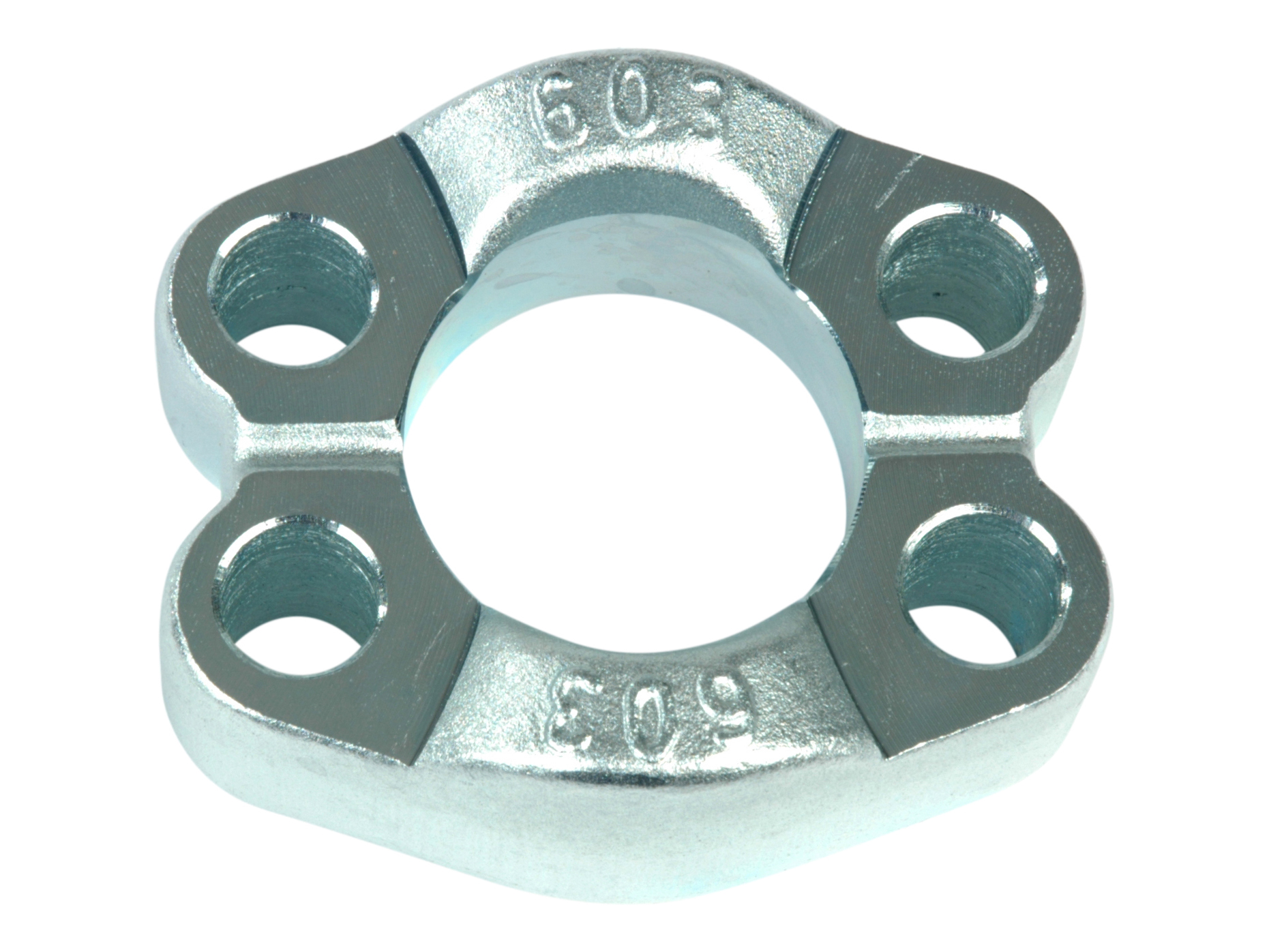

AFSI603 Flange clamp 1" SAE6000 1 " 32.93X3.53 mm M12x40 mm 420 bar

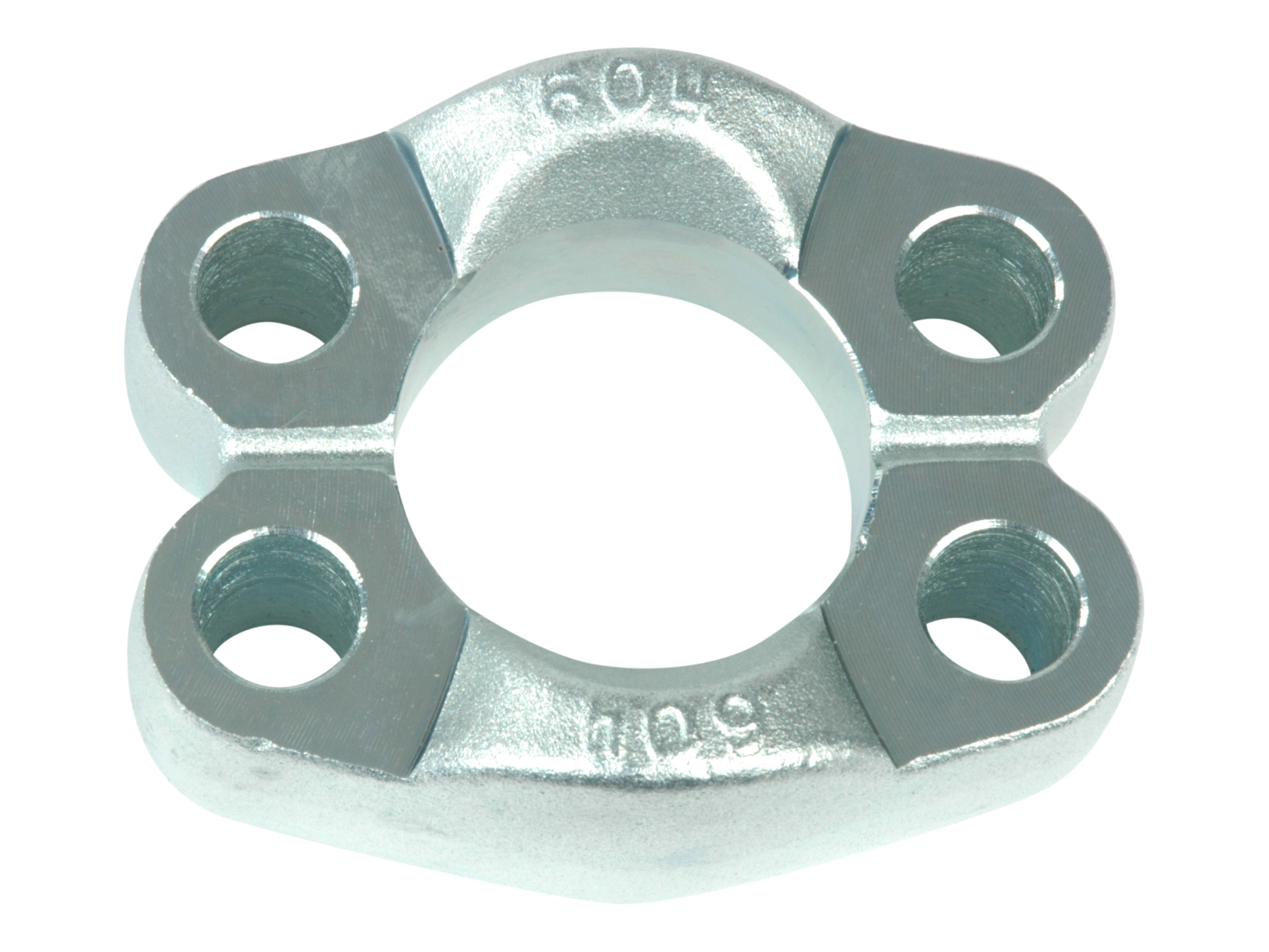

AFSI604 Flange clamp 1.1/4" SAE6000 1.1/4 " 37.69X3.53 mm M14x40 mm 420 bar

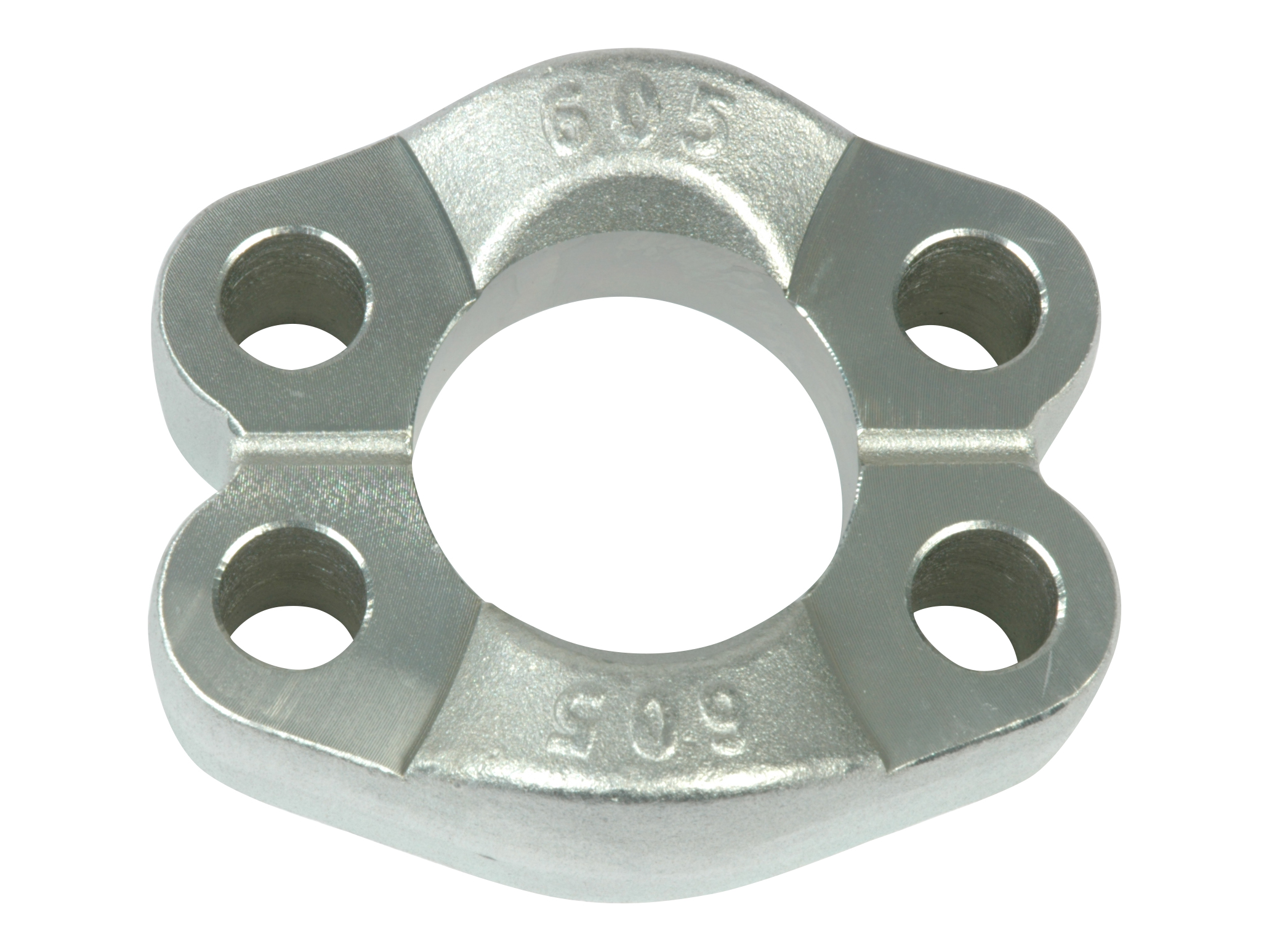

AFSI605 Flange clamp 1.1/2" SAE6000 1.1/2 " 47.22X3.53 mm M16x45 mm 420 bar

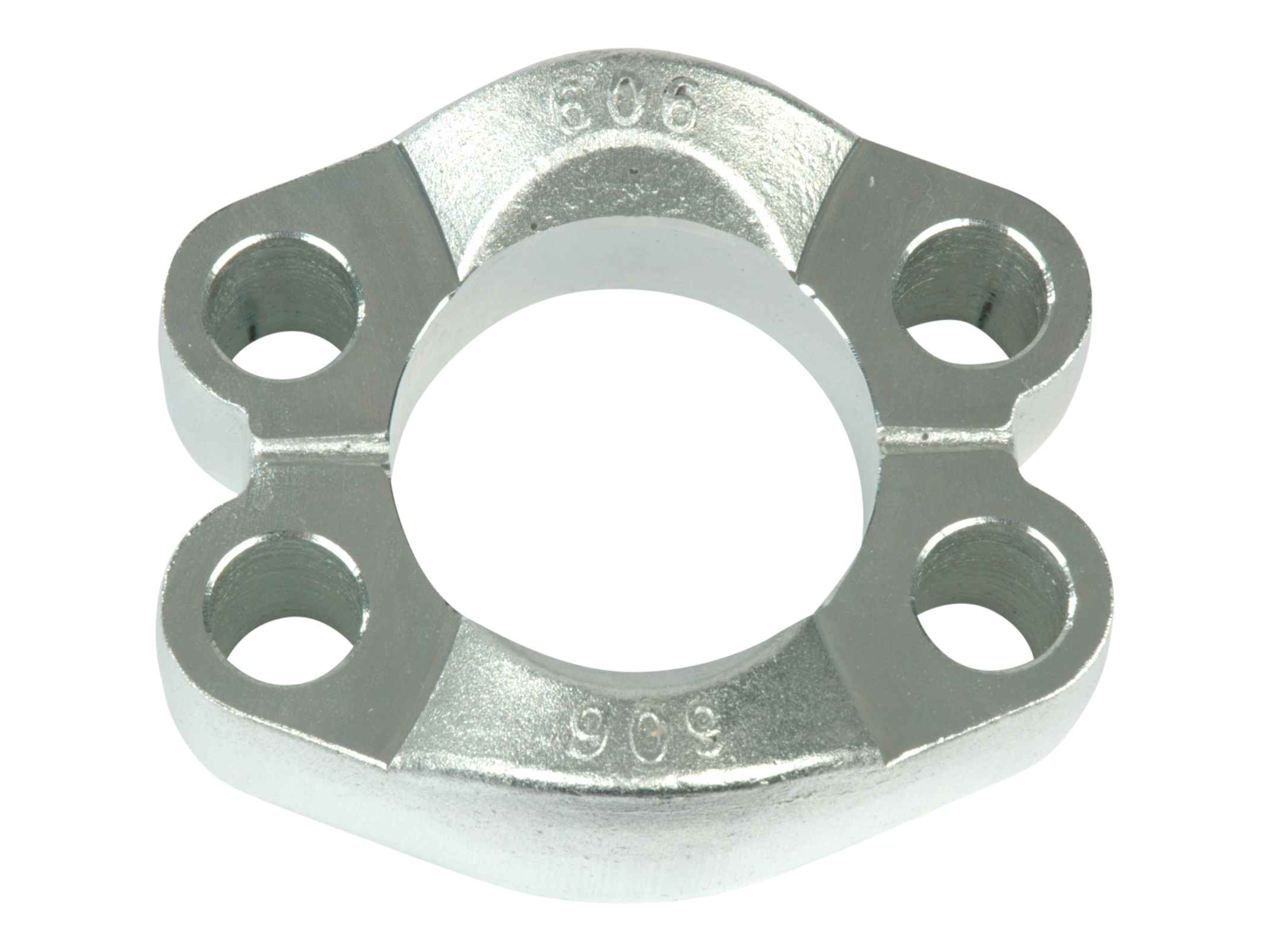

AFSI606 Flange clamp 2" SAE6000 2 " 56.75X3.53 mm M20x65 mm 420 bar
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Flange SAE/DIN
6000 PSI
Material
Steel
Pressure max.
420
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90
Temperature min.
-40
