Gear flow dividers Vivoil RV0 with relief valves

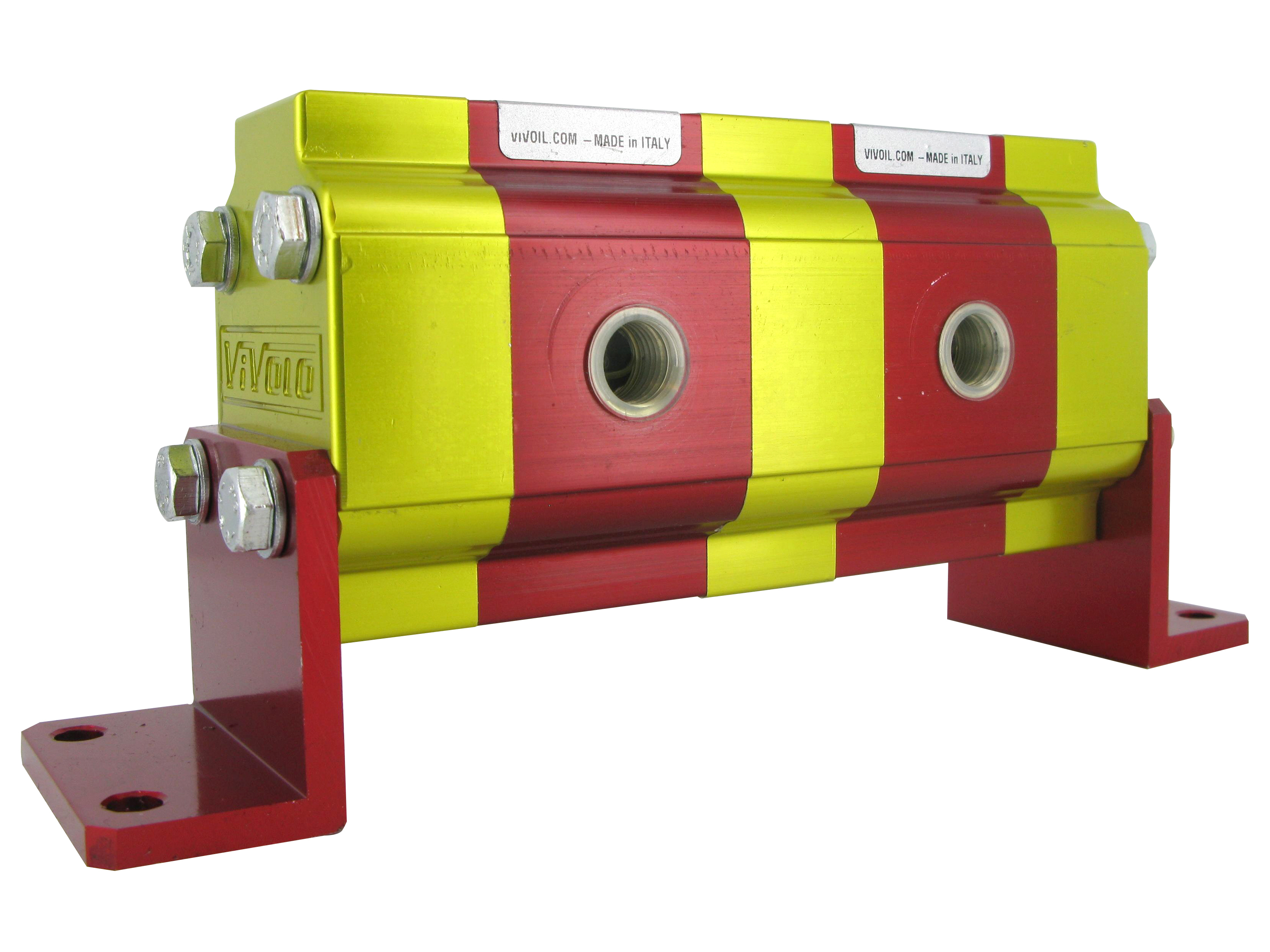

Flow divider 2x0,57cm3+valve with valves(35-175 bar)

Flow divider 2x0,98cm3+valve with valves(35-175 bar)

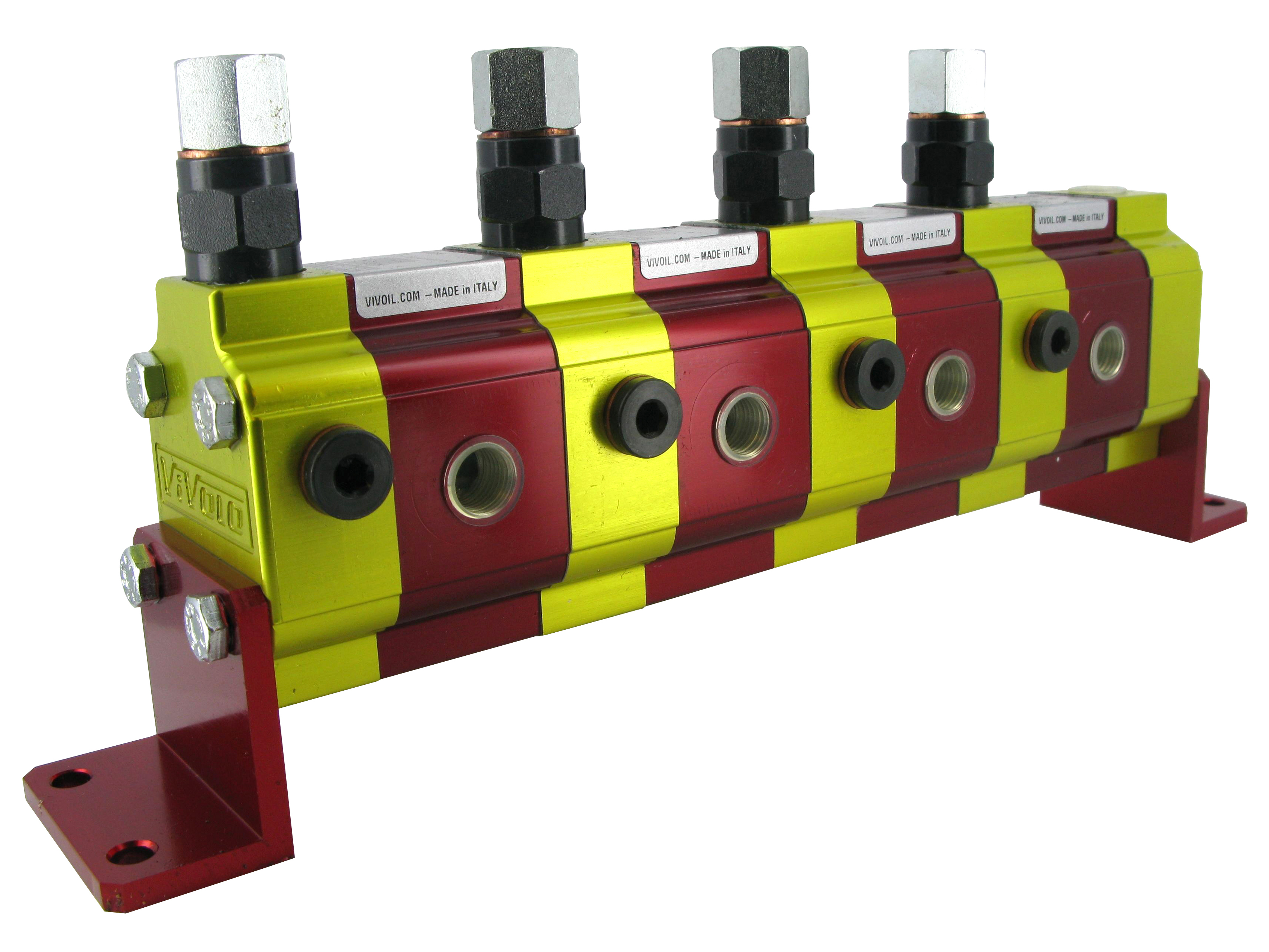

Flow divider 4x0,57cm3+valve with valves(70-350 bar)

Flow divider 4x0,98cm3+valve with valves(35-175 bar)

SELECT VARIANT

Partnumber	Description	Number of sections	Flow per section min.	Flow section max.	Pressure max.
RV0V-2X0.57	Flow divider 2x0,57cm3+valve with valves(35-175 bar)	2	0.8 lpm	3.8 lpm	210 bar
RV0V-2X0.98	Flow divider 2x0,98cm3+valve with valves(35-175 bar)	2	1.2 lpm	5.6 lpm	210 bar
RV0V-4X0.57	Flow divider 4x0,57cm3+valve with valves(70-350 bar)	4	0.8 lpm	3.8 lpm	210 bar
RV0V-4X0.98	Flow divider 4x0,98cm3+valve with valves(35-175 bar)	4	1.2 lpm	5.6 lpm	210 bar

Brand Name

Vivoil

Inlet

G 1/4

Outlet

G 1/4

Pressure max.

210

Rotational speed min.

1400
