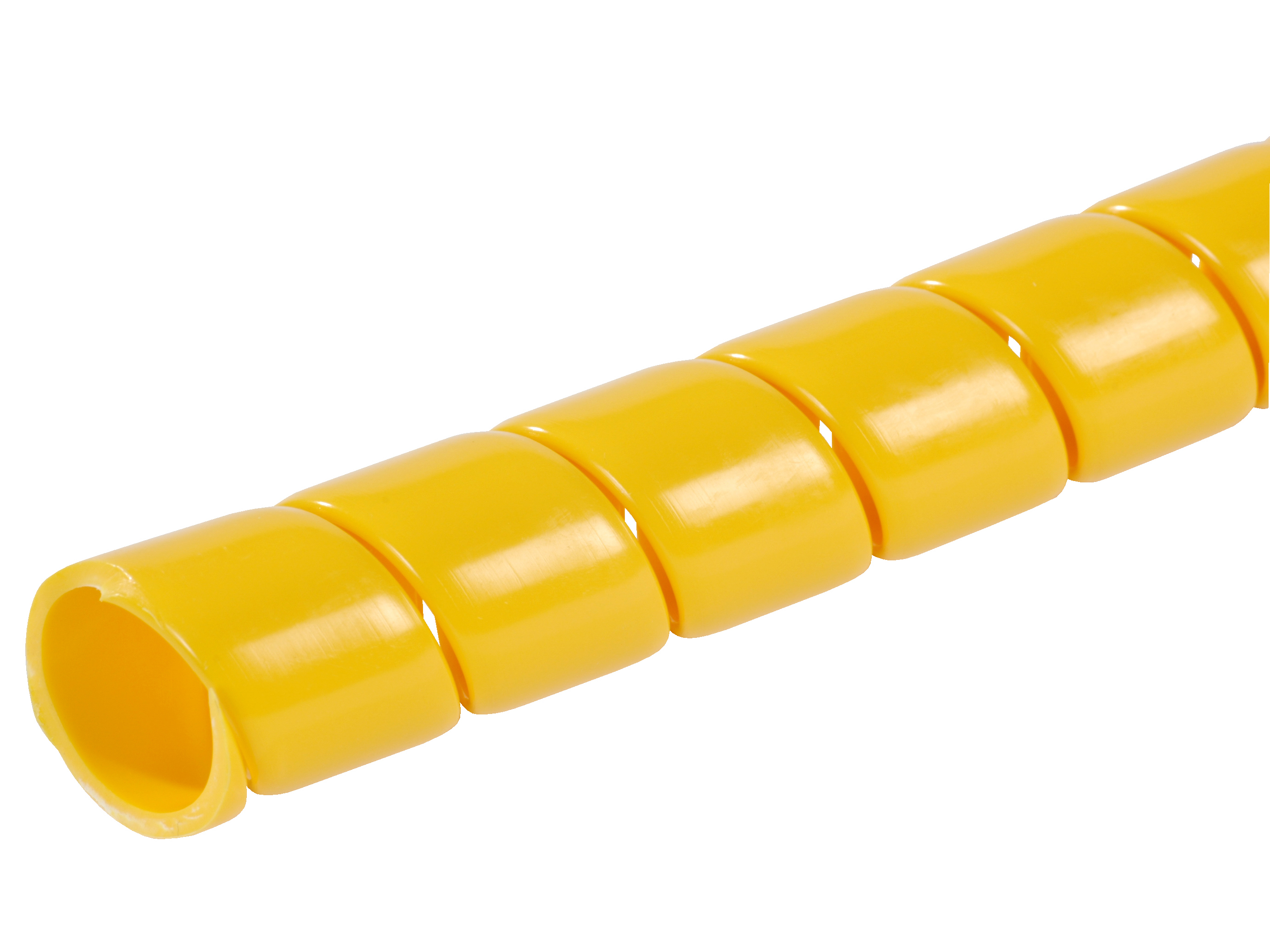

Safe-Spiral - Yellow

Safe-Spirals, standard plastic hose protectors, protect hydraulic and pneumatic hoses from abrasion, shocks and general wearing,
and prolong the life of your hoses this way.

These hose guards are easy to install either before or after hose assembly and offer an economical and high-quality choice for hose protection.
Safe-Spirals are manufactured by extrusion of the raw material HDPE. Thanks to this production method our spirals have
extremely durable construction and naturally round edges which do not cause damage to hoses.

  • are resistant to acids, oils and solvents
  • are flexible
  • are UV-protected
  • include antistatic additive to reject dust and dirt
  • have operative at temperature range from -50°C up to +80°C (continuous) / 100°C (short time)
  • are recyclable

SELECT VARIANT
Partnumber Description Length per roll Diameter hose outer min. Diameter hose outer max.
SPG012 12mm Safeplast protection Yellow, std. 25 mtr reel 9 mm 13 mm
SPG016 16mm Safeplast protection Yellow, std. 25 mtr reel 13 mm 18 mm
SPG020 20mm Safeplast protection Yellow, std. 25 mtr reel 25 m 16 mm 22 mm
SPG025 25mm Safeplast protection Yellow, std. 25 mtr reel 25 m 20 mm 27 mm
SPG032 32mm Safeplast protection Yellow, std. 25 mtr reel 25 m 27 mm 36 mm
SPG040 40mm Safeplast protection cover Yellow, std. 25 mtr. roll 25 m 34 mm 44 mm
SPG050 50mm Safeplast protection Yellow, std. 25 mtr reel 25 m 43 mm 55 mm
SPG063 63mm Safeplast protection 25 m 55 mm 67 mm
SPG075 75mm Safeplast protection Yellow, std. 25 mtr reel 20 m 66 mm 80 mm
SPG090 90mm Safeplast protection Yellow std. 15 mtr reel 15 m 80 mm 98 mm
SPG110 Skyddsspiral Gul 99-115mm,10m 10 m 99 mm 115 mm
SPG125 125m Safeplast protection cover Yellow, std. 12 mtr. Roll 12 m 113 mm 130 mm
SPG140 140mm Safeplast protection Yellow, std. 10 mtr reel 10 m 125 mm 155 mm
Brand Name
Safeplast

Color
Yellow

REACH compliant
Yes

RoHs compliant
Yes

Temperature intermittent max.
+100

Temperature max.
+80

Temperature min.
-50

Safe-Spirals, standard plastic hose protectors, protect hydraulic and pneumatic hoses from abrasion, shocks and general wearing,
and prolong the life of your hoses this way.

These hose guards are easy to install either before or after hose assembly and offer an economical and high-quality choice for hose protection.
Safe-Spirals are manufactured by extrusion of the raw material HDPE. Thanks to this production method our spirals have
extremely durable construction and naturally round edges which do not cause damage to hoses.

  • are resistant to acids, oils and solvents
  • are flexible
  • are UV-protected
  • include antistatic additive to reject dust and dirt
  • have operative at temperature range from -50°C up to +80°C (continuous) / 100°C (short time)
  • are recyclable
