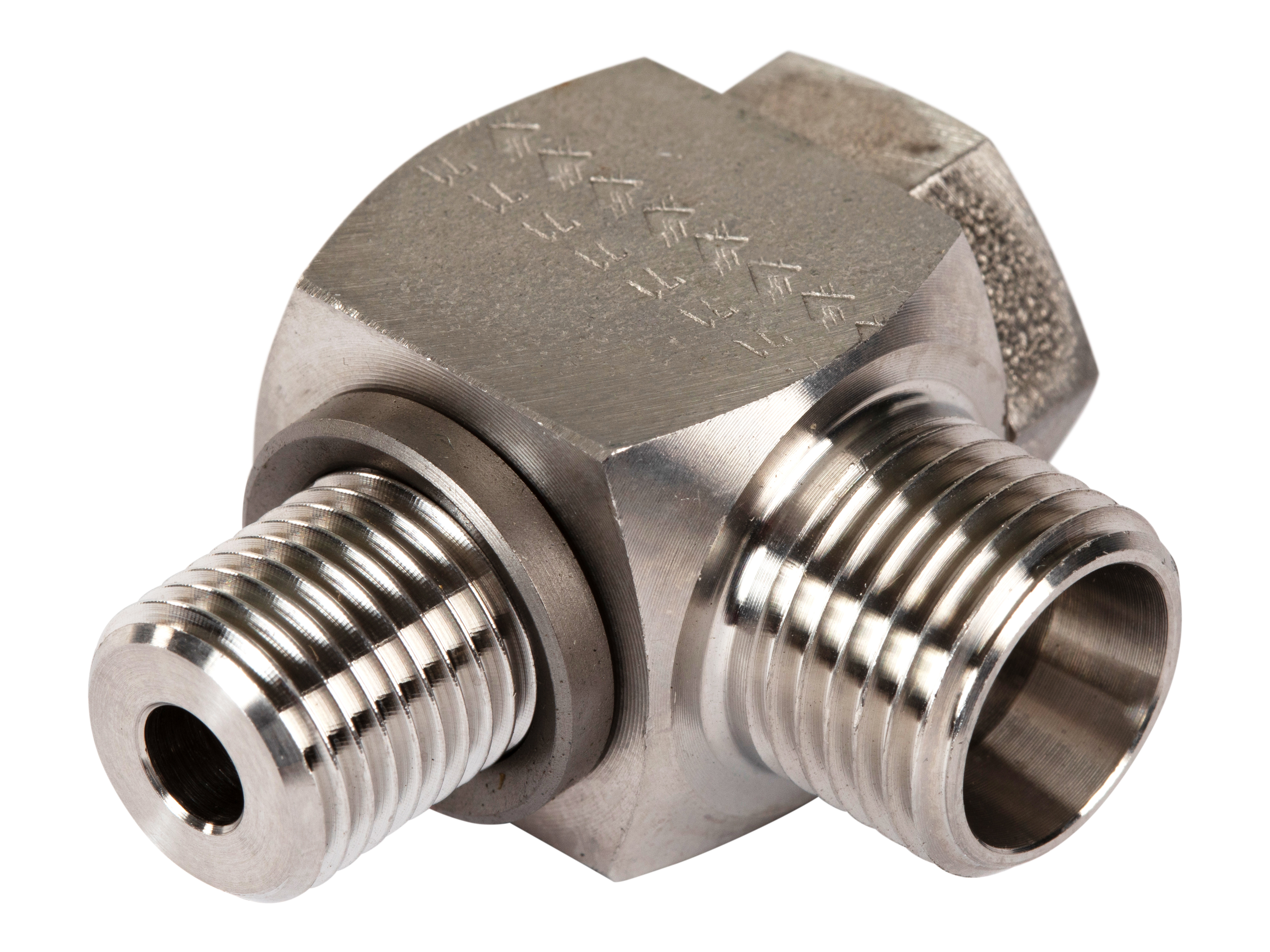

Banjo fitting BSP x DIN - L-series stainless - SBE-RLX/71

Banjo - ø6L x 1/8" BSP - AISI316

Banjo - ø8L x 1/4" BSP - AISI316

Banjo - ø10L x 1/4" BSP - AISI316

Banjo - ø12L x 3/8" BSP - AISI316

Banjo - ø15L x 1/2" BSP - AISI316

Banjo - ø18L x 1/2" BSP - AISI316

SELECT VARIANT

Partnumber	Description	Thread outer metric	Thread outer	Diameter pipe	Pressure max.
SBE06RLX/71	Banjo - ø6L x 1/8" BSP - AISI316	M12x1,5	G 1/8 BSP	6 mm	250 bar
SBE08RLX/71	Banjo - ø8L x 1/4" BSP - AISI316	M14x1,5	G 1/4 BSP	8 mm	250 bar
SBE10RLX/71	Banjo - ø10L x 1/4" BSP - AISI316	M16x1,5	G 1/4 BSP	10 mm	250 bar
SBE12RLX/71	Banjo - ø12L x 3/8" BSP - AISI316	M18x1,5	G 3/8 BSP	12 mm	250 bar
SBE15RLX/71	Banjo - ø15L x 1/2" BSP - AISI316	M22x1,5	G 1/2 BSP	15 mm	250 bar
SBE18RLX/71	Banjo - ø18L x 1/2" BSP - AISI316	M26x1,5	G 1/2 BSP	18 mm	250 bar

Angle

Brand Name

Volz

Material

Stainless steel

Material quality

1.4571 / AISI316Ti

Pressure max.

250

Safety factor

2.5

Sealing material

FKM/FPM (Viton®)

Series

Temperature max.

+200

Temperature min.

-25
