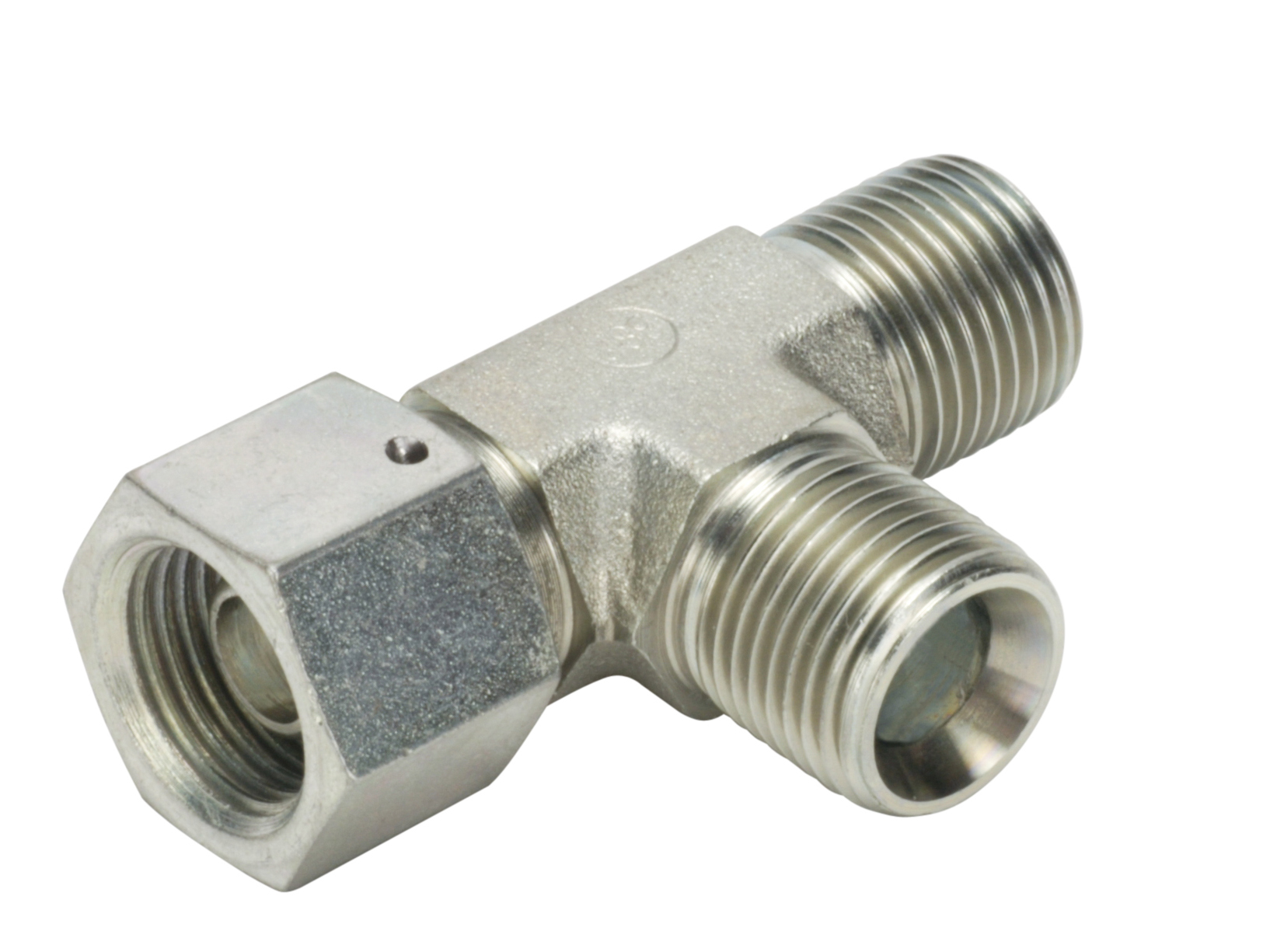

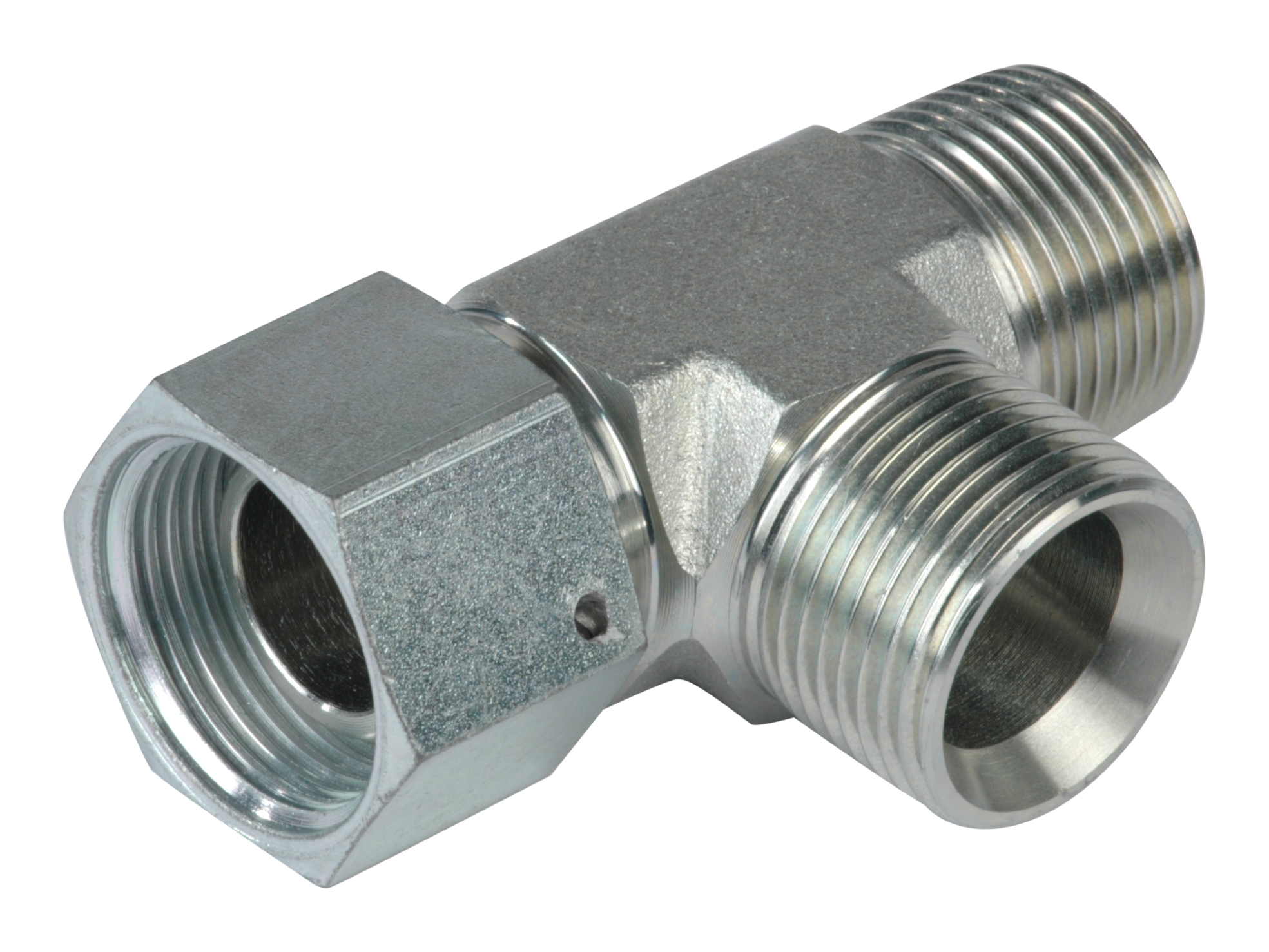

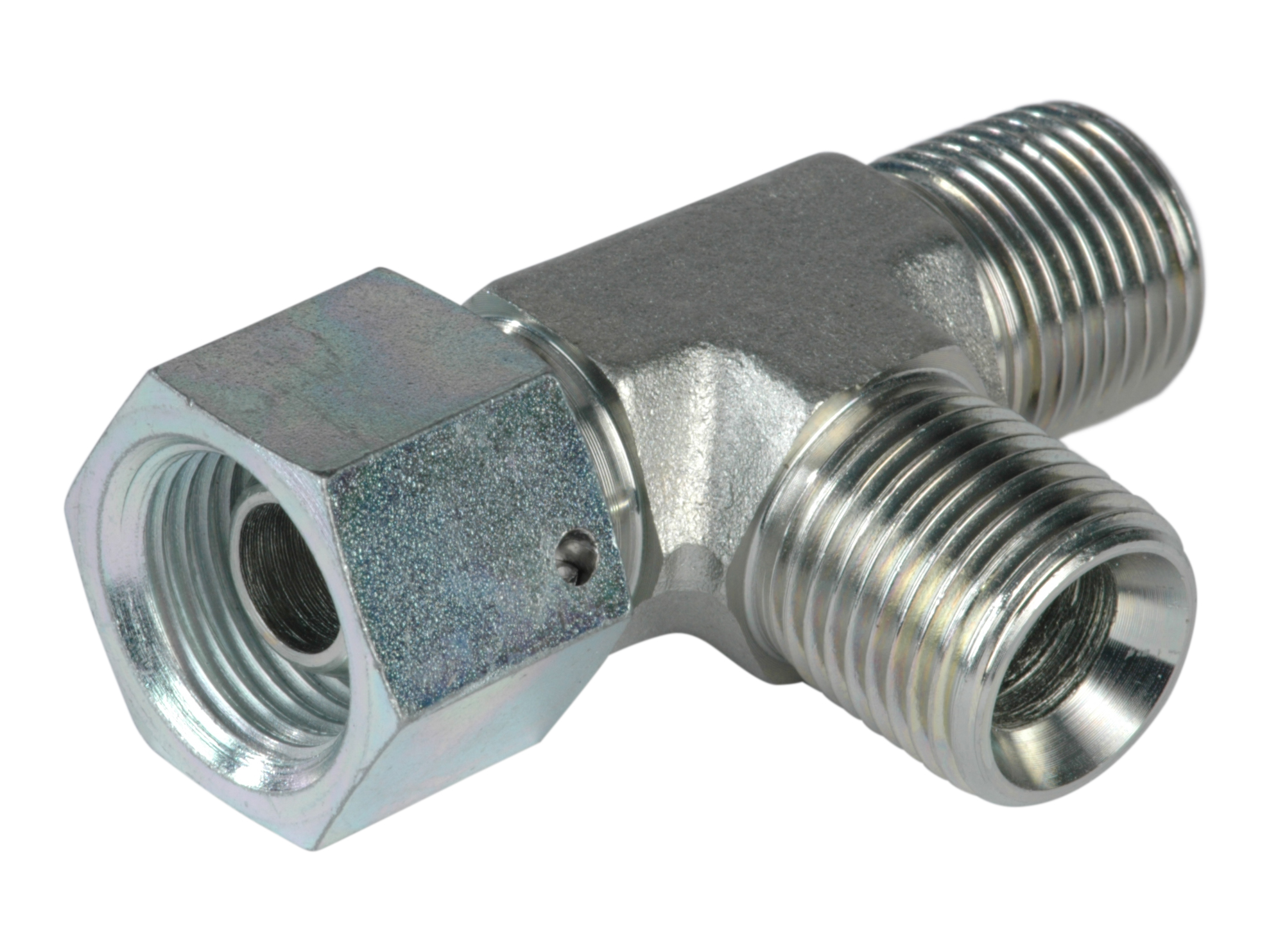

L-adapter BSP male x BSP male x BSP union nut

L-adapter BSP male x BSP male x BSP union nut

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread outer Thread inner Pressure max. Brand Name
34BP04 Tee 1/4 BSP Cast version G 1/4 BSP G 1/4 BSP 350 bar I.M.M Hydraulics
34BP06 Tee 3/8 BSP Cast version G 3/8 BSP G 3/8 BSP 350 bar I.M.M Hydraulics
34BP08 Tee 1/2 BSP Cast version G 1/2 BSP G 1/2 BSP 315 bar I.M.M Hydraulics
34BP10 Tee 5/8 BSP Cast version G 5/8 BSP G 5/8 BSP 280 bar Hydraspecma
34BP12 Tee 3/4 BSP Cast version G 3/4 BSP G 3/4 BSP 250 bar I.M.M Hydraulics
34BP16 Tee 1 BSP Cast version G 1 BSP G 1 BSP 200 bar I.M.M Hydraulics
34BP20 Tee 1.1/4 BSP Forged version for seal G 1.1/4 BSP G 1.1/4 BSP Hydraspecma
34BP24 Tee 1.1/2 BSP Forged version for seal G 1.1/2 BSP G 1.1/2 BSP Hydraspecma
