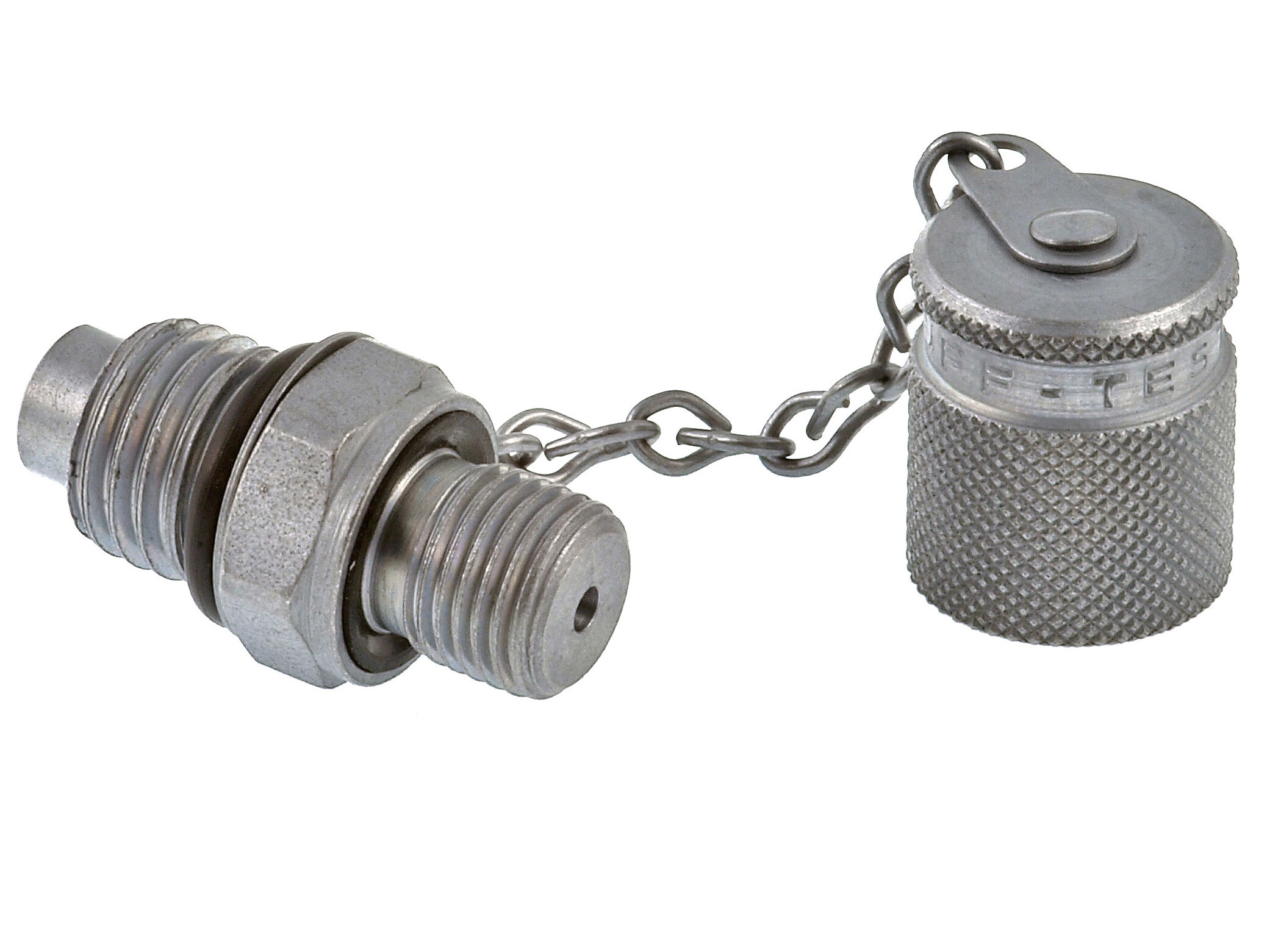

Test coupling with BSP thread, Test 20

Test coupling with BSP thread, Test 20

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Thread outer metric
MT01-102 Test adaptor, 1/8 BSPF 400 bar M16x2
MT01-104 Test adaptor, 1/4 BSPF 630 bar M16x2
MT01-104U Test adaptor, 1/4 BSPF-NO ball 630 bar M16x2
MT01-106 Test adaptor, 3/8 BSPF 630 bar M16x2
MT01-108 Test adaptor, 1/2 BSP 630 bar M16x2
SKK20G1/2-PC Test fitting 1/2 BSP 630 bar M16x2
SKK20G1/4-PC Adaptor 1/4 BSP 630 bar M16x2
SKK20G1/8-PC MÄTNIPPEL UTV-G1/8 400BAR 630 bar M16x2
SKK20G3/8-PC Adaptor 3/8 BSP 630 bar M16x2
SMK20G1/4-PB Test adaptor, 1/4" BSP w/o WD 630 bar M16x2
Brand Name
Stauff
Temperature max.
+100
Temperature min.
-20
Thread outer metric
M16x2
