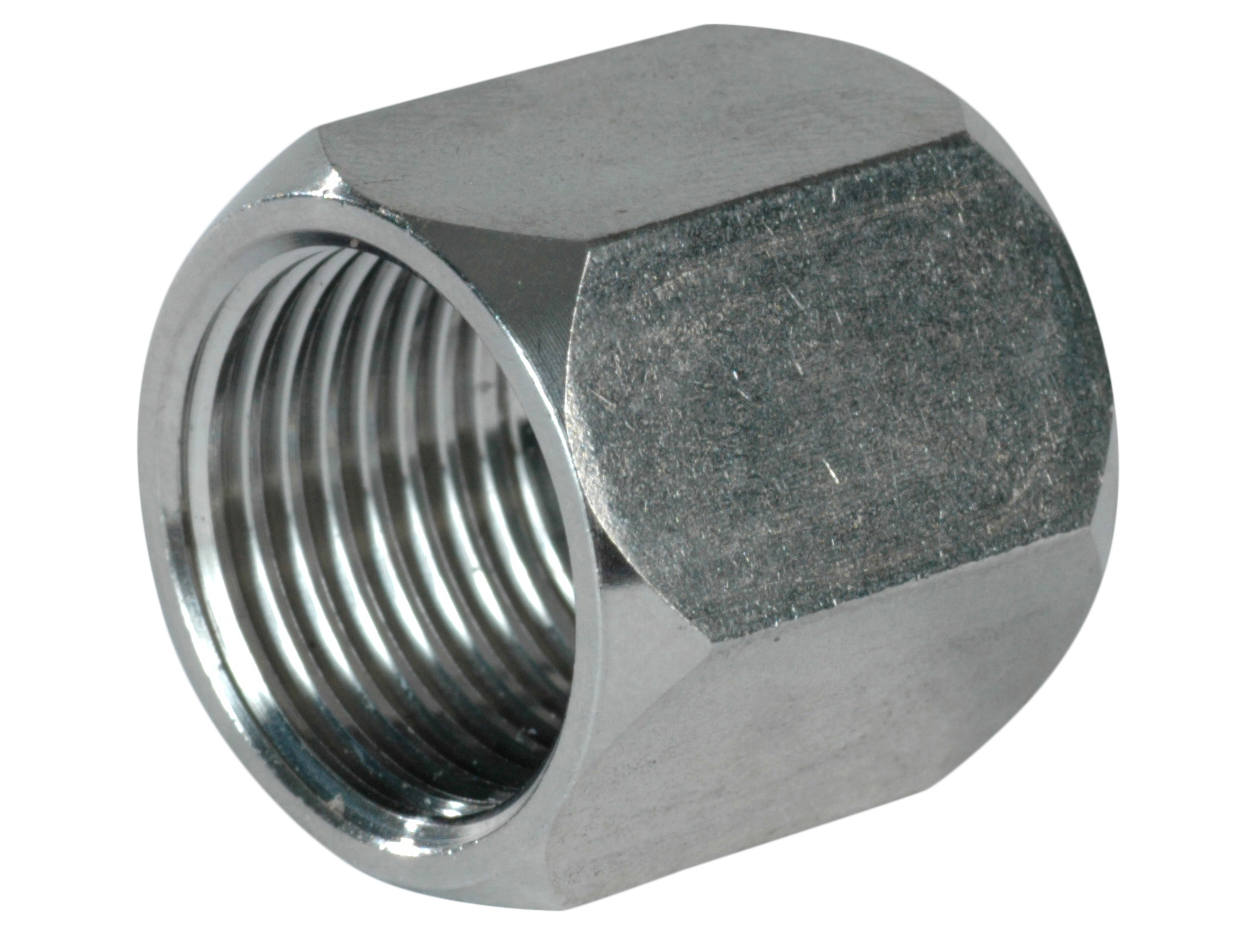

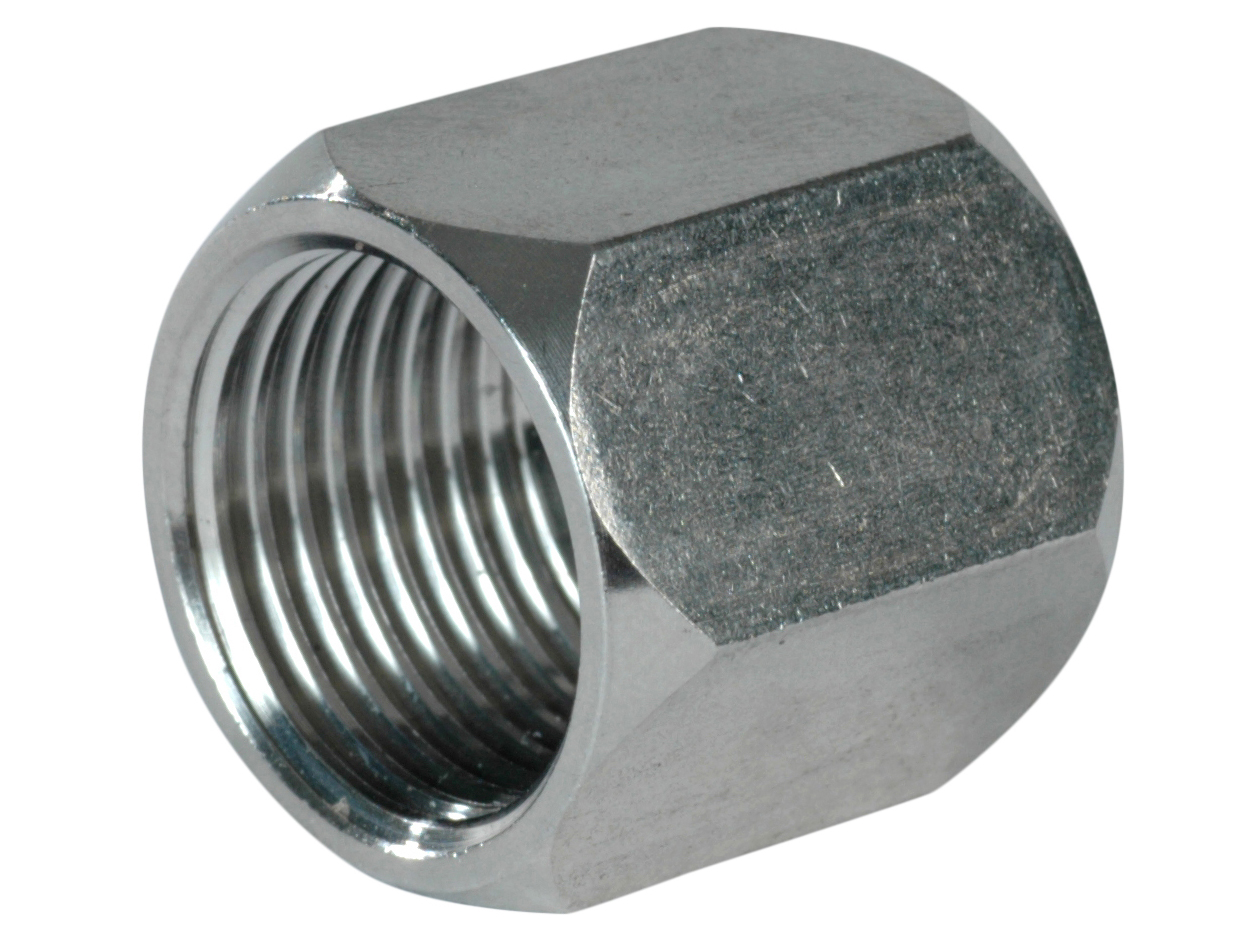

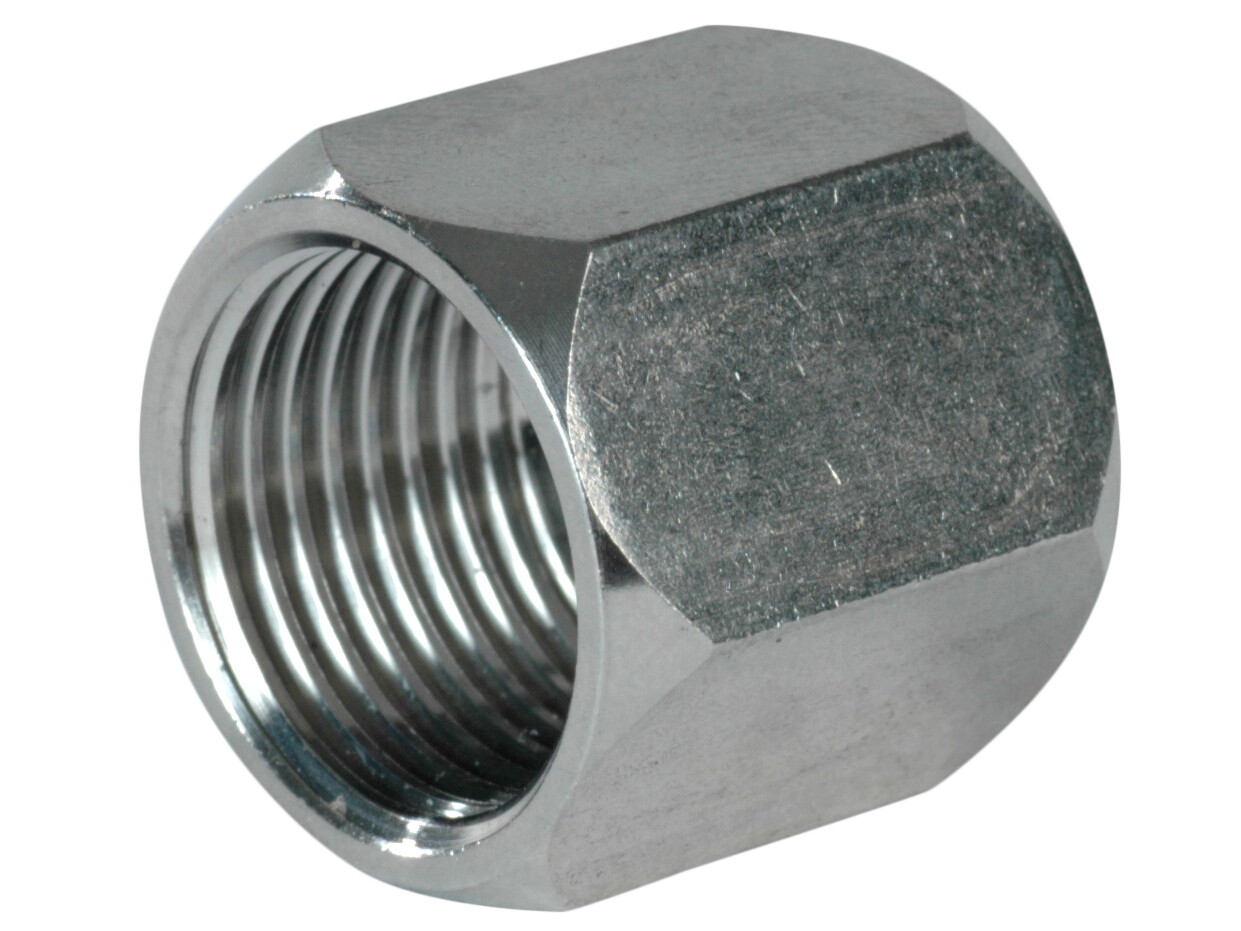

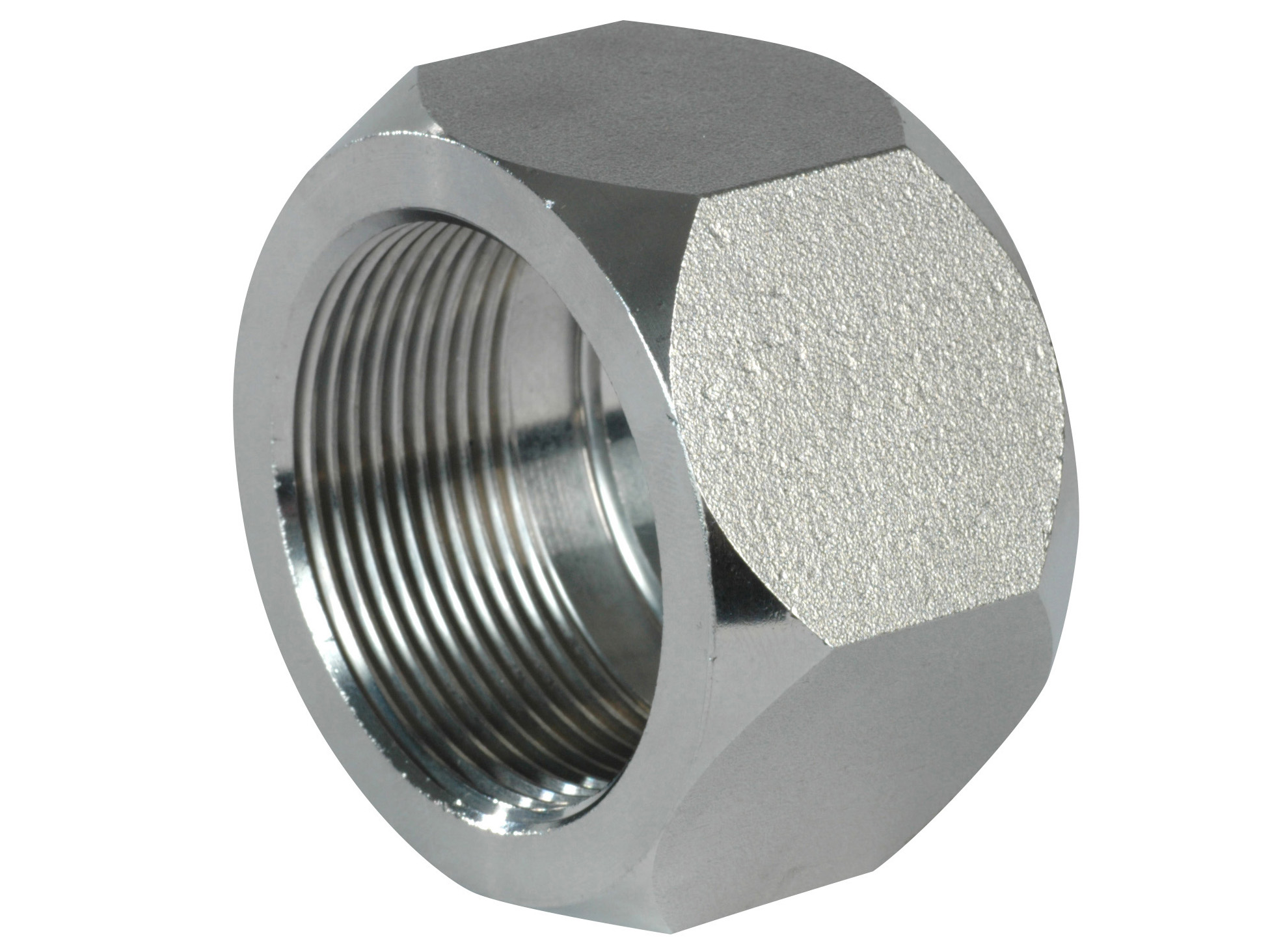

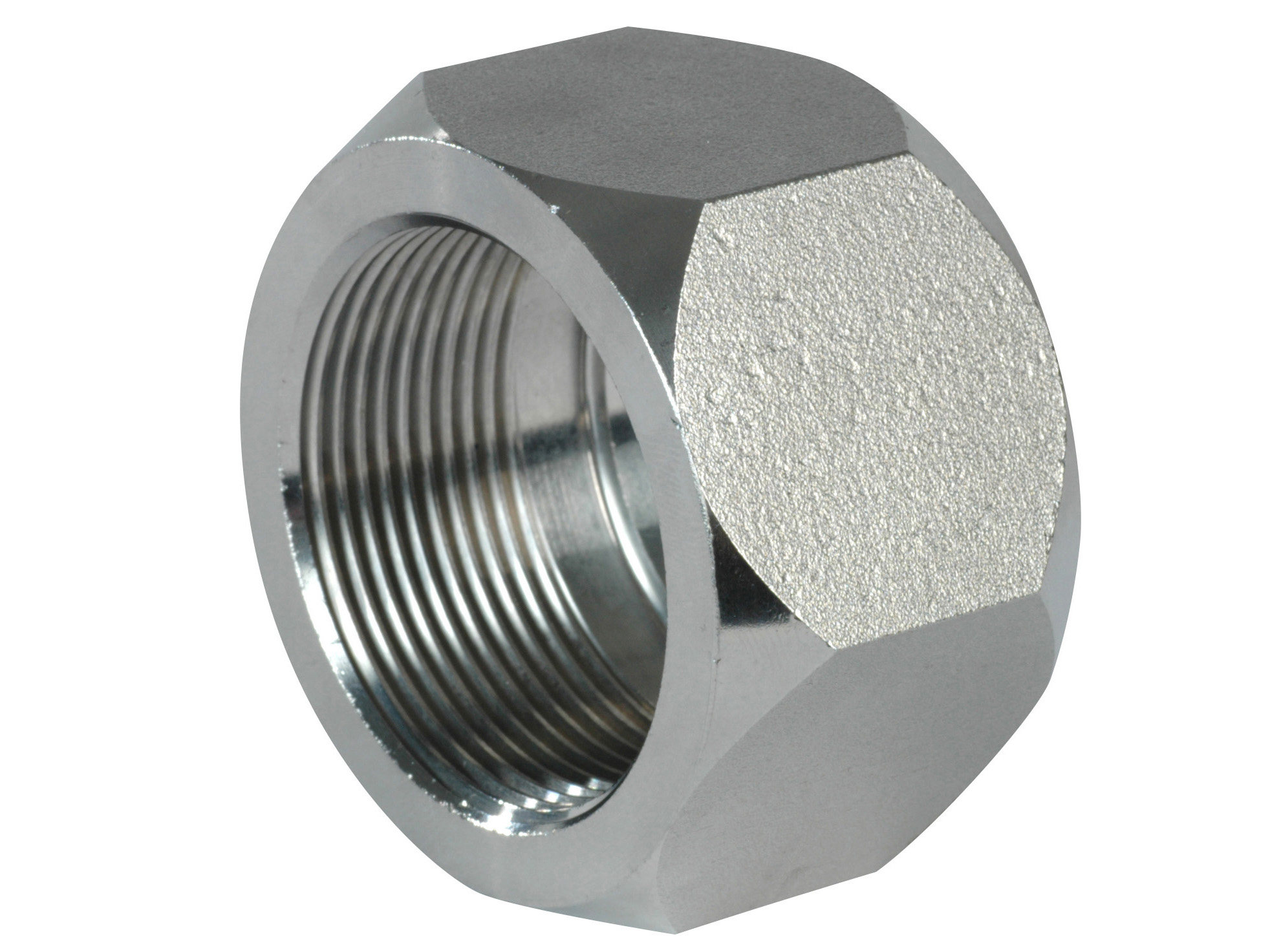

Union nuts JIC stainless - J-71 / JM-SY

Union nuts JIC stainless - J-71 / JM-SY

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread inner Pressure max.
J-06/71 Nut 06mm AISI316 6 mm 7/16-20 JIC 700 bar
J-08/71 Nut 08mm AISI316 8 mm 1/2-20 JIC 700 bar
J-10/71 Nut 10mm AISI316 10 mm 9/16-18 JIC 700 bar
J-12/71 Nut 12mm AISI316 12 mm 3/4-16 JIC 700 bar
J-14/16/71 Nut 14/16mm AISI316 14 - 16 mm 7/8-14 JIC 600 bar
J-18/20/71 Nut 18/20mm AISI316 18 - 20 mm 1.1/16-12 JIC 600 bar
J-25/71 Nut 25mm AISI316 25 mm 1.5/16-12 JIC 420 bar
J-30/32/71 Nut 30/32mm AISI316 30, 32 mm 1.5/8-12 JIC 420 bar
J-38/71 Nut 38mm AISI316 38 mm 1.7/8-12 JIC 420 bar
Brand Name
Hydraspecma
Material
Stainless steel
Material quality
1.4404 / AISI316L
