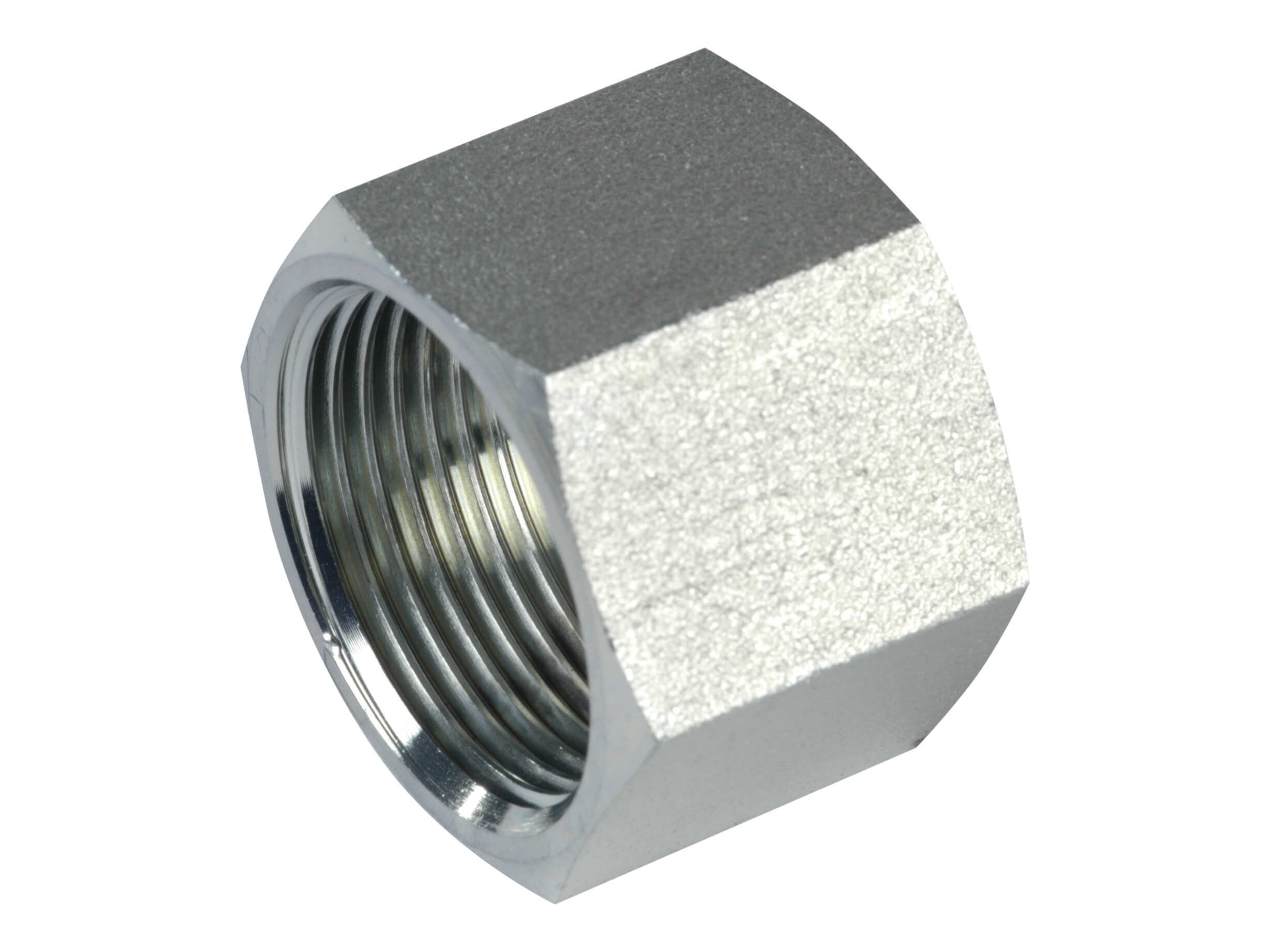

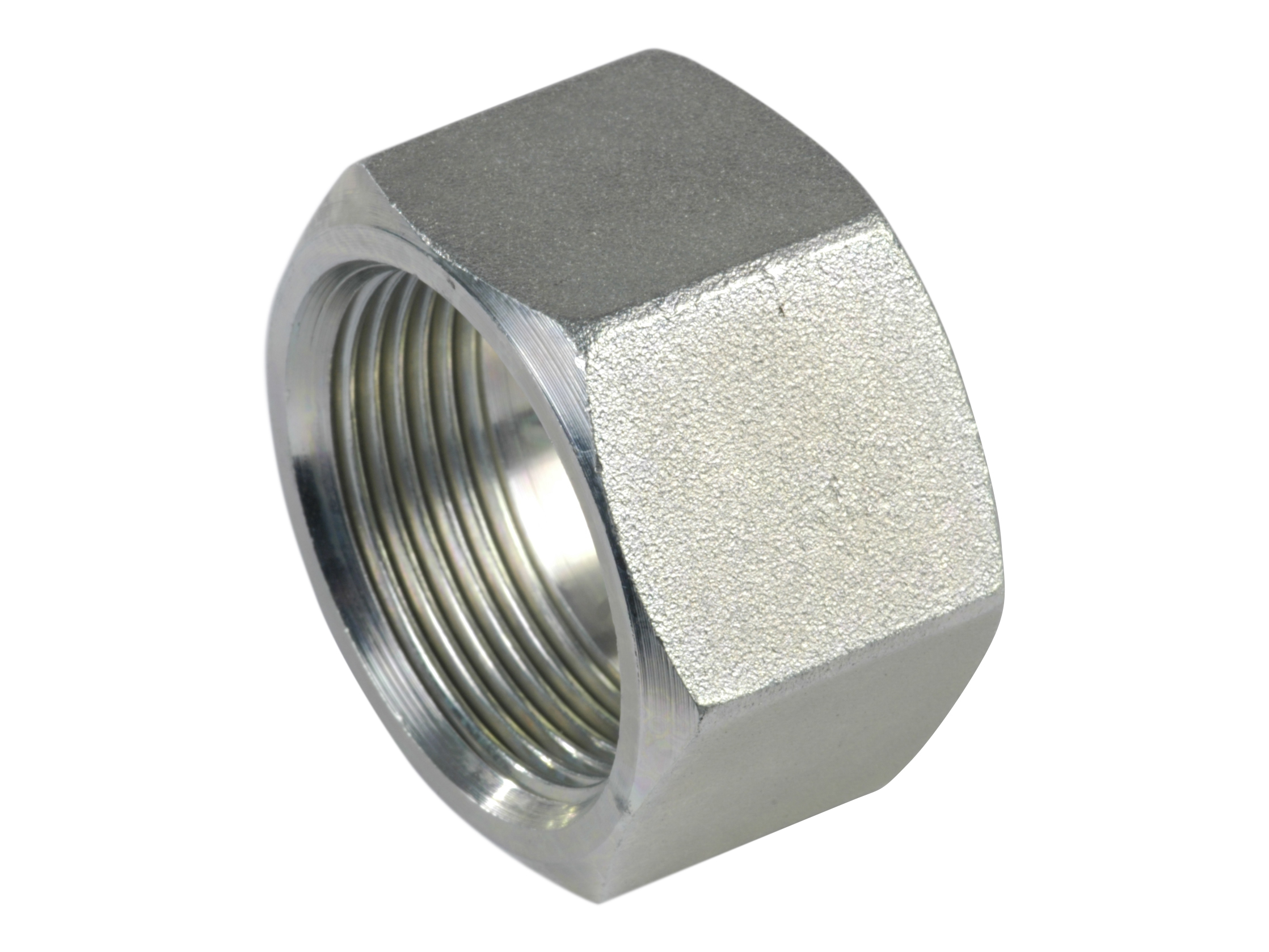

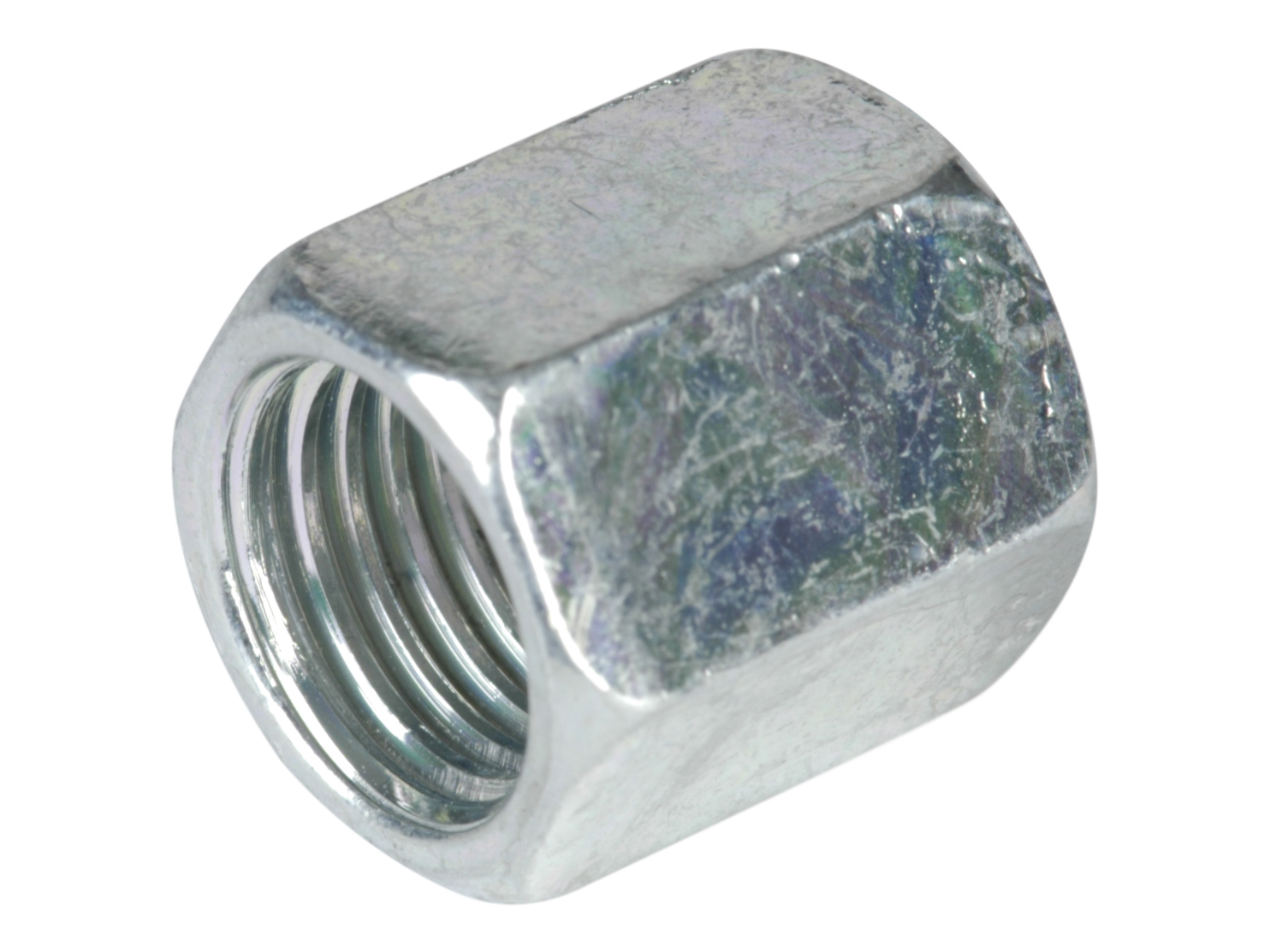

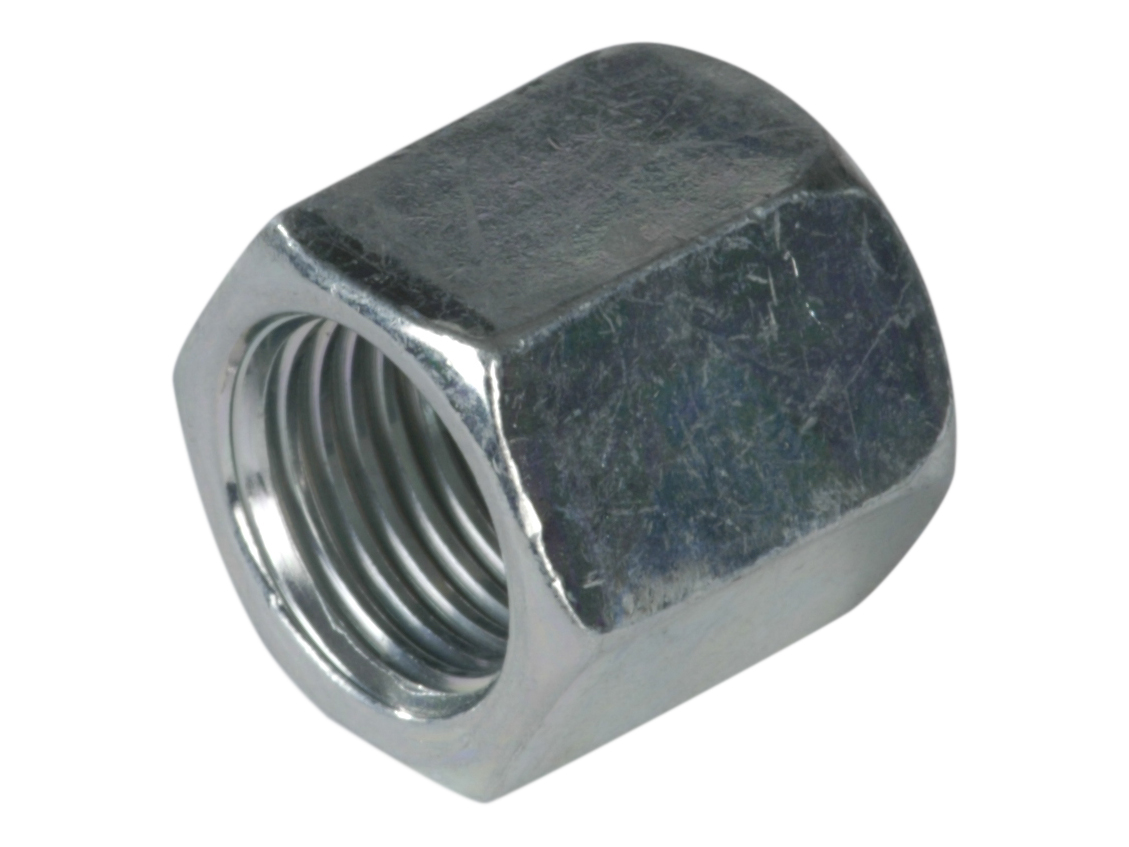

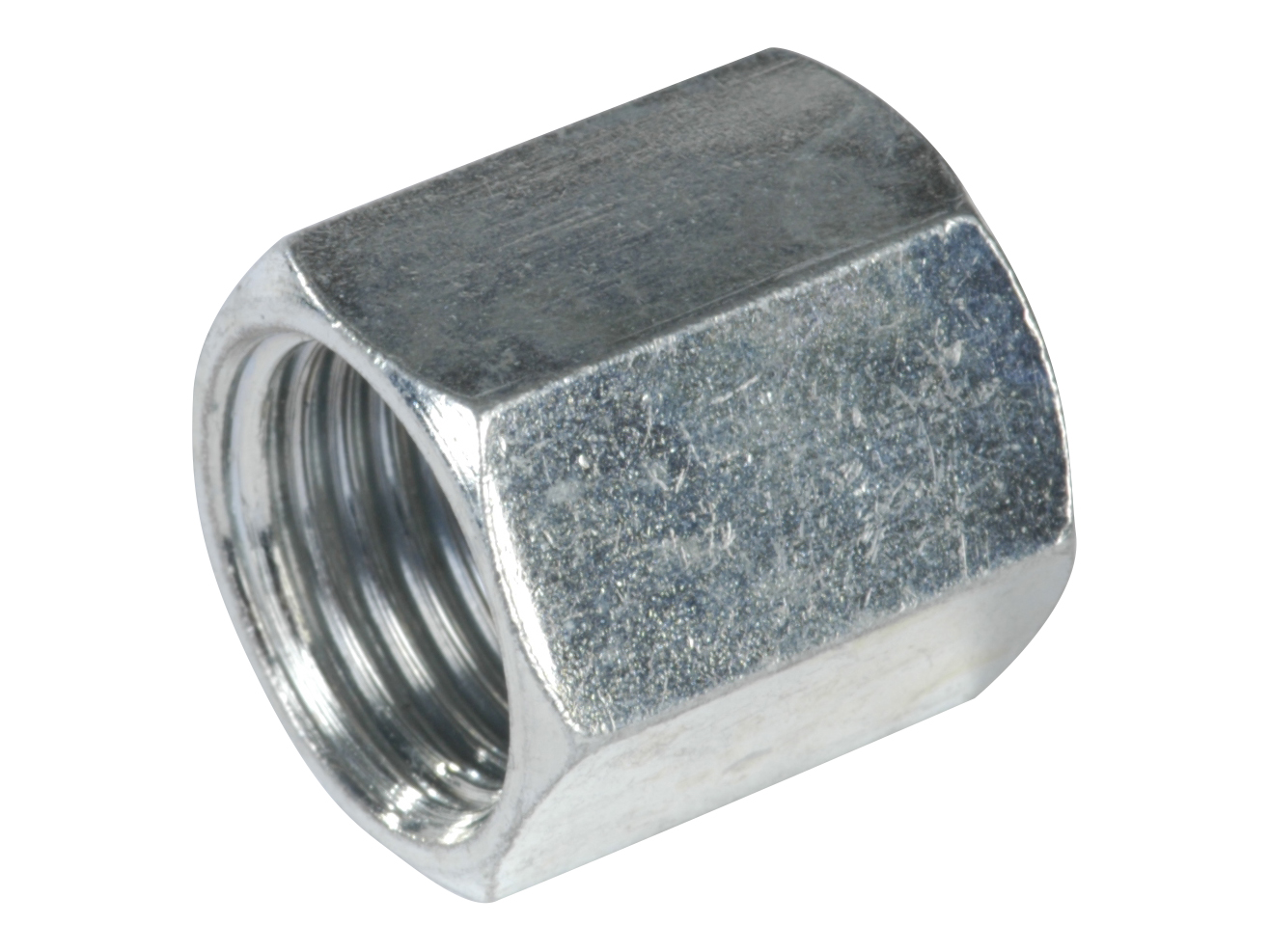

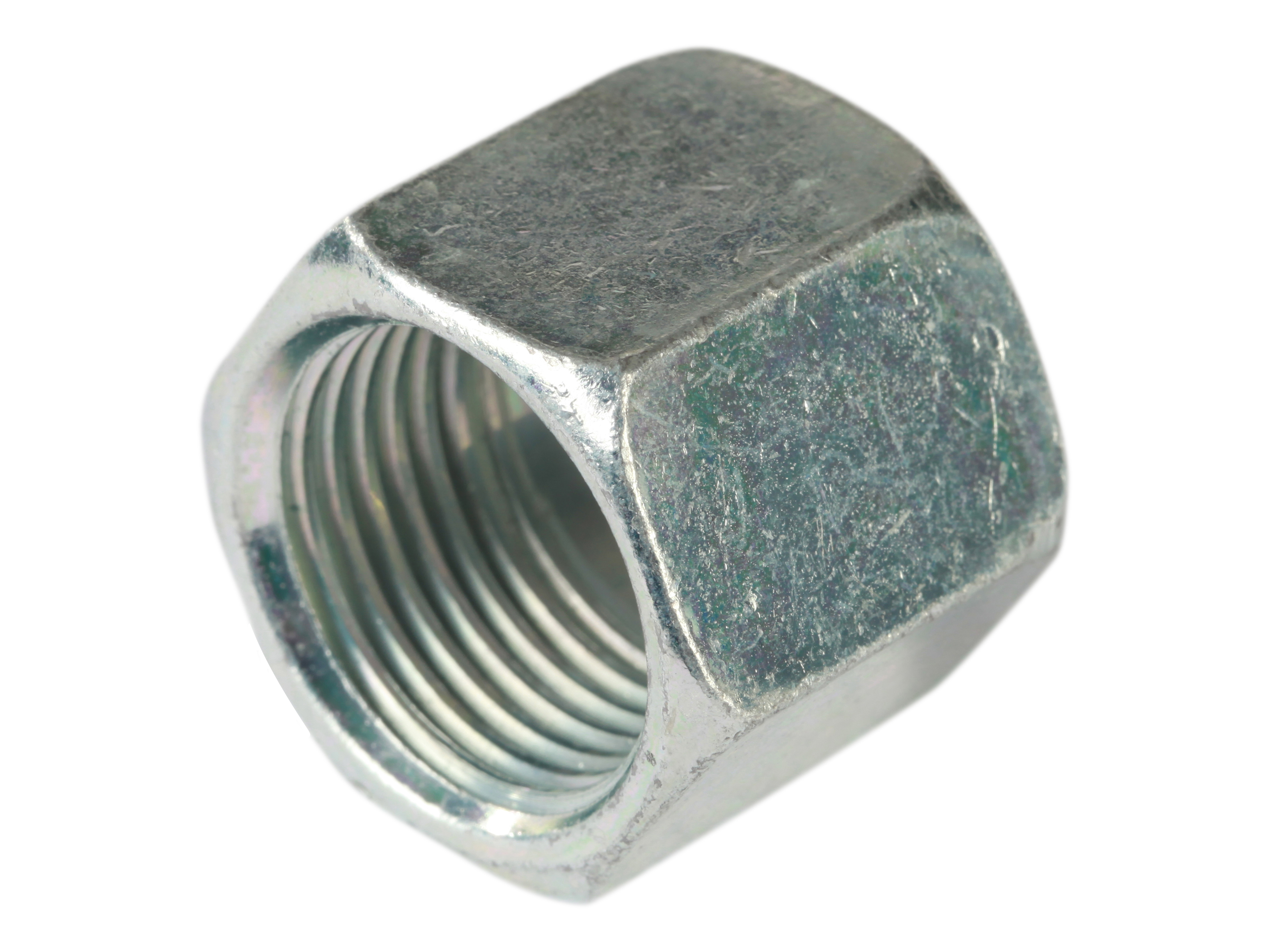

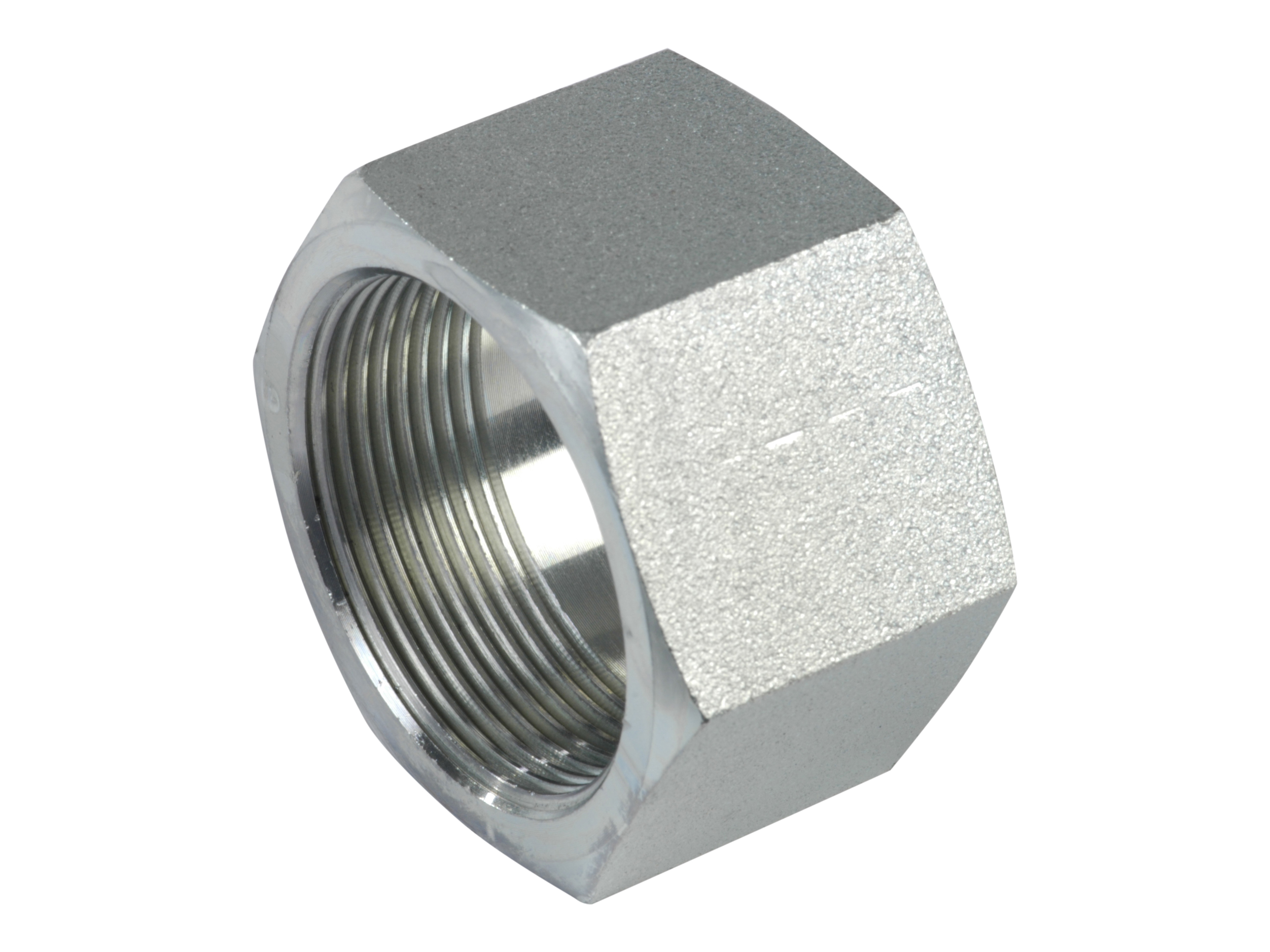

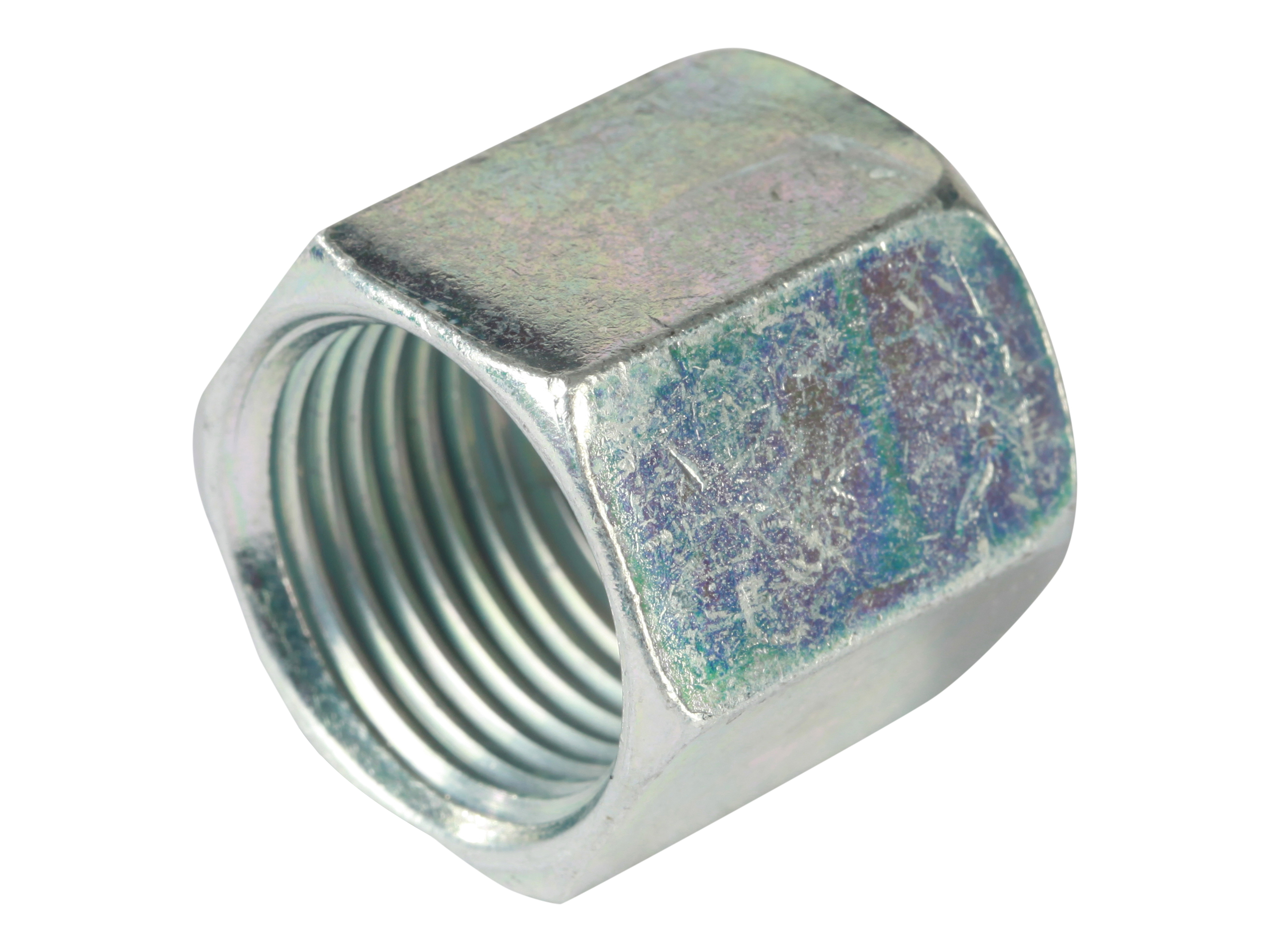

Union nut JIC

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread inner	Pressure max.
J-06	Nut 7/16-20 JIC	6 mm	7/16-20 JIC	450 bar
J-08	Nut 1/2-20 JIC	8 mm	1/2-20 JIC	416 bar
J-10	Nut 9/16 -18 JIC NW 17 mm	10 mm	9/16-18 JIC	350 bar
J-10NV19	Nut 9/16-18 JIC Key width 19mm	10 mm	9/16-18 JIC	350 bar
J-12	Nut 3/4-16 JIC	12 mm	3/4-16 JIC	350 bar
J-14/16	Nut 7/8-14 JIC	14 - 16 mm	7/8-14 JIC	330 bar
J-18	Mutter, UNF-1 1/16''-12, Rör 18MM	18 mm	1.1/16-12 JIC	350 bar
J-20	Nut 1.1/16-12 JIC ø20	20 mm	1.1/16-12 JIC	300 bar
J-22	Nut 1.3/16-12 JIC	22 mm	1.3/16-12 JIC	315 bar
J-25	Nut 1.5/16-12 JIC	25 mm	1.5/16-12 JIC	290 bar
J-25NV41	Nut 9/16-18 JIC Key width 19mm	25 mm	1.5/16-12 JIC	290 bar
J-30/32	Nut 1.5/8-12 JIC	30, 32 mm	1.5/8-12 JIC	240 bar
J-38	Nut 1.7/8-12 JIC	38 mm	1.7/8-12 JIC	250 bar
J-38NV60	Nut 1.7/8-12 JIC Key width 60mm	38 mm	1.7/8-12 JIC	250 bar
S110-38M/W	Nut 1.7/8-12 JIC J-38		1.7/8-12 JIC
