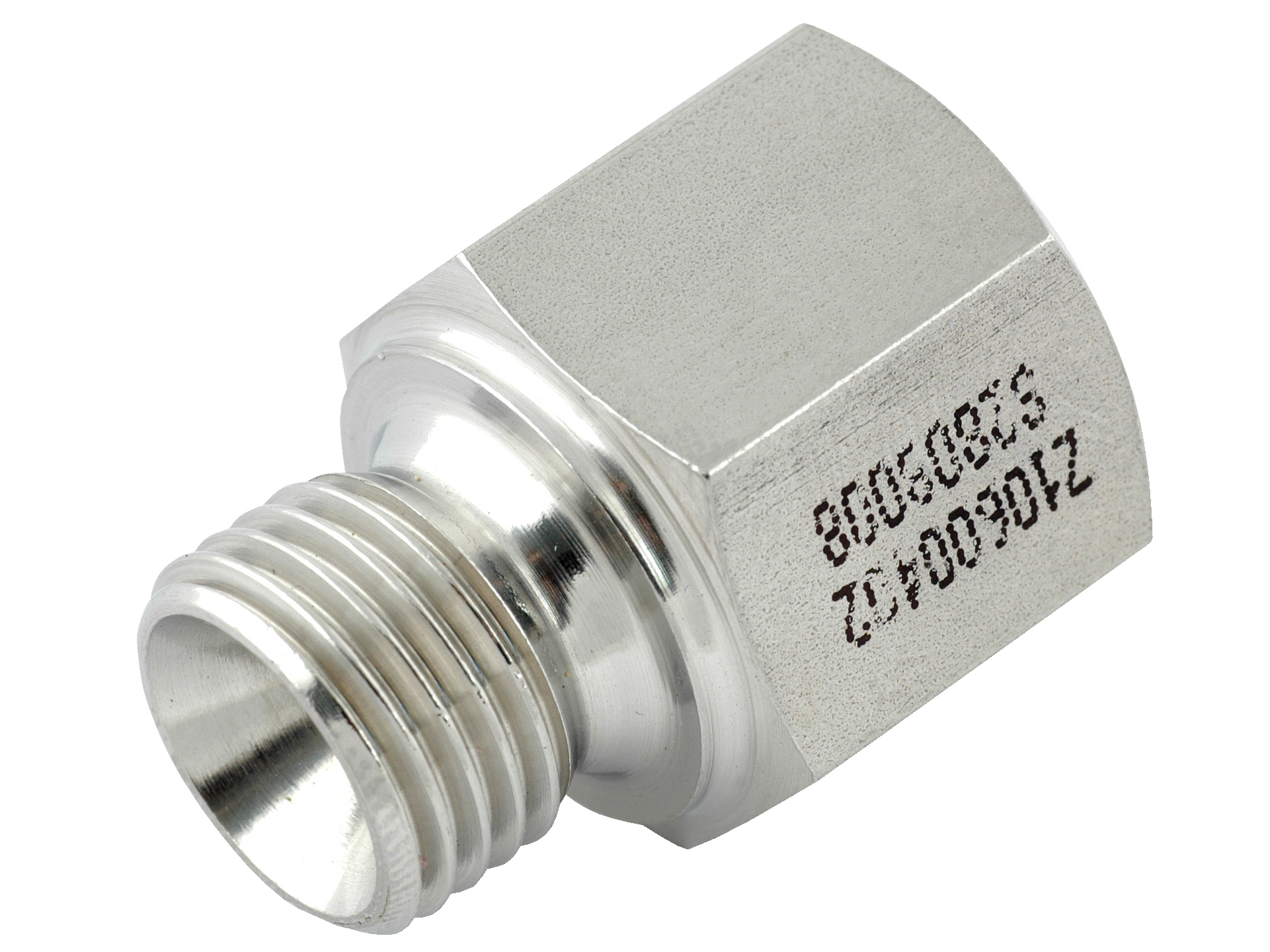

Adapter BSP male x BSP female - no seal - stainless - (RI) 09BP/71 / 137-SY

Bushing 1/4 BSP x 1/8 BSP AISI316 - like 1170:RI1/4-1/8

Bushing bspx BSP AISI316

Bushing 3/8 BSPx3/8BSP AISI316

Bushing bspx BSP AISI316

Bushing 3/4 BSPx3/4BSP AISI316

Adaptor 1 BSP male x 1 BSP fem AISI316

SELECT VARIANT

Partnumber	Description	Thread outer	Thread inner	Pressure max.
09BP0402/71	Bushing 1/4 BSP x 1/8 BSP AISI316 - like 1170:RI1/4-1/8	G 1/4 BSP	G 1/8 BSP	830 bar
09BP0404/71	Bushing bspx BSP AISI316	G 1/4 BSP	G 1/4 BSP	830 bar
09BP0606/71	Bushing 3/8 BSPx3/8BSP AISI316	G 3/8 BSP	G 3/8 BSP	700 bar
09BP0808/71	Bushing bspx BSP AISI316	G 1/2 BSP	G 1/2 BSP	700 bar
09BP1212/71	Bushing 3/4 BSPx3/4BSP AISI316	G 3/4 BSP	G 3/4 BSP	600 bar
09BP1616/71	Adaptor 1 BSP male x 1 BSP fem AISI316	G 1 BSP	G 1 BSP	420 bar

Brand Name

Hydraspecma

Material

Stainless steel

Material quality

1.4571 / AISI316Ti
