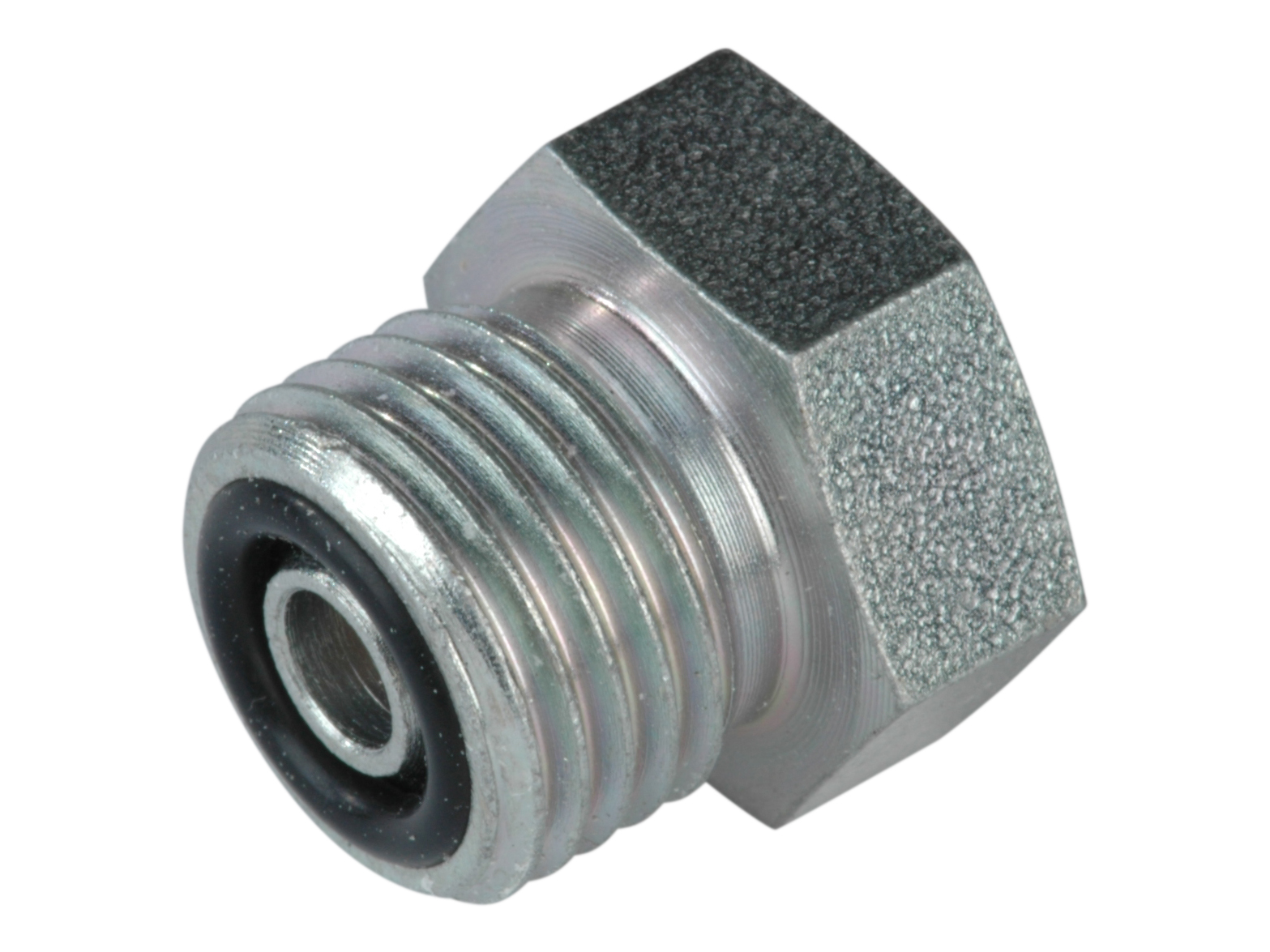

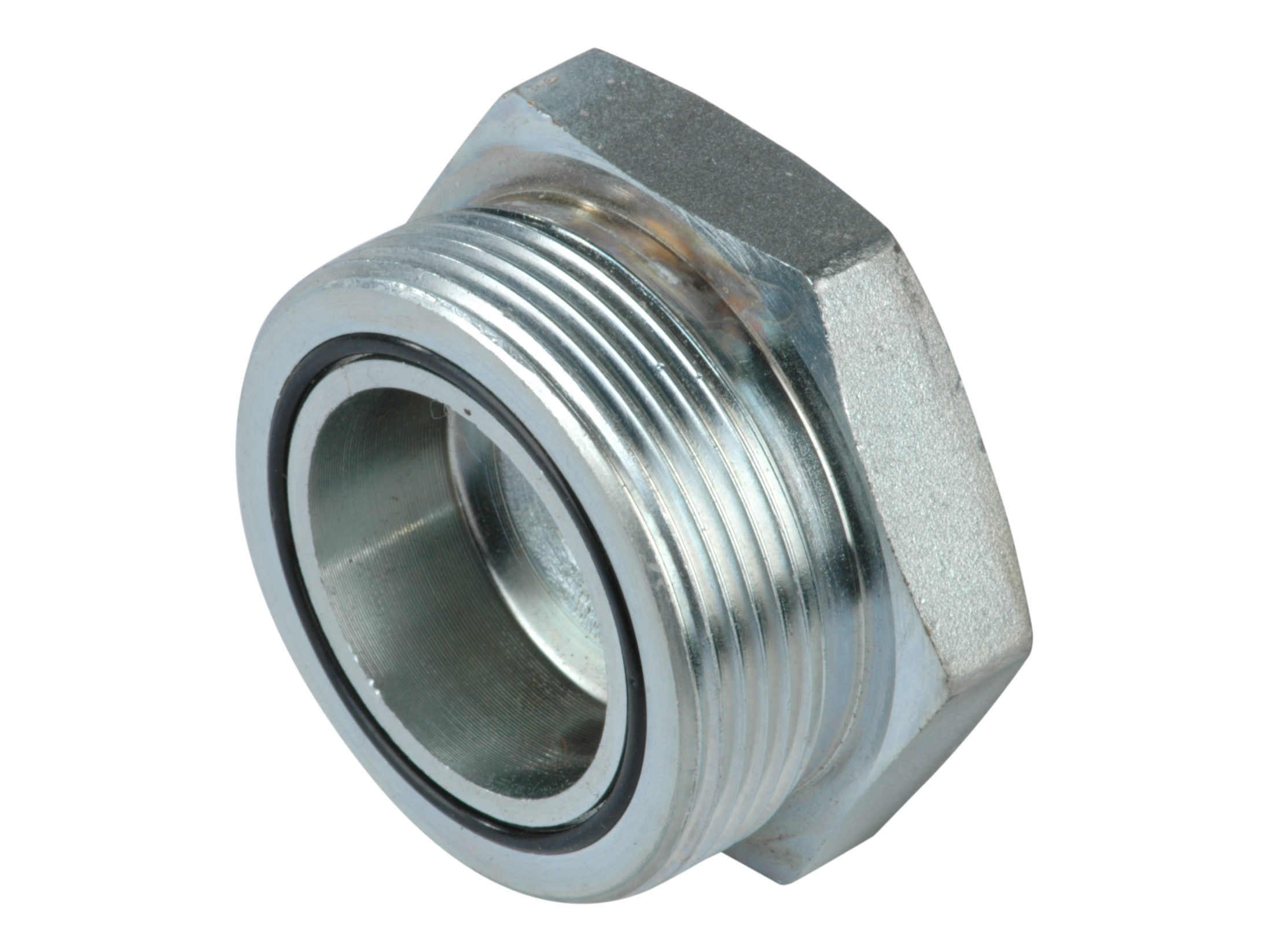

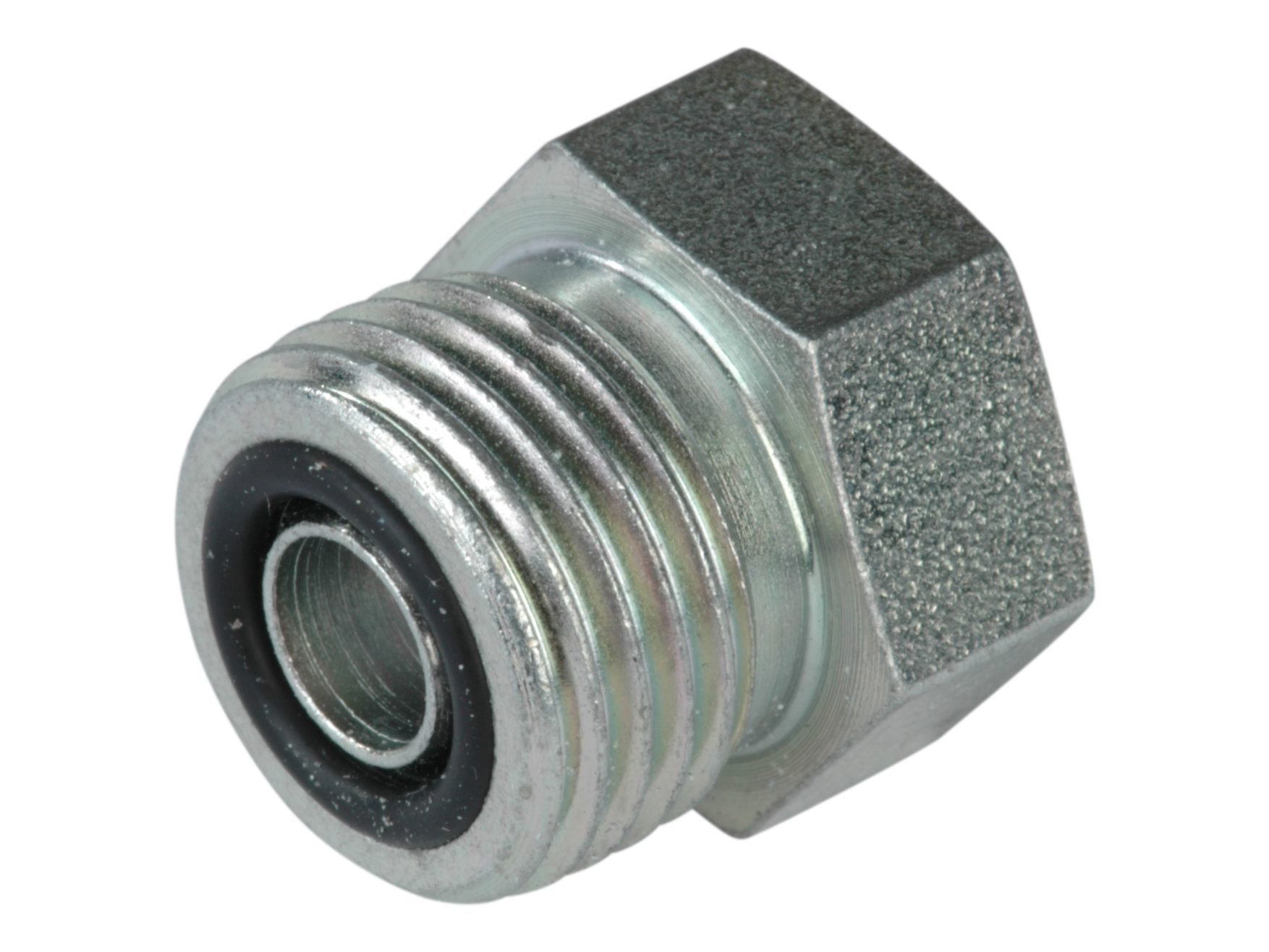

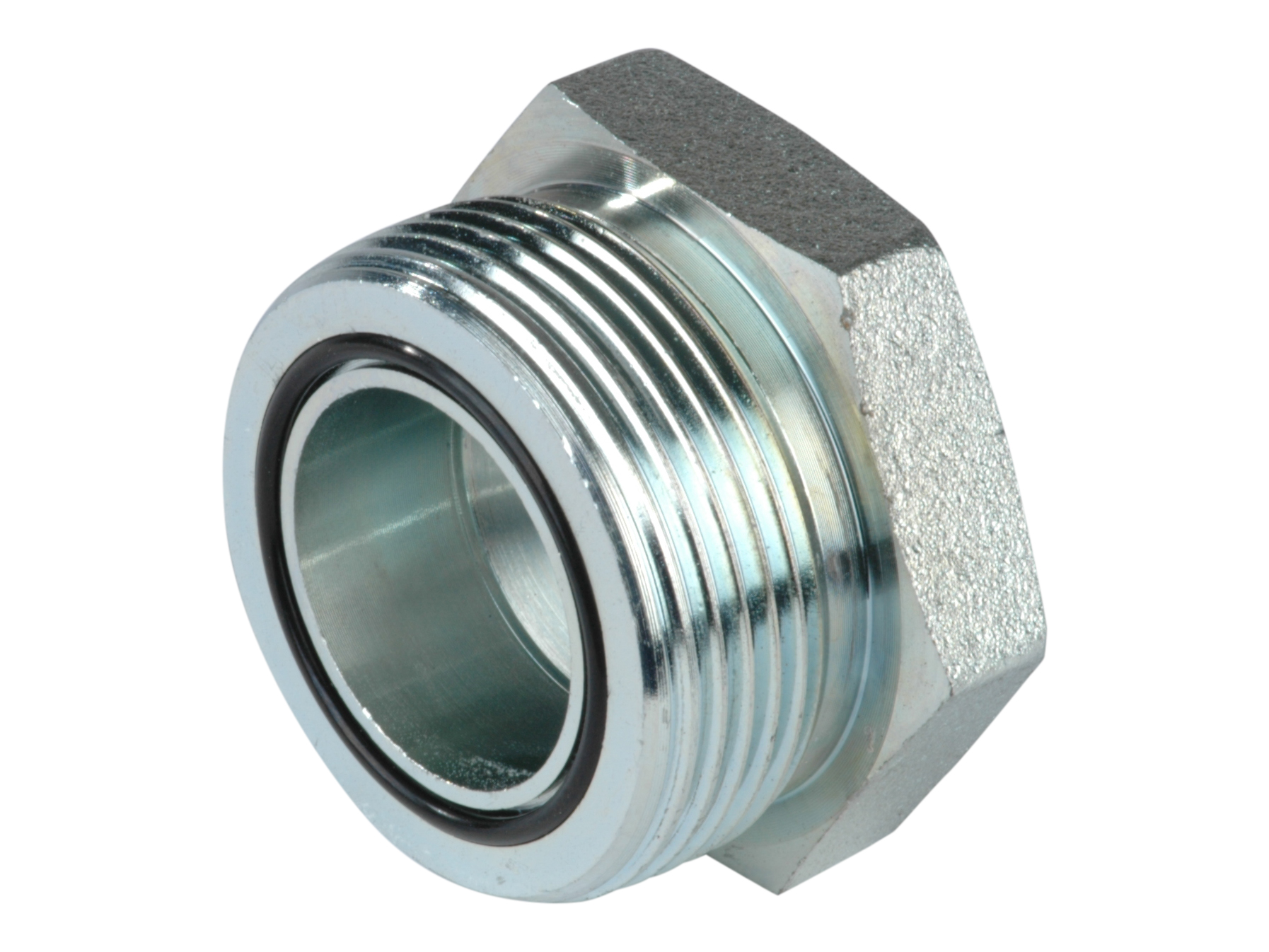

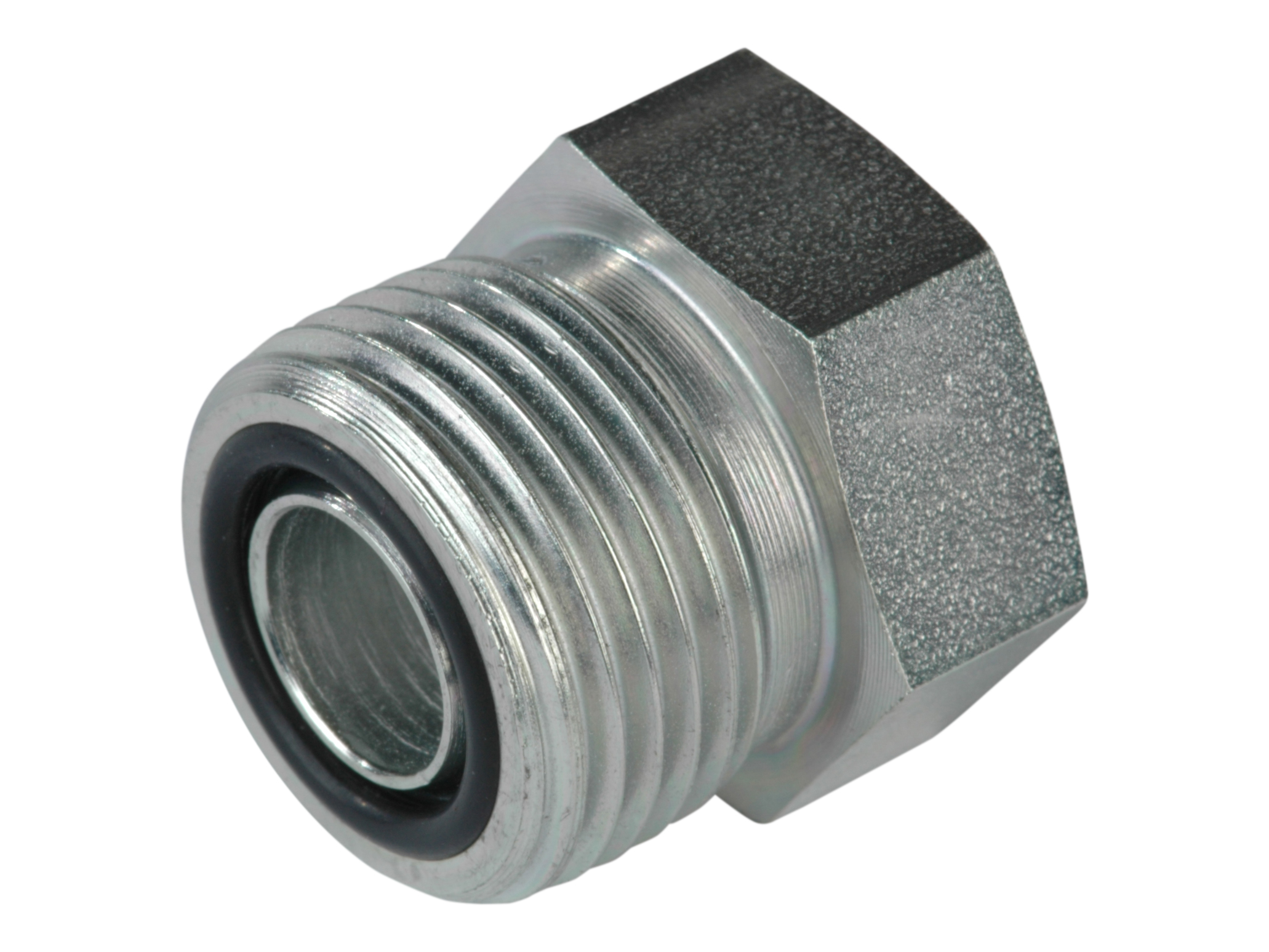

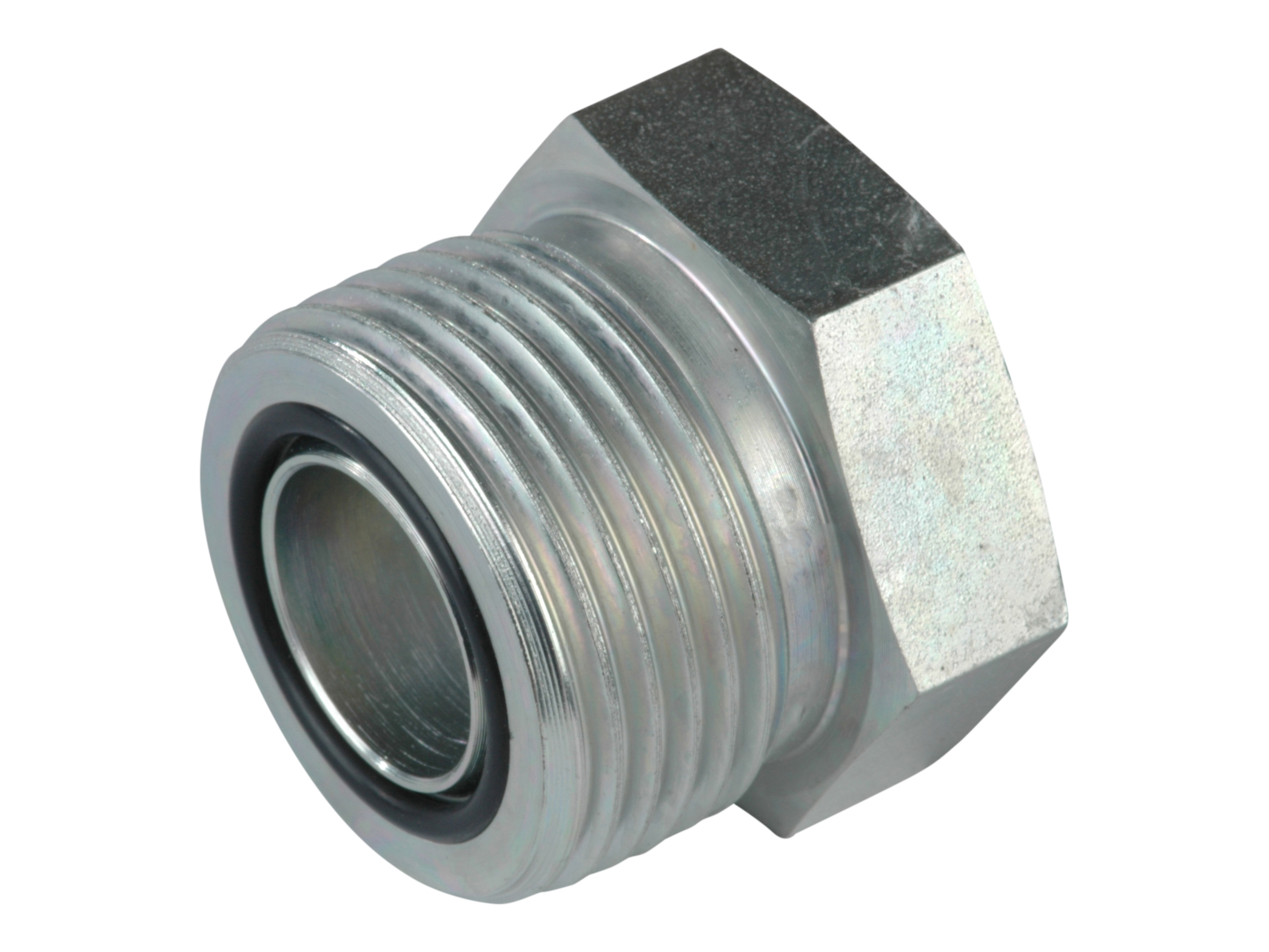

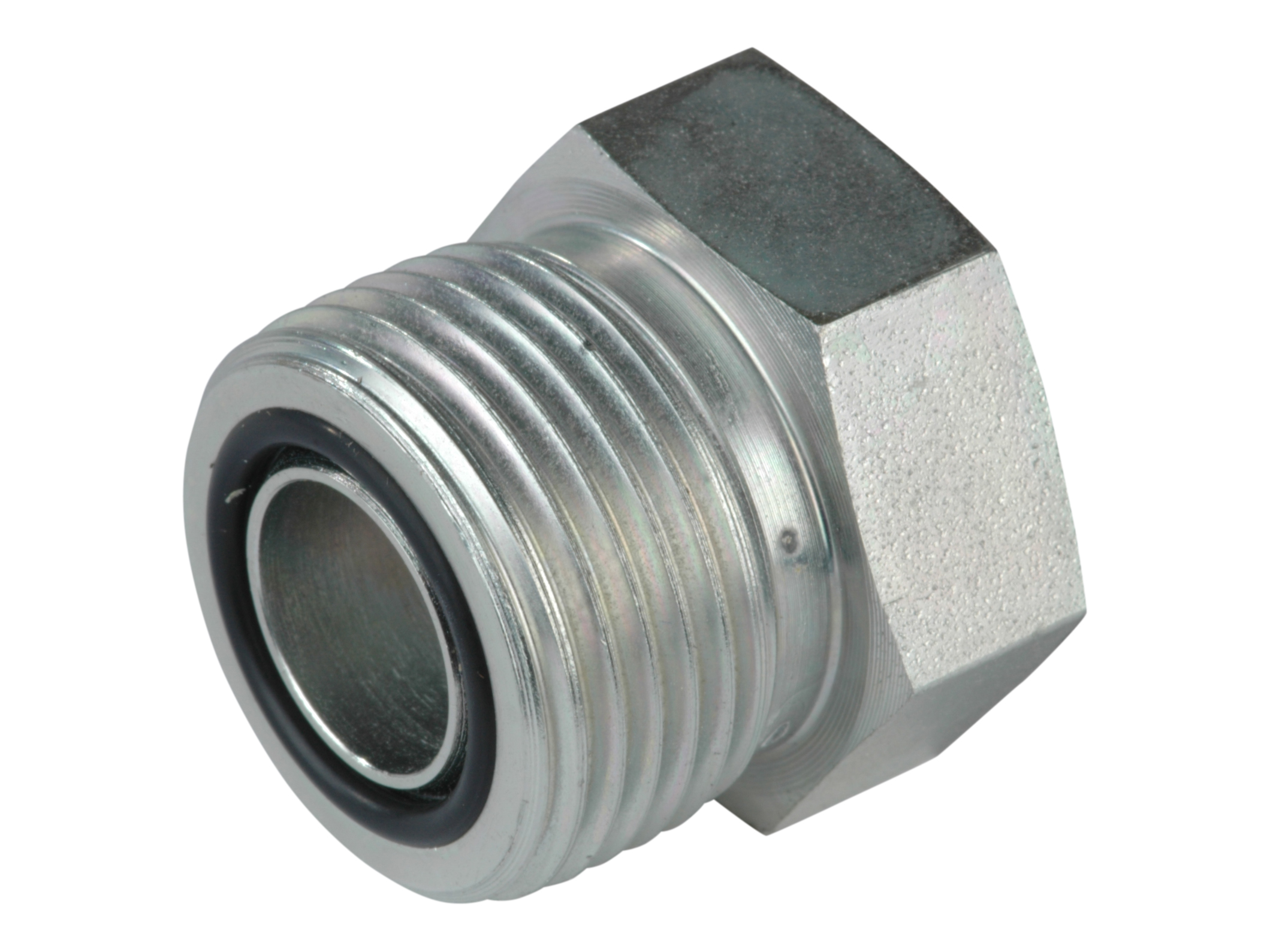

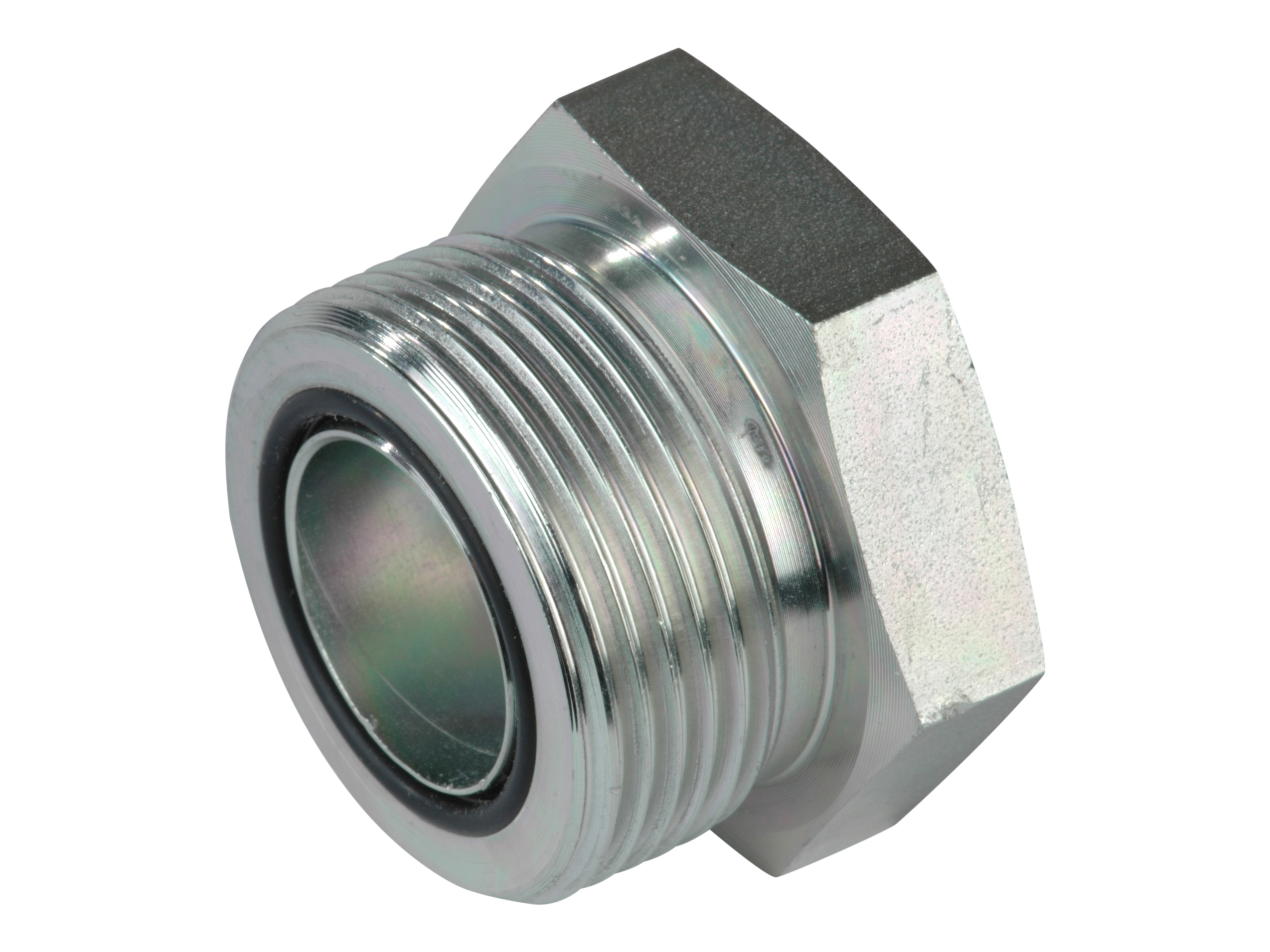

Plug adapter ORFS male steel - 108FS / OFVST

SELECT VARIANT

Partnumber	Description	Thread outer	Pressure max.	Brand Name
108FS04	Plug 9/16 ORFS	9/16-18 ORFS	630 bar	FOR
108FS06	Plug 11/16 ORFS	11/16-16 ORFS	630 bar	FOR
108FS08	Plug 13/16 ORFS	13/16-16 ORFS	630 bar	FOR
108FS10	Plug 1 ORFS	1-14 ORFS	420 bar	FOR
108FS12	Plug 1.3/16 ORFS	1.3/16-12 ORFS	420 bar	FOR
108FS16	Plug 1.7/16 ORFS	1.7/16-12 ORFS	420 bar	FOR
108FS20	Plug 1.11/16 ORFS	1.7/8-12 ORFS	350 bar	FOR
108FS24	Plug 2 ORFS	2-12 ORFS	350 bar	FOR

Angle

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Material

Steel

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100

Temperature min.

-35
