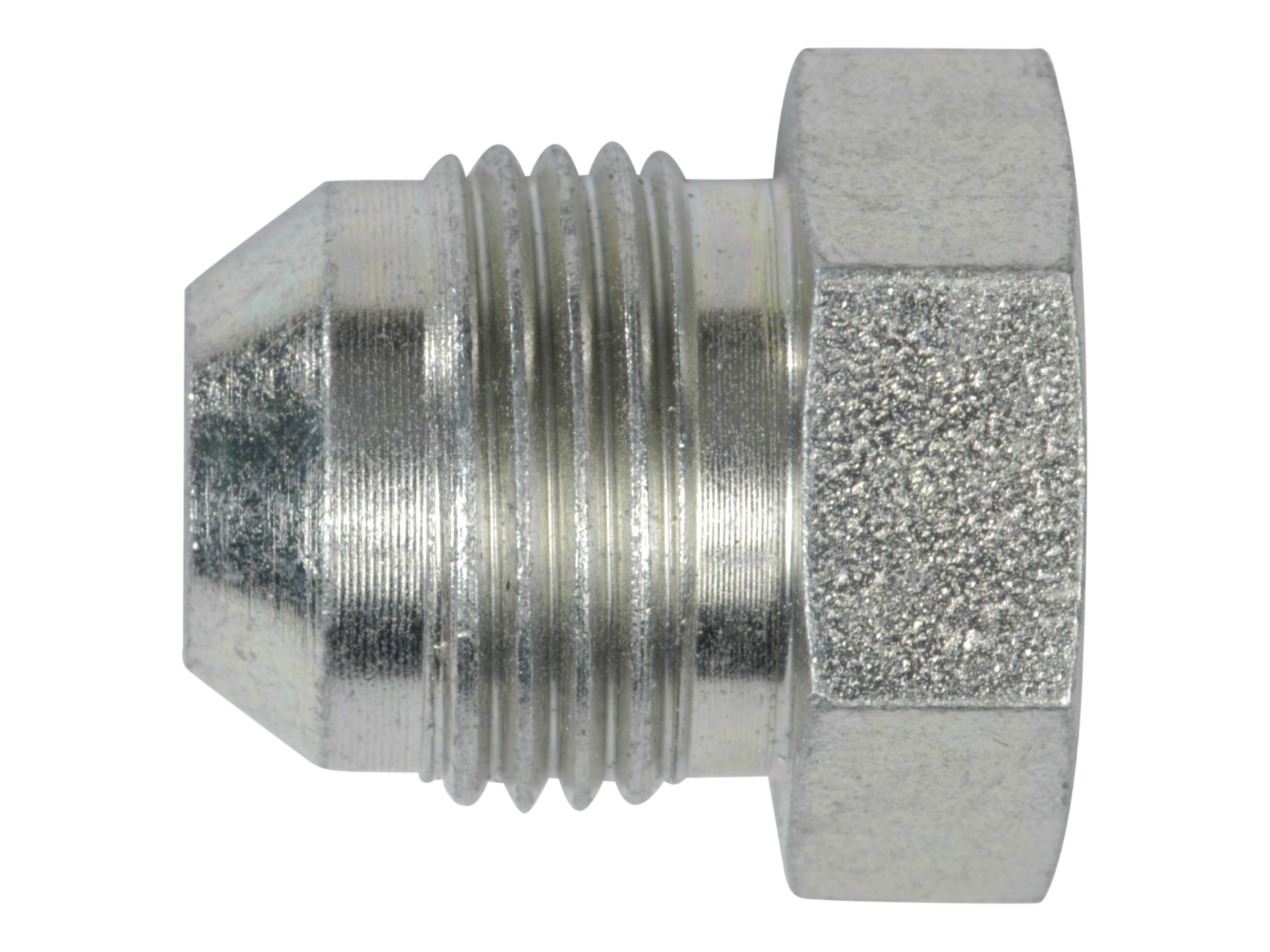

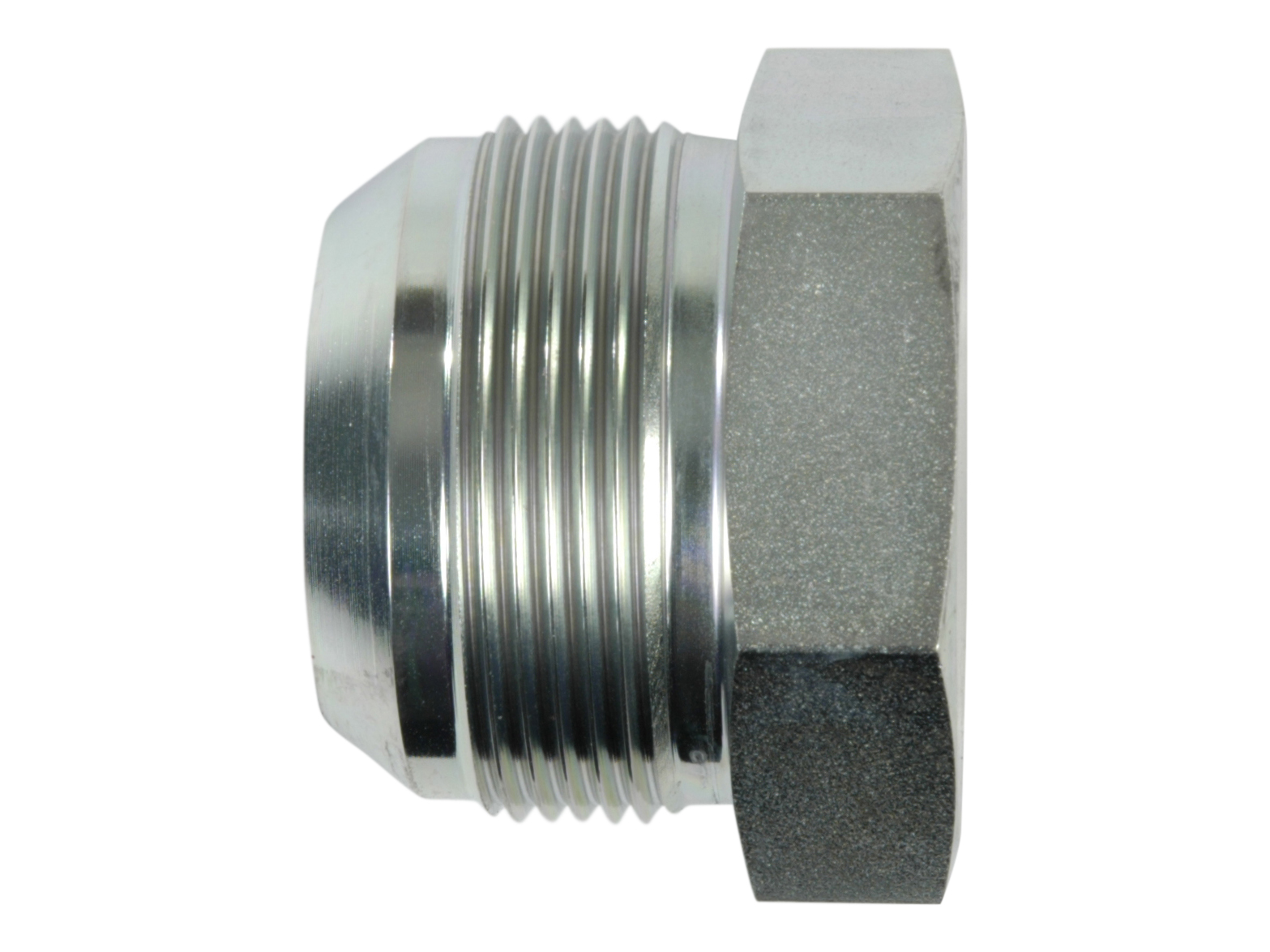

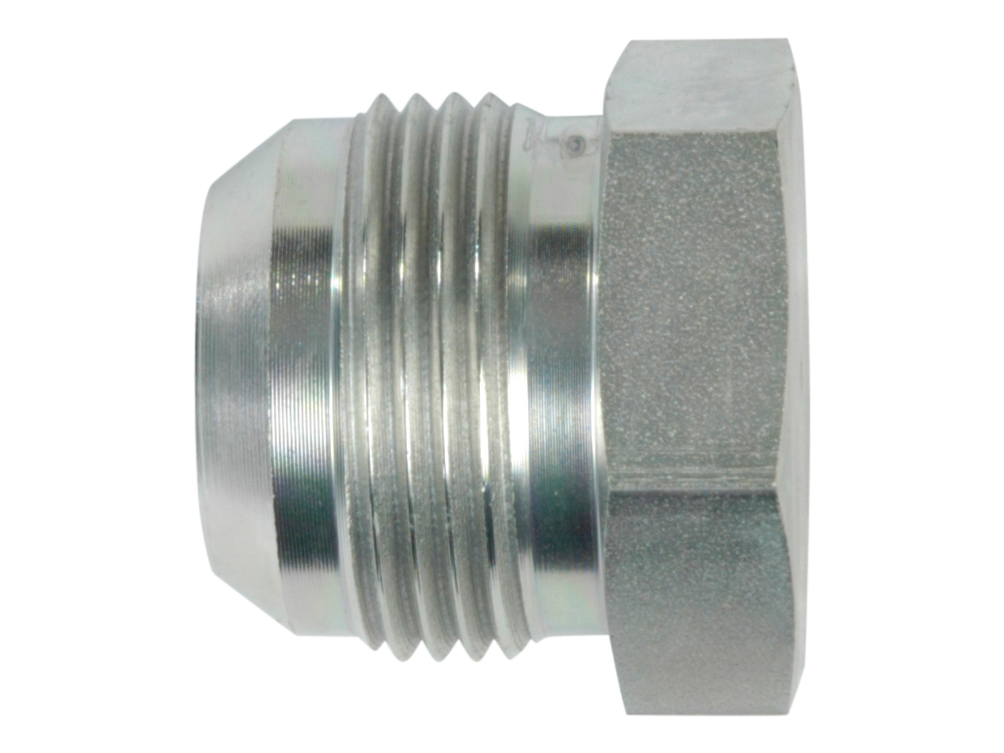

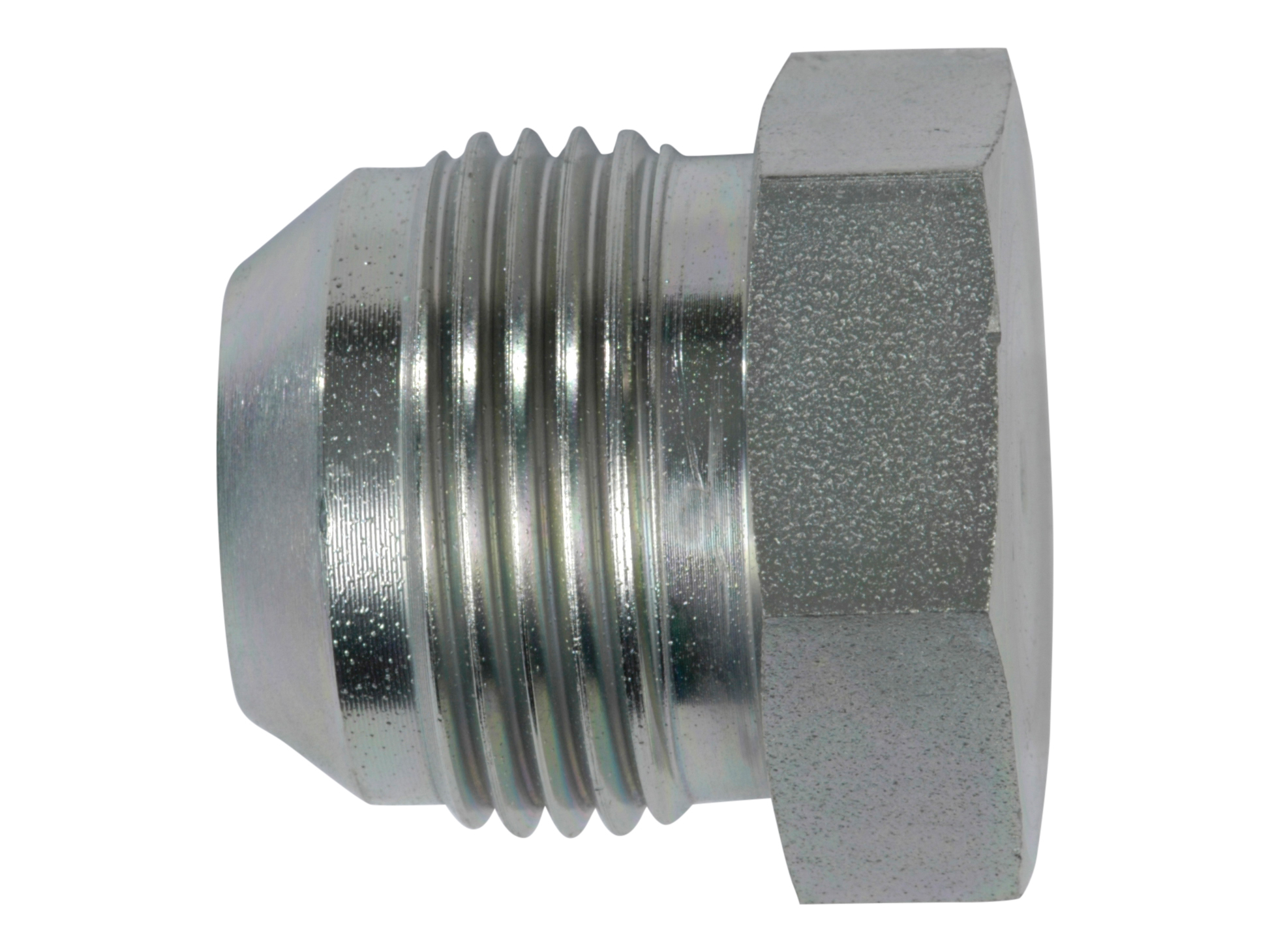

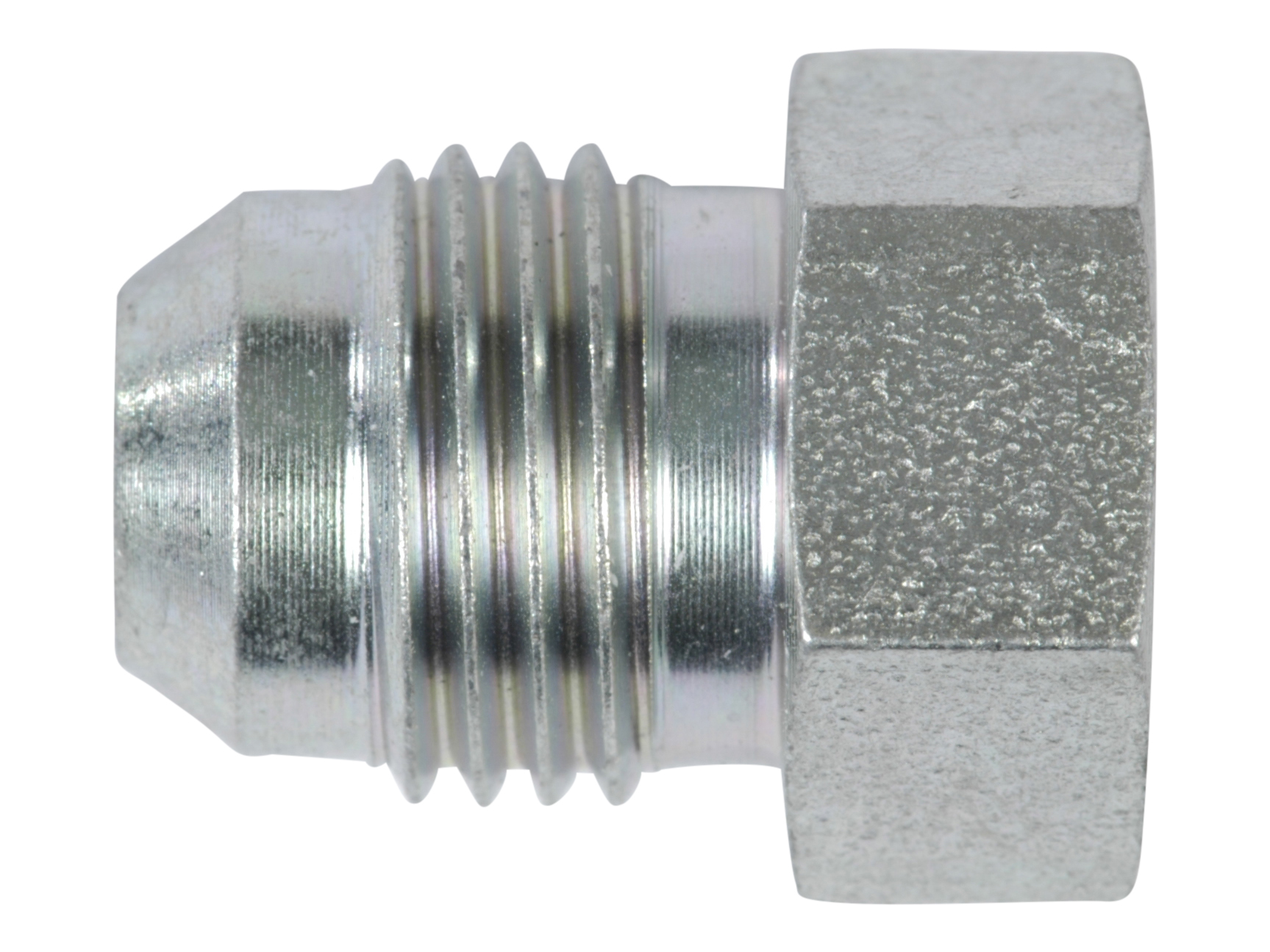

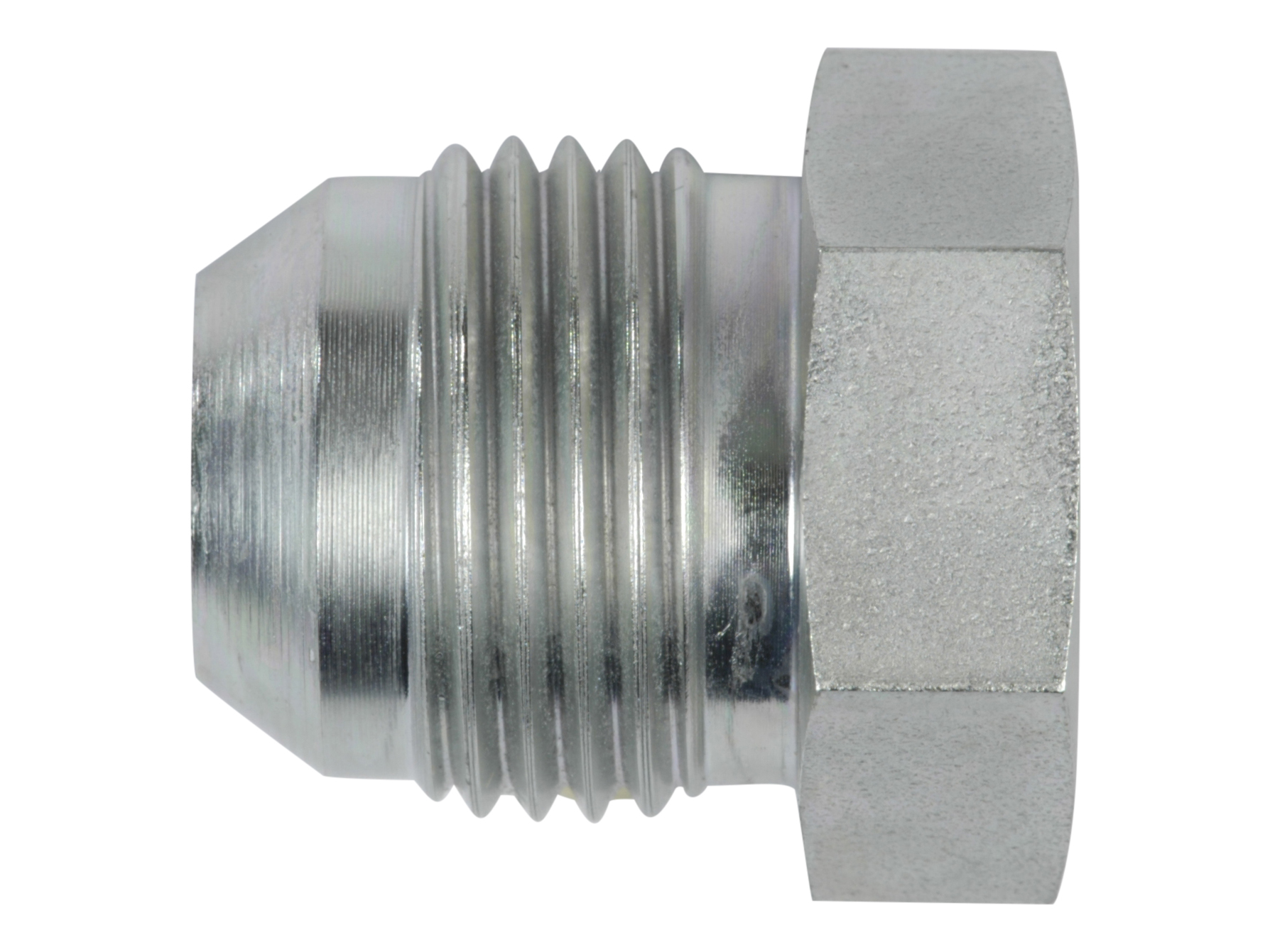

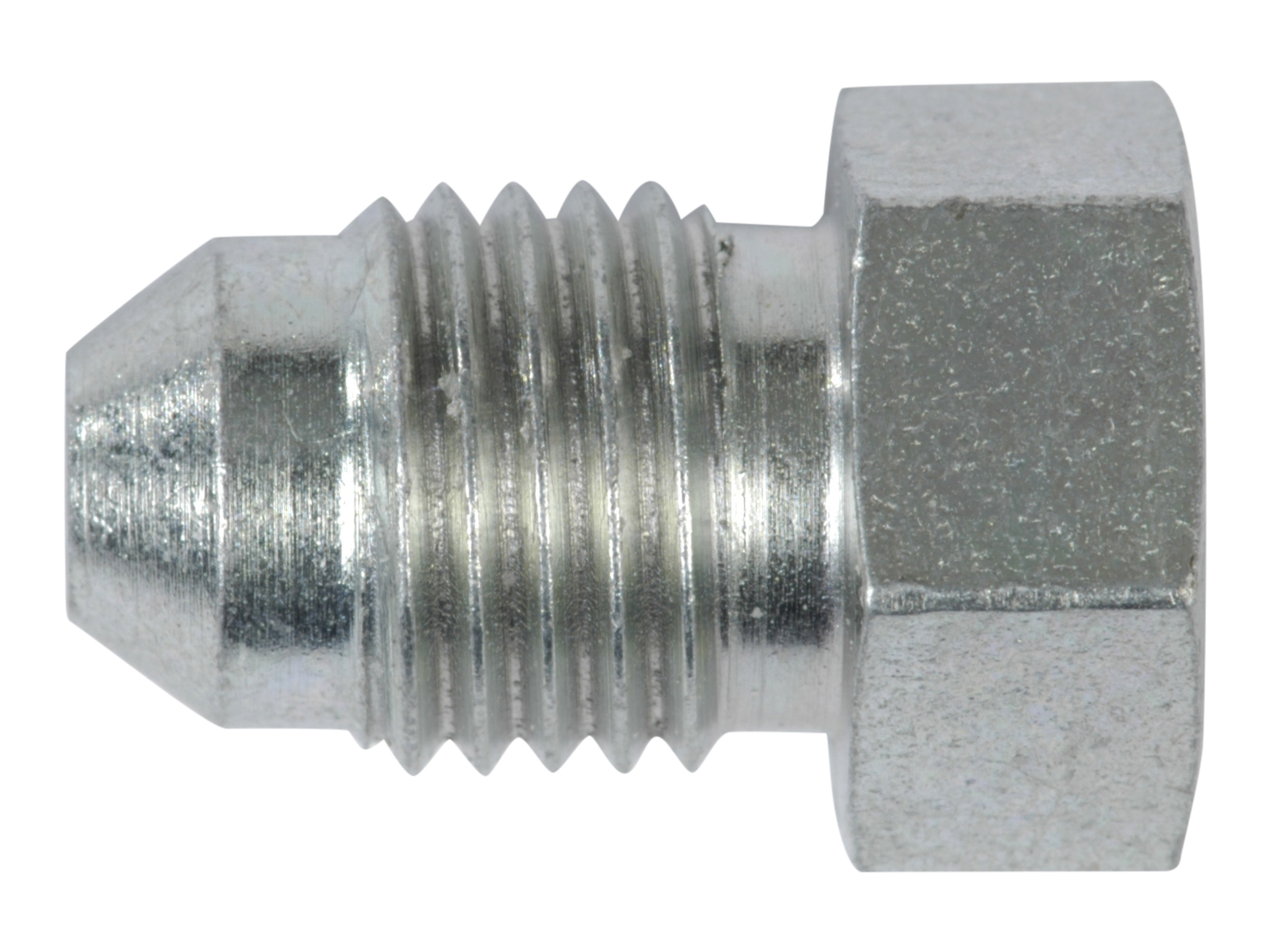

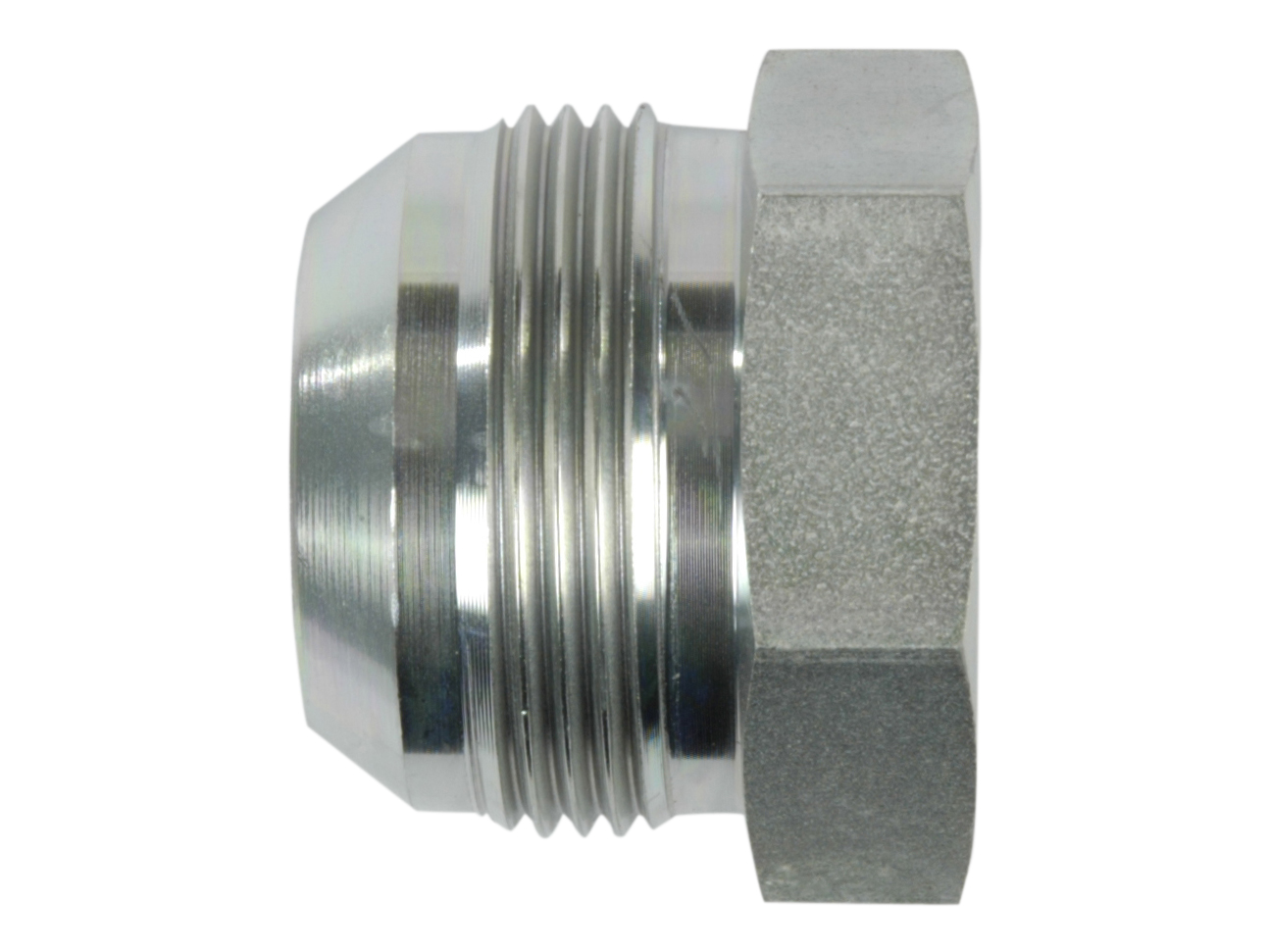

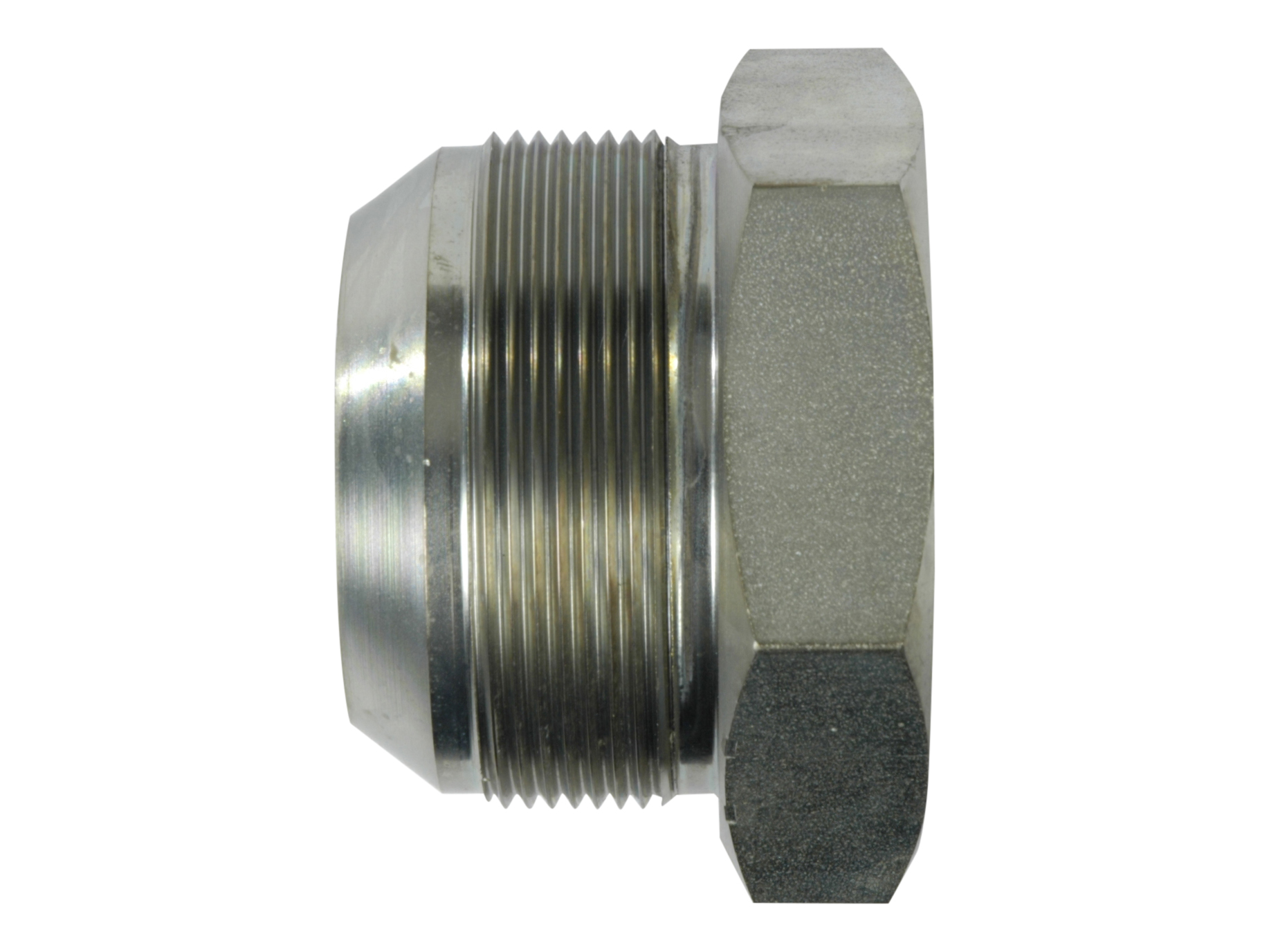

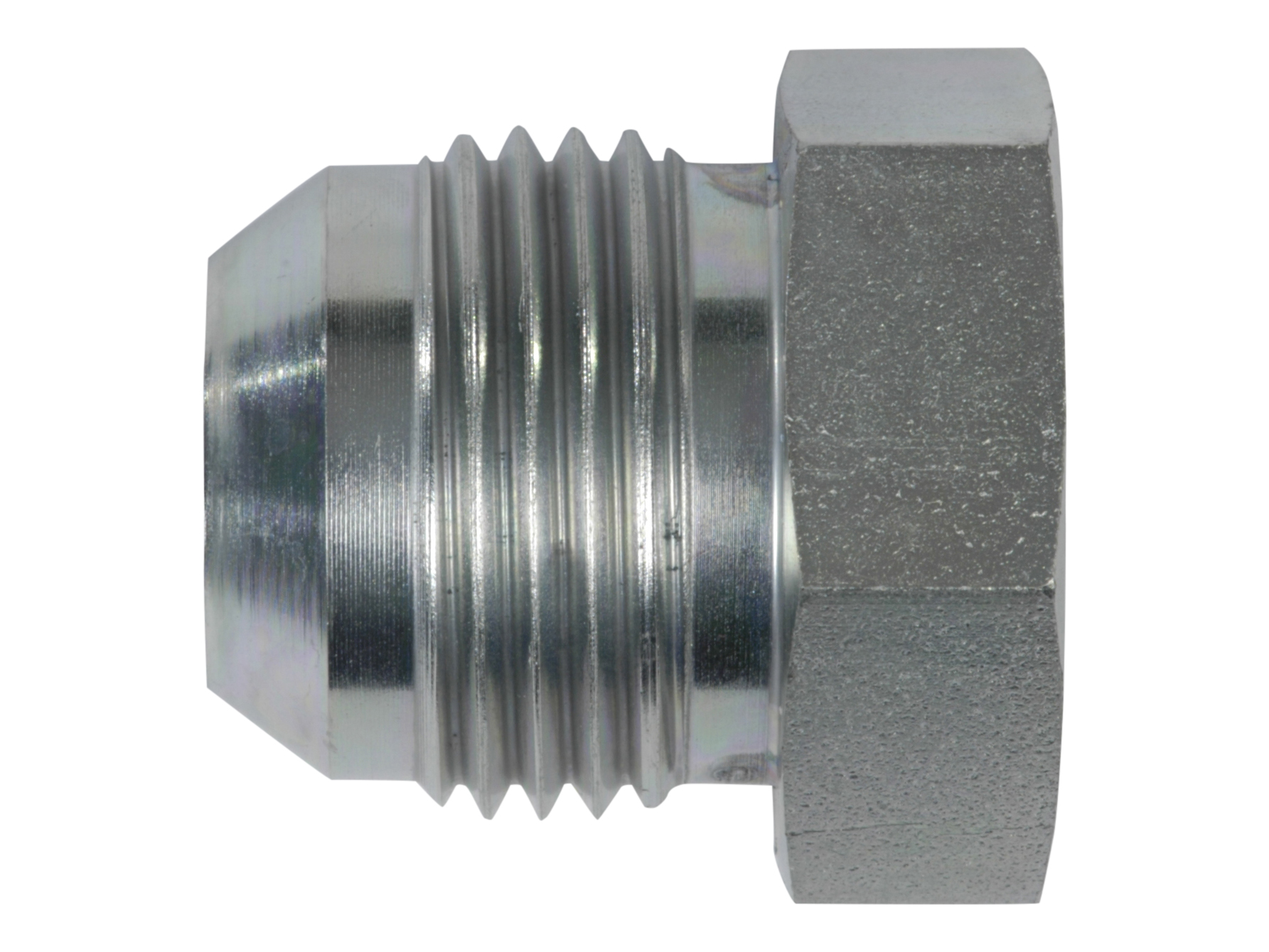

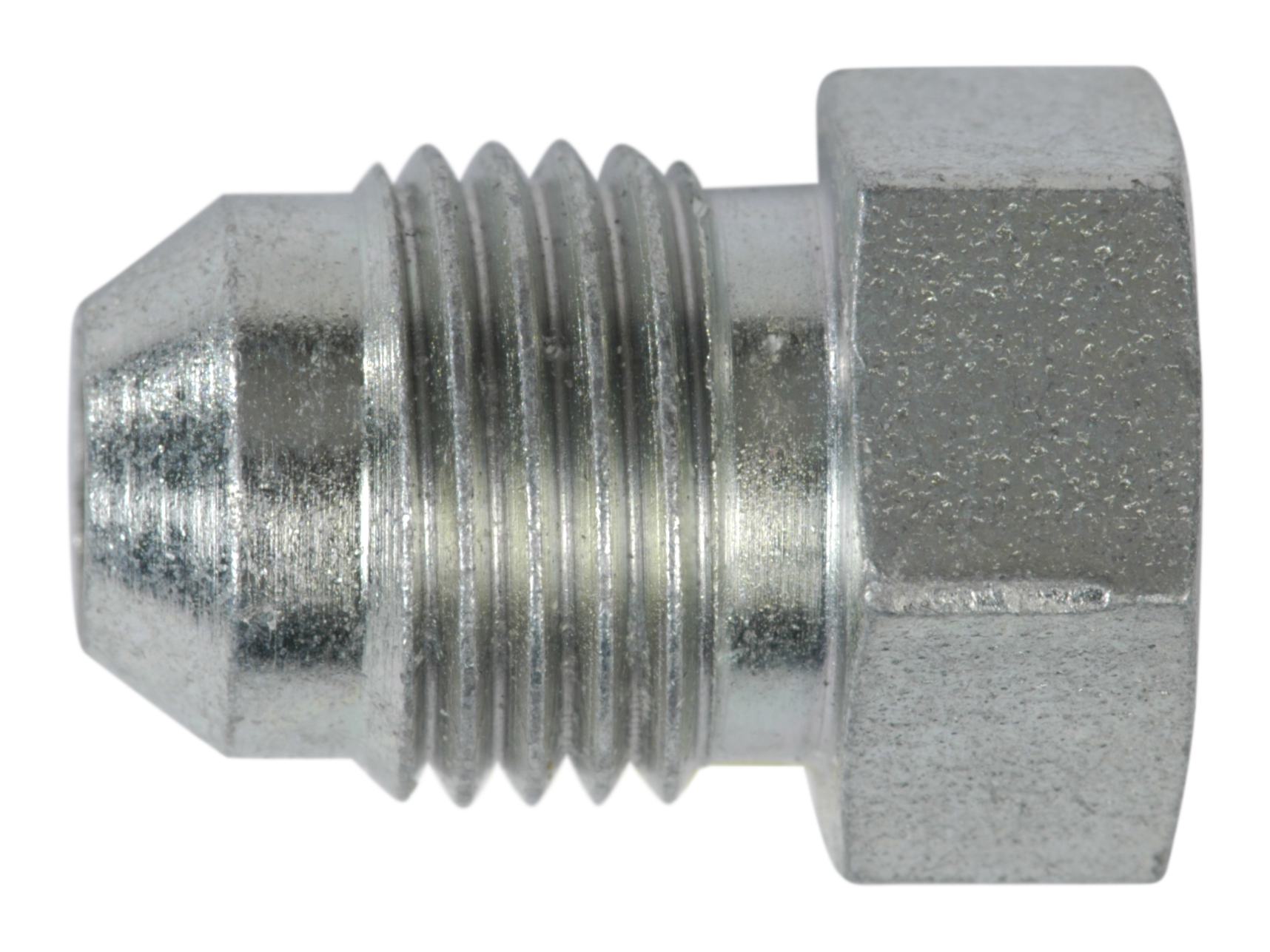

Plug adapter JIC male - JM / JVST

SELECT VARIANT

Partnumber	Description	Diameter pipe	Thread outer	Hexagon
JM-06	S140-06U plug	6 mm	7/16-20 JIC
JM-08	S140-08U plug	8 mm	1/2-20 JIC
JM-10	S140-10U plug	10 mm	9/16-18 JIC	16 mm
JM-12	S140-12U plug	12 mm	3/4-16 JIC
JM-16	S140-16U plug	16 mm	7/8-14 JIC
JM-20	S140-20U plug	20 mm	1.1/16-12 JIC	30 mm
JM-22	Plug	22 mm	1.3/16-12 JIC
JM-25	S140-25U plug	25 mm	1.5/16-12 JIC	35 mm
JM-32	S140-32U plug	32 mm	1.5/8-12 JIC	42 mm
JM-38	S140-38U plug	38 mm	1.7/8-12 JIC	50 mm
JM-50	Plug	50 mm	2.1/2-12 JIC

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Material

Steel

Surface treatment

Electro-galvanized / White chromatized
