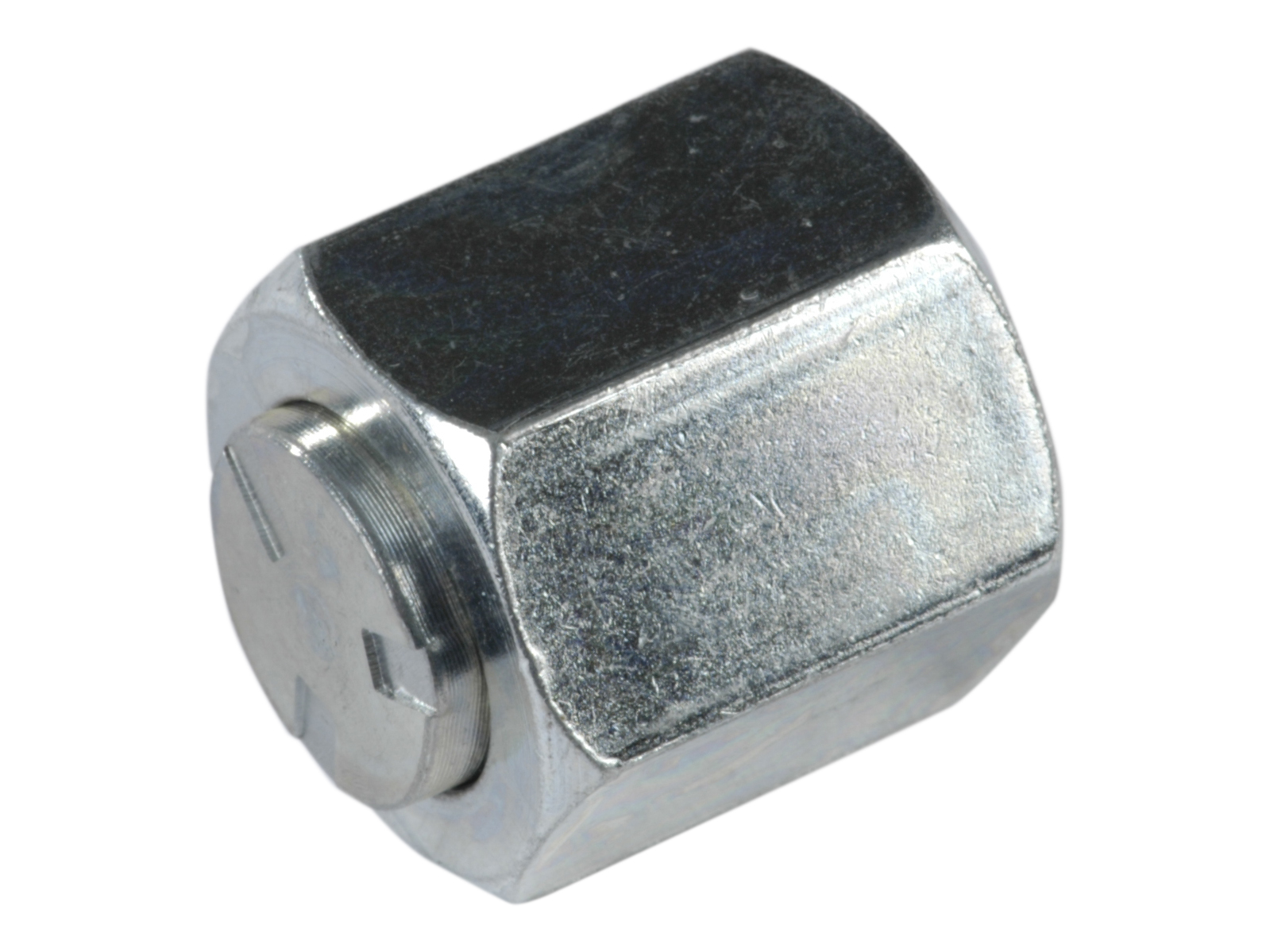

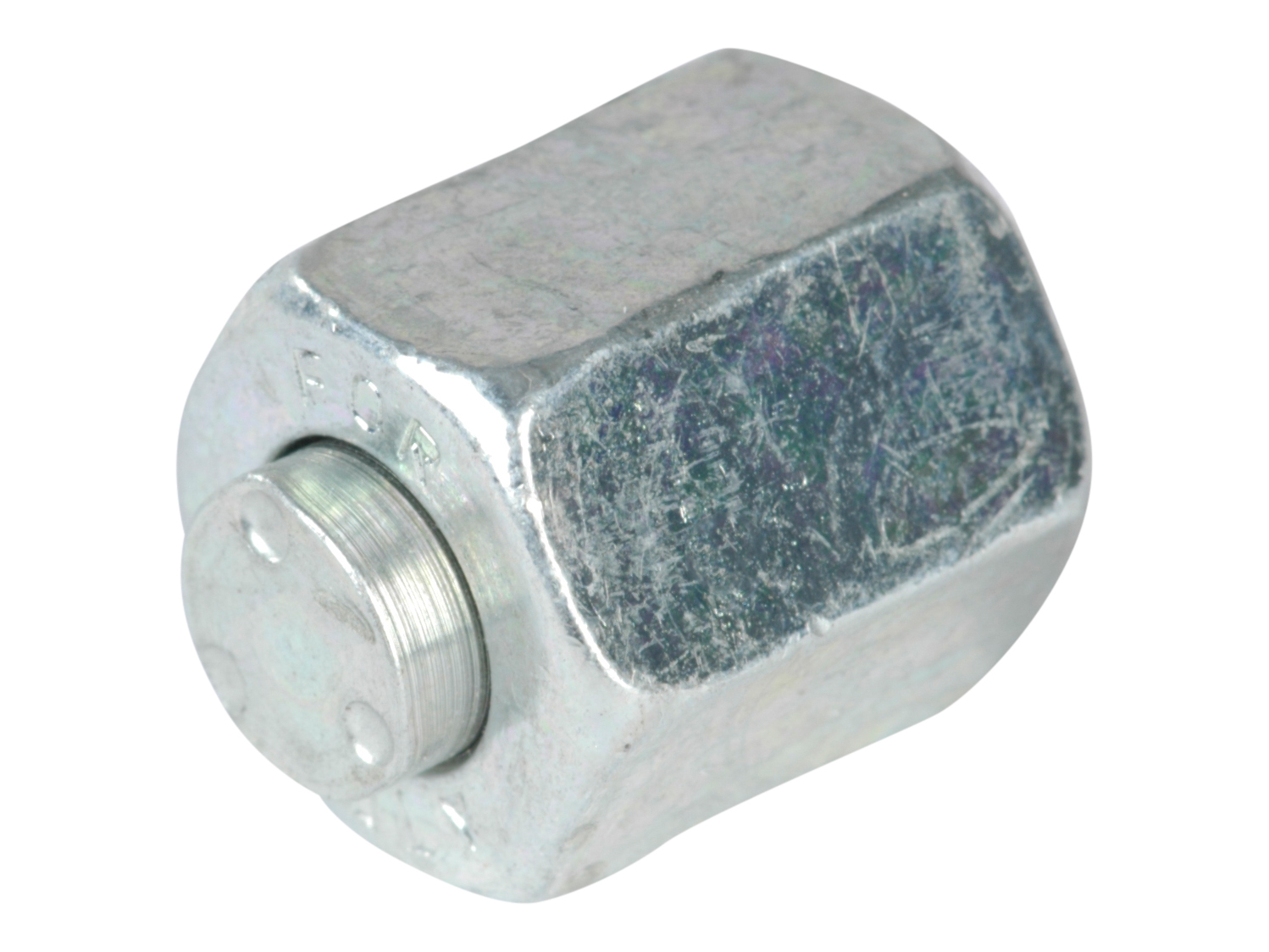

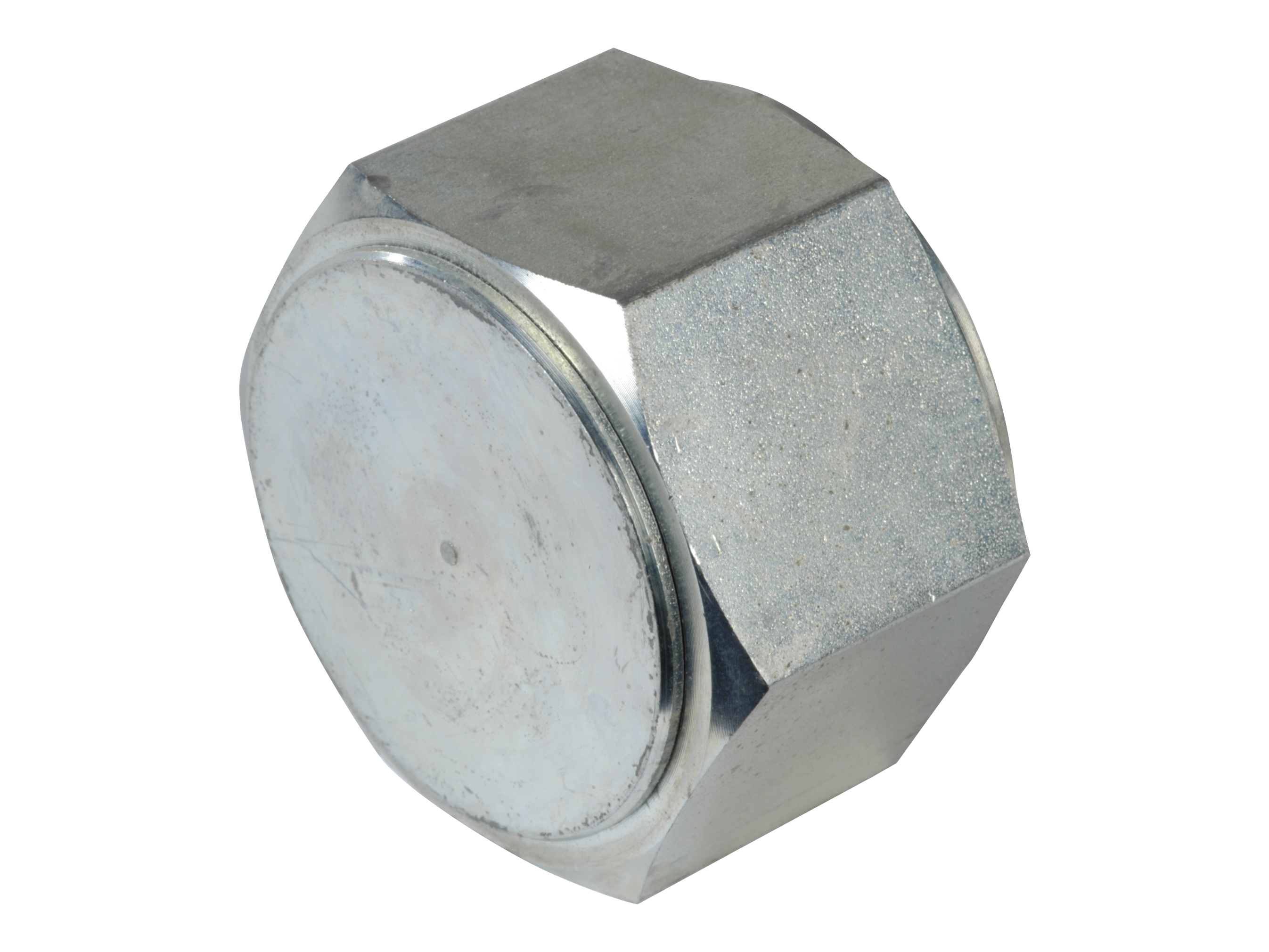

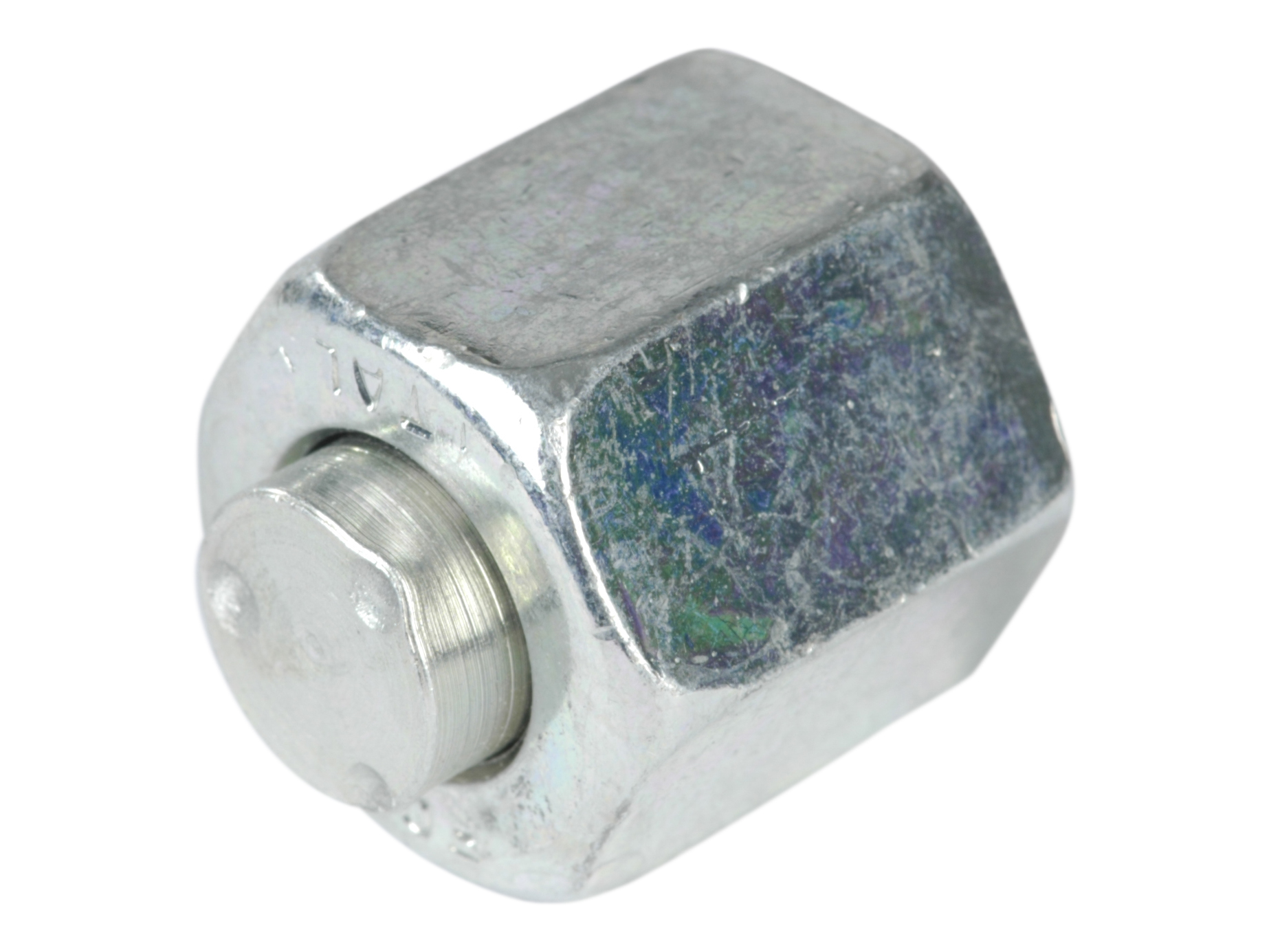

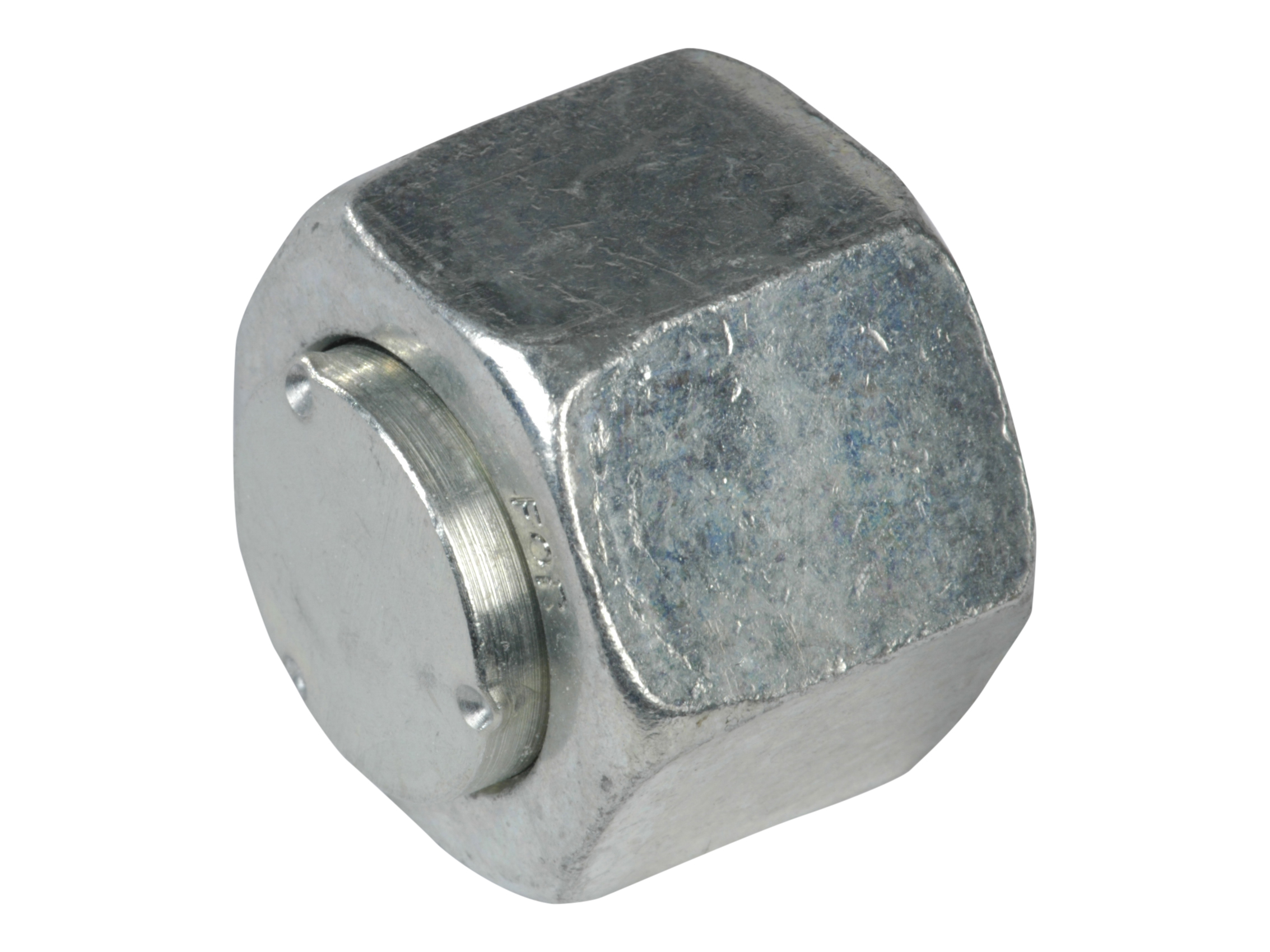

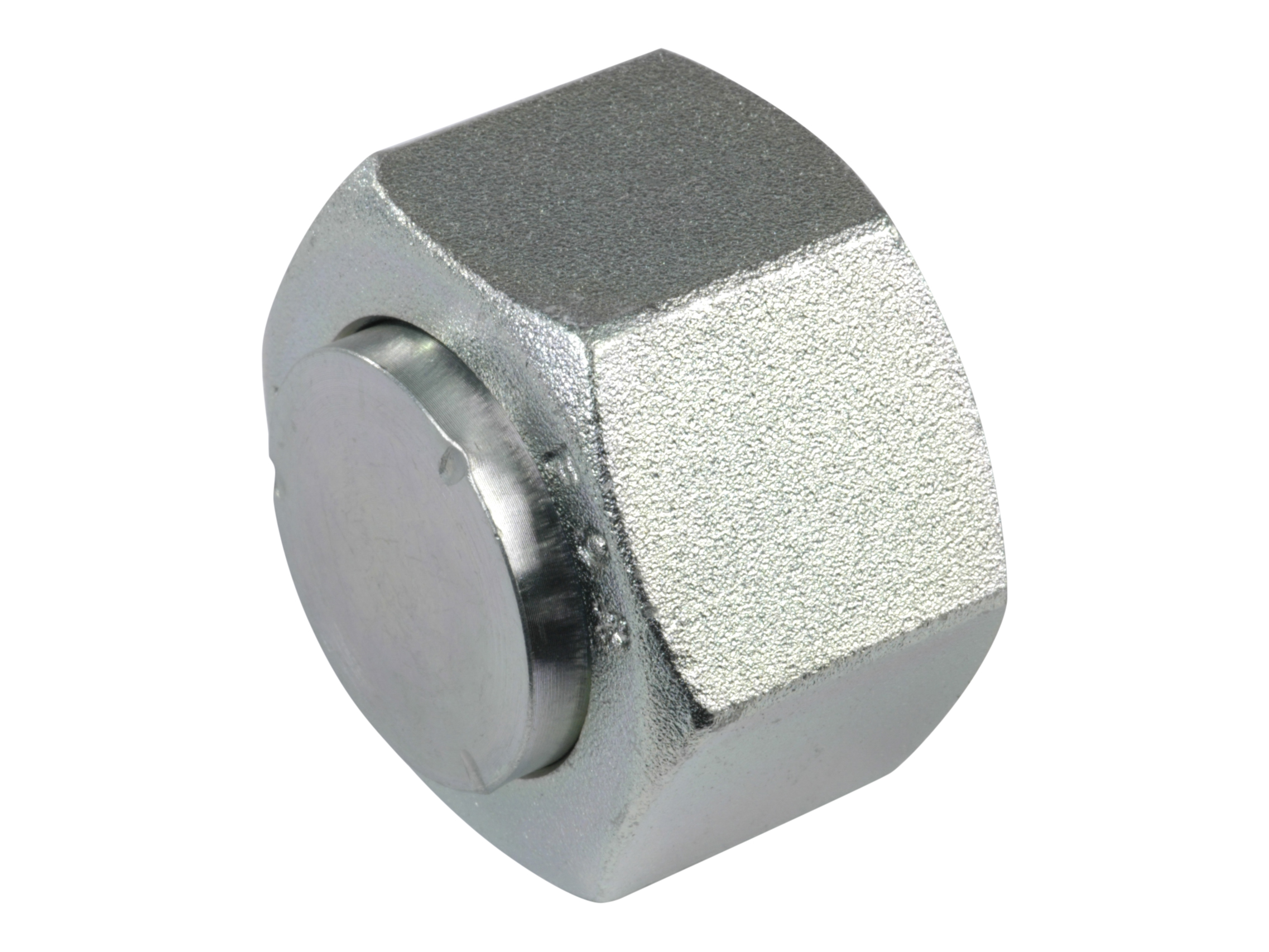

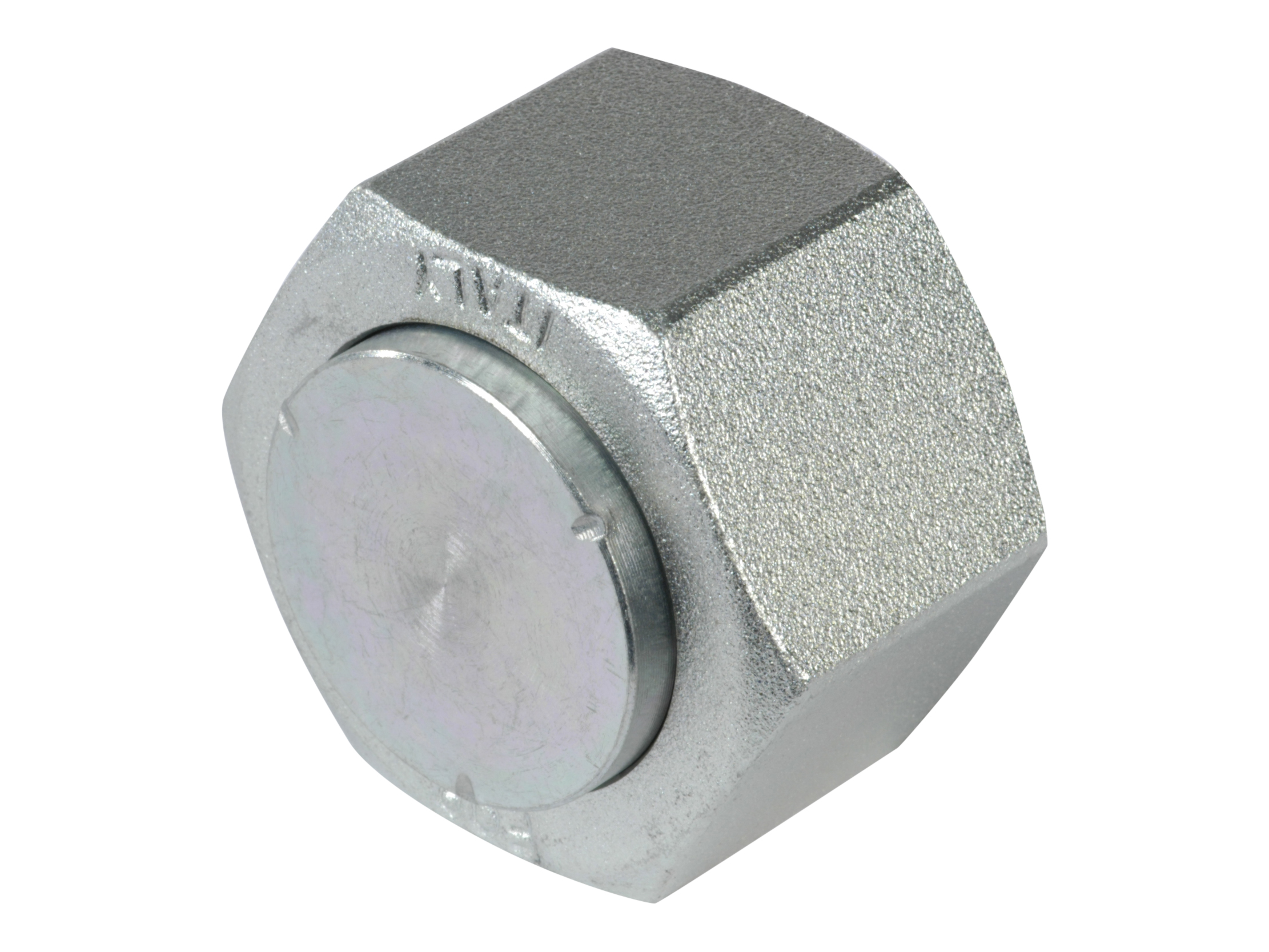

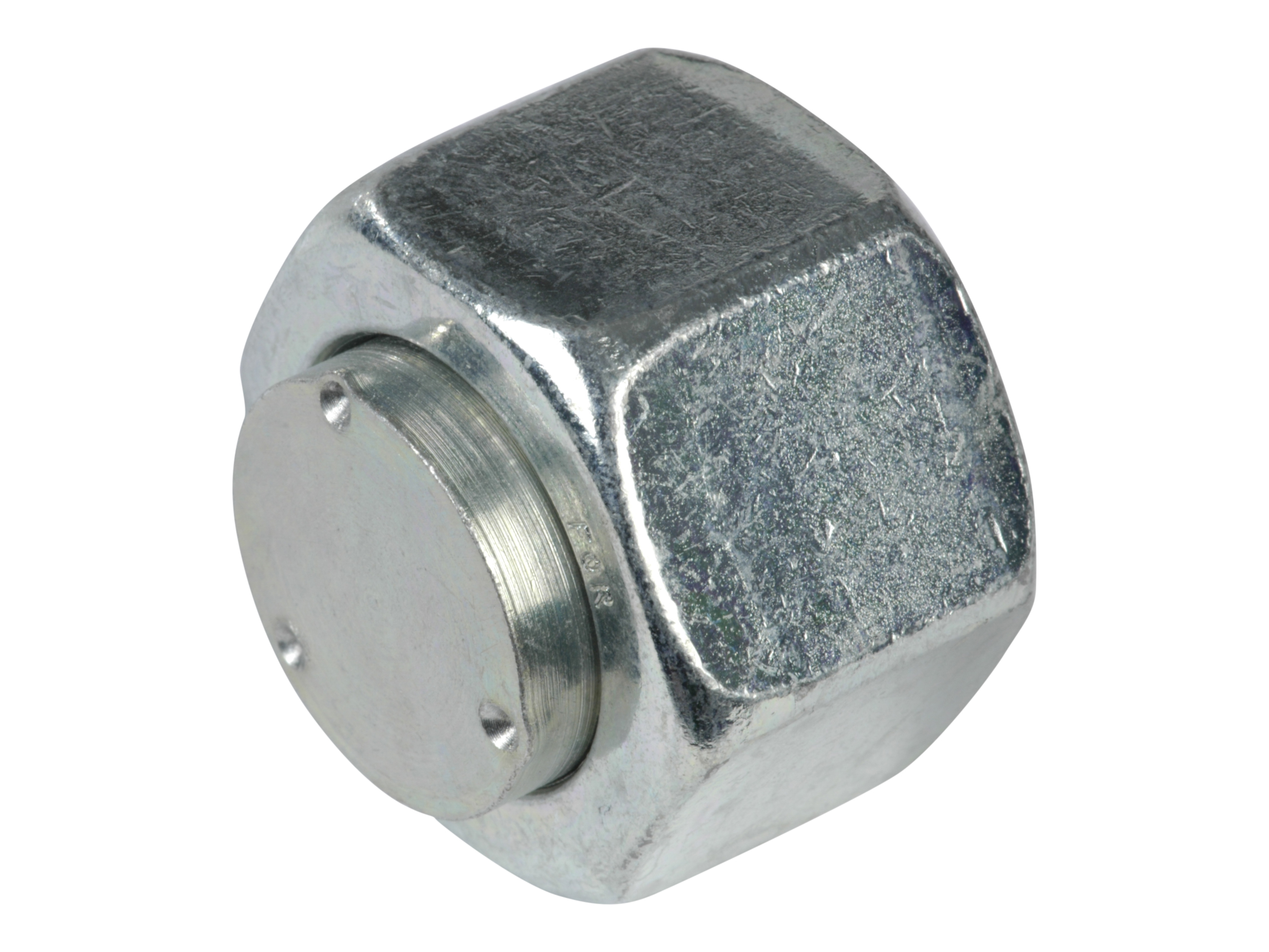

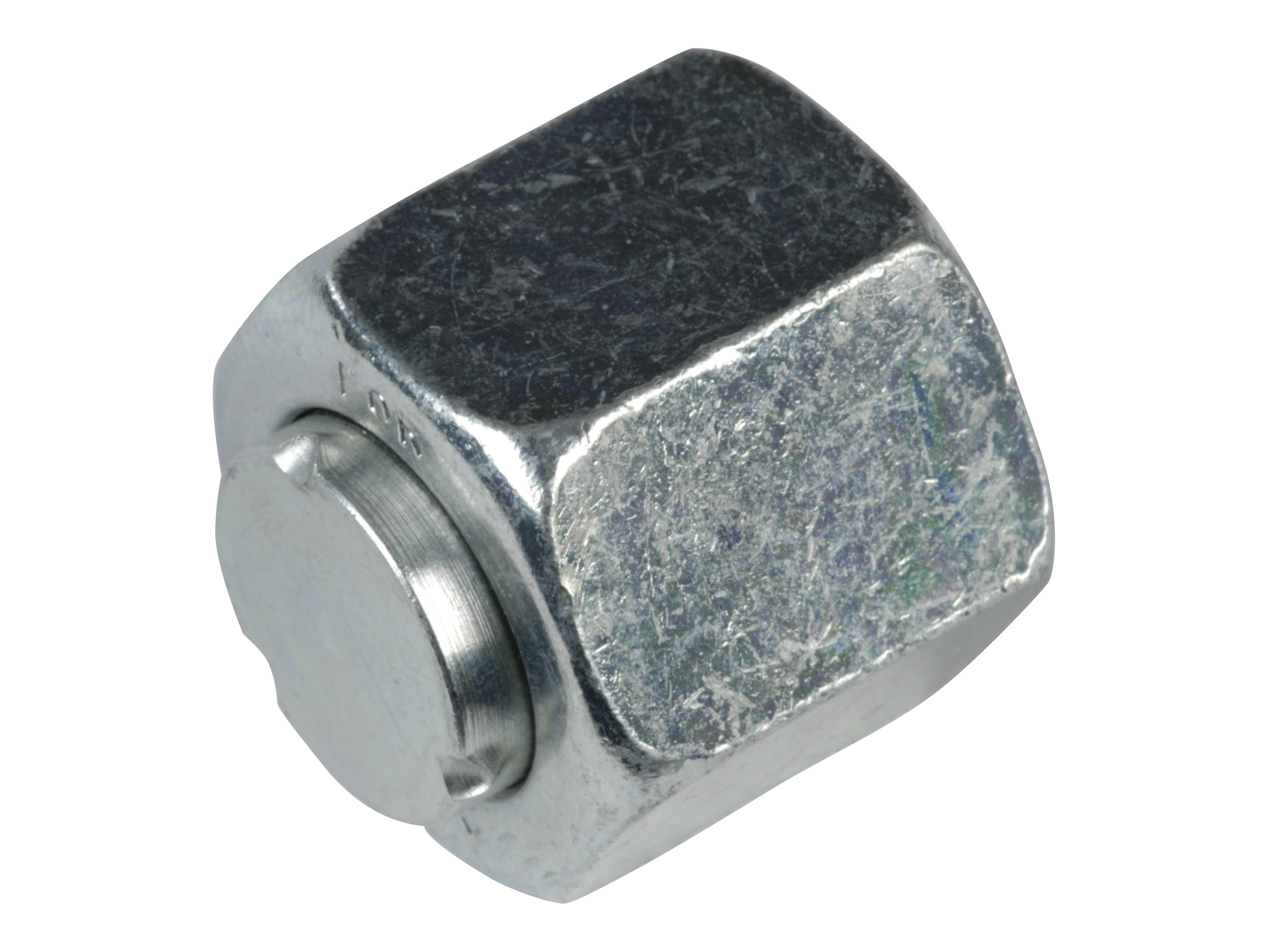

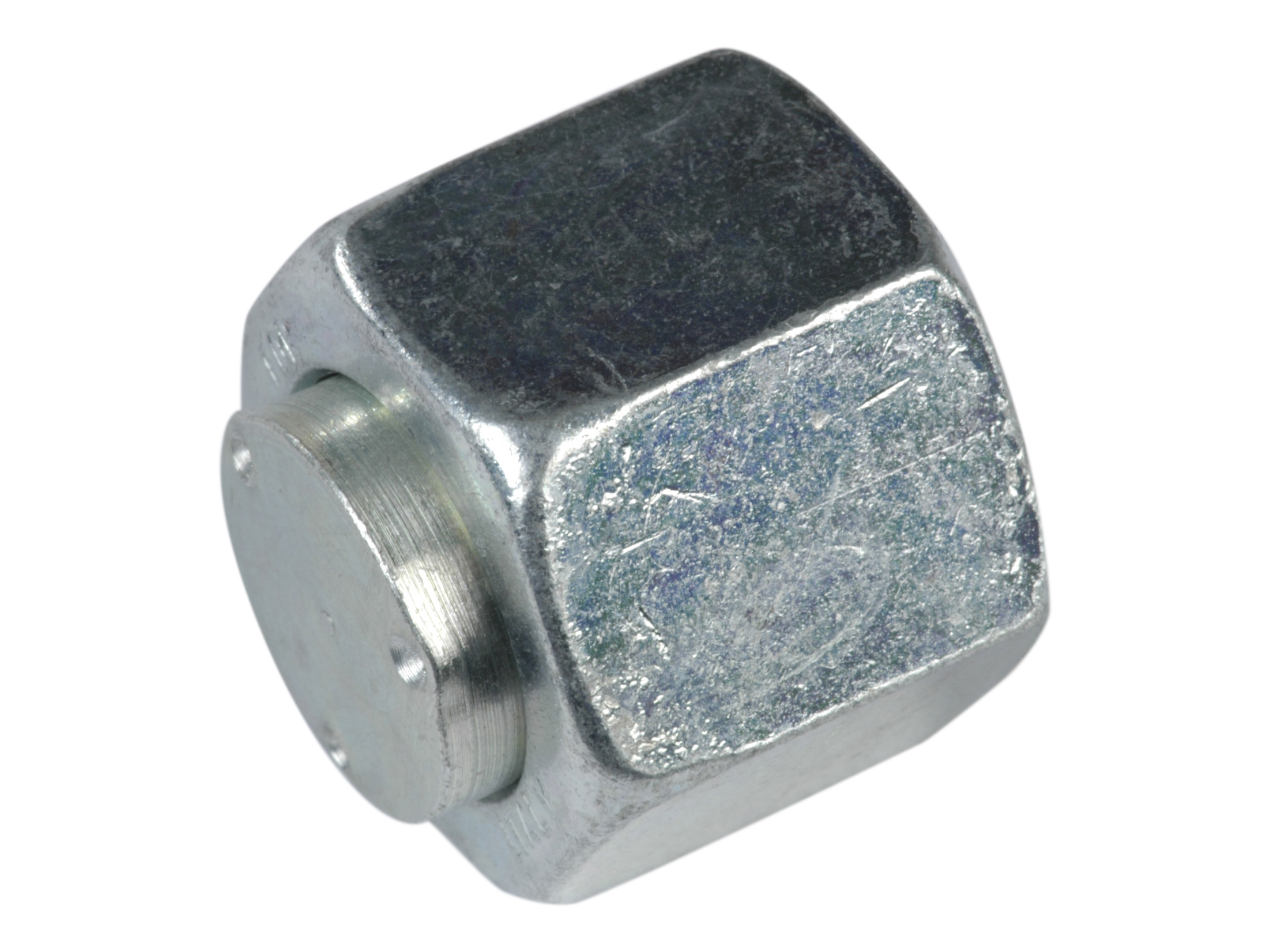

End cap adapter JIC female - JF / JVKA

End cap adapter JIC female - JF / JVKA

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread inner Hexagon
JF-06 S130-06U pipe end 6 mm 7/16-20 JIC 14 mm
JF-08 S130-08U pipe end 8 mm 1/2-20 JIC 17 mm
JF-10 S130-10U pipe end 10 mm 9/16-18 JIC 17 mm
JF-12 S130-12U pipe end 12 mm 3/4-16 JIC 22 mm
JF-16 S130-16U pipe end 16 mm 7/8-14 JIC 27 mm
JF-20 S130-20U pipe end 20 mm 1.1/16-12 JIC 32 mm
JF-22 Pipe end 22 mm 1.3/16-12 JIC
JF-25 S130-25U pipe end 25 mm 1.5/16-12 JIC 41 mm
JF-32 S130-30U pipe end 32 mm 1.5/8-12 JIC 50 mm
JF-38 S130-38U pipe end 38 mm 1.7/8-12 JIC 57 mm
JF-50 Pipe end 50 mm 2.1/2-12 JIC
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
