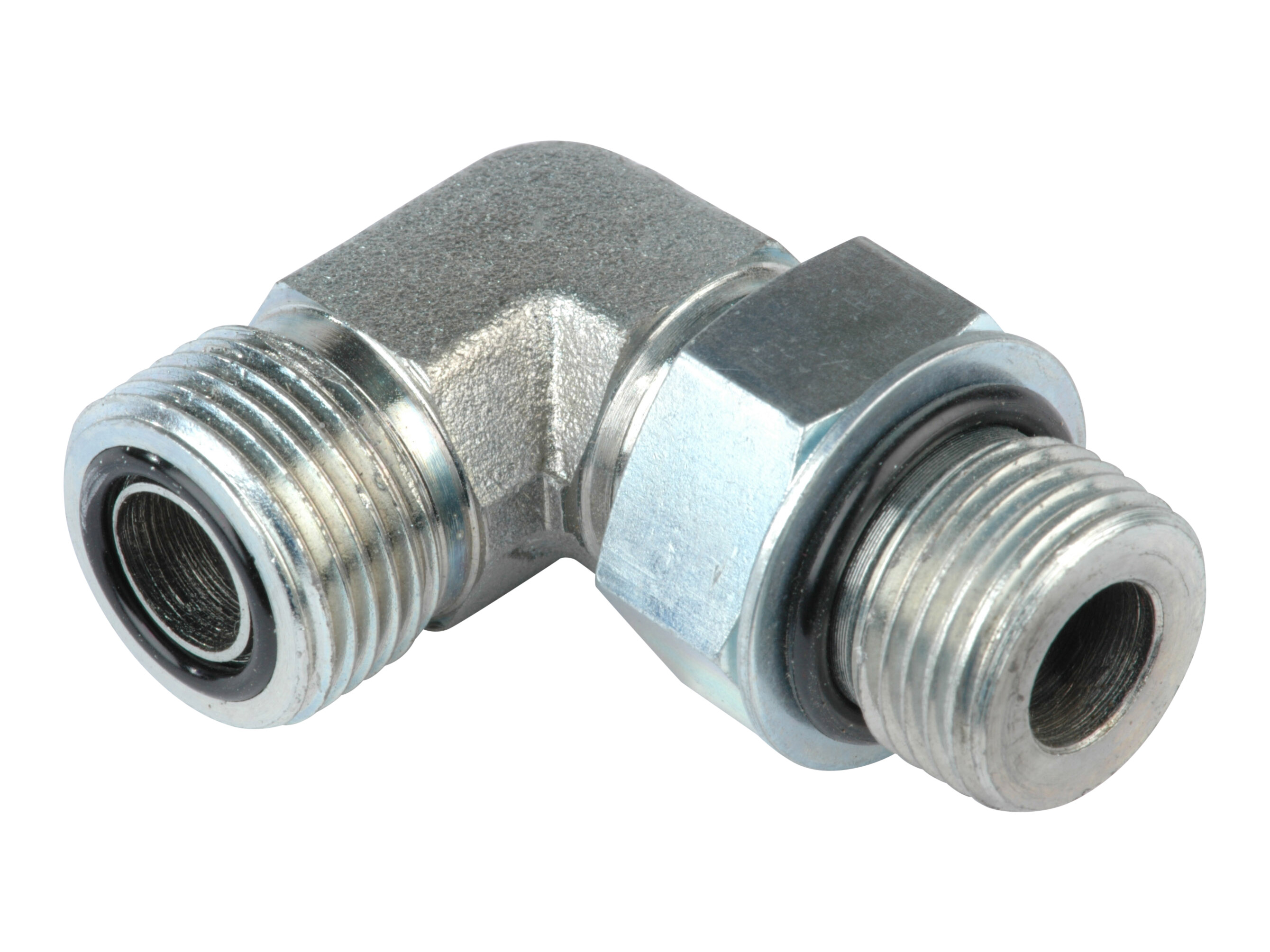

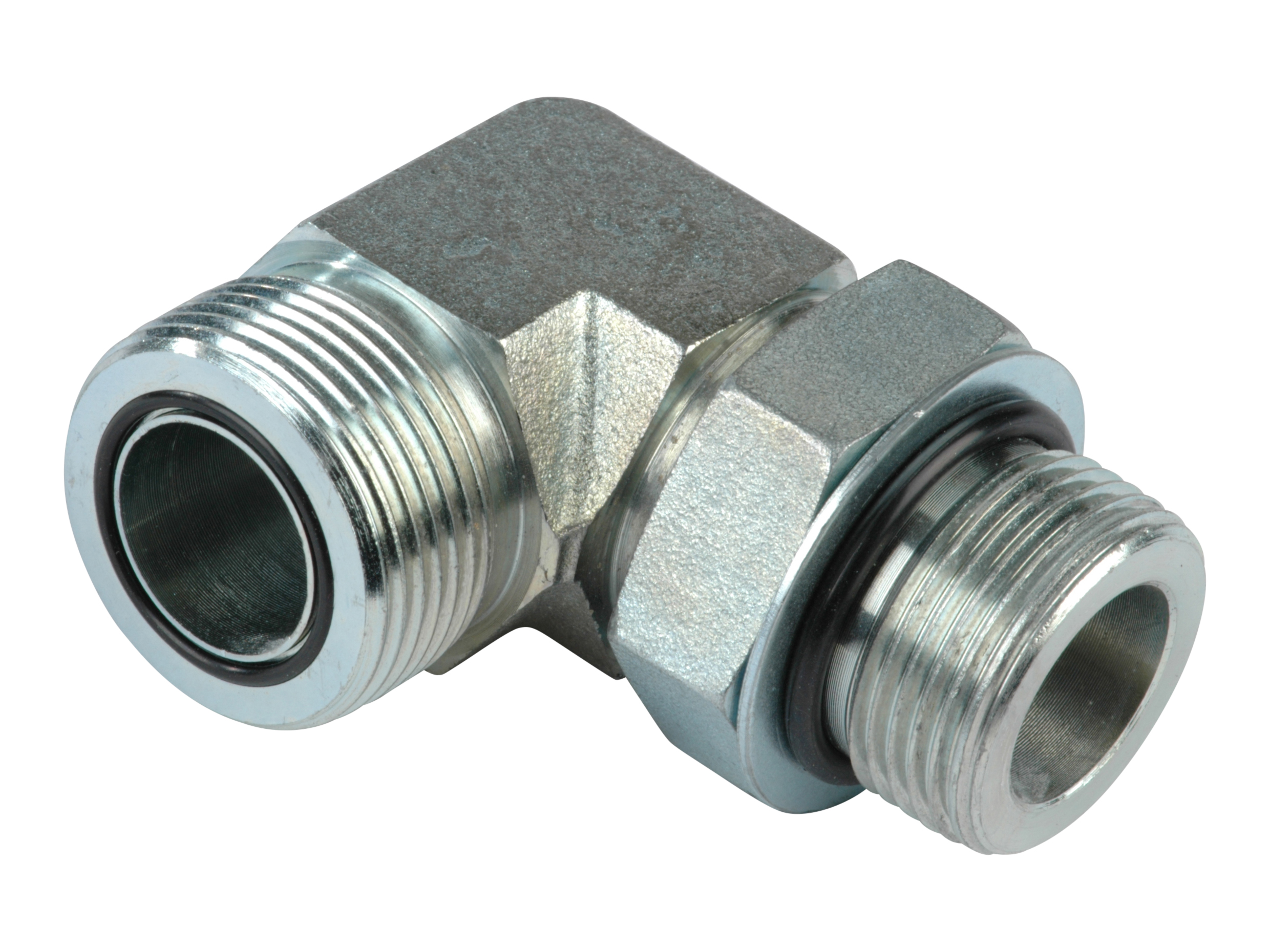

Elbow adapter 90° ORFS male x UNF male - 105FR / OFWEEU

Elbow adapter 90° ORFS male x UNF male - 105FR / OFWEEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Thread outer Pressure max. Thread outer Brand Name
105FR0404 Elbow 9/16" ORFS x 7/16" UNF adjustable 9/16-18 ORFS 420 bar 7/16-20 UNF FOR
105FR0606 Elbow 11/16" ORFS x 9/16" UNF adjustable 11/16-16 ORFS 420 bar 9/16-18 UNF FOR
105FR0808 Elbow 13/16" ORFS x 3/4" UNF adjustable 13/16-16 ORFS 420 bar 3/4-16 UNF FOR
105FR1010 Elbow 1" ORFS x 7/8" UNF adjustable 1-14 ORFS 420 bar 7/8-14 UNF FOR
105FR1212 Elbow 1.3/16" ORFS x 1.1/16" UNF adjustable 1.3/16-12 ORFS 420 bar 1.1/16-12 UNF FOR
105FR1616 Elbow 1.7/16" ORFS x 1.5/16" UNF adjustable 1.7/16-12 ORFS 350 bar 1.5/16-12 UNF FOR
105FR2020 Elbow 1.11/16" ORFS x 1.5/8" UNF adjustable 1.1/16-12 ORFS 280 bar 1.5/8-12 UNF FOR
105FR2424 Elbow 2" ORFS x 1.7/8" UNF adjustable 2-12 ORFS 250 bar 1.7/8-12 UNF FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100
Temperature min.
-35
