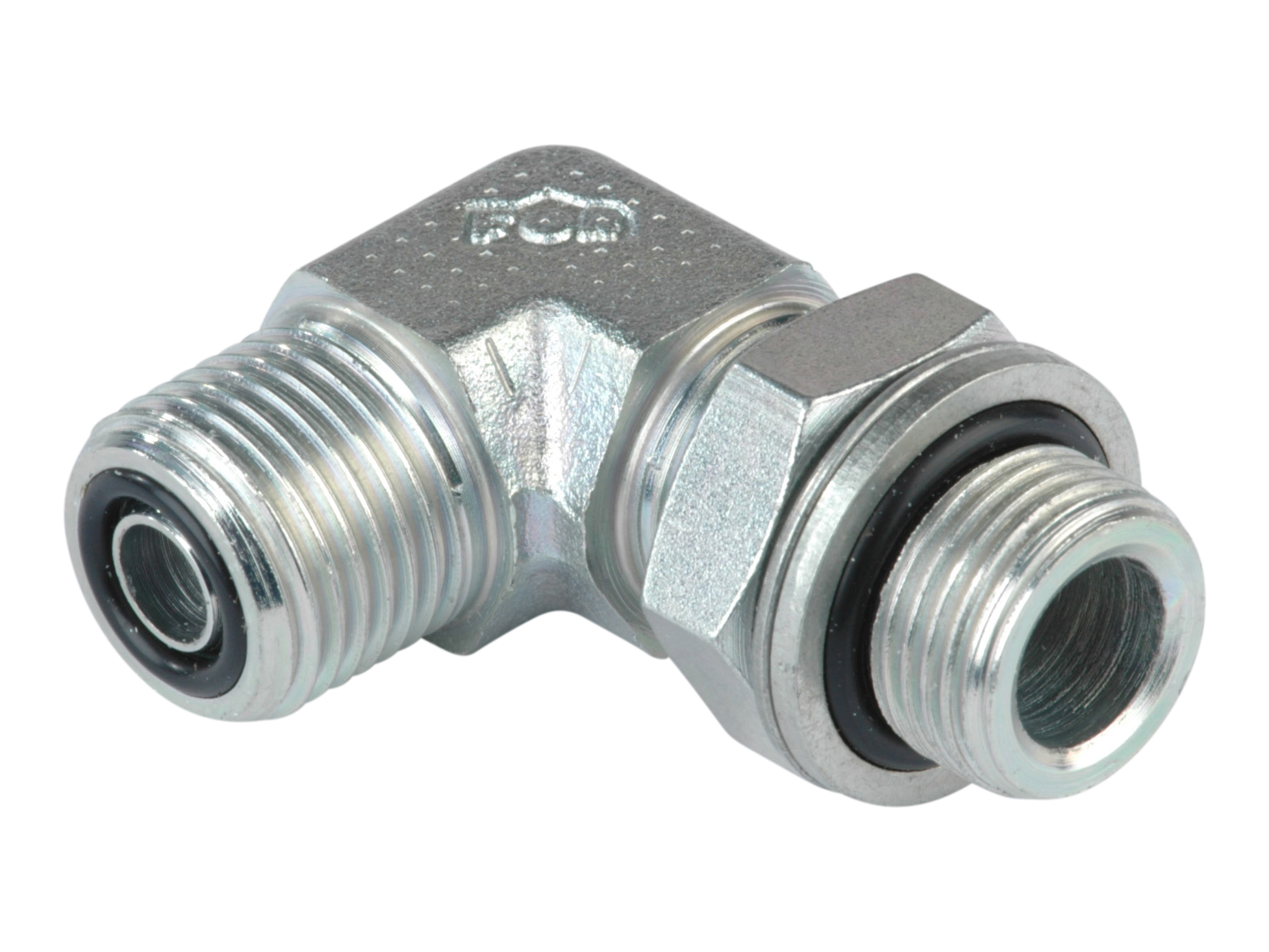

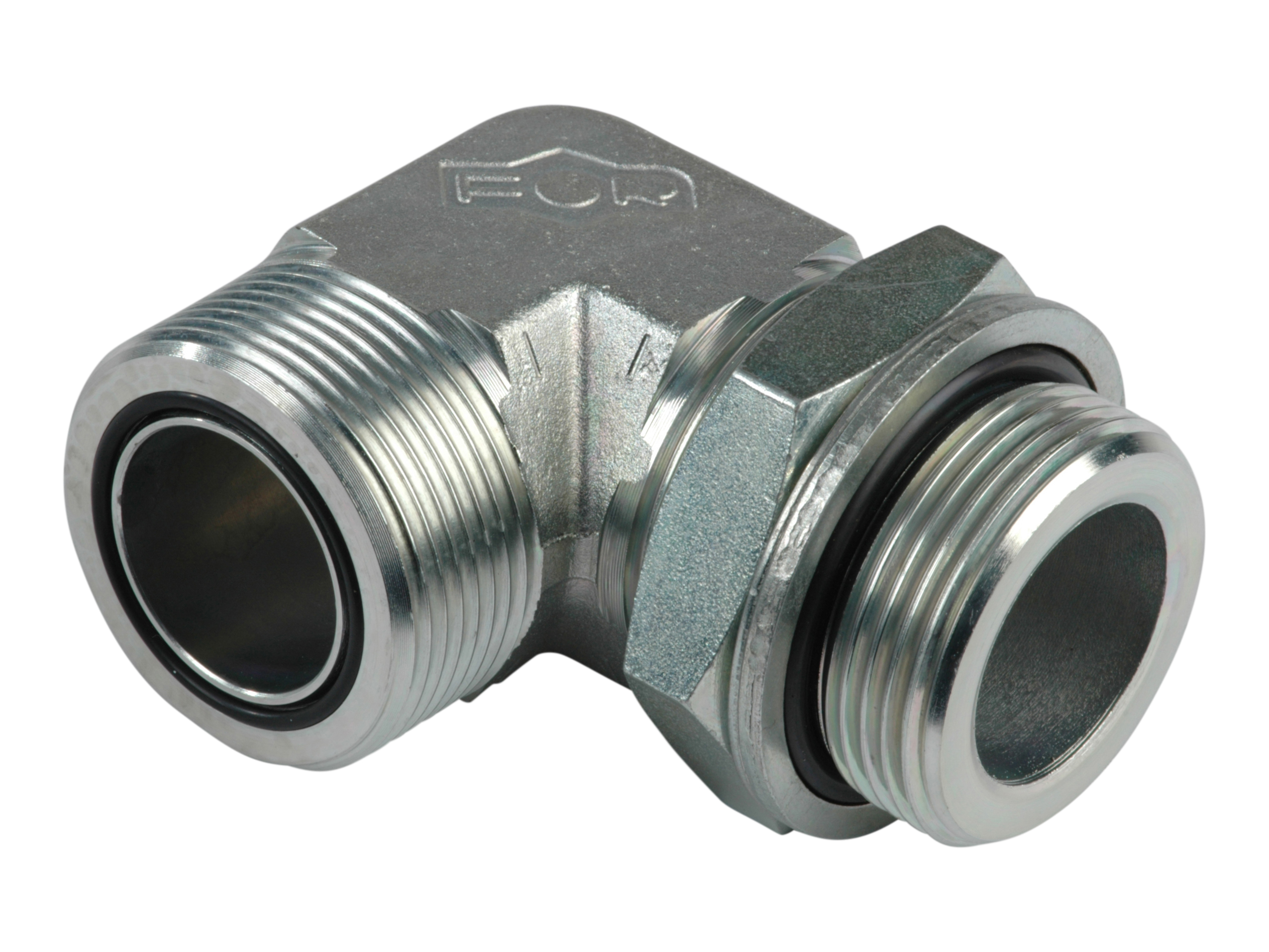

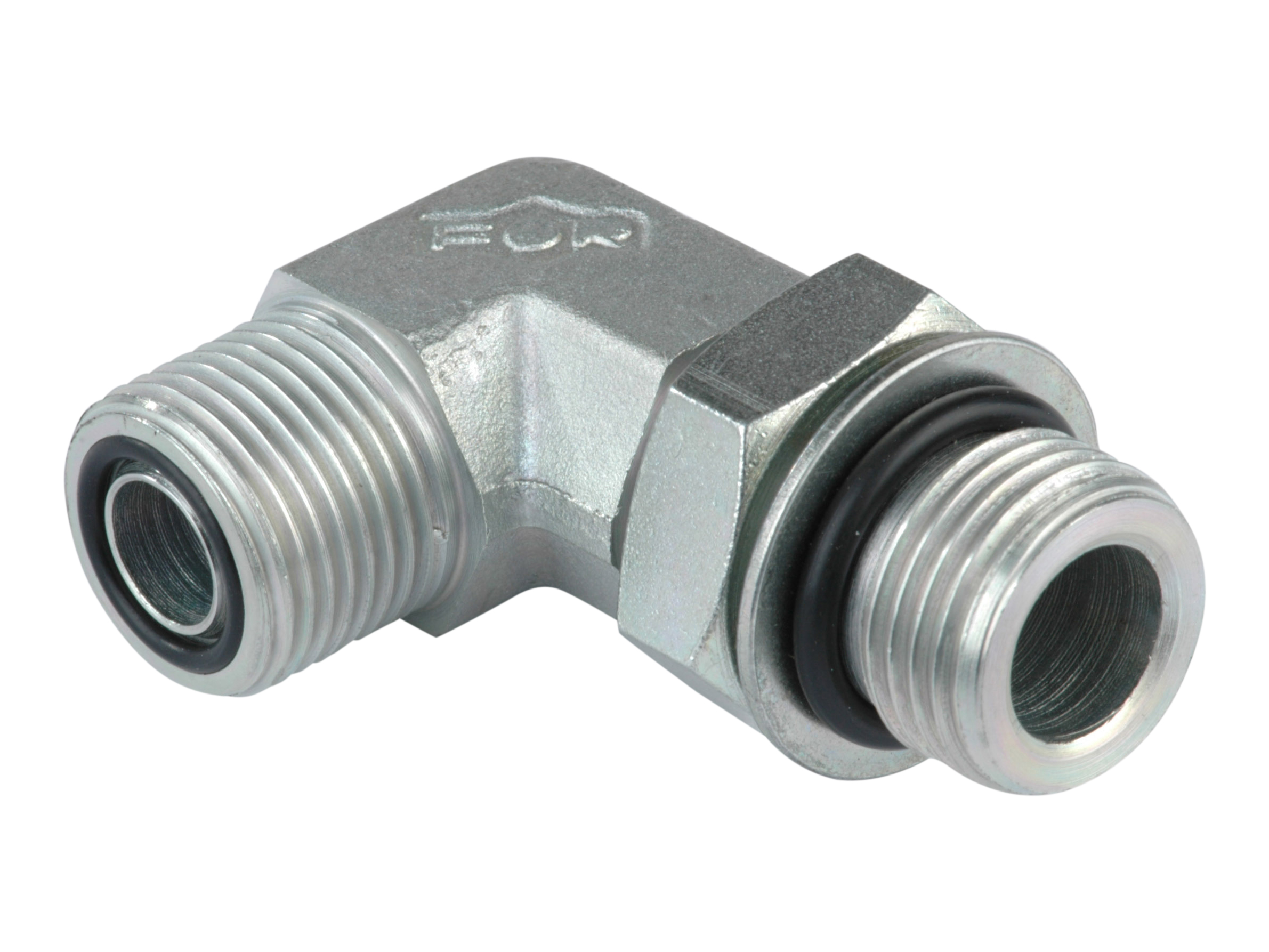

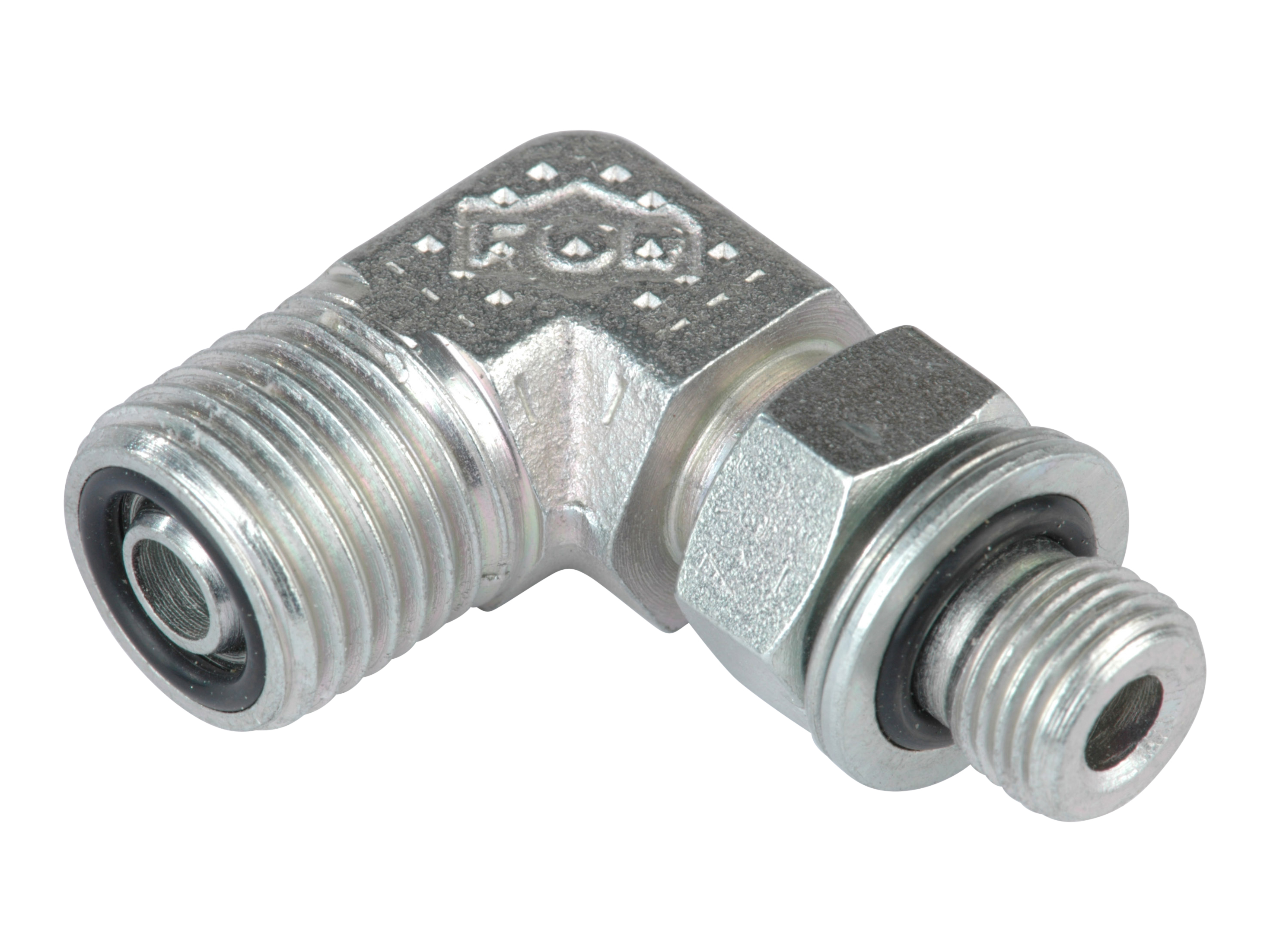

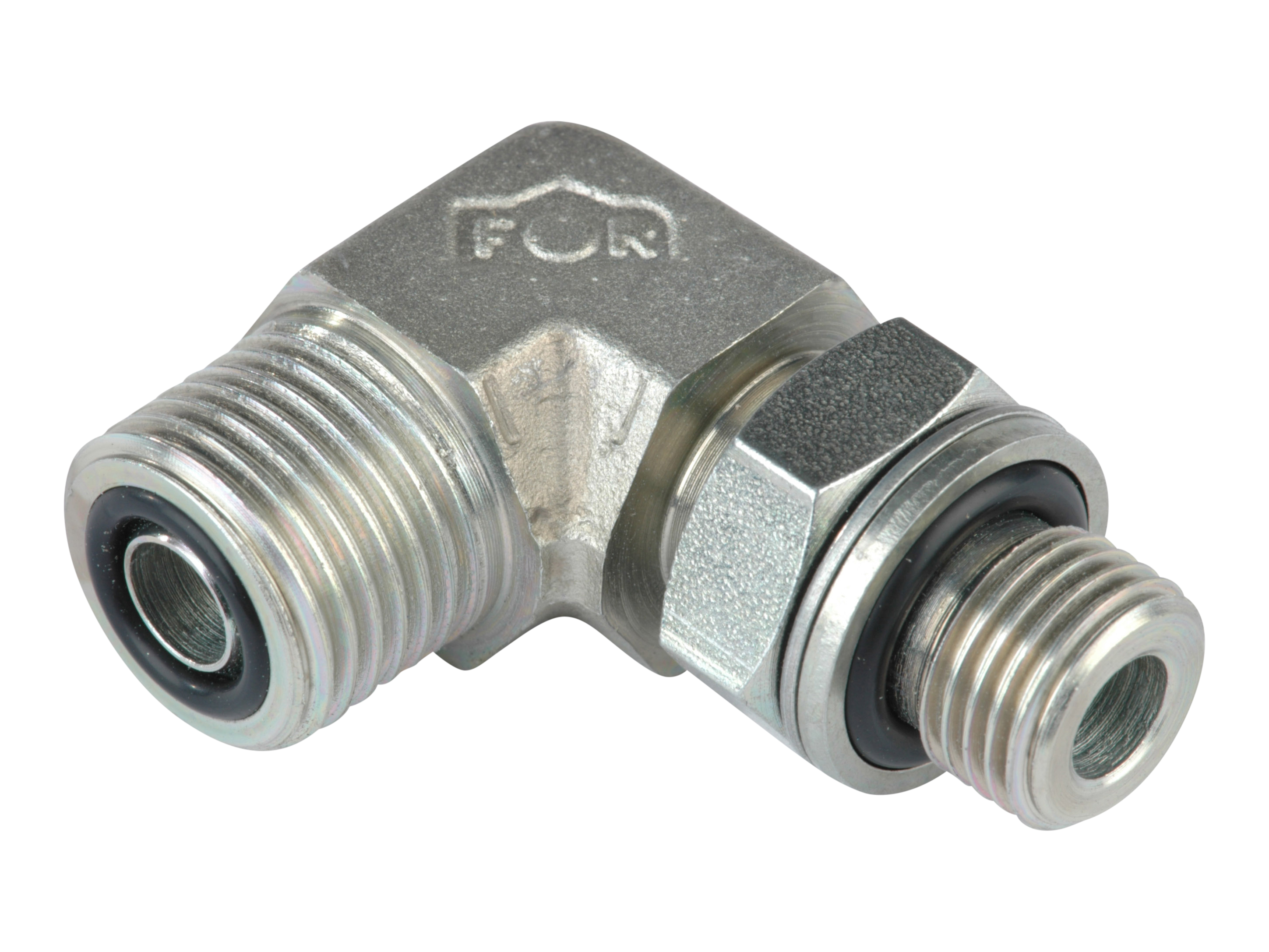

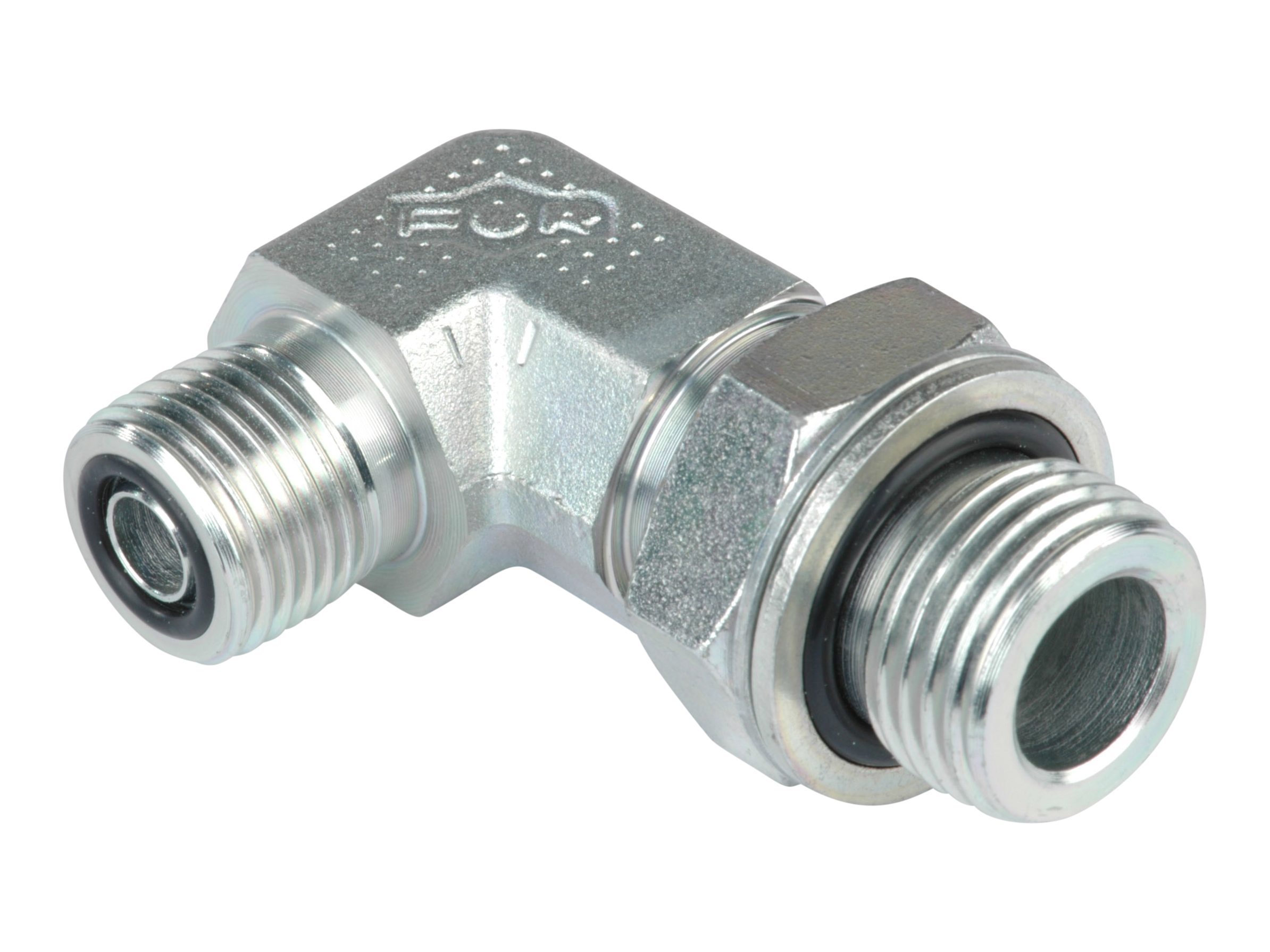

Elbow adapter 90° ORFS male x BSP male - 106BP / OFWEE

SELECT VARIANT
Partnumber Description Thread outer Thread outer Pressure max. Brand Name
106BP0402 Elbow 9/16 ORFS x 1/8 BSP Adjustable 9/16-18 ORFS G 1/8 BSP 350 bar FOR
106BP0404 Elbow 9/16 ORFS x 1/4 BSP Adjustable 9/16-18 ORFS G 1/4 BSP 400 bar FOR
106BP0406 Elbow 9/16 ORFS x 3/8 BSP Adjustable 9/16-18 ORFS G 3/8 BSP 400 bar FOR
106BP0604 Elbow 11/16 ORFS x 1/4 BSP Adjustable 11/16-16 ORFS G 1/4 BSP 400 bar FOR
106BP0606 Elbow 11/16 ORFS x 3/8 BSP Adjustable 11/16-16 ORFS G 3/8 BSP 400 bar FOR
106BP0608 Elbow 11/16 ORFS x 1/2 BSP Adjustable 11/16-16 ORFS G 1/2 BSP 350 bar FOR
106BP0804 Elbow 13/16 ORFS x 1/4 BSP Adjustable 13/16-16 ORFS G 1/4 BSP 400 bar FOR
106BP0806 Elbow 13/16 ORFS x 3/8 BSP Adjustable 13/16-16 ORFS G 3/8 BSP 350 bar FOR
106BP0808 Elbow 13/16 ORFS x 1/2 BSP Adjustable 13/16-16 ORFS G 1/2 BSP 350 bar FOR
106BP1006 Elbow 1 ORFS x 3/8 BSP Adjustable 1-14 ORFS G 3/8 BSP 400 bar FOR
106BP1008 Elbow 1 ORFS x 1/2 BSP Adjustable 1-14 ORFS G 1/2 BSP 350 bar FOR
106BP1012 Elbow 1 ORFS x 3/4 BSP Adjustable 1-14 ORFS G 3/4 BSP 350 bar FOR
106BP1212 Elbow 1.3/16 ORFS x 3/4 BSP Adjustable 1.3/16-12 ORFS G 3/4 BSP 300 bar FOR
106BP1216 Elbow 1.3/16 ORFS x 1 BSP Adjustable 1.3/16-12 ORFS G 1 BSP 300 bar FOR
106BP1612 Elbow 1.7/16 ORFS x 3/4 BSP Adjustable 1.7/16-12 ORFS G 3/4 BSP 350 bar FOR
106BP1616 Elbow 1.7/16 ORFS x 1 BSP Adjustable 1.7/16-12 ORFS G 1 BSP 300 bar FOR
106BP1620 Elbow 1.7/16 ORFS x11/4 BSP Adjustable 1.7/16-12 ORFS G 1.1/4 BSP 250 bar FOR
106BP2020 Elbow 1.11/16 ORFS x 1.1/4BSP Adjustable 1.11/16-12 ORFS G 1.1/4 BSP 250 bar FOR
106BP2424 Elbow 2 ORFS x 1.1/2BSP Adjustable 2-12 ORFS G 1.1/2 BSP 250 bar FOR
Angle
90

Brand Name
FOR

Corrosion resistance
1400 hours salt spray DIN EN ISO 9227

Material
Steel

Sealing material
NBR

Surface treatment
Electro-galvanized / White chromatized

Temperature max.
+100

Temperature min.
-35
