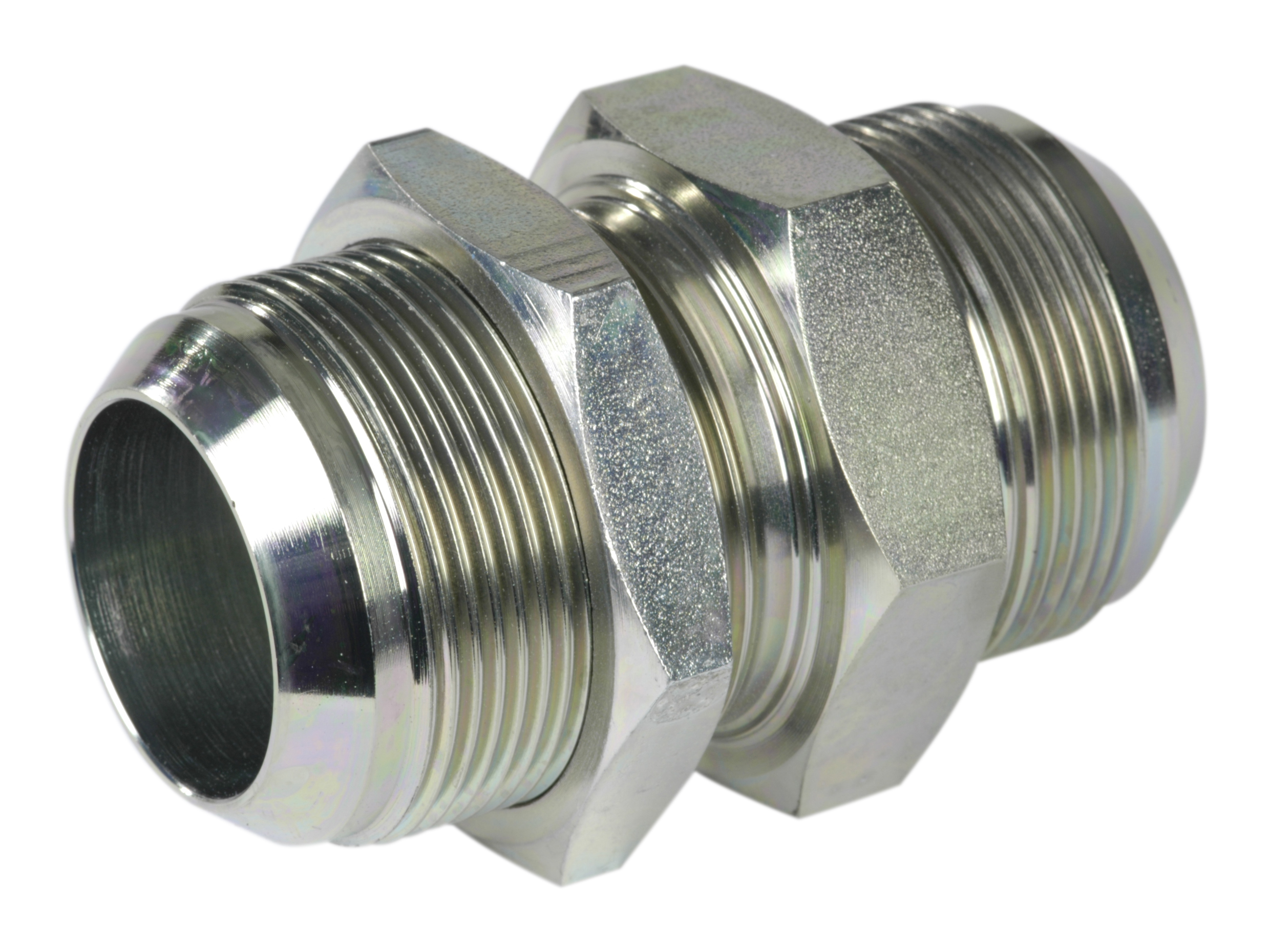

Bulkhead adapter 0° straight JIC x JIC - MUP / JSV

Bulkhead adapter 0° straight JIC x JIC - MUP / JSV

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Pressure max. Brand Name
MUP-06 S250-06L bulkhead connection 6 mm 7/16-20 JIC 450 bar FOR
MUP-08 S250-08L bulkhead connection 8 mm 1/2-20 JIC 416 bar FOR
MUP-10 S250-10L bulkhead connection 10 mm 9/16-18 JIC 350 bar FOR
MUP-12 S250-12L bulkhead connection 12 mm 3/4-16 JIC 350 bar FOR
MUP-16 S250-16L bulkhead connection 16 mm 7/8-14 JIC 350 bar FOR
MUP-20 S250-20L bulkhead connection 20 mm 1.1/16-12 JIC 300 bar FOR
MUP-25 S250-25L bulkhead connection 25 mm 1.5/16-12 JIC 290 bar FOR
MUP-32 S250-30L bulkhead connection 30 mm 1.5/8-12 JIC 240 bar FOR
MUP-38 S250-38L bulkhead connection 38 mm 1.7/8-12 JIC 250 bar FOR
Angle
0
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
