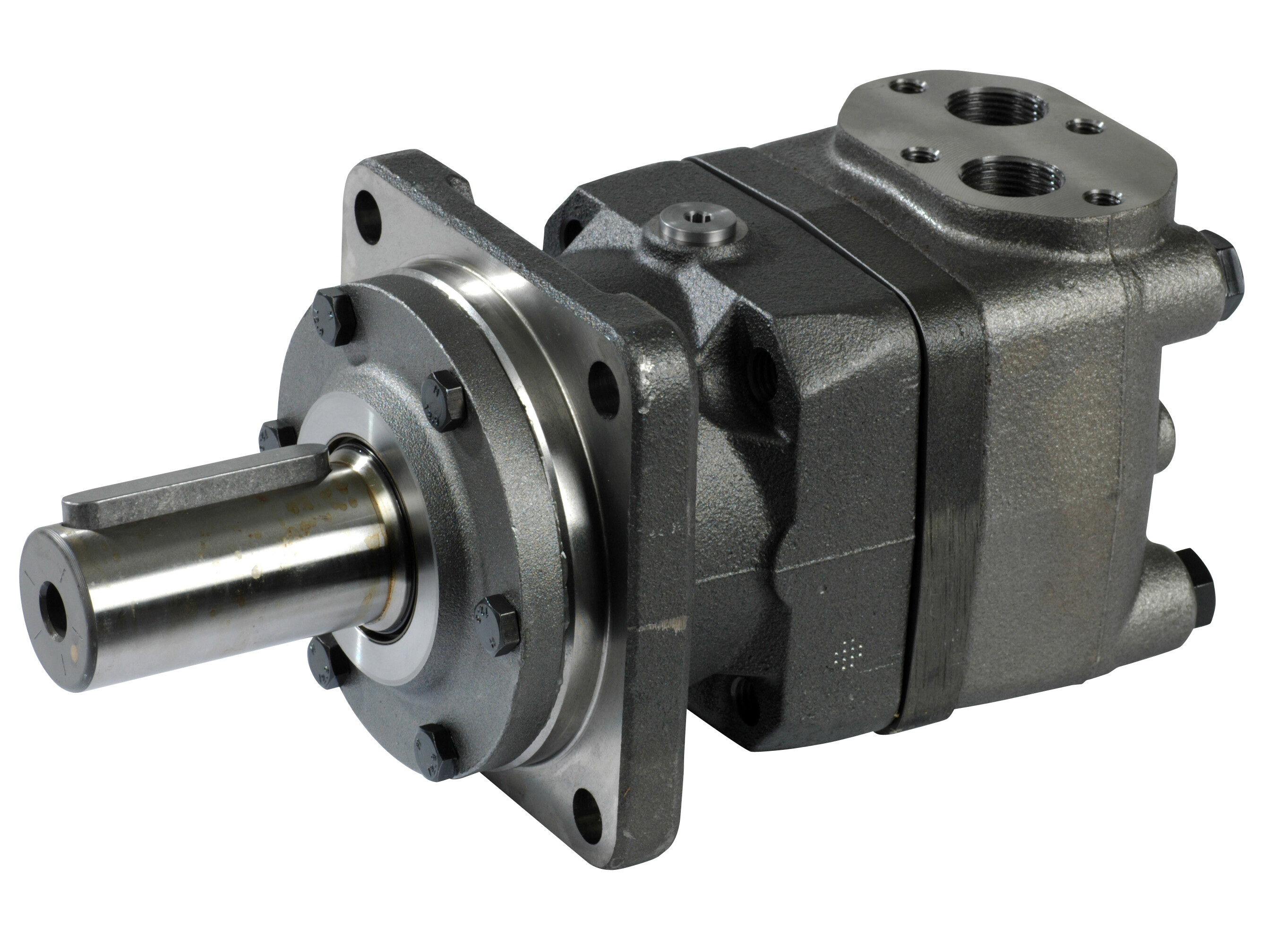

Orbital motors Danfoss OMT cylindrical shaft

Orbital motors Danfoss OMT cylindrical shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Displacement Shaft diameter Shaft type Continuous power max.
11011023 OMT 130 Orbitmotor 40mm 40 mm Cylindrical
151B3000 OMT 160 HYDRAULIC MOTOR 161.1 cm3 40 mm Cylindrical 26.5 kW
151B3001 OMT 200 HYDRAULIC MOTOR 201.4 cm3 40 mm Cylindrical 33.5 kW
151B3002 OMT 250 HYDRAULIC MOTOR 251.8 cm3 40 mm Cylindrical 33.5 kW
151B3003 OMT 315 HYDRAULIC MOTOR 326.3 cm3 40 mm Cylindrical 33.5 kW
151B3004 OMT 400 HYDRAULIC MOTOR 410.9 cm3 40 mm Cylindrical 30 kW
151B3005 OMT 500 HYDRAULIC MOTOR 523.6 cm3 40 mm Cylindrical 26.5 kW
Brand Name
Danfoss
Contamination level max.
22/20/16 - ISO 4406
Drainport
G 1/4
Holes circle
160
Mounting flange
Square 125
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Side
Recess
125,0
Shaft diameter
40
Shaft keyway
12,0
Shaft type
Cylindrical
Temperature ambient max.
+90
Temperature ambient min.
-30
Working ports
G 3/4
