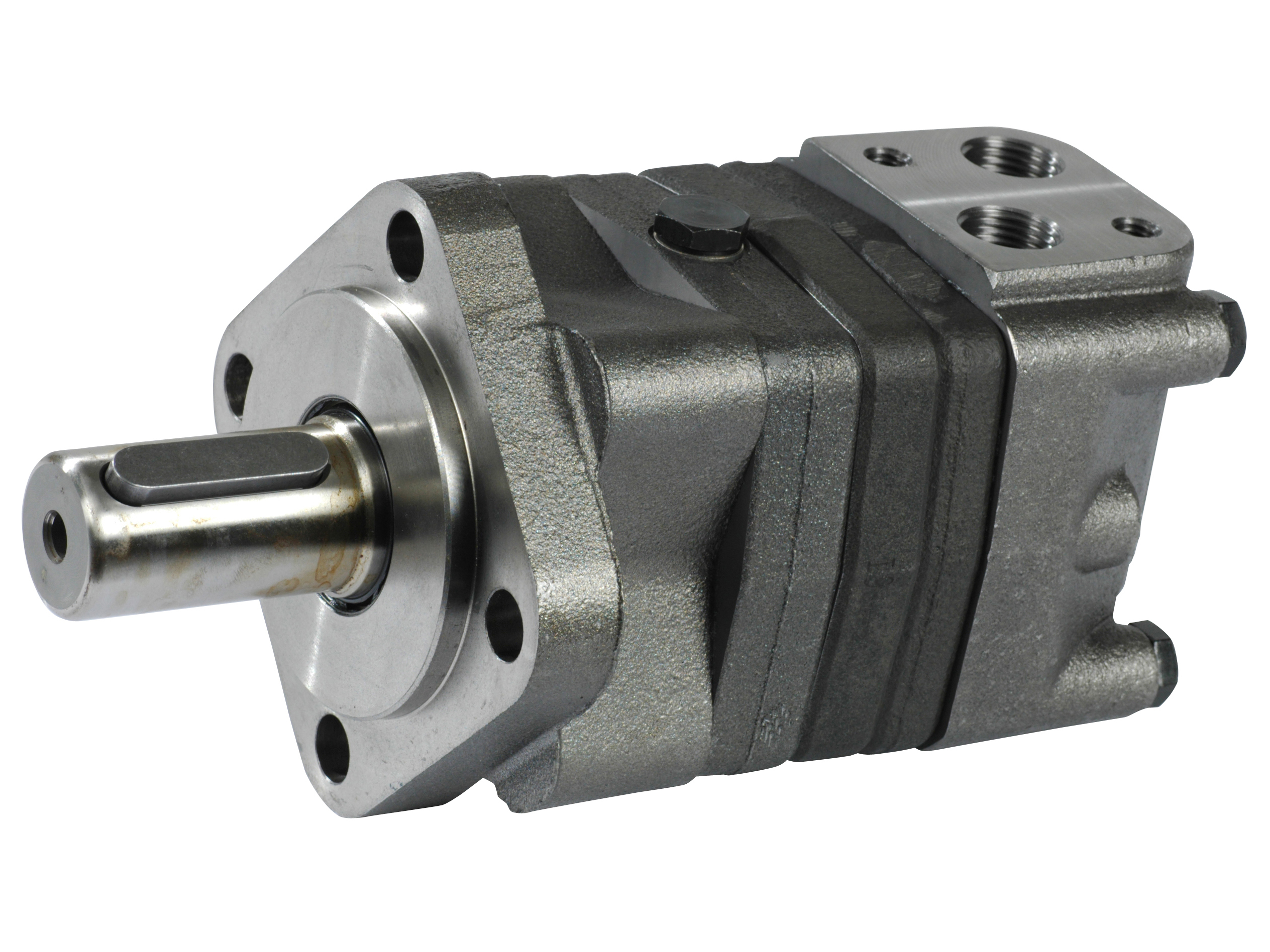

Orbital motors White OMS cylindrical shaft

Orbital motors White OMS cylindrical shaft

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Shaft diameter Shaft type Displacement Continuous rotation max.
151F0500 OMS 80 HYDRAULIC MOTOR Series 3 32 mm Cylindrical 80.5 cm3 810 rpm
151F0501 OMS 100 HYDRAULIC MOTOR Series 3 32 mm Cylindrical 100 cm3 750 rpm
151F0502 OMS 125 HYDRAULIC MOTOR Series 3 32 mm Cylindrical 125.7 cm3 600 rpm
151F0503 OMS 160 HYDRAULIC MOTOR Series 3 32 mm Cylindrical 159.7 cm3 470 rpm
151F0504 OMS 200 HYDRAULIC MOTOR Series 3 32 mm Cylindrical 200 cm3 375 rpm
151F0506 OMS 315 HYDRAULIC MOTOR Series 3 32 mm Cylindrical 314.9 cm3 240 rpm
Brand Name
White
Dimension L3
67
Drainport
G 1/4
Holes circle
106.4
Mounting flange
Square 82,5
Number of mounting holes
4
Oil viscocity recommended
20 - 75
Port position
Side
Recess
82,5
Shaft diameter
32
Shaft keyway
10,0
Shaft type
Cylindrical
Working ports
G 1/2
